Description
Ensemble Designs 11-HD Overview
- 1Description
- 2HD/SD-SDI to Analog Conversion
- 3Controls
- 4OS Compatibility
- 512-Bit Resolution
The BrightEye 11-HD HD/SD-SDI to Analog Converter from Ensemble Designs is a device designed to convert an HD-SDI or SD-SDI input to a wide range of analog output formats. When an HD input is present, HD RGB or YPrPb is output. When an SD input is present, Beta, SMPTE, RGB or composite with simultaneous Y/C is output. Processing, encoding and conversion are performed digitally at 12-bit resolution with 8X oversampling.

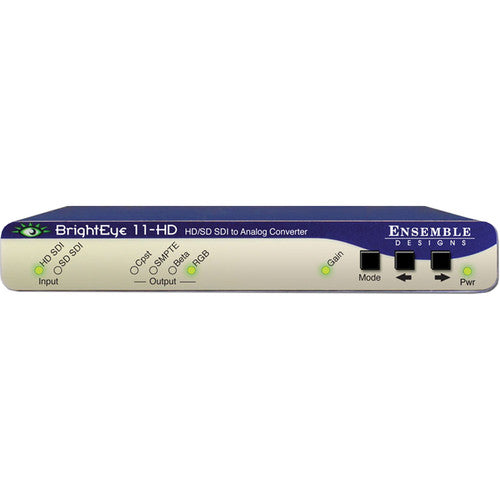

Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels can also be adjusted through the BrightEye software package that is included with the unit and compatible with both Windows and Mac operating systems.
HD/SD-SDI to Analog Conversion
Controls
OS Compatibility
12-Bit Resolution
In the Box
- Ensemble Designs BrightEye 11-HD HD/SD-SDI to Analog Converter
- Converter
- Limited 5-Year Warranty
- Description
- HD/SD-SDI to Analog Conversion
- Controls
- OS Compatibility
- 12-Bit Resolution
Ensemble Designs 11-HD Specs
| Construction | Metal, plastic |
| Finish | Blue, silver |

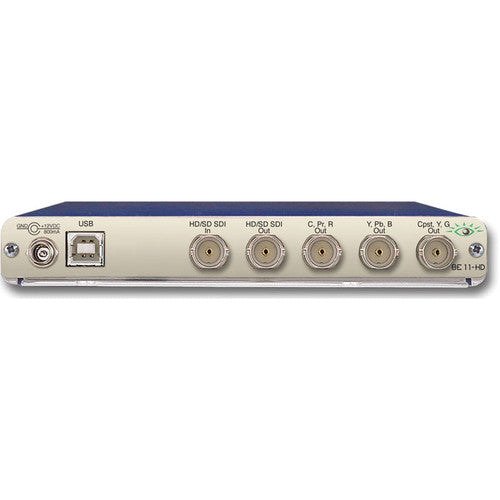

| Inputs | SERIAL DIGITAL INPUT Quantity: x1 Type: HD serial digital 1.485 Gb/s SMPTE 274M or 296M SD serial digital 270Mb/s SMPTE 259M-C Impedance: 75Ω Return loss: >15dB Maximum cable length: (328) 100m for HD (984) 300m for SD (Belden 1694A or equiv.) HD standards supported: 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz 720p (SMPTE 296M -1,2,3) 59.94 or 60Hz 1080p (SMPTE 274M -9,10,11) 23.98,24, 25 1080sF (RP211 -14,15,16) 23.98, 24, 25Hz |
| Outputs | ANALOG OUTPUT -HD input yields HD analog out -SD input yields SD analog out Quantity: x1 component, or x1 composite & x1 Y/C Type: Beta/SMPTE, Y, Pr, Pb RGB NTSC, PAL Composite NTSC, PAL S-Video Return loss: >40dB Output: DC none (AC coupled) SERIAL DIGITAL OUTPUT |
| Conversion | SDI-to-ANALOG PERFORMANCE Bit resolution: 12-bit output reconstruction 8X oversampling Signal to noise: >65dB Frequency response: ±0.1dB, 0 to 5.5MHz K Factor: <1% ScH phase error: <±2° Differential phase: <1° Differential gain: <1% |
| Power | 12V, 7W *100 to 230VAC modular power supply not included |
| Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) |
| Weight | Not specified by manufacturer |
| Package Weight | 2.55 lb |
| Box Dimensions (LxWxH) | 8.8 x 8 x 4.8" |
