| ₹ 113345.0 includes GST and import duties. | |
| B2B customers can avail ₹ 17285.11 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
ENTTEC Pixelator Mini Overview
- 1Description
- 2Details
- 3Multi-Protocol Support
- 4Protocol Flexibility
- 5Synchronization
- 6Protected Data Ports, Surge Protection
- 7Compatibility

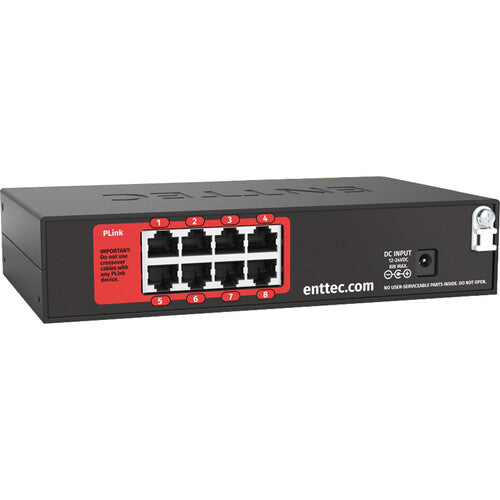

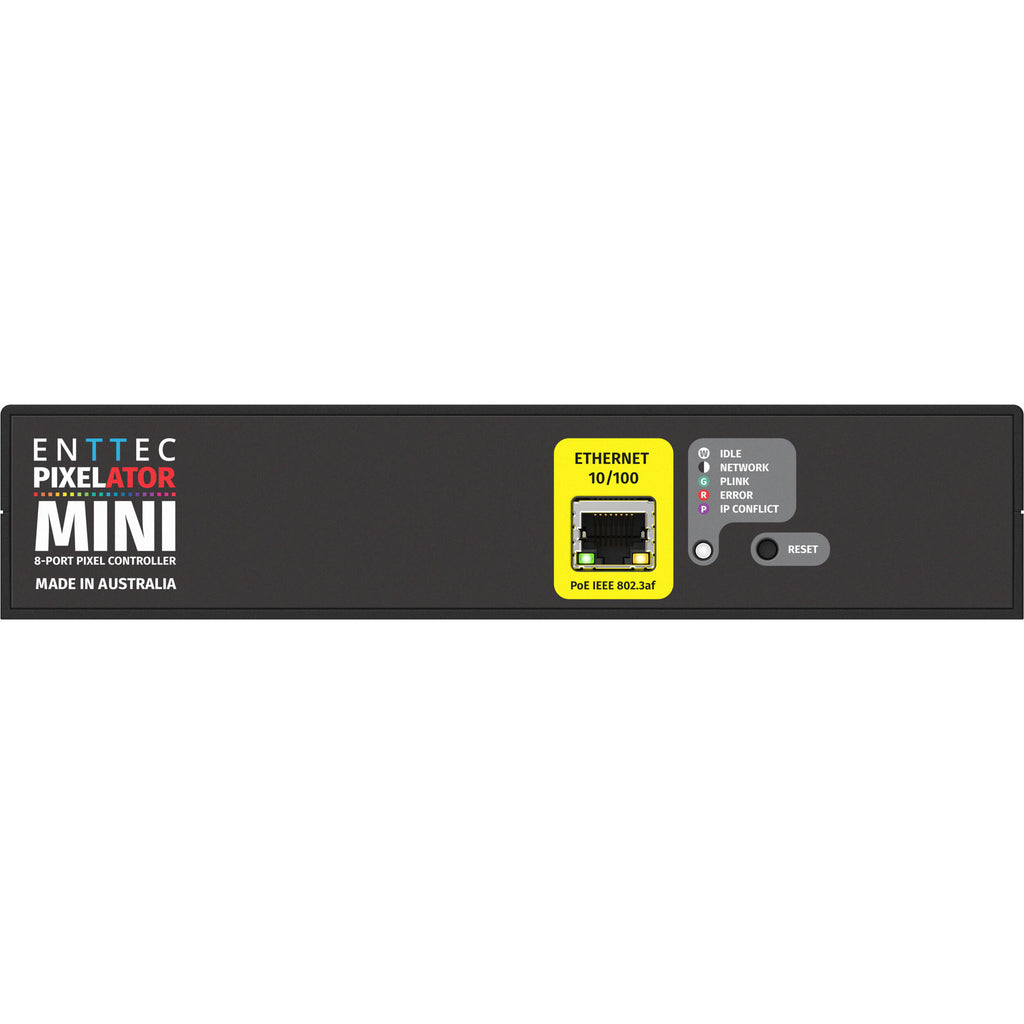

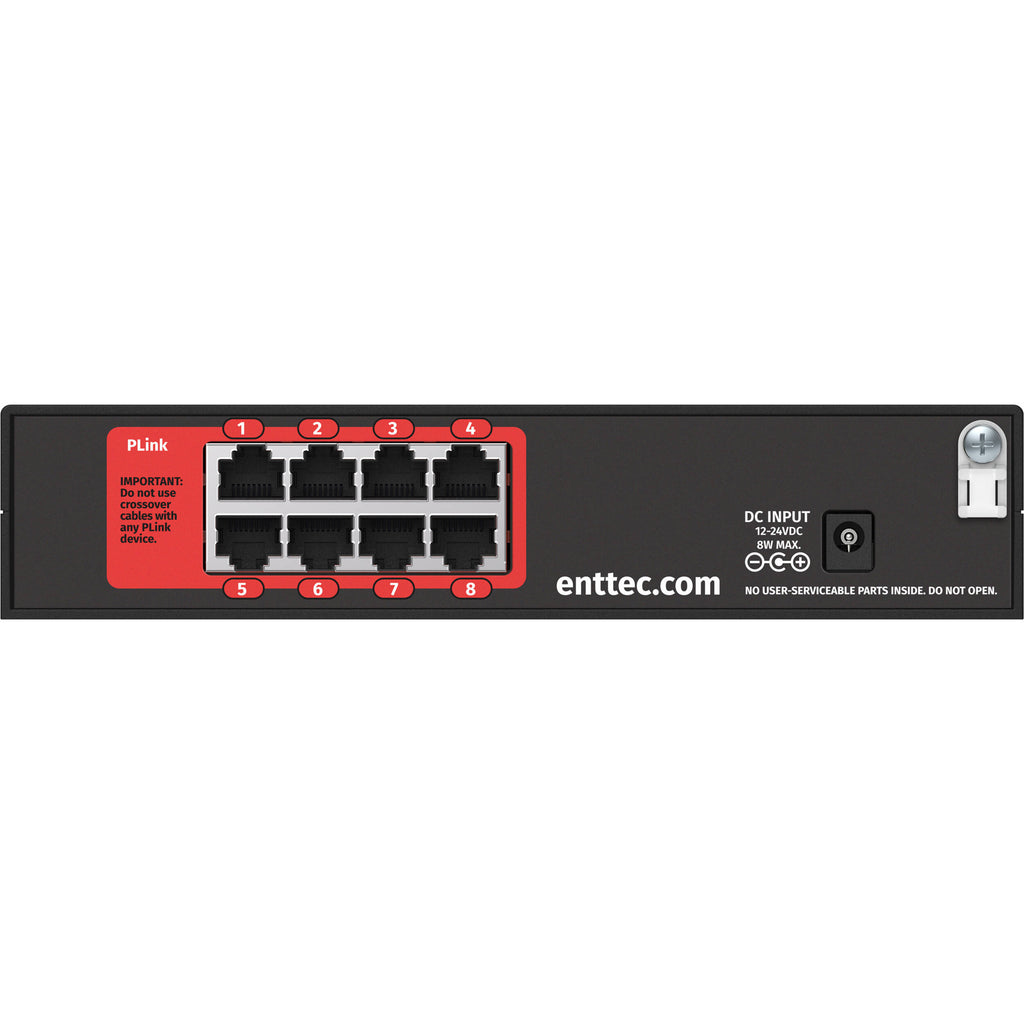

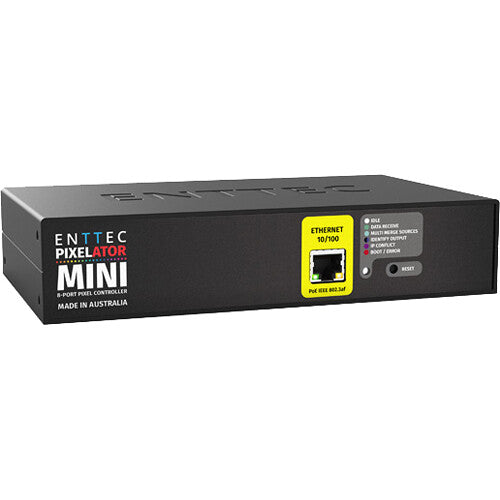

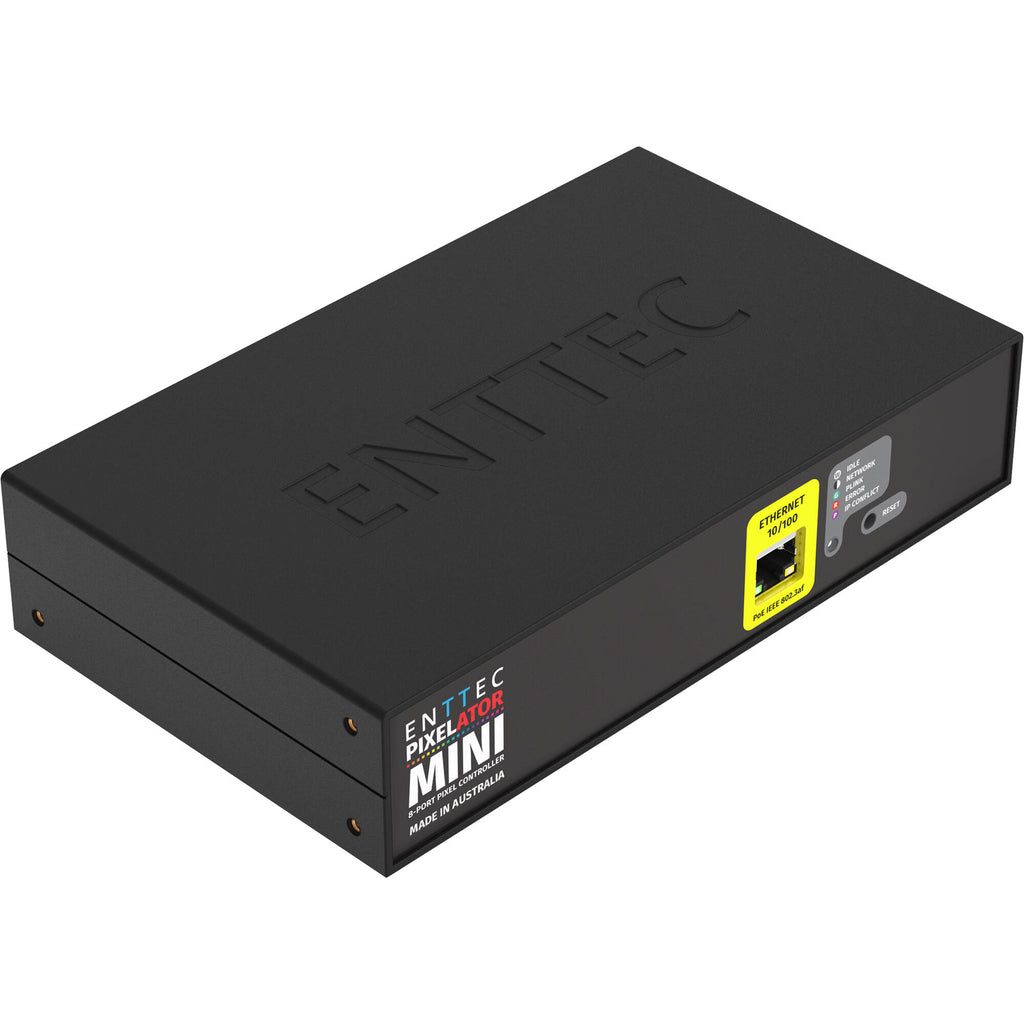

Control LED pixel dots and strips with ease using the Pixelator Mini LED Pixel Converter from ENTTEC. This compact device can control up to 8192 channels (2730 RGB pixels) across its eight PLink outputs with synchronization and a high refresh rate. A practical lighting control solution with up to 16 universes of Ethernet-DMX to pixel protocol conversion. You get individual port web-based configuration for protocol options, color order arrangement, pixel grouping function, wiring identification, and more. Included mounting accessories allow surface, DIN rail, and rack mounting, making the Pixelator Mini a versatile LED pixel control device. ENTTEC also includes an ELM LED mapping software license for your convenience.
Details
- Controls up to 16 universes of pixels (2048 RGBW / 2730 RGB / 8192 W)
- eDMX to SPI controller makes your installation run smoothly
- Select any input universe number and assign it to any output port
- Configurable pixel ordering
- Pixel grouping reduces the DMX input control channel count
- Static or DHCP network settings
- LED indicators for status
- Customize output protocols to suit your fixtures
- Power options include PoE or DC 12-24V input
- Intuitive, easy-to-use web interface
Multi-Protocol Support
- Art-Net
- sACN
- ESP
Protocol Flexibility
The device can output more than 20 built-in pixel output protocols. You can even output up to two different protocols simultaneously via ports 1 to 4 and 5 to 8.
Synchronization
The Pixelator Mini features an internal buffer and sync logic to ensure all eight PLink output ports are synchronized. Besides that, ArtSync makes sure multiple devices are also synchronized, avoiding content tearing on the output of your pixels.
Protected Data Ports, Surge Protection
The unit is designed to block DC power entering each of the data ports in the case of a short circuit or incorrect wiring. Additionally, the Pixelator Mini was engineered with two layers of rock-solid surge protection for extra safety.
Compatibility
The Pixelator Mini is compatible with most LED strips and dots on the market as well as with third-party software and applications.
In the Box
- ENTTEC Pixelator Mini LED Pixel Converter
- Cat 5 Cable (6.5')
- Power Adapter (12V)
- 2 x Rack Bracket
- 2 x Surface/DIN Bracket
- DIN Clip
- 14 x Screw
- 16-Universe ELM Software License
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Details
- Multi-Protocol Support
- Protocol Flexibility
- Synchronization
- Protected Data Ports, Surge Protection
- Compatibility
ENTTEC Pixelator Mini Specs
Key Specs
| Inputs/Outputs |
8 xRJ45 Output
1 xDC Barrel (Power) Input 1 xRJ14 (10/100 Ethernet) Input |
| Channels |
8192
|
| Power Source |
AC Adapter
|
| Protocol |
ArtNet, sACN, ESP, PLINK
|
General
| Inputs/Outputs |
8 xRJ45 Output
1 xDC Barrel (Power) Input 1 xRJ14 (10/100 Ethernet) Input |
| Channels |
8192
|
| Dimming |
Optional
|
| Cooling System |
Active
|
Power
| Power Source |
AC Adapter
|
| Power Consumption |
8 W
|
| DC Input Power |
12 to 24 VDC
|
| PoE Port Power |
Yes
|
Compatibility
| Protocol |
ArtNet, sACN, ESP, PLINK
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Humidity |
0 to 95% Non-Condensing Operating
|
| Environmental Protection |
Advertised as Dust Resistant
*Manufacturer Testing: IP20 |
Physical
| Material of Construction |
Aluminum, Plastic
|
| Rack Mount |
Yes
|
Packaging Info
| Package Weight |
2.385 lb
|
| Box Dimensions (LxWxH) |
13.1 x 10.4 x 3.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 111078.1 |
| 3-5 | ₹ 109944.65 |
| 5-10 | ₹ 107677.75 |
| 10+ | ₹ 105410.85 |
Bulk discount will be automatically applied during checkout based on quantity.
