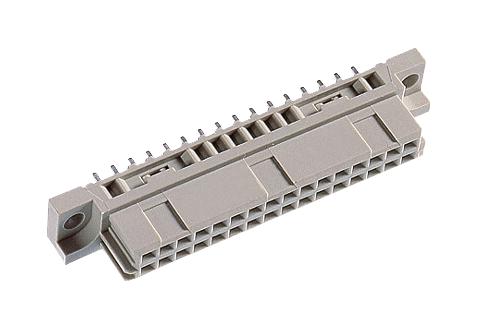

- DIN 41612 female straight, type B/2, 32 contact receptacle with 32 contacts
- IEC 60603-2 (DIN 41612) specification
- Performance level 2
- Solder termination technology and 16.85mm board-to-board distance
- Insulator material is PBT glass filled UL 94 V-0
- Copper alloy contact material
- Durability of 400 mating cycles
- 1.5A operational current and 1000V test voltage
- Operating temperature range from -55°C to +125°C
- UL file E130314 approval
Other details
| Brand |
EPT |
| Part Number |
102-90065 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
