Description
- 8 x MIDI 5-Pin Ports
- Per-Port Input or Output Functionality
- Integrated 3-Port USB Hub
- Automatic Signal Detection
- I/O Status Indicated via Red/Green LEDs
- USB 3.1 Gen 1 Host Connection
- Supports Standalone / USB-Host Operation
- Powered via USB or 5 VDC Power Supply
- Includes USB Cable & Power Supply
- Class Compliant with macOS & Windows
The ESI M4U eX is an 8-port USB 3.1 Gen 1 MIDI interface with a USB hub offering automatic port configuration and flexible routing for composers, producers, beatmakers, and synth aficionados. Ideal for connecting a variety of keyboards, drum machines, and synth modules with or without a computer, it supports standalone and USB-to-host operation. It features eight MIDI 5-pin ports�each automatically assigned as an input or output according to the signal detected�and per-port red/green LEDs for easy I/O status indication.
An integrated 3-port USB hub on the rear panel allows convenient hookup of USB devices such as a keyboard, mouse, and authorization dongle. The M4U eX is class compliant with macOS and Windows computers, and connects to your host via USB 3.1 Gen 1. It can be powered via USB (excluding the USB hub) or a 5 VDC power supply (including the USB hub). The M4U eX is supplied with a USB cable and power supply.
- 100% class compliant, works without driver installation

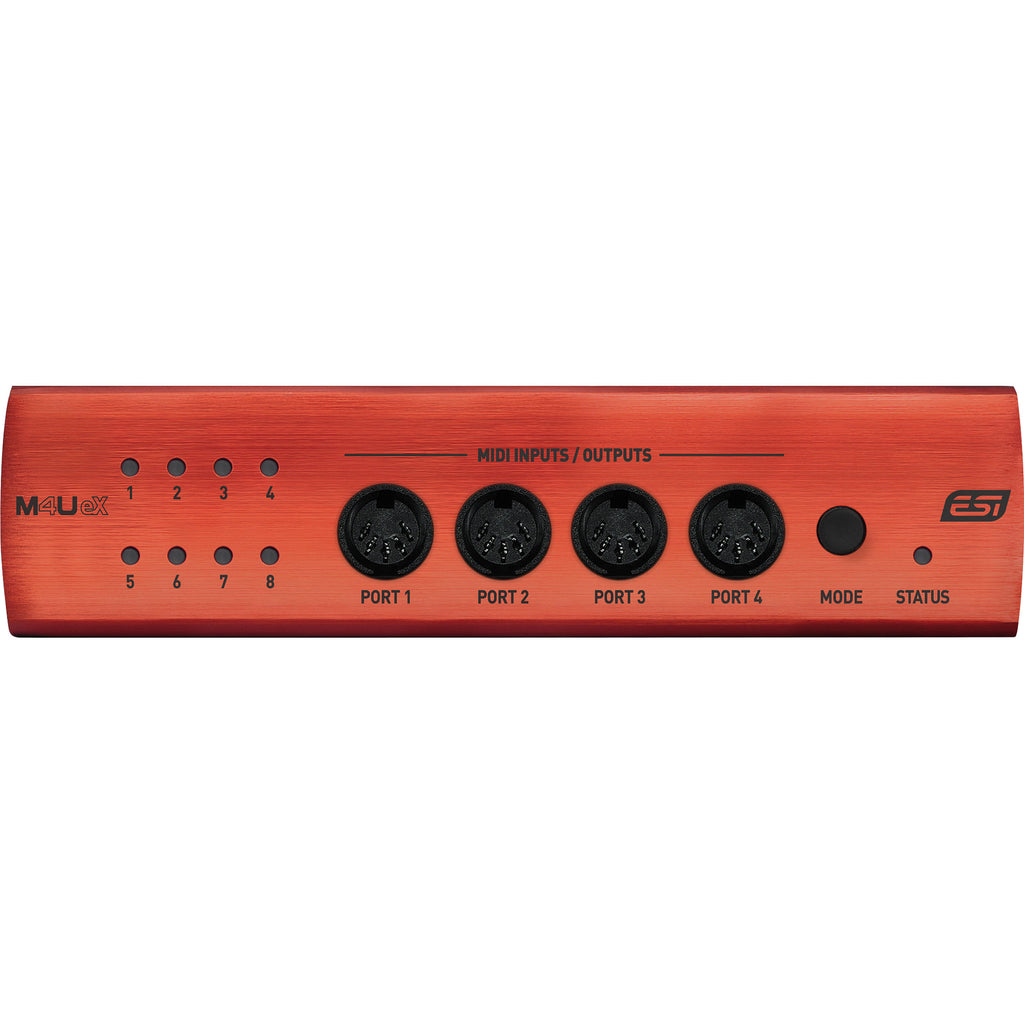

- Compact MIDI interface with eight MIDI ports; four on the front and four on the rear
- Automatic signal detection allows each MIDI port to work as an input or output
- Front-panel LEDs indicate each port's status as input (green LED) or output (red LED)
- Operates in standalone or USB-to-host mode
- Dedicated mode selector and status LED
- Integrated 3-port USB hub allows connection of USB devices such as a keyboard, mouse, and dongle
- Standalone mode enables MIDI thru and MIDI merge configurations without a computer
- Backward compatible to USB 2.0
- Rear-panel laptop lock connector
- Supports simultaneous use with multiple units (available separately)
ESI ESIM4UEX Specs
| System Requirements | Class Compliant with macOS (32-/64-Bit) Available USB 3.1 Gen 1 Port or USB 2.0 Port Class Compliant with Windows 7, 8.1, and 10 (32-/64-Bit) Available USB 3.1 Gen 1 Port or USB 2.0 Port |
| MIDI Connectors | 8 x MIDI 5-Pin DIN Ports (Input or Output per Port) |
| USB Connectors | 1 x USB 3.1 Gen 1 Type-B Port 3 x USB 3.1 Gen 1 Type-A Ports |
| Power Requirement | Bus Power (Excludes USB Hub) 5 VDC Power Supply (Includes USB Hub) |
| Dimensions (W x H x D) | Approximately 6.9 x 1.8 x 4.7" / 17.5 x 4.5 x 12.0 cm |
| Weight | 1 lb / 0.5 kg |
| Packaging Info | |
|---|---|
| Package Weight | 1.995 lb |
| Box Dimensions (LxWxH) | 11.3 x 5.7 x 3.2" |
