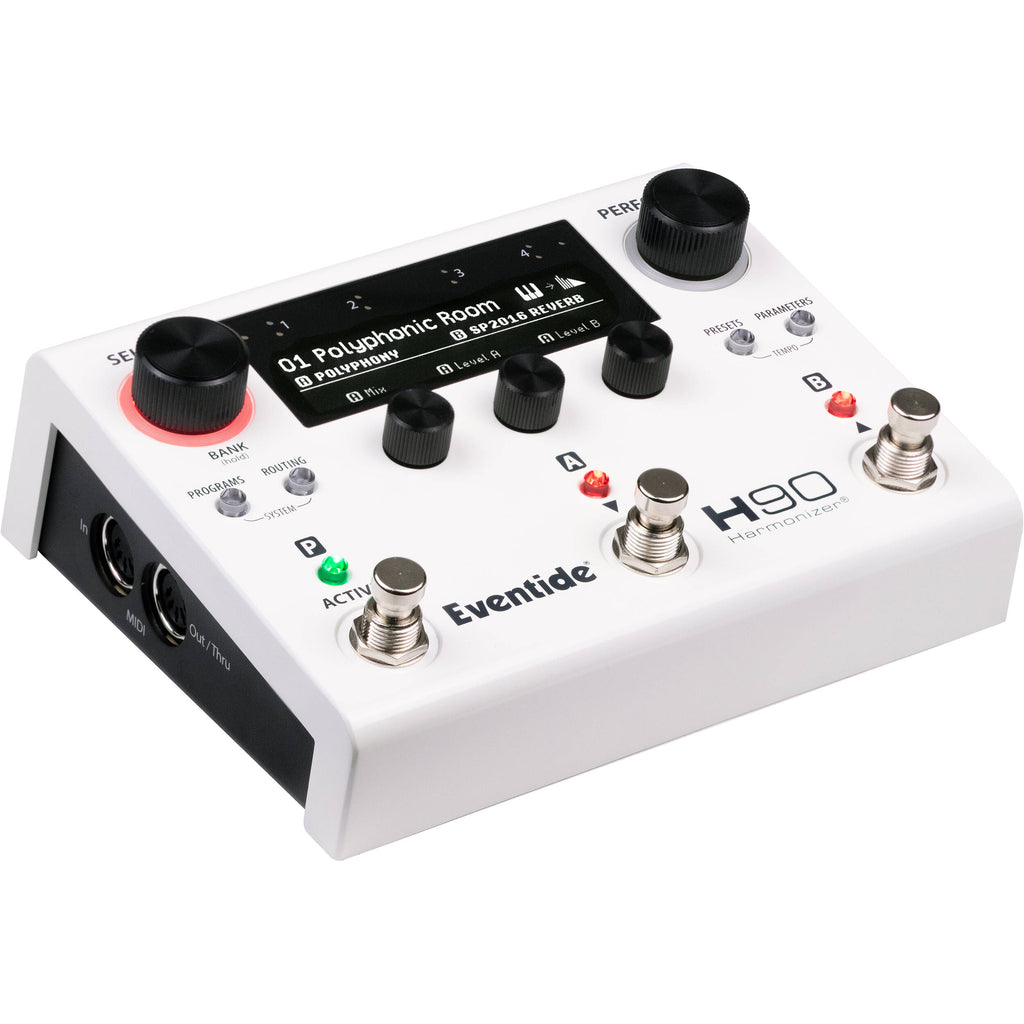

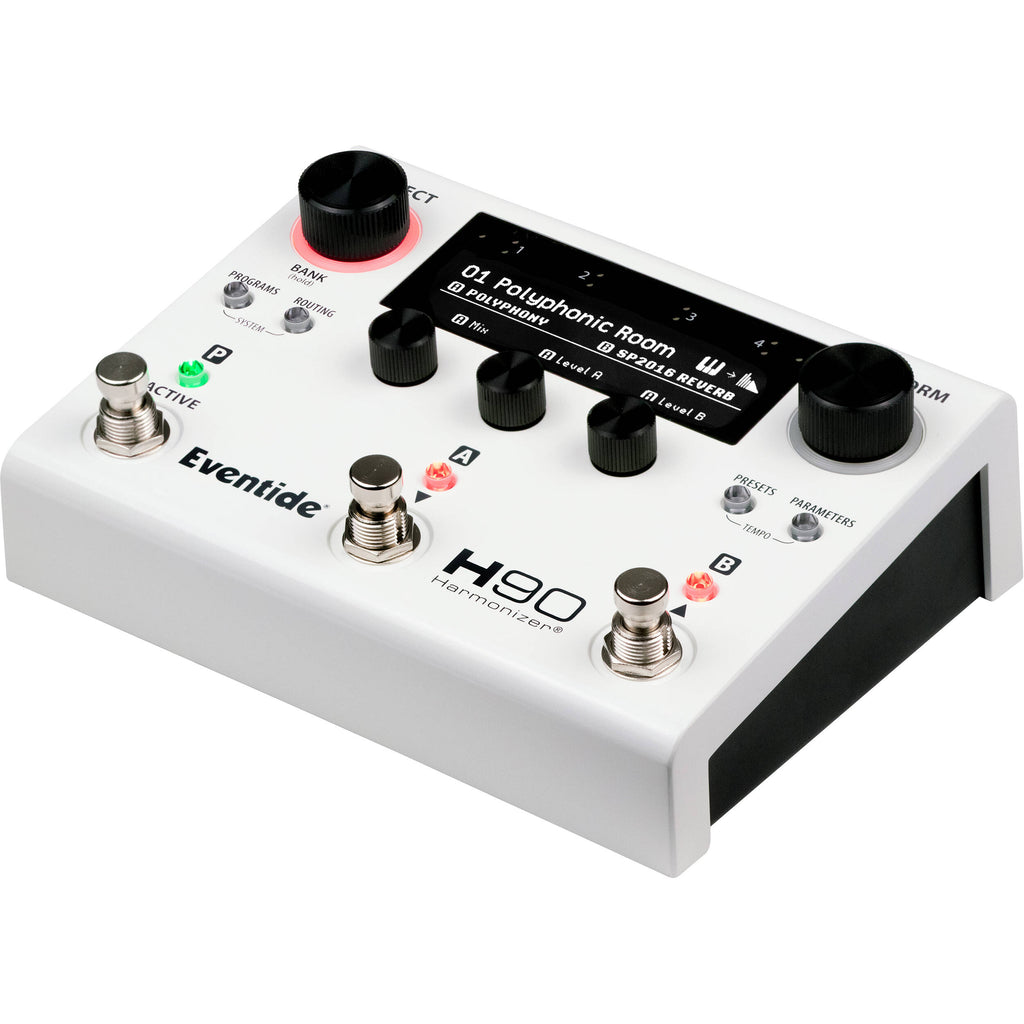

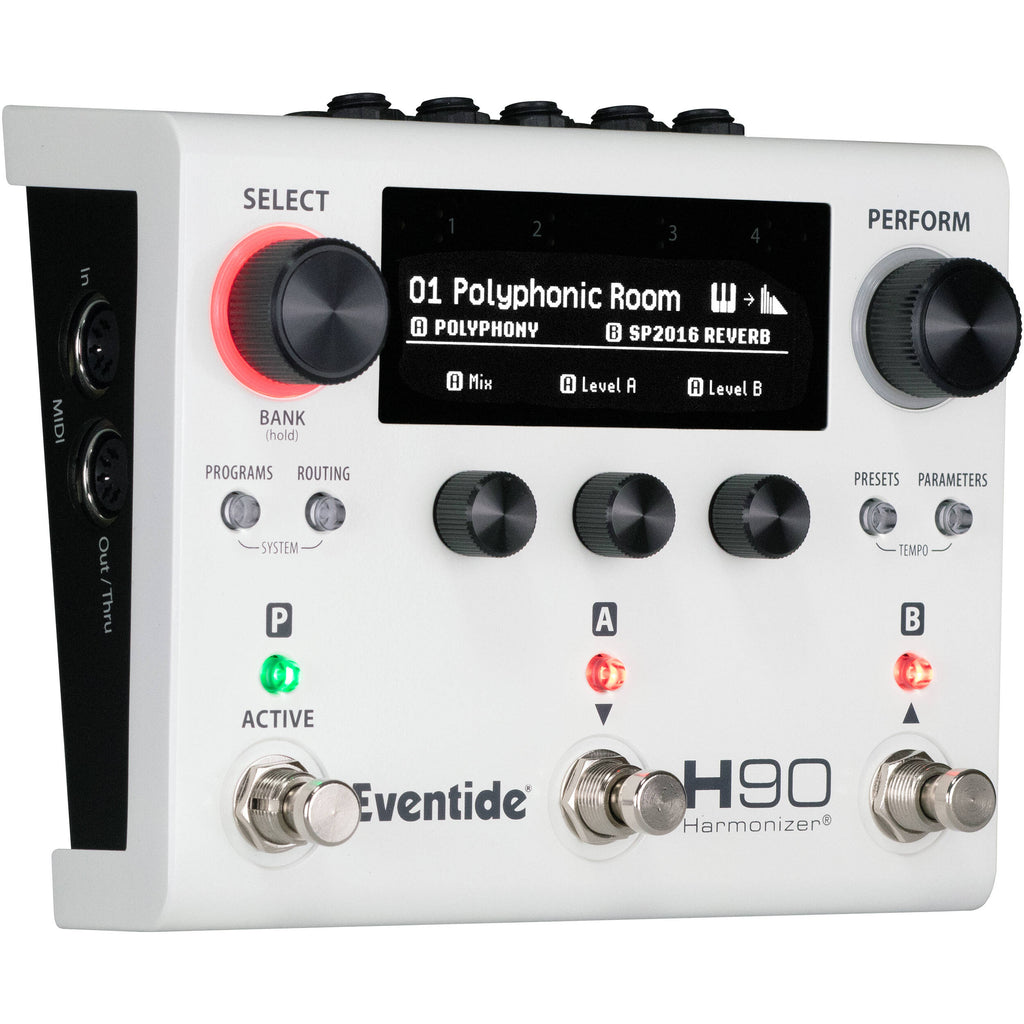

Eventide H-90 Harmonizer Multi-FX Pedal

The Heart of Your Rig

The Eventide H-90 Harmonizer is designed to sit at the heart of your pedal-board, with high-quality sound effects, powerful CPU architecture, sophisticated I/O, and an incredibly intuitive interface. Some of these features include:

• Hundreds of factory presets, which can be loaded in either SELECT or BANK mode
• Two algorithms at once per program
• True spillover between programs
• Route effects in series or parallel
• Instrument or line-level operation
• Two mono inserts or one stereo insert can be positioned anywhere in the signal chain
• Dual mode for processing two stereo signals at once
• Five push-turn knobs for tactile control

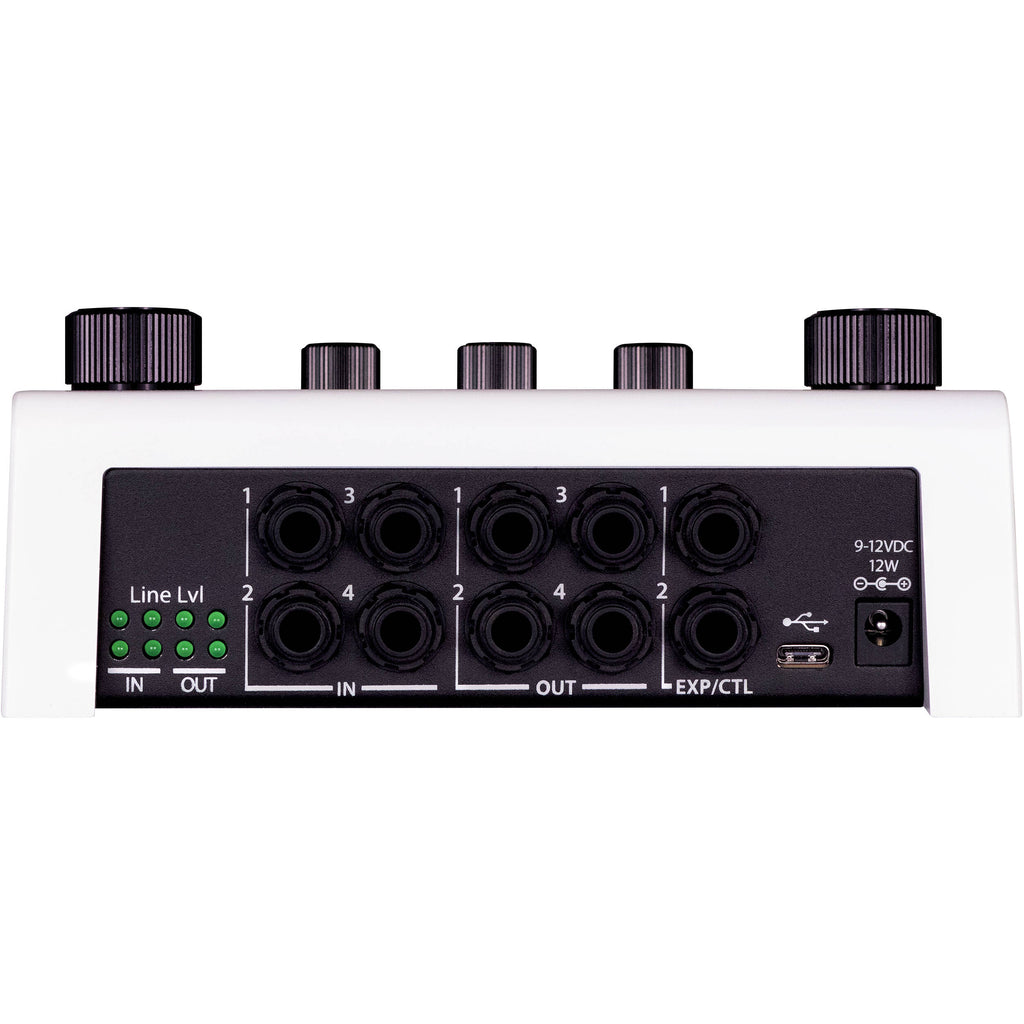

• Four 1/4" inputs (two stereo pair), four 1/4" outputs (two stereo pair), and two expression/control/CV inputs
• Two MIDI 5-pin DIN jacks for input, output, and thru
• One USB-C jack for software editing

New Technology, New Effects

H90 Harmonizer features modern ARM-based architecture derived from the world's most powerful effects processor, Eventide's flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch shifting effects of the H9 Max but goes far beyond with 10 new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting.

Seven new algorithms exploit the H-90's raw power:

• Polyphony�Pitch shift chords with ease using SIFT technology. Create rising or sinking chorus and crystals-type effects. Use freeze to generate pad textures.
• Prism Shift�Generate three voices from a single chord whose intervals are separated, staggered, and pitch-shifted to create four arpeggio types spanning up to three octaves.
• Even-Vibe�Authentic Uni-Vibe emulation reimagined in stereo with envelope followers.
• Head Space�Vintage four-head tape delay with classic and modern creative tone-shaping controls for grit, spatiality, and character.
• Bouquet Delay�Bucket brigade delay (BBD) with modulation, lo-fi, and modern flavors; includes pitch jump and self-oscillation performance functions.
• Wormhole�A megasized hypermodulated reverb with pitch-warping performance.
• Weedwacker�Two-stage serial overdrive reminiscent of a famous green pedal.

Three algorithms from Eventide's acclamed rackmount processors place these legendary effects at your feet:

• Instant Phaser�Authentic emulation of the world's first studio phaser from 1971, notably used in Led Zeppelin's Kashmir.
• Instant Flanger�Authentic emulation of the world's first studio flanger heard on countless hit records.
• SP2016 Reverb�The legendary room, stereo room, and hi-density plate from the original studio rack.

All previous H9 Max algorithms have been enriched with features previously only available on the dot9 pedals and plug-ins. Others have been enhanced to take advantage of the new advanced pitch-shifting.

Twin-Turbo Power

Two of these already impressive algorithms can be combined into a program to create novel, inspiring sounds. H-90 Harmonizer's dual-algorithm design features true spillover between programs, series or parallel effect routing, and flexible I/O. Two mono inserts allow you to incorporate outboard effects in any configuration or combine them for one stereo insert. Optimize your signal flow with instrument or line level operation and full gain controls to incorporate H-90 into your rig or make it the centerpiece. Dual Mode lets you do things like connect using the four-cable method, achieving unique tones through your amp FX loop, or process two independent stereo instruments at once.

Live Performance Machine

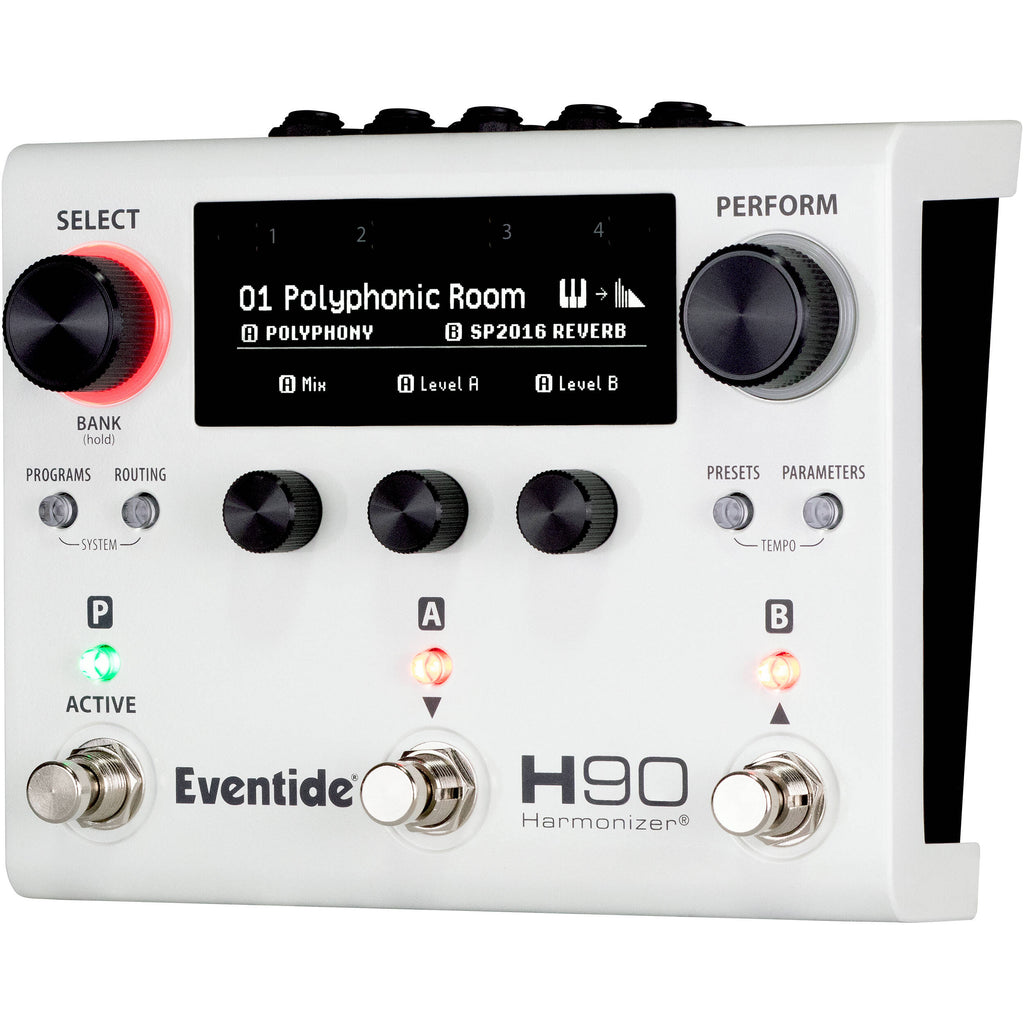

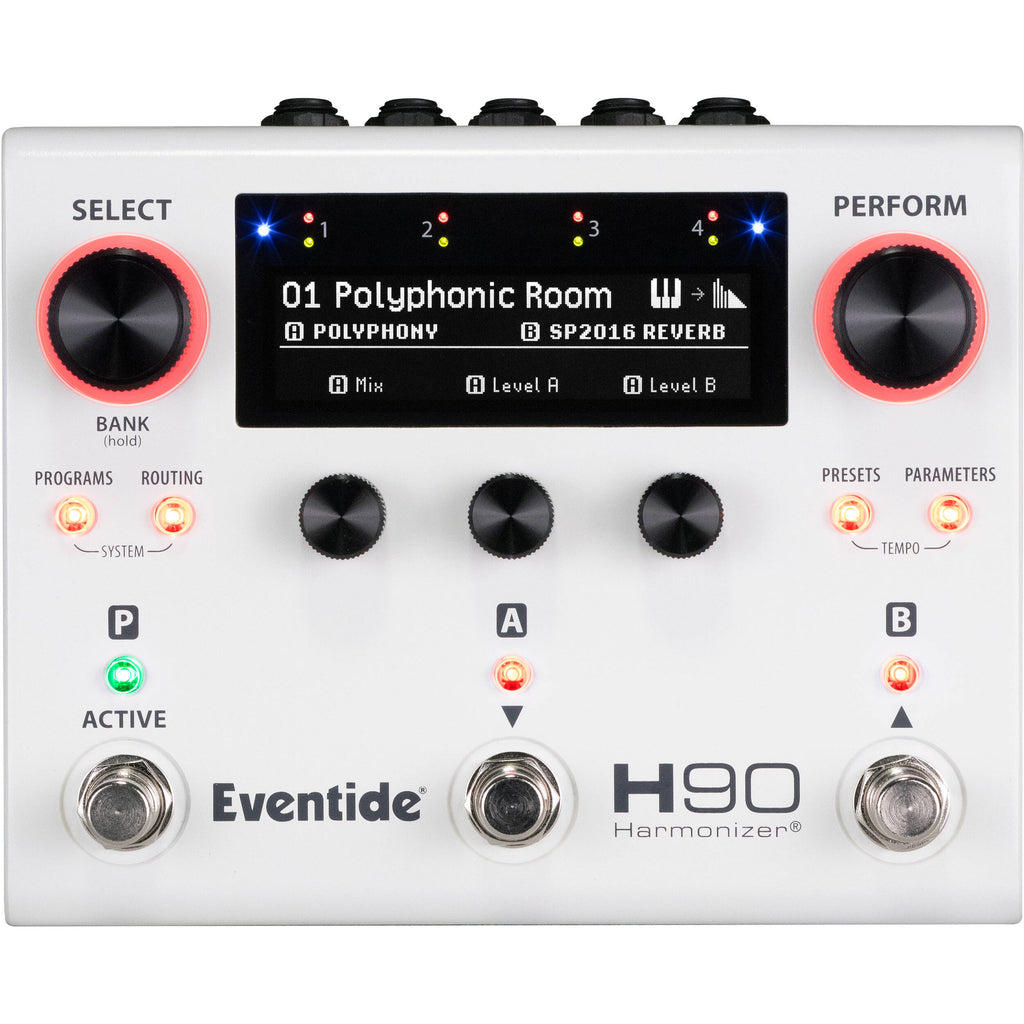

The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback. Two large push knobs allow you to switch between SELECT, BANK, and PERFORM modes with ease. In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset, insert bypass or momentary states; use them to engage options like reverb freeze, pitch flex, or delay repeat; make multiple instantaneous parameter changes with three HotSwitches.

The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary switches with up to three buttons. If that wasn't enough, take advantage of the pedal's extensive MIDI control. The H-90 also comes with a built-in tuner.

Select Presets Your Way

The H90 comes with hundreds of factory Programs, which can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of 3 Programs, perfect for cueing up a range of sounds for a song. Organizing your favorite sounds has never been easier; simply load a new Playlist and you're ready for the next gig.
