Description
FeelWorld ATEM173 Overview

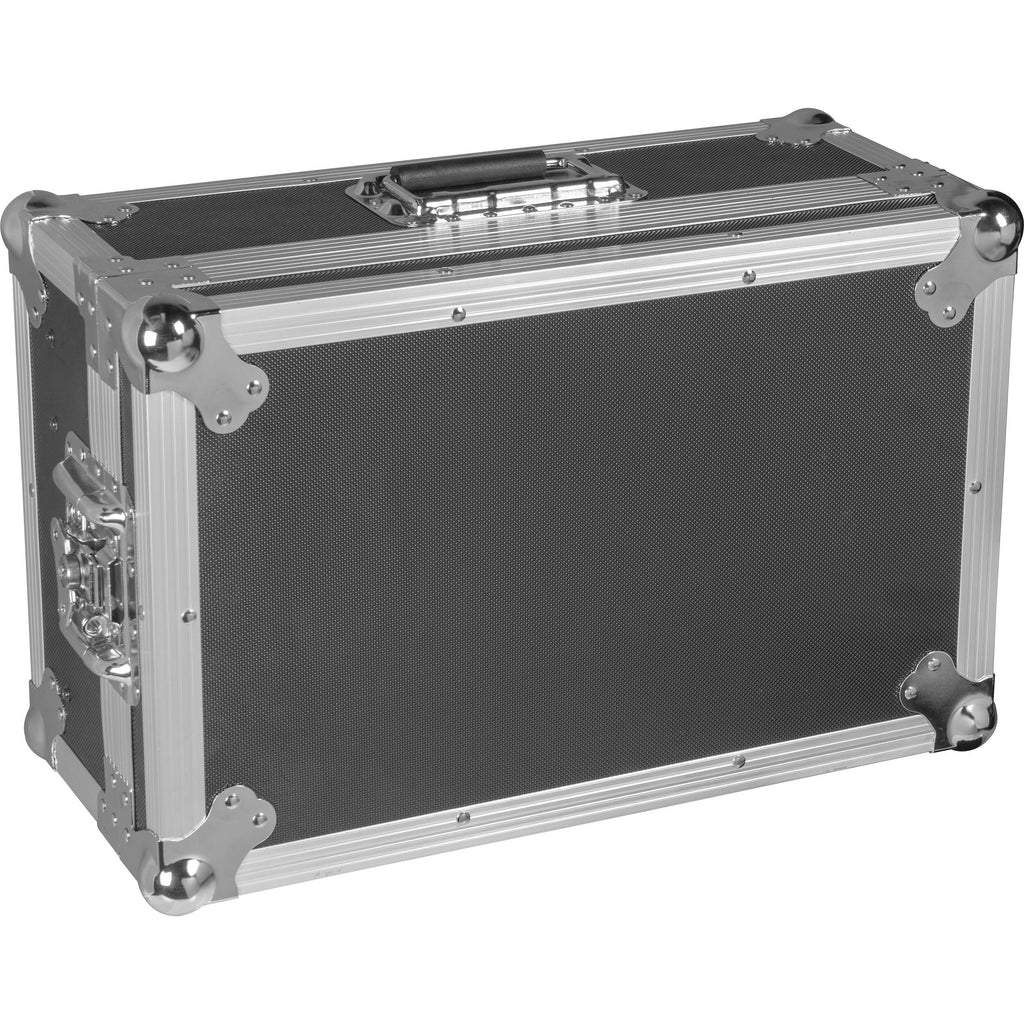

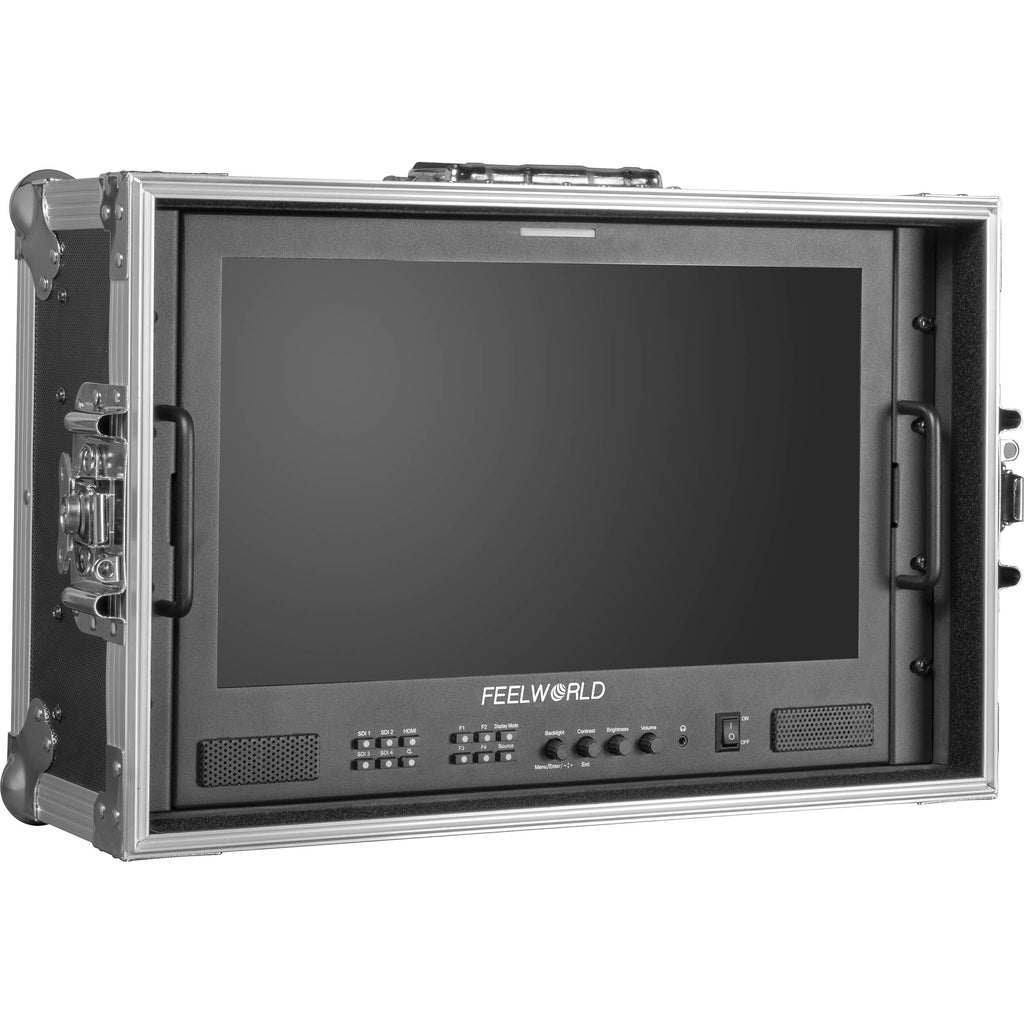

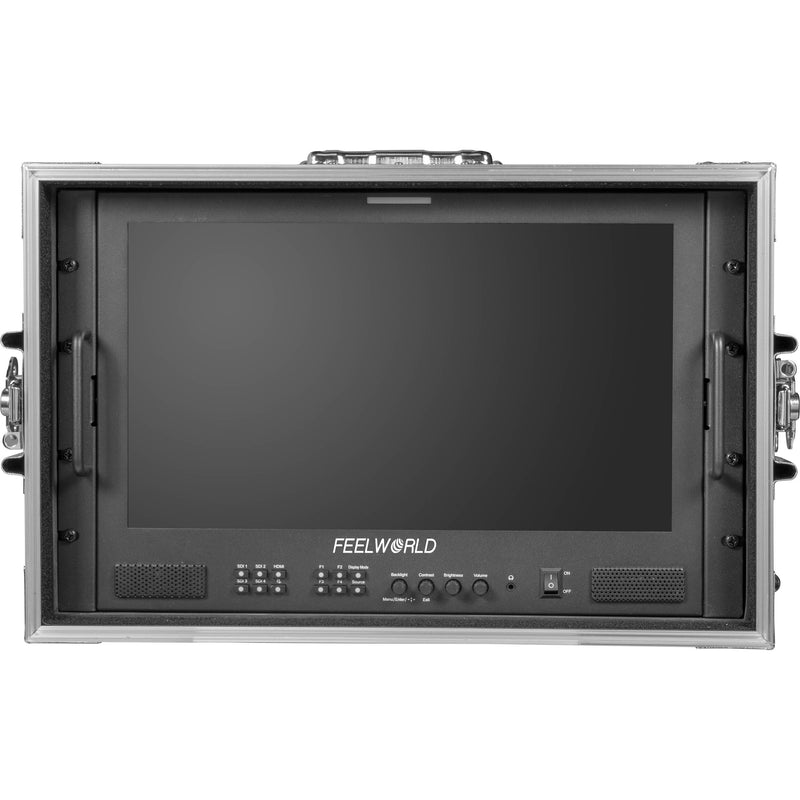

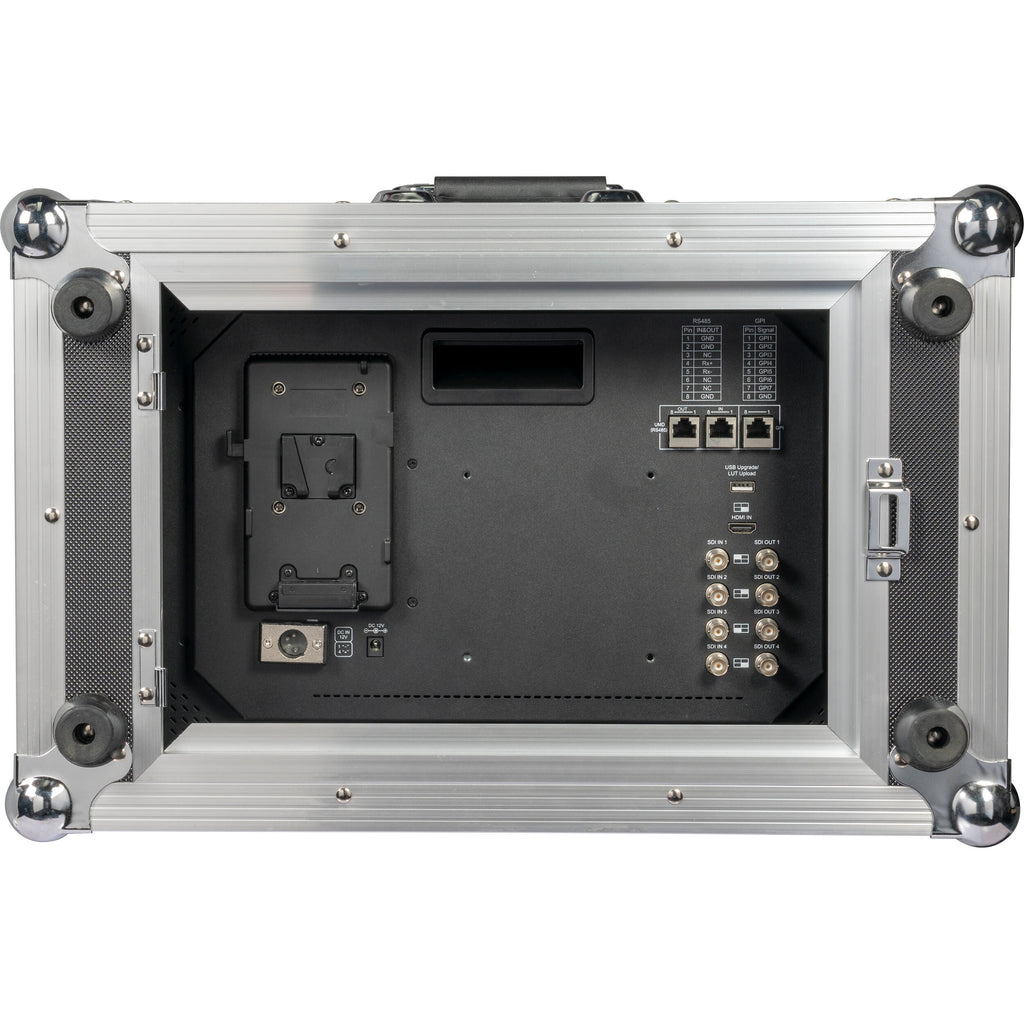

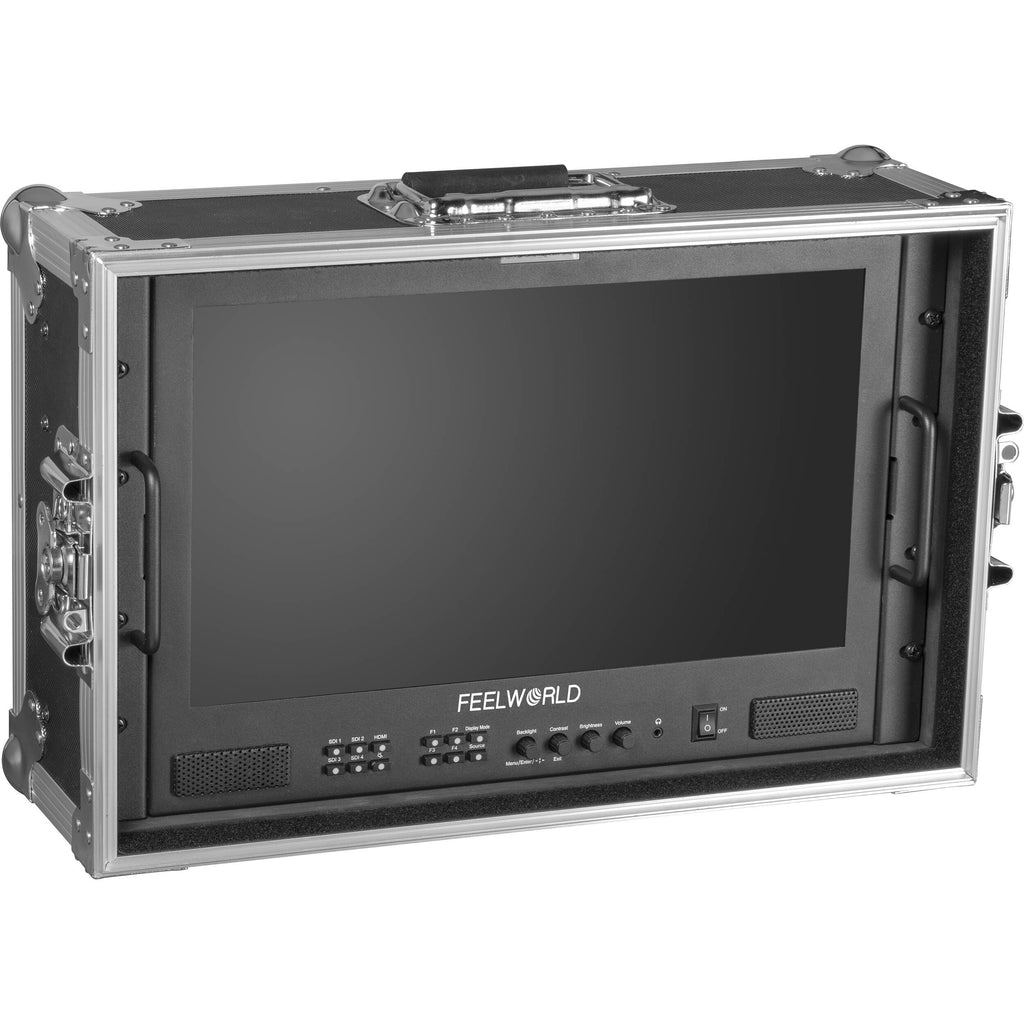

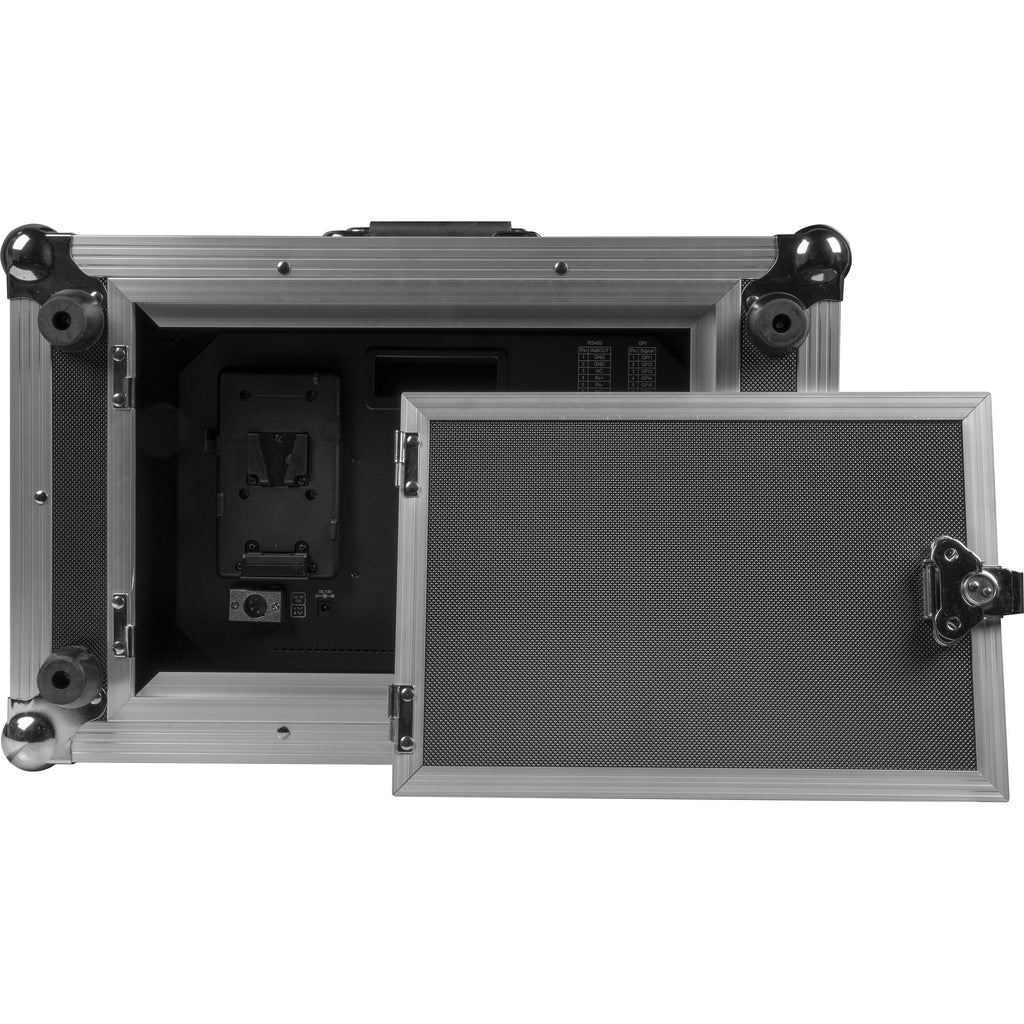

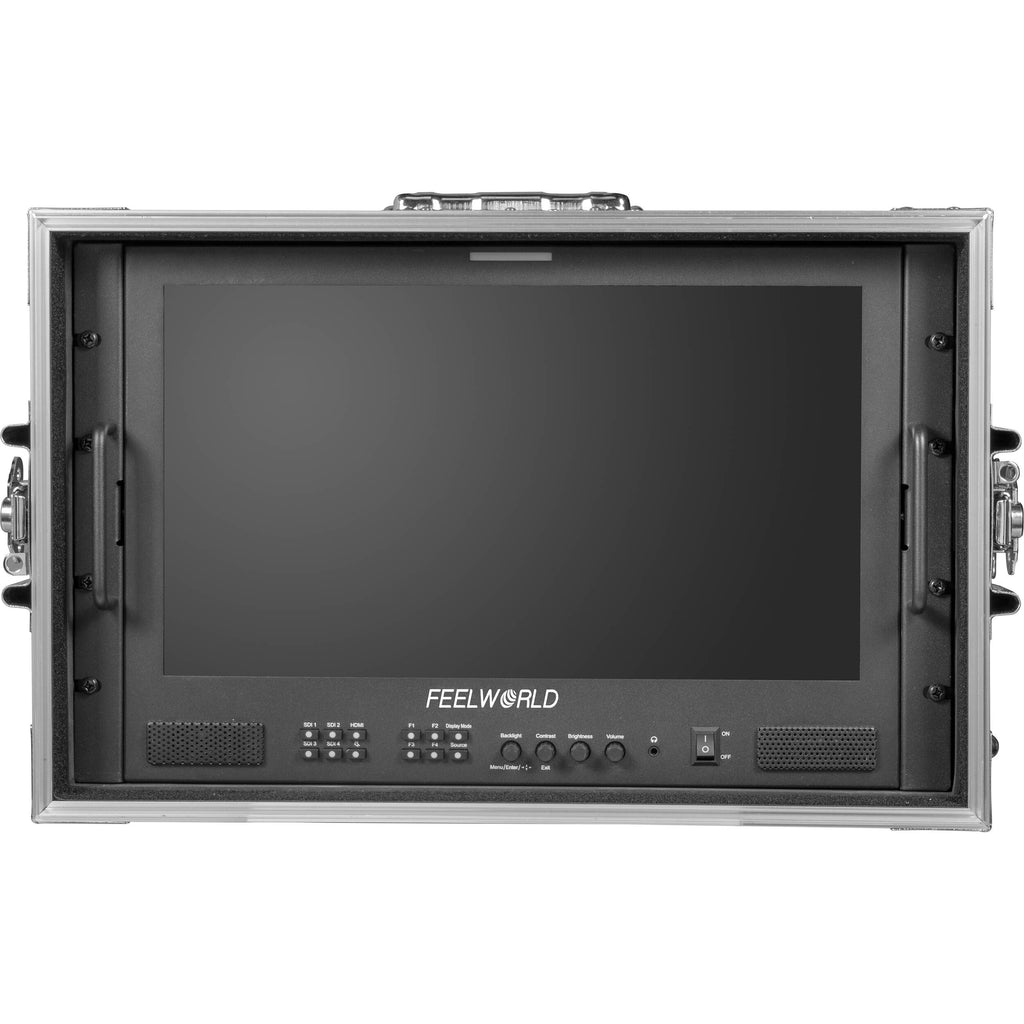

The 17.3" Live Stream HD Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and 300 cd/m2 brightness. The rear panel contains four 3G-SDI inputs that support up to 2K input, there are four 3G-SDI outputs and one HDMI output, and it supports quad-view, dual-view, and PiP display layouts so you can view inputs simultaneously. The monitor is installed in a carry-on aluminum case that features a rear cover to access the ports and battery, and the front cover installs to protect the monitor for transport. It can be carried using a handle on top.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field when you are away from a mains source, and a separately available Gold mount plate is also available. A VESA mounting pattern is on the back for alternate mounting options.
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
- Peaking focus assist
- False color
- Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
- Display rotate (0, 90, 180, 270°, H/V mirror)
- Check field (red, green, blue, mono)
- Image freeze
- Zoom
- Pixel-to-pixel
- Center marker
- Screen marker (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
- Line color (red, green, blue, white)
In the Box
- FeelWorld 17.3" Live Stream HD Broadcast Director Monitor (Carry-On Case)
- Power Adapter
- V-Mount Battery Plate
- Mini-HDMI Cable
- SDI Cable
- Sun Hood
- Transport Case
FeelWorld ATEM173 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 17.3" / 43.9 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Touchscreen | No |
| Maximum Brightness | 300 cd/m2 |
| Contrast Ratio | 700:1 |
| Dot Pitch | 0.1989 x 0.1989 mm |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 127 ppi |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter |
| Video I/O | 4 x BNC (3G-SDI) Input 4 x BNC (3G-SDI) Output 1 x HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (12 VDC) Input 1 x XLR 4-Pin Input |
| Other I/O | 1 x RJ45 (GPI) Input 1 x RJ45 (GPI) Output 1 x RJ45 (RS-485) Input 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | SDI (8-Bit) DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Gamma Curve | Rec709 |
| DC Input Power | 12 VDC |
| Battery Type | 1 x V-Mount (Interchangeable Mount) |
| Power Consumption | 22 W |
| Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 16.7 x 11.7 x 0.9" / 42.5 x 29.6 x 2.3 cm, Excluding Case |
| Weight | 6.26 lb / 2.84 kg, Excluding Case |
| Package Weight | 27.635 lb |
| Box Dimensions (LxWxH) | 23.1 x 17.1 x 11.4" |
