Description
- 4.5" 1280 x 800 IPS LCD Display
- Supports SD, HD, and 4K Formats
- 470 cd/m² Display Brightness
- 900:1 Contrast Ratio
- 160° Viewing Angle
- Focus Peaking
- Pixel-to-Pixel Mapping
- NP-F Battery Plate
- Includes Shoe Mount and Mini HDMI Cable

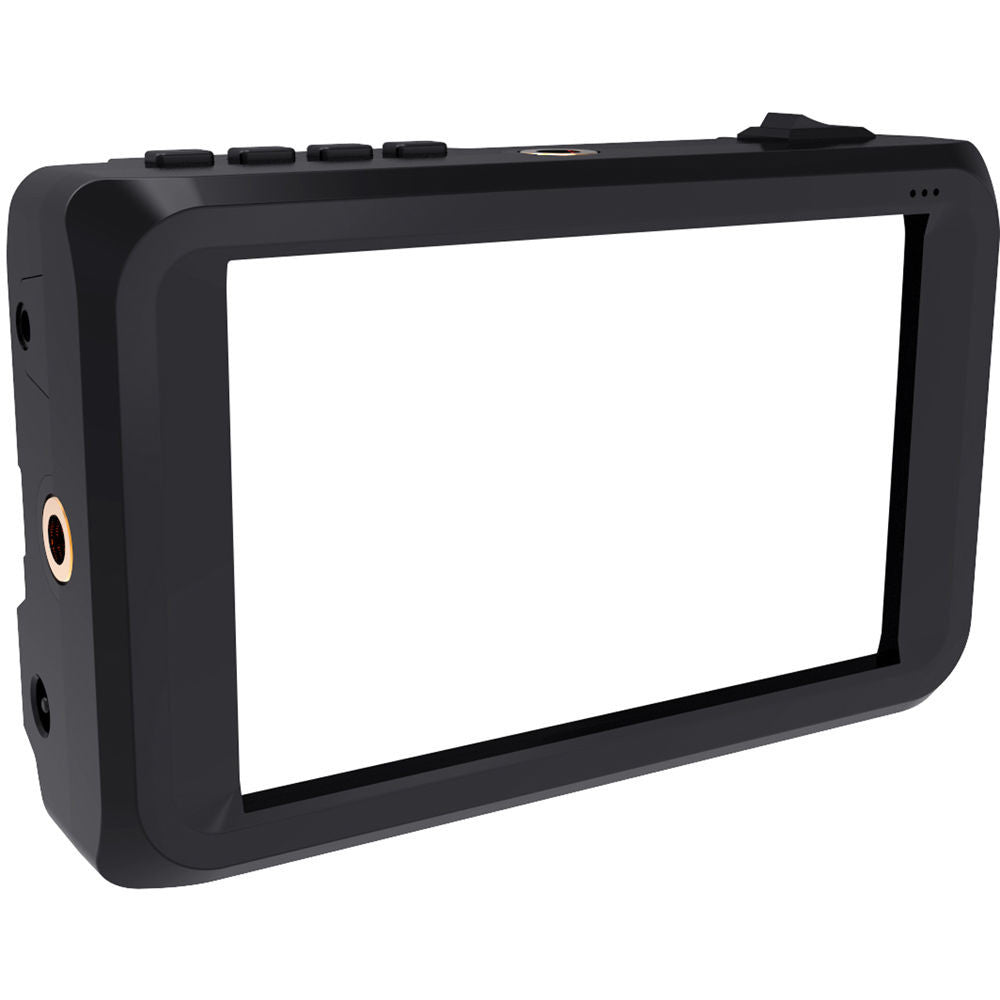

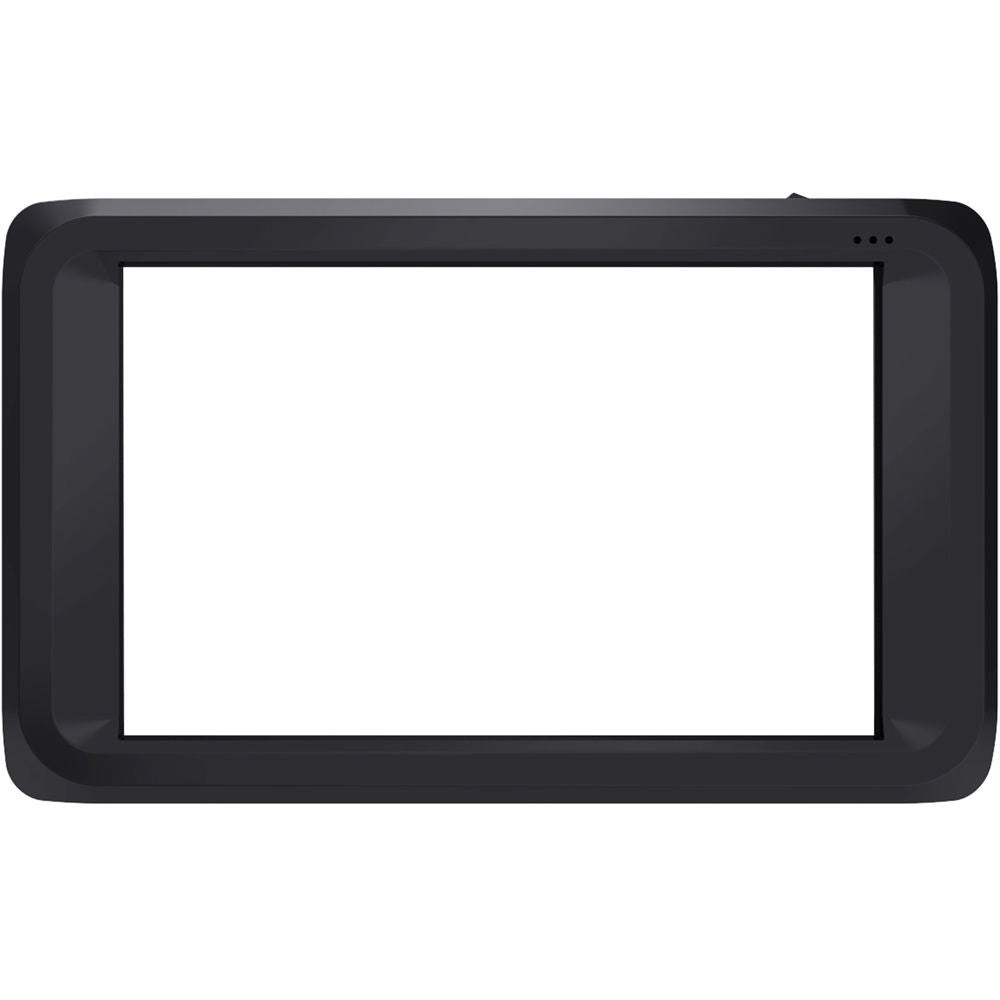

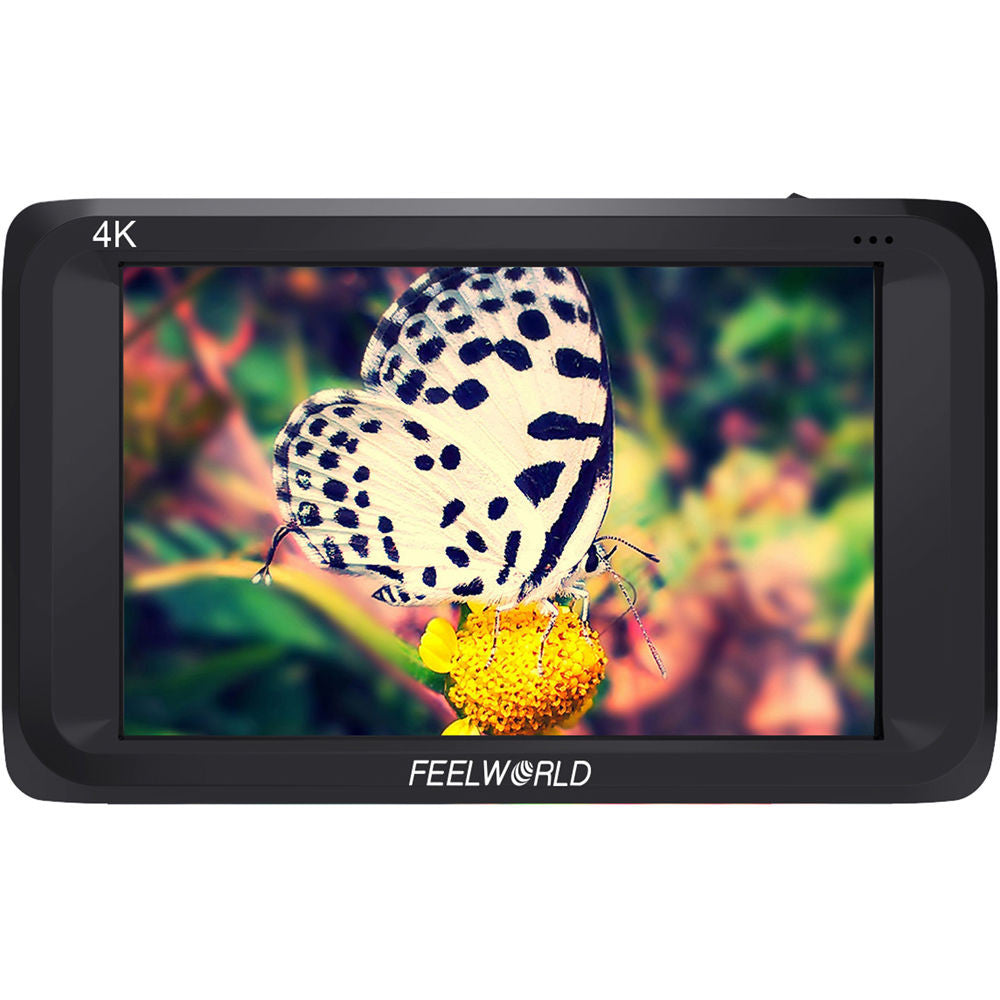

Monitor high-resolution signals in the field with the portable FeelWorld S450-M 4.5" On-Camera Monitor . Using the HDMI 2.0 input, 4K signals (either UHD or DCI) from your mirrorless, DSLR, or digital cinema camera can be displayed, as well as HD and SD signals. Broadcast cameras and professional equipment can be connected to the SDI input. An SDI loop output ensures that the signal chain can continue beyond the monitor. The 1280 x 800 LCD panel itself sports a 470 cd/m² brightness rating, and a 900:1 contrast ratio. IPS technology is implemented in the panel for vivid colors and wide 160° viewing angles. Essential monitoring tools such as focus peaking, pixel-to-pixel mapping, markers, and more are built right in. A Mini HDMI to HDMI cable, shoe mount, and NP-F battery plate are included.
Monitoring Tools
- Focus peaking
- Check field (Red, Green, Blue, Mono)
- DSLR scale
- Pixel-to-pixel mapping
- Center marker
- Safe markers (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Horizontal and vertical image flip
- Image freeze
- Color temperature adjustment
| Display | |
|---|---|
| Panel | 4.5" / 11.4 cm IPS LCD |
| Resolution | 1280 x 800 pixels |
| Pixel Pitch | 0.07575 x 0.07575 mm |
| Aspect Ratio | 16:10 |
| Brightness | 470 cd/m² |
| Contrast | 900:1 |
| Viewing Angle | 160° H/V |
| Backlight | LED |
| Supported Formats | |
|---|---|
| HDMI | 4096 x 2160 24 3840 x 2160 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 576p 480p NTSC PAL |
| Connectors | |
|---|---|
| Input | 1 x BNC, SDI 1 x HDMI Type A, v2.0 |
| Output | 1 x BNC, SDI 1 x Stereo headphone |
| General | |
|---|---|
| Input Voltage | 7-18 VDC |
| Power Consumption | ?7 W |
| Working Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Mounting Threads | 1/4"-20, on bottom |
| Dimensions | 5 x 3.1 x 1.2" / 12.8 x 7.8 x 3.1 cm |
| Weight | 8.4 oz / 240 g (without battery plate) 9.5 oz / 270 g (with battery plate) |
| Packaging Info | |
|---|---|
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.0 x 3.2" |
- Mini HDMI to HDMI Cable
- Shoe Mount
- NP-F Battery Plate
- Limited 1-Year Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 41140.4 |
| 3-5 | ₹ 40720.6 |
| 5-10 | ₹ 39881.0 |
| 10+ | ₹ 39041.4 |
Bulk discount will be automatically applied during checkout based on quantity.
