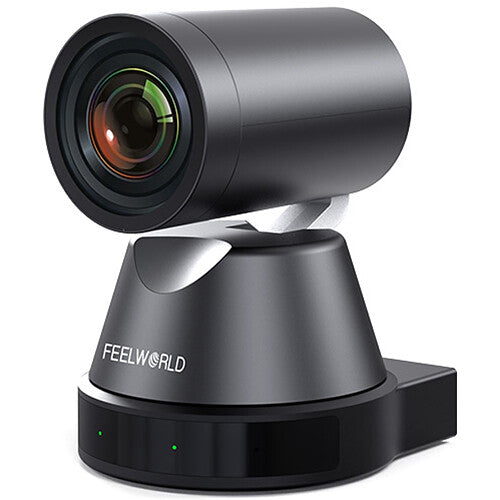

FeelWorld 4K12X UHD 4K HDMI/USB PTZ Camera with 12x Optical Zoom

Capture UHD 4K video and live stream it to remote audiences in classrooms, houses of worship, or presentation applications using this 4K12X UHD 4K HDMI/USB PTZ Camera from FeelWorld. Three video output options�HDMI, USB-C, and LAN�ensure connectivity with your preexisting streaming interface. Its 1/2.8" CMOS sensor records a clear, high-quality image, while 340° of pan and 120° of tilt control offer a wide range of movement. Connect multiple 4K12X camera units to the L2 PLUS network video switcher for larger streaming applications.

AI Auto Tracking with Human Detection

Real-time tracking and zone-specific tracking modes can follow your subject in single-person presentations. Shortcut keys on the included IR remote can toggle between human detection, real-time tracking, and zone tracking modes.

Optical Characteristics

The 12x optical zoom, 15x digital zoom, and a wide 80.5° field of view maximize your visibility. Advanced 2D/3D noise reduction technology delivers high image clarity. Shift the camera up to 340° horizontally and 120° vertically without distracting noise, thanks to the camera's silent movements.

Supported Compression Formats

Encode video in YUY2, MJPG, H.264, H.264, and NV12 formats. Compress video in MJPG, H.264, and H.265 formats in up to UHD 4K resolutions. The camera also supports AAC audio compression.

Connectivity and Control

• Add a microphone of your choice with the 3.5mm audio line input.
• Control over the camera can be achieved via the RS-232 connection or with the included IR remote control from up to 32.8' away. Toggle between 255 preset positions via a network connection and 10 via IR control.
• Separately available IP joysticks like the KBC10 keyboard controller can be used to operate the camera.

Intuitive Integration

• Install the camera on a tripod, wall mount, or ceiling mount, or simply place it on a tabletop.
• Power the camera and integrate it into your preexisting network with a single cable using the RJ45 Ethernet port.
• An included power supply connects to the camera's DC barrel port.

FeelWorld 4K12X Specs

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 8.51 Megapixel
Shutter Speed	1/20000 to 1/25 Second
Optical Zoom Ratio	12x
Max Digital Zoom	15x
External Recording Modes	HDMI / RJ45 / USB 3840 x 2160 at 25/30.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264, MJPEG 320 x 240 to 3840 x 2160 NV12, YUY2 1920 x 1080 at 5.00p, 10p 1280 x 720 at 5.00p, 10p, 15p, 20p, 25p 800 x 600 1024 x 576 800 x 448 640 x 360 480 x 270 320 x 180 at 5.00p, 10p, 15p, 20p, 25p, 30p
Supported Control Protocols	Pelco-D Pelco-P VISCA
PoE Support	PoE 802.3af

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 8.51 Megapixel
Focus Control	Autofocus Manual Focus

Shutter Speed	1/20000 to 1/25 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.5 Lux
White Balance	Presets: Auto, Color Temperature, Manual

Optical Zoom Ratio	12x
Max Digital Zoom	15x
Field of View	Horizontal: 80.5°
Maximum Aperture	f/1.8 to 3.6

External Recording Modes	HDMI / RJ45 / USB 3840 x 2160 at 25/30.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps
Embedded Audio	USB
Audio Recording	AAC Audio
Broadcast Output	NTSC/PAL
IP Streaming	H.264, MJPEG 320 x 240 to 3840 x 2160 NV12, YUY2 1920 x 1080 at 5.00p, 10p 1280 x 720 at 5.00p, 10p, 15p, 20p, 25p 800 x 600 1024 x 576 800 x 448 640 x 360 480 x 270 320 x 180 at 5.00p, 10p, 15p, 20p, 25p, 30p
IP Multi-Stream Support	Selectable Combination H.264, MJPEG: UHD 4K, 1080p, 720p, 480p, 360p NV12, YUY2: 1080p, 720p, 480p, 360p

Presets	255 via IP 10 via IR
Pan/Tilt	Pan: 340° (-170 to 170°) at 0.1 to 45°/s  Tilt: 60° (-30 to 30°) at 0.1 to 30°/s
Tally Light	No
Supported Control Protocols	Pelco-D Pelco-P VISCA

Video I/O	1x HDMI (Unspecified Signal) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 LAN Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1x Block 3-Pin (RS-232) Control Input

PoE Support	PoE 802.3af
Power I/O	1x DC (12VDC at 1 A) Input
Power Consumption	Device: 12 W

Operating Conditions	14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Storage Conditions	14 to 158°F / -10 to 70°C at 20 to 95% Humidity

Dimensions (W x H x D)	5.14 x 4.66 x 6.51" / 130.46 x 118.44 x 165.34 mm
Weight	2.27 lb / 1.03 kg (Body Only)

Package Weight	5.275 lb
Box Dimensions (LxWxH)	13.8 x 9.8 x 7.3"
