Description
FeelWorld FR6 Overview
The FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Receiver features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². The monitor receives up to a 1080p signal, which can be transmitted by an optional FeelWorld FT6 wireless receiver/monitor combo. It has an HDMI input port that supports signals up to DCI 4K24 and UHD 4K30, and an HDMI output for connecting to local monitors and other devices. The monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.
A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple, with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

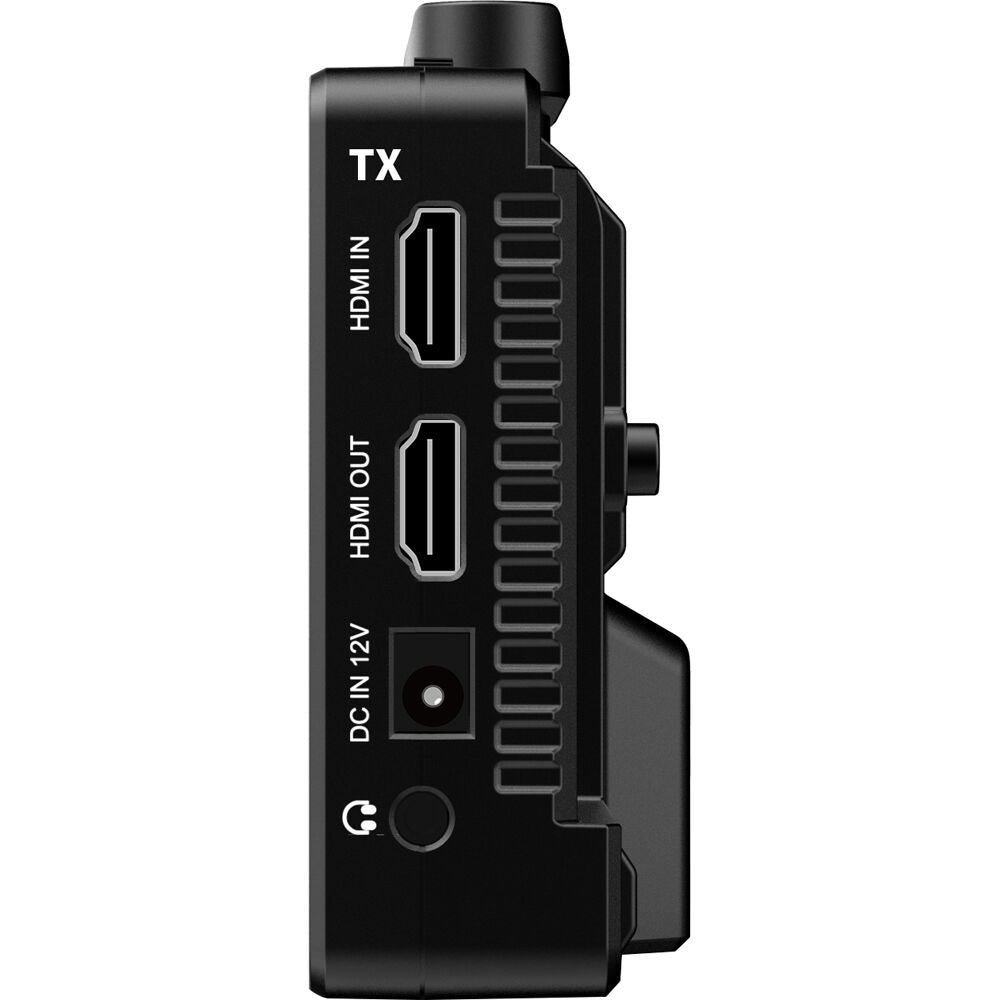

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. The monitor includes a removable sunshade to protect from glare and bright skies.
- Receives 1080p video to an optional FT6 monitor
- Touchscreen display with a 1920 x 1080 resolution
- 500 cd/m² brightness
- HDMI input signals up to DCI 4K24 and UHD 4K30
- Supports 3D LUT Log to Rec. 709, user 3D LUT upload
- Supports up to 50 user-uploadable LUTs
- HDR monitoring
- Support touch menu
- Parade (RGB, YUV, Y)
- Vector
- Brightness histogram
- Peaking focus assist (red, green, blue, white, yellow, five peaking colors optional; 1~10 peaking level adjustable)
- False colors
- Exposure (1~100%, adjustable)
- Check field (red, green, blue, gray)
- Scan mode (underscan, overscan)
- Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
- Flip H / Flip V (all open, H/V flip)
- Image freeze
- Nine-grid
- Center marker
- Safety marker (70/80/90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
- Marker Color (red, green, blue, white, black, yellow)
- Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
- Color temperature adjustment
- Zoom (100~300%)
- Aspect ratio
- Pixel-to-pixel
In the Box
- FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Receiver
- Handle
- Sunshade
- 2 x Antenna
- 1/4"-20 C-Ring Screw
- Cold Shoe
FeelWorld FR6 Specs
| Panel Type | LCD |
| Display Size | 5.5" / 14.0 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Assist, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform, Zebra |
| Antenna I/O | 2 x RP-SMA |
| HDCP Support | Not Specified by Manufacturer |
| Embedded Audio | HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Power I/O | 1 x Barrel (12 VDC) Input 1 x Barrel (8 VDC) Output |
| Other I/O | 1 x USB-C Input |
| SIM Card Slots | None |
| Encryption | None |
| Wireless Range | 800' / 243.8 m (Line-of-Sight) |
| Frequency Range | US: 5.1 to 5.9 GHz |
| Latency | 70 ms |
| Wi-Fi | None |
| Bluetooth | None |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p |
| Audio Format | PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
| DC Input Power | 12 VDC |
| Battery Type | 2 x L-Series |
| Power Consumption | 18 W |
| Mounting | 1 x 1/4"-20 Female |
| IP Rating | None |
| Operating Temperature | 12 to 87°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Dimensions | 5.8 x 4.1 x 1.6" / 148 x 103.5 x 41 mm |
| Weight | 13.1 oz / 370 g |
| Package Weight | 1.705 lb |
| Box Dimensions (LxWxH) | 7.4 x 5 x 3.5" |
