Description
FeelWorld CUT6 Overview
- 1Description
- 2Monitor/Recorder
- 3SDI & HDMI Input/Output
- 4Live Stream Recording
- 5Touchscreen Workflow
- 6Built-In HDR
- 73D LUT Support
- 8Interfaces
- 9Integrated Fan
- 10Power Options
- 11Display Features

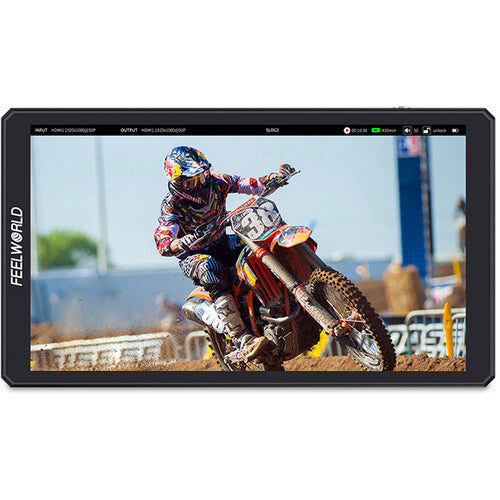

Use the FeelWorld CUT6S 6" 4K HDMI Touchscreen Recorder/Monitor to both view and capture 3G-SDI or HDMI video. This onboard monitor supports up to 1080p60 input and output via SDI and UHD 4K60 input and 1080p60 output via HDMI with the ability to view an applied LUT. The CUT6S can power select cameras via its 8.4V barrel output. The CUT6S features a 6" 1920 x 1080 touchscreen display, one 3G-SDI input, one 3G-SDI output, one HDMI 2.0 input, and one HDMI 1.4 loop output supporting up to 1080p60 resolution video. A 3.5mm headphone jack is also provided for audio monitoring on set.
The CUT6S's intuitive operating system is navigated with touch and swipe gestures and offers access to tools and functions such as built-in HDR and 3D LUTs, anamorphic de-squeeze, vectorscope, zoom, focus assist, and additional display functions. The CUT6s enables you to upload up to 50 3D LUTs via a micro-SD card slot. Power options include an integrated L-series battery plate and a DC power input port.
Monitor/Recorder
The CUT6S monitor enables you to record up to 1080p30 MP4 video from compatible cameras using its USB 2.0 port with FAT32 support. This monitor supports live LUT application with the ability to upload up to 50 LUTs. Total recording time is dependent on your external storage capacity.
SDI & HDMI Input/Output
- Connect to virtually any camcorder or cine-style camera via the SDI and HDMI inputs and output video to a larger display or to a wireless transmitter.
- Monitor embedded audio via the 3.5mm stereo headphone jack for audio monitoring.
- Mount the CUT6S using the 1/4"-20 threads on the top, bottom, and right side.
- Includes a tilting cold shoe mount to help you get the best viewing angle.
Live Stream Recording
Use the CUT6S monitor to capture your continuous live stream, not just highlights or an OBS (Open Broadcaster Software) local recording. The ability to record with an applied LUT saves time in post-production.
Touchscreen Workflow
The operating system and new user interface provide a tap and swipe workflow with easy-to-use function icons including a record button. A button wheel on the top of the monitor provides alternate control to the touchscreen.
Built-In HDR
The CUT6S features built-in HLG 2020, HLG 709, and HLG P3 HDR modes, enabling you to view and capture nuanced footage with a wide dynamic range and true colors.
3D LUT Support
- Load up to 50 custom LUTs via the micro-SD card slot.
- Output a LUT image to a director's monitor via the HDMI loop-out.
Interfaces
- Connect to virtually any camera via the SDI or HDMI inputs and output video to a larger display or to a wireless transmitter.
- Monitor embedded audio via the 3.5mm stereo headphone jack for audio monitoring.
- Mount the CUT6S using the 1/4"-20 threads on the top, bottom, and right side.
- Includes a tilting bracket to help you get the best viewing angle.
Integrated Fan
The built-in fan cools the monitor and can be adjusted to low, middle, and high settings.
Power Options
- Power the CUT6S using the integrated L-series battery plate and a separately available battery or using the 12 VDC barrel input port for continuous power.
- Provide power for select cameras using the 8.4 VDC power output.
Note:
When turning off the monitor, you need to press the power button�do not pull out the power cable directly.
Display Features
- 3D LUT support in Rec. 709
- RGB and YUV waveforms
- Vectorscope
- RGB histograms
- Focus peaking assistance
- False colors (Spectrum, ARRI)
- Check field (red, green, blue, mono)
- Zebra exposure (adjustable 1 to 100%)
- Underscan and overscan
- Zoom (1x to 5x)
- Anamorphic de-squeeze (1.25x, 1.33x, 1.5x, 1.8x, 2.0x, 2.0x mag)
- Pixel-to-pixel zoom
- Nine-section grid
- Center marker
- Safety markers (70, 80, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
- Aspect ratio markers (16:9, 16:10, 4:3, 1.85:1, 2.35:1, 2.41:1, 1.91:1, 5:4)
- Marker colors (red, green, blue, white, black, yellow)
- Image flip (automatic, 180° horizontal flip, vertical flip)
- Image freeze
In the Box
- FeelWorld CUT6S 6" 4K 3G-SDI/HDMI Touchscreen Recorder/Monitor
- Tilting Cold Shoe Mount
- Micro-HDMI to HDMI Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Monitor/Recorder
- SDI & HDMI Input/Output
- Live Stream Recording
- Touchscreen Workflow
- Built-In HDR
- 3D LUT Support
- Interfaces
- Integrated Fan
- Power Options
- Display Features
FeelWorld CUT6 Specs
Display
| Panel Type | IPS-Type LCD |
| Display Size | 6.0" / 15.2 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | Yes |
| Maximum Brightness | 450 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 367 ppi |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra |
Inputs / Outputs
| Video I/O | 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x HDMI 2.0 Input 1 x HDMI 1.4 Output 1 x USB-A Output |
| Embedded Audio | SDI HDMI USB |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel 5.5 mm (1.5 A / 12 VDC) Input 1 x Barrel 5.5 mm (8.4 VDC) Output |
| Other I/O | None |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| File System Support | exFAT |
| Wi-Fi | None |
| Bluetooth | Yes |
| Mobile App Compatible | No *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format | HDMI (8-Bit) DCI 4K: 60 UHD 4K: 60 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI (8-Bit) 1080p: 59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 480i: 60/59.94 576i: 60/59.94 1080i: 60/59.94 |
| Gamma Curve | HDR-HLG, Rec709, Rec2020 |
| PC Resolutions | 1920 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1600 x 1200 at 60 Hz 1440 x 900 at 60 Hz 1366 x 768 at 60 Hz 1360 x 768 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 800 at 60 Hz 1280 x 768 at 60 Hz 1024 x 768 at 60 Hz |
| Timecode Support | No |
Recording
| Pulldown Conversion | None |
| Camera Trigger | None |
| Pre-Roll Record | None |
| Encoding Formats | Up to 1920 x 1080 H.264 8-Bit at up to 30 fps |
Power
| DC Input Power | 7 to 14 VDC |
| Built-In Battery | None |
| Battery Type | 1 x L-Series |
| Power Consumption | 11 W |
Mounting
| Mounting | 3 x 3/8"-16 Female |
Environmental
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
General
| Dimensions | 6 x 3.4 x 0.9" / 152 x 86 x 23 mm |
| Weight | 8.1 oz / 230 g |
Packaging Info
| Package Weight | 1.28 lb |
| Box Dimensions (LxWxH) | 7.4 x 5 x 3.3" |
