Description
FeelWorld D71 Overview

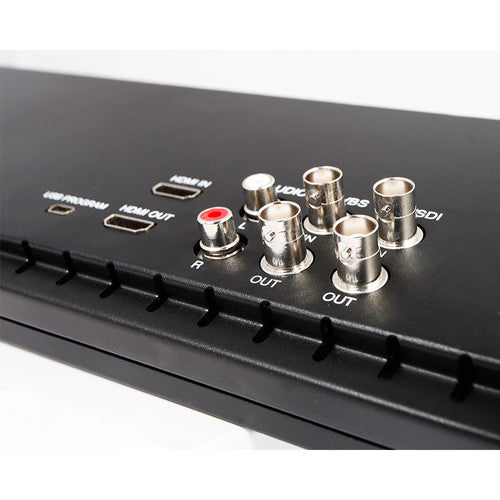

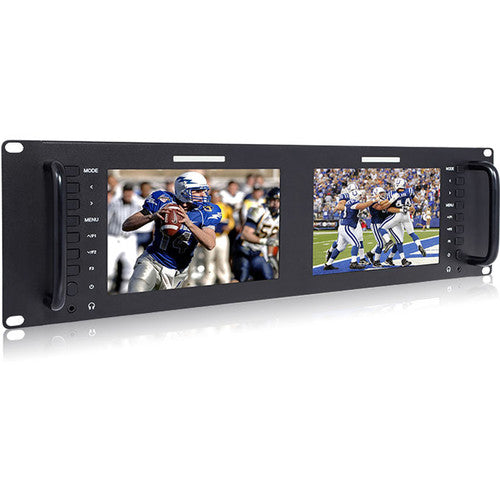

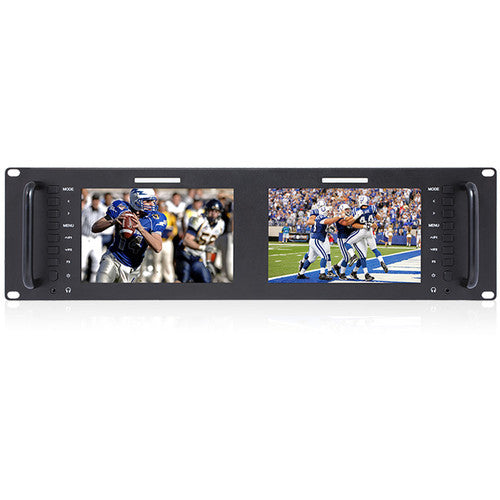

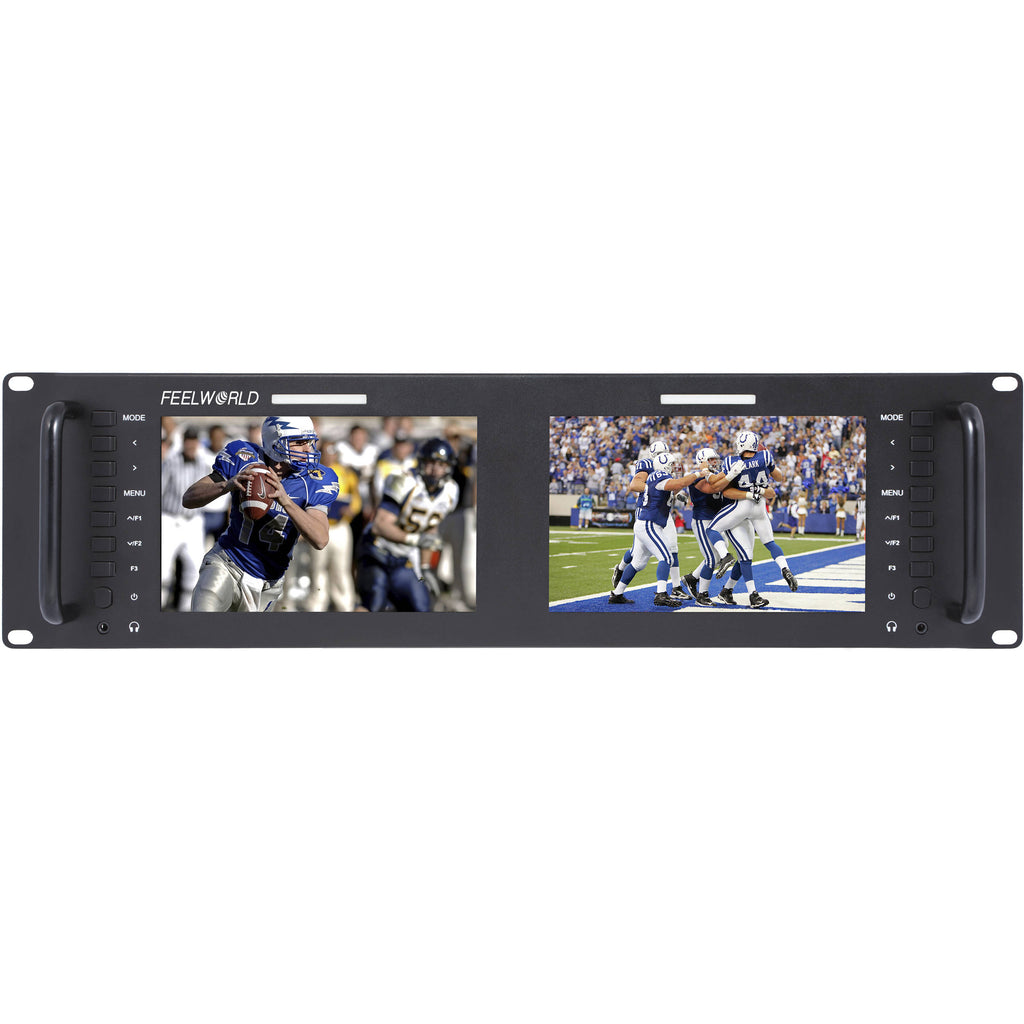

Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for GPIO network control, the D71 Dual 7" 3 RU Rackmount 3G-SDI/HDMI LCD Monitor from FeelWorld is designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The D71 model has 3G-SDI, HDMI, and composite BNC inputs and outputs per display, as well as RCA audio inputs for each panel. A headphone outputs is provided for each panel for monitoring audio. There's a single tally port on the rear and a three-color tally light above each display. The displays are IPS panels with a 1280 x 800 resolution and 178° wide viewing angle, providing for more consistent monitoring.

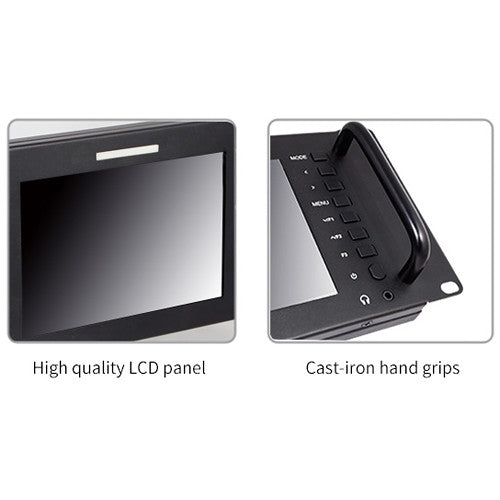

Over the LAN 100 port, multiple D71 units can be controlled at the same time via a single control software. The D71 comes in a metal housing that allows for optimal heat dissipation and has cast-iron handgrips on the sides for convenient handling when installing into or removing from a rack.

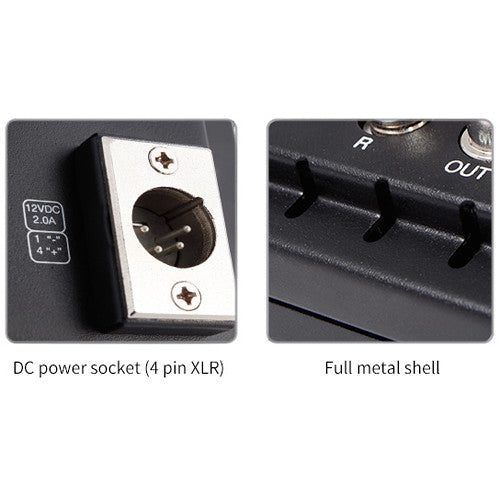

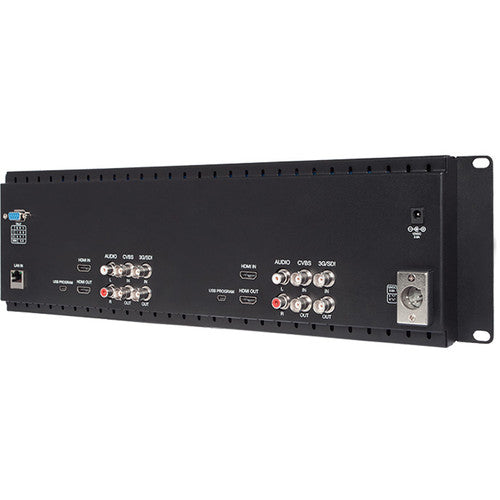

A variety of image analysis functions includes peaking focus assist, check field, pixel-to-pixel, zoom all, and more, and three function buttons per monitor are provided on the front panel that these can be assigned to. For power, a barrel input and 4-pin XLR port are provided on the rear. A 12 VDC power adapter is included for the barrel input while an optional standard XLR power adapter can alternatively be used instead.
Key Features
- Two 7" 1280 x 800 resolution IPS displays in an ultra-slim 3 RU design
- LAN port for GPIO network control of up to multiple units
- 3G-SDI, HDMI, and composite BNC I/O
- Up to 1080p60 signal input
- 178° viewing angle
- 400 cd/m² brightness
- 800:1 contrast ratio
- RCA audio inputs
- Headphone outputs

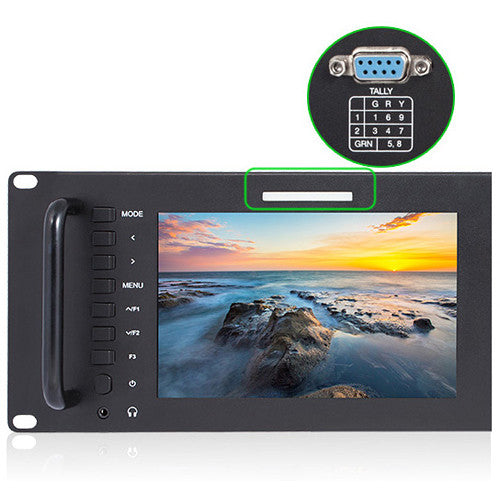

- Single tally port
- Three-color tally light above each display
- Three user-assignable function buttons per display
- DC barrel / 4-pin XLR power ports (12 VDC power adapter included)
- Metal housing allows for optimal heat dissipation
Image Analysis Tools
- Peaking focus assist (red highlight over parts of the monochrome image)
- Check field (red, green, blue, mono)
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, horizontal/vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
- Custom color temperature
In the Box
- FeelWorld D71 Dual 7" 3 RU Rackmount 3G-SDI/HDMI LCD Monitor
- 12 VDC, 3A Power Adapter
- Tally Kit
- Limited 1-Year Warranty
FeelWorld D71 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Touchscreen | No |
| Maximum Brightness | 400 cd/m 2 |
| Contrast Ratio | 800:1 |
| Dot Pitch | 0.117 x 0.117 mm |

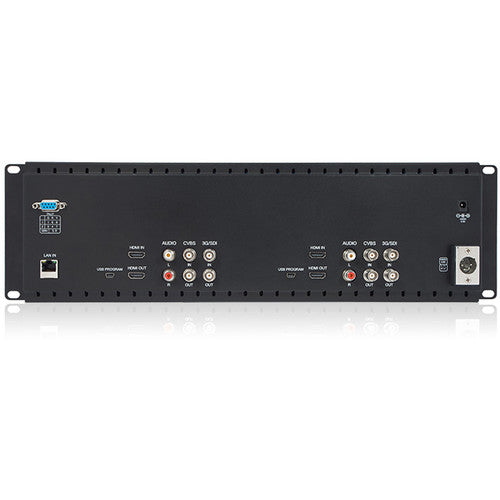

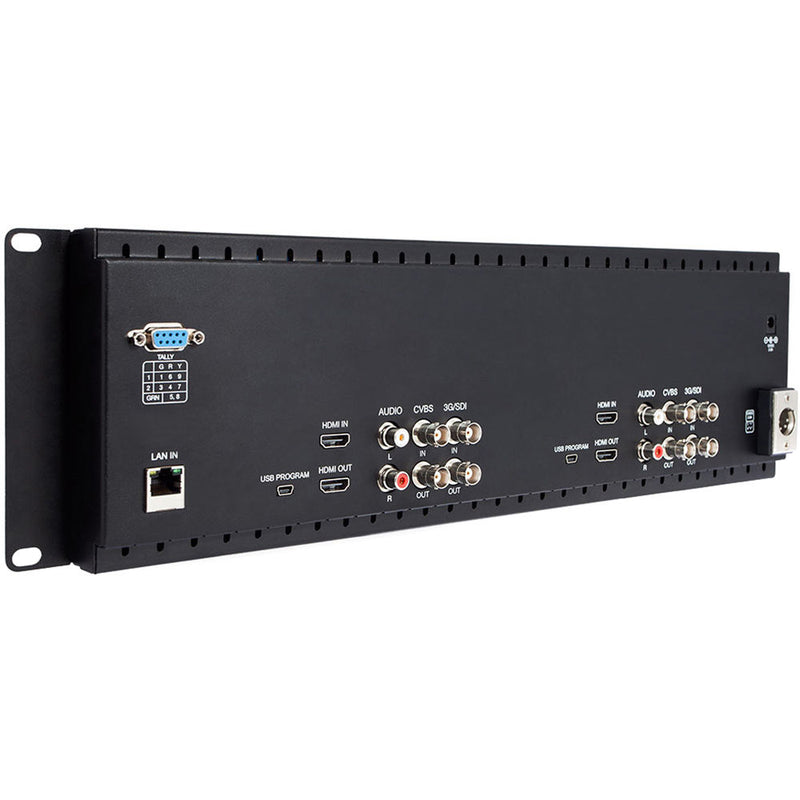

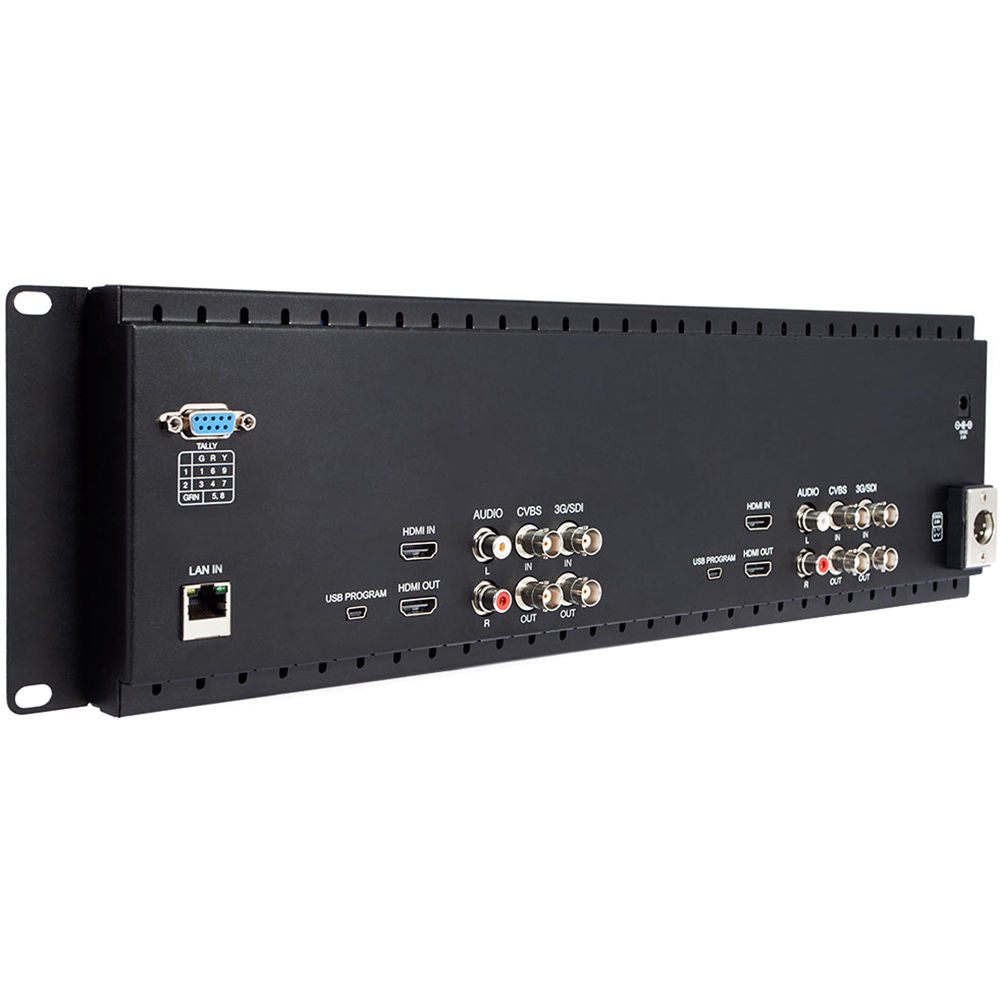

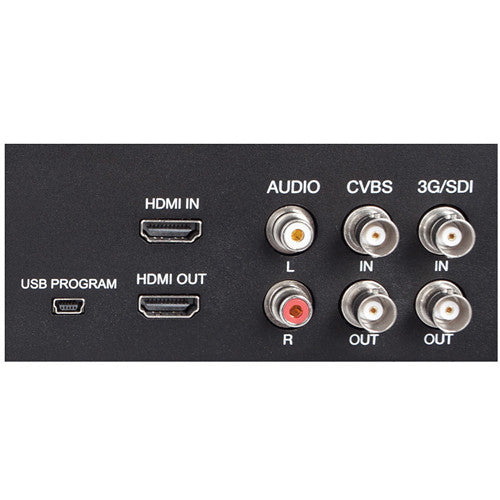

| Video | 2 x BNC (3G-SDI) Input 2 x HDMI Type A Input 2 x BNC (Composite) Input 2 x BNC (3G-SDI) Output 2 x HDMI Type A Output 2 x BNC (Composite) Output |
| Audio | 2 x 2RCA Input 2 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x 4-Pin XLR Input 1 x Barrel Input |

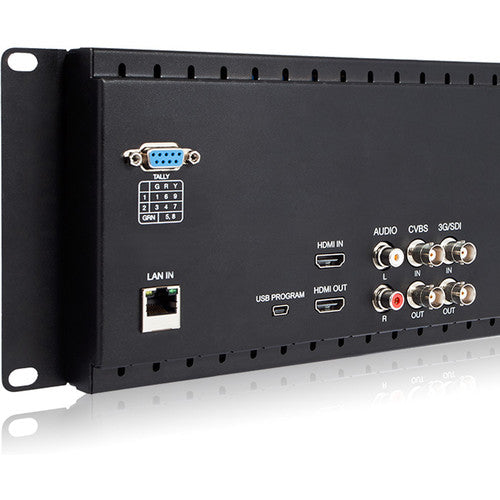

| Other I/O | 1 x Tally (DE-9/DB-9) 1 x LAN (RJ45) |
| Card Slot | None |
| Video Format | SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p 576i 480i |
| DC Input Power | 9 to 24 VDC |
| Battery Type | None |
| Power Consumption | 20 W (Maximum) |
| Rack Form Factor | 3 RU |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 19.02 x 5.2 x 1.22" / 48.3 x 13.2 x 3.1 cm |
| Weight | 4.19 lb / 1.9 kg |
| Package Weight | 5.585 lb |
| Box Dimensions (LxWxH) | 21 x 8.2 x 4.6" |
