FeelWorld LIVEPRO L1 Overview
- 1Description
- 2Live Switching
- 36-Channel PVW
- 4USB 3.0 Live Streaming
- 5Heat Dissipation
The FeelWorld LIVE PRO L1 V1 is a multi-format live streaming mini switcher designed as an affordable solution for direct or remote single-user operation. It supports up to four 1080p60 HDMI sources, including cameras and gaming systems, as well as compatible laptops and desktops where you can pull up PowerPoint slides, video clips, and web pages. You can switch between the four signals with push buttons and a T-bar while outputting PGM over a USB 3.0 connection to popular platforms and applications such as YouTube, vMix, and OBS. Cameras can be set up at different angles and you can switch between close-up and wide shots. The LIVE PRO L1 V1 can be used for all types of online productions, training projects, and live events. The L1 V1 version is an upgrade over the predecessor L1, designed more lightweight with improved heat dissipation and a new look.

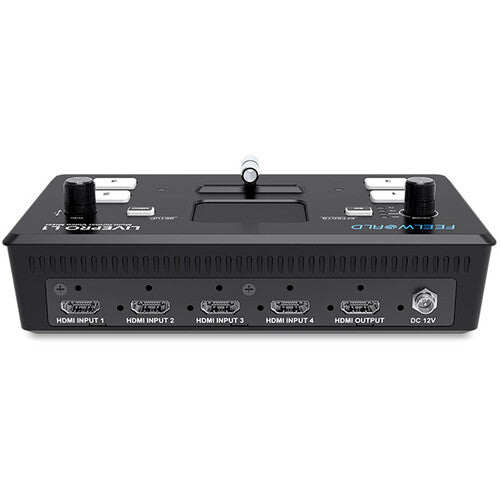

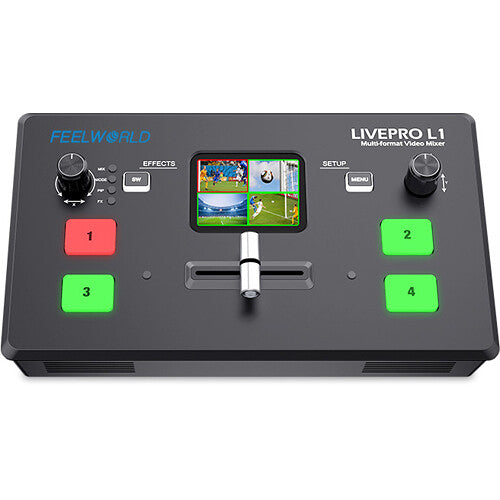

The other connections are an HDMI output, a LAN port for remote control via an included Mac/Windows software, and 3.5mm audio input and output for mics, audio interfaces, speakers, and headsets. A 2" TFT LCD screen displays your four sources or pulls up the system menu. The SW button switches between functions, including PiP mode and the transitions menu. A nearby dial selects from 14 transitions such as fade in/out, iris box, and wipe to left. Transition speeds are adjustable between 0.5 and 5 seconds. The T-bar, among its multiple functions, can be used for applying transitions and switching to program output.
The dial at the top right switches the HDMI output between a six-channel preview and program output. A dial on the left controls PGM volume. A 1/4"-20 thread is also provided should you want to mount the switcher on something in your studio setup. The included LIVE PRO XPOSE remote control software can also be downloaded as an Android mobile app.
Live Switching
6-Channel PVW
USB 3.0 Live Streaming
Heat Dissipation
In the Box
- FeelWorld LIVE PRO L1 V1 Quad HDMI Multi-Format Mixer Switcher with USB Live Streaming
- Power Supply (1.5A)
- USB Cable
- Limited 1-Year Warranty
- Description
- Live Switching
- 6-Channel PVW
- USB 3.0 Live Streaming
- Heat Dissipation
FeelWorld LIVEPRO L1 Specs
| Video Input Connectors | 4 x HDMI |
| Input Video Format | HDMI 1080p: 24/30/50/60 fps 1080i: 50/60 fps 1360 x 768: 60 fps SXVGA (1280 x 1024): 60 fps 1280 x 768: 60 fps 720p: 50/60 fps XGA (1024 x 768): 60 fps |
| Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS Stereo |
| Video Output Connectors | 1 x HDMI |
| Output Video Format | HDMI 1080p: 24/30/50/60 fps 1080i: 50/60 fps 1360 x 768: 60 fps SXGA (1280 x 1024): 60 fps 1280 x 768: 60 fps 720p: 50/60 fps XGA (1024 x 768): 60 fps |
| Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo |
| Multiview Output | 6-Way Multiview |
| Other I/O | 1 x USB Type-A |
| Display Size | 2" |
| OS Compatibility | macOS Windows Android |
| Power Connector | 1 x Barrel (12 VDC at 1.5 A) Input |
| Power Consumption | 18 W |
| Operating Temperature | -22 to 122°F / -30 to 50°C |
| Storage Humidity | 10 to 85% |
| Weight | 1.1 lb / 0.5 kg |
| Package Weight | 2.01 lb |
| Box Dimensions (LxWxH) | 10.3 x 5.2 x 3.1" |
