| ₹ 80370.0 includes GST and import duties. | |
| B2B customers can avail ₹ 12256.43 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 17.3" 1920x1080 LCD
- Supports SD and HD Formats
- SDI, HDMI, DVI, YPbPr, Composite Inputs
- 160° / 140° Viewing Angle
- Safe Area Markers & Focus Aid Function
- R/G/B-Only and Monochrome
- Pixel-to-Pixel Mapping
- Image Flip
- 12V Battery or 4-Pin XLR Power

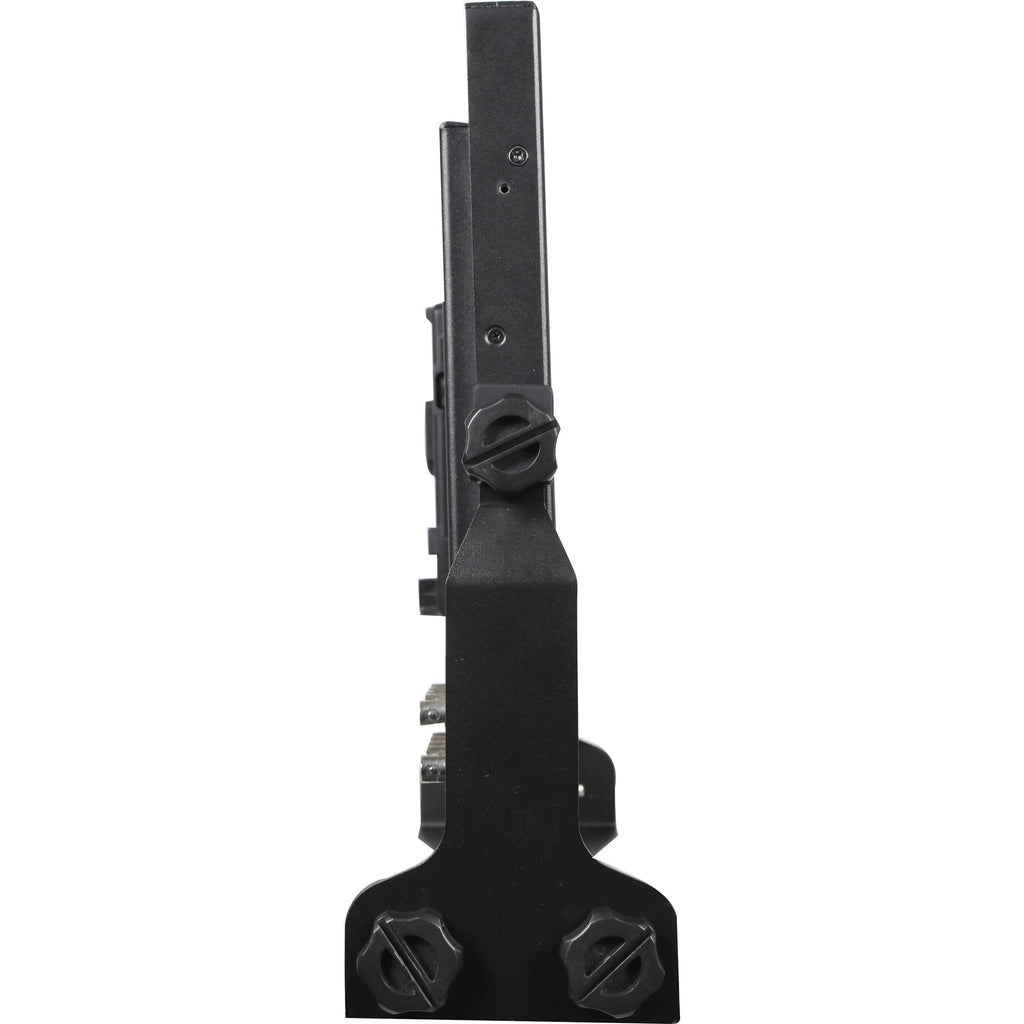

- Includes U-Bracket

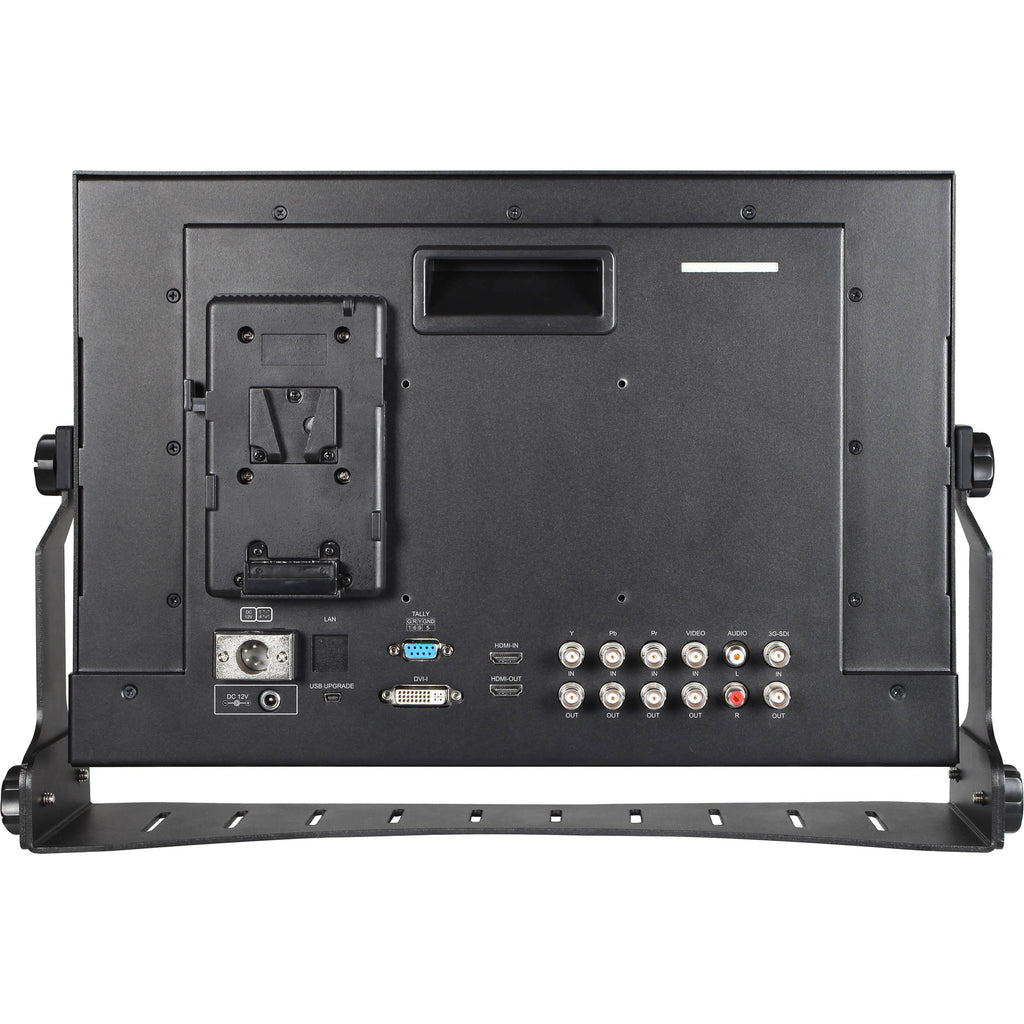

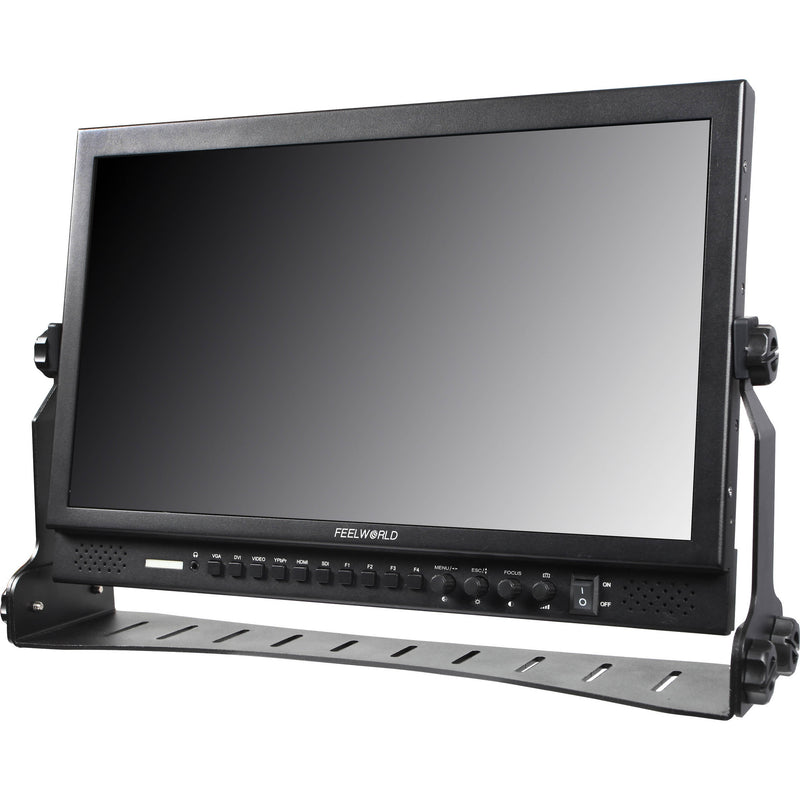

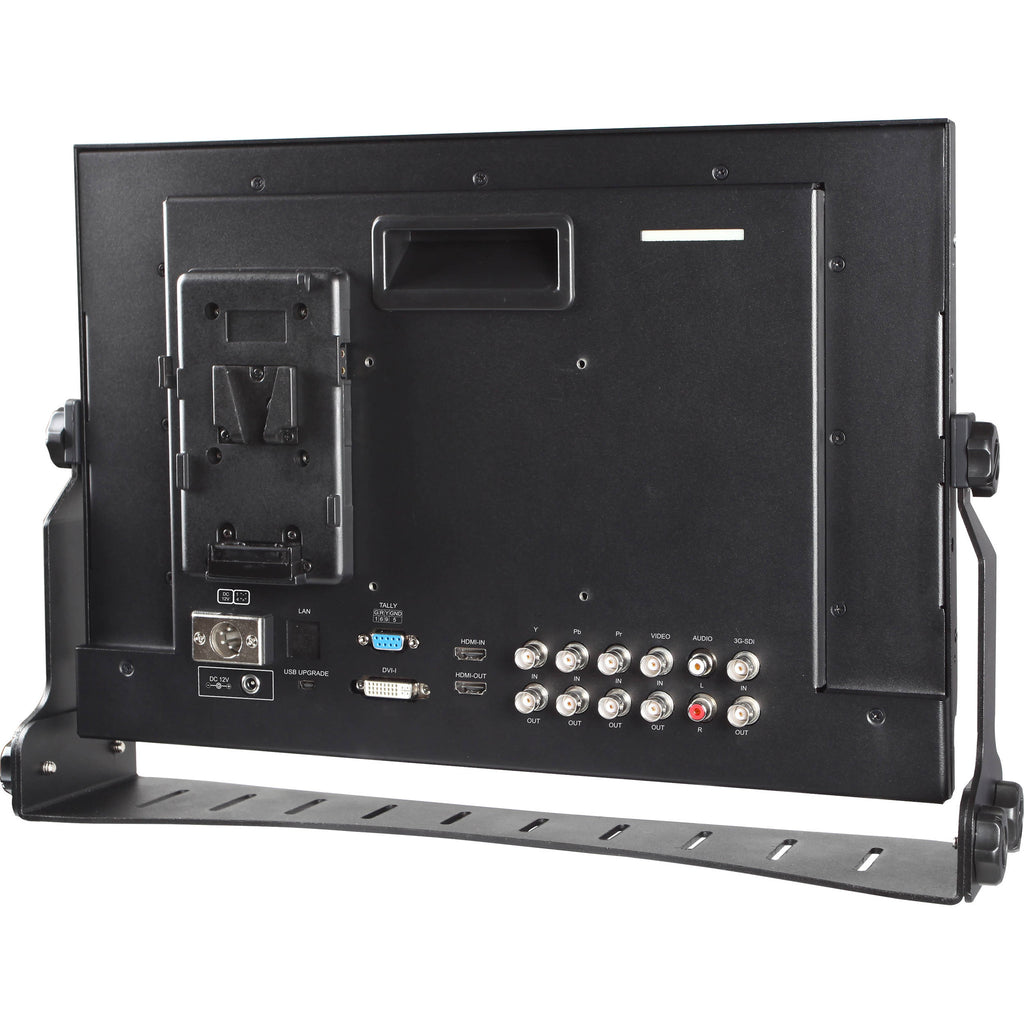

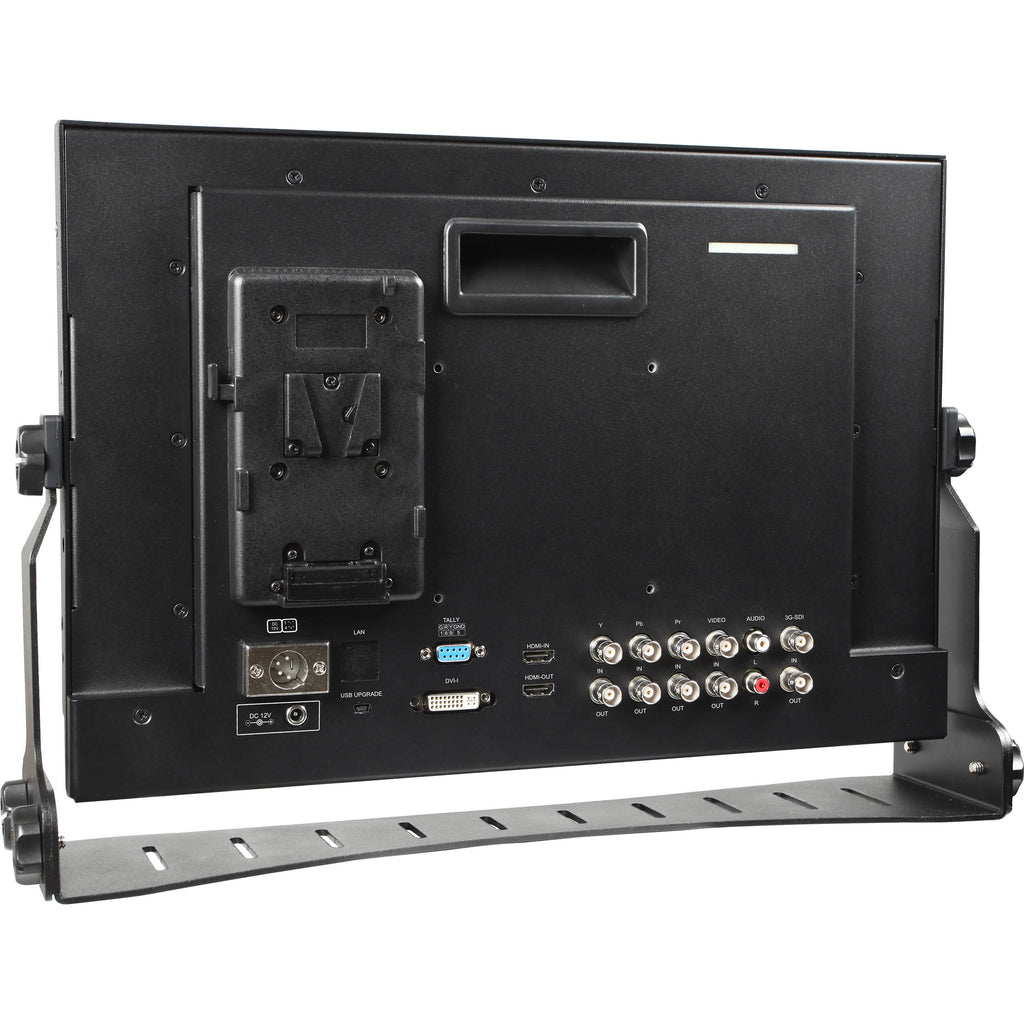

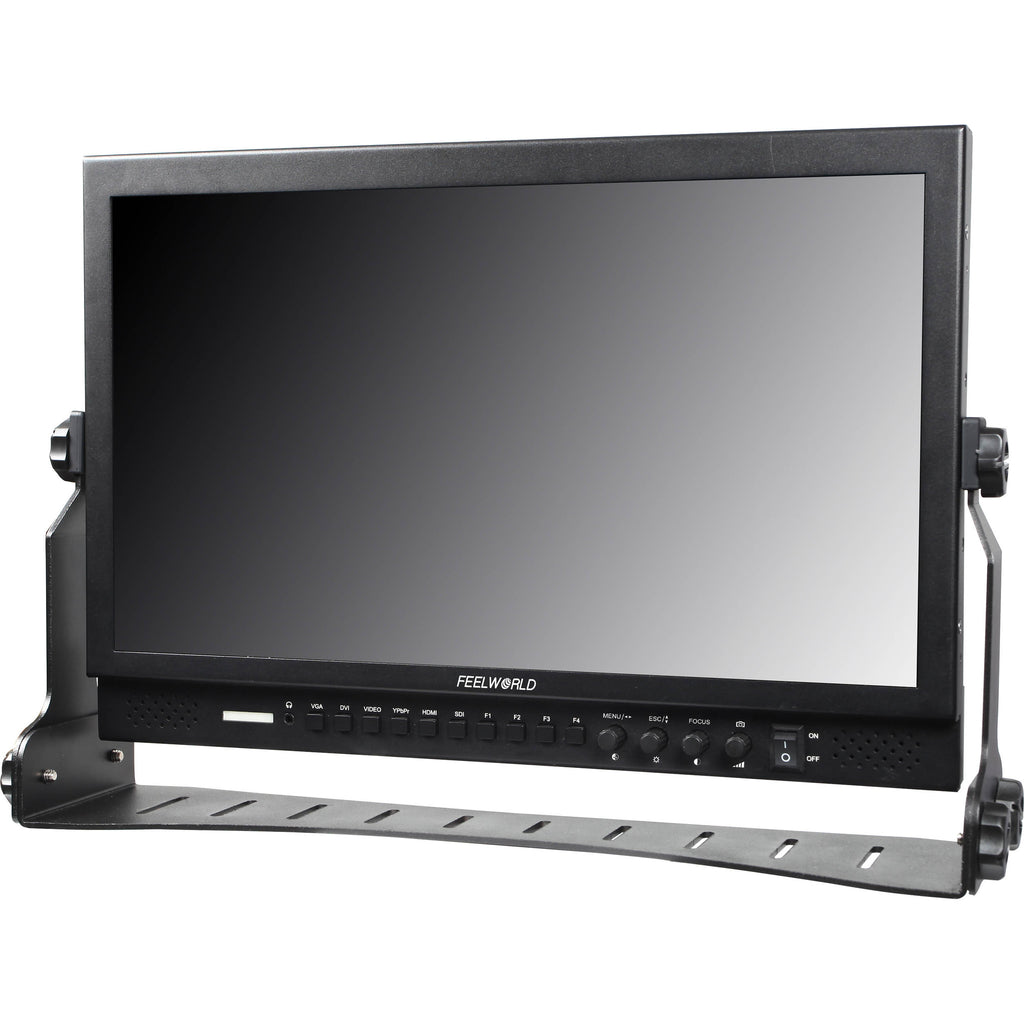

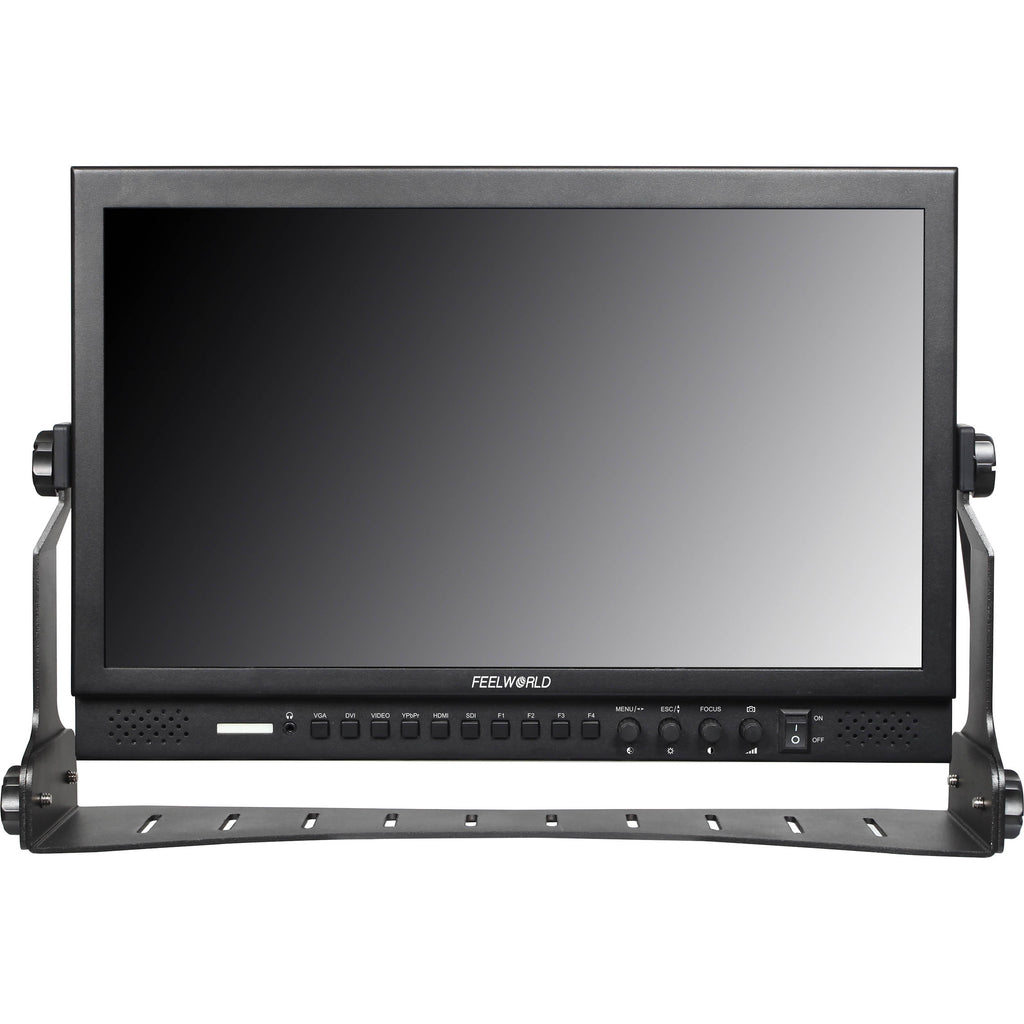

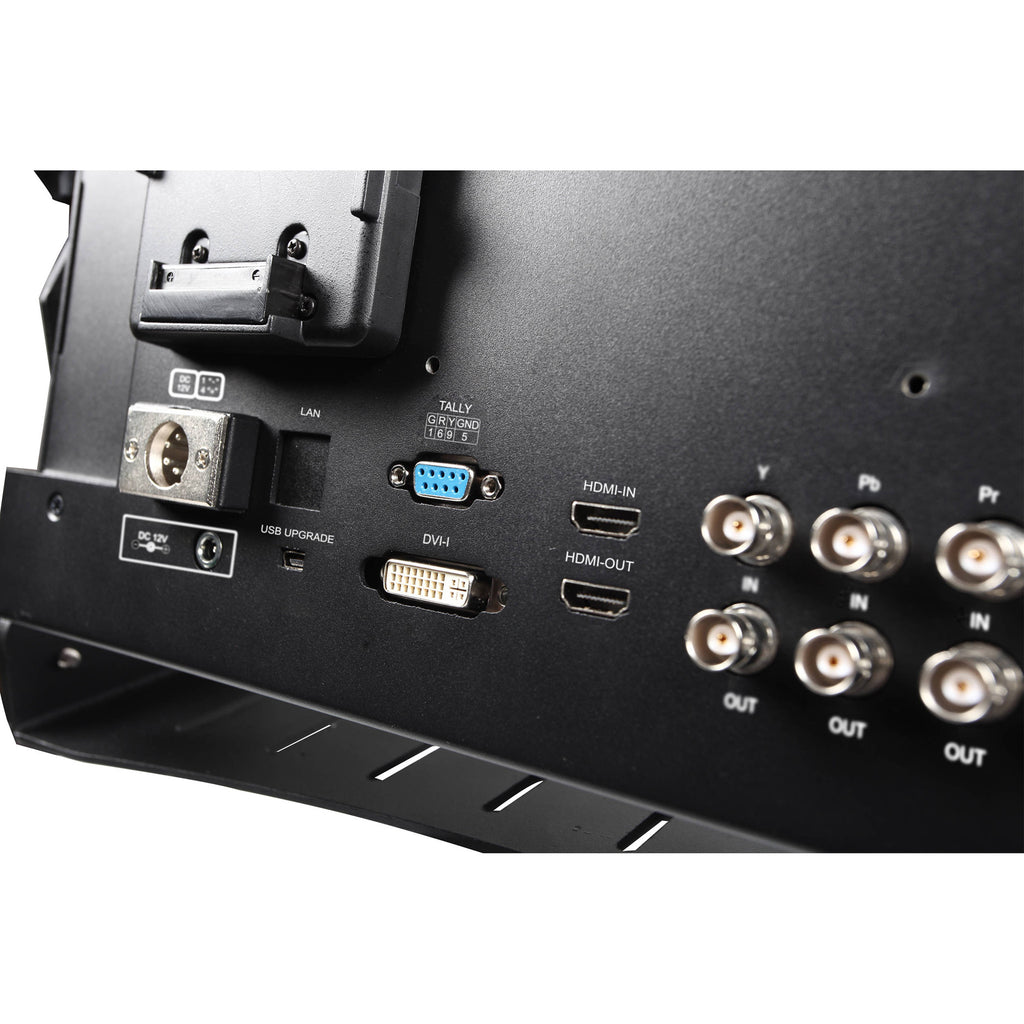

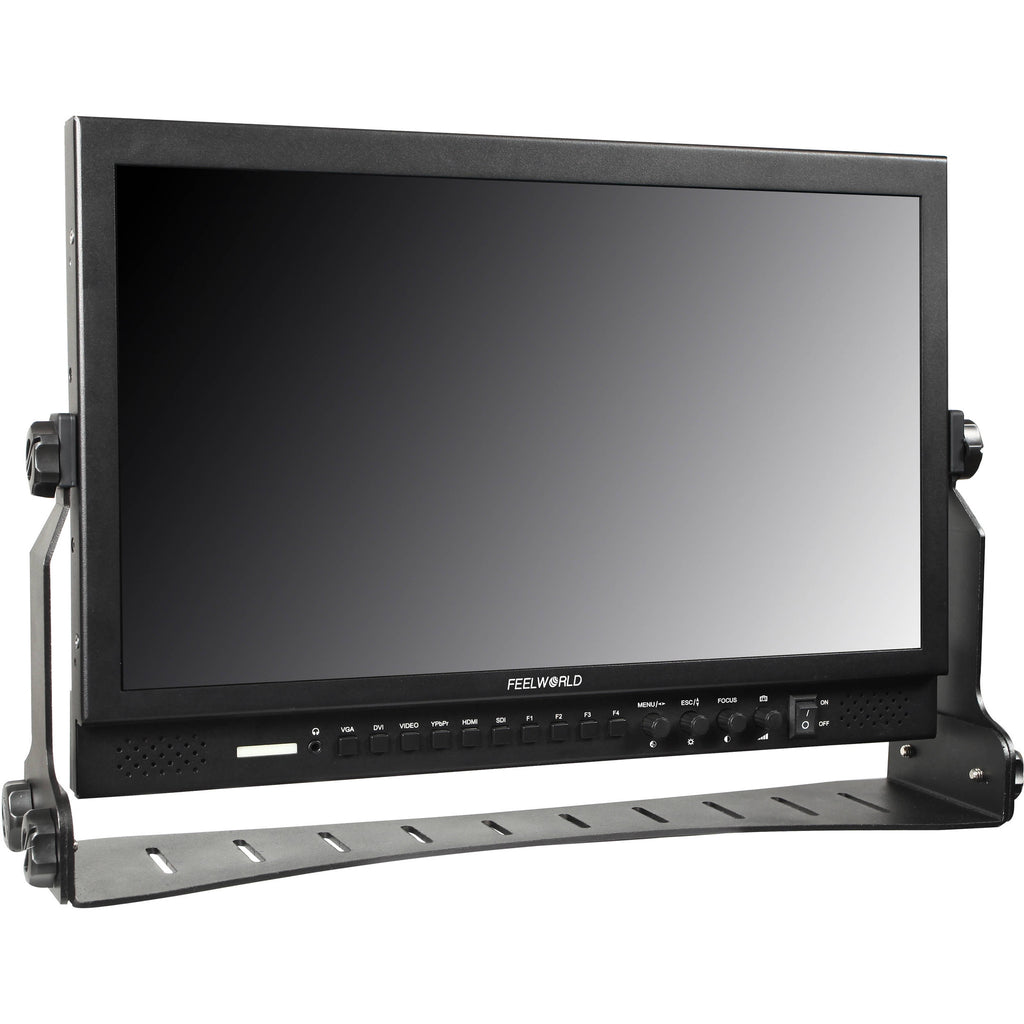

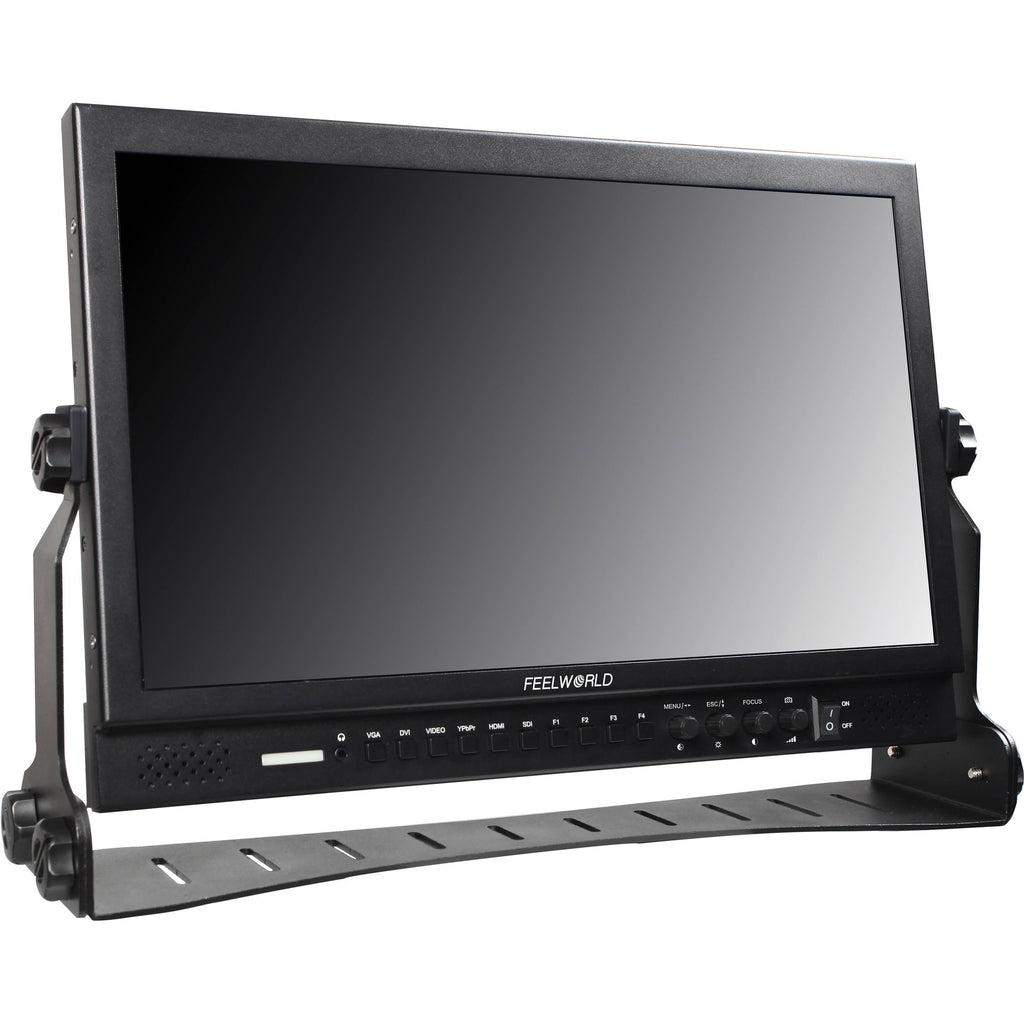

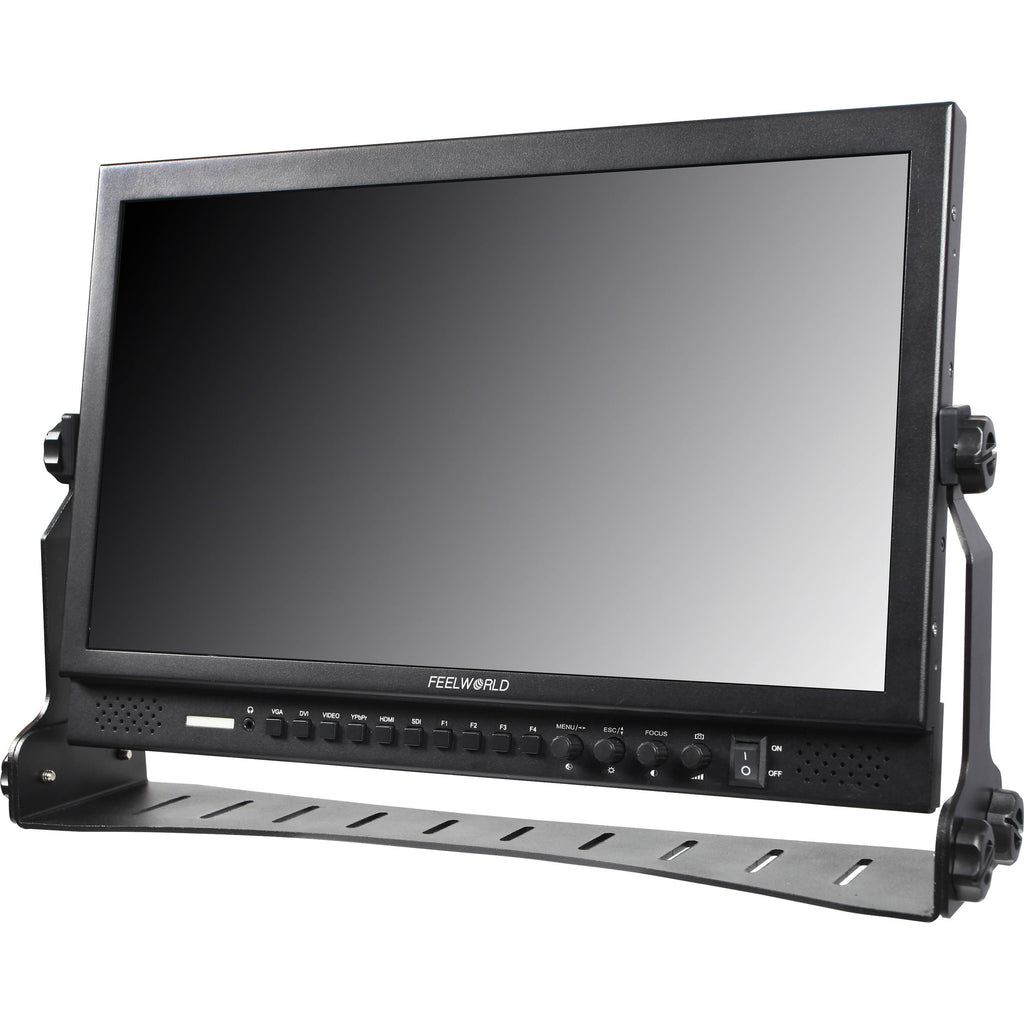

Featuring a full-HD LCD panel, the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor can be used for HD as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component and composite. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.
Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. If shooting outdoors attach the included sunhood for optimal contrast. A U-bracket is also included for convenient tabletop mounting.
- Monitoring Tools
-
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- R/G/B-only and monochrome viewing modes
- Camera scaling mode
- Pixel-to-pixel mapping
- Aspect ratio and title-safe markers
- Image flip
- Image freeze
| Screen Size | 17.3" / 43.9 cm |
| Color Depth | 8-bit (16.7 million colors) |
| Resolution | 1920 x 1080 pixels |
| Pixel Pitch | 0.1989 x 0.1989 mm |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 600:1 |
| Backlight | LED |
| Viewing Angle (H x V) | 160° / 140° |
| Input | 1 x BNC, 3G-SDI 1 x HDMI 1 x BNC, YPbPr 1 x DVI-I 1 x BNC, Composite 1 x RCA, stereo audio |
| Output | 1 x BNC, 3G-SDI 1 x HDMI 1 x BNC, YPbPr 1 x BNC, Composite |

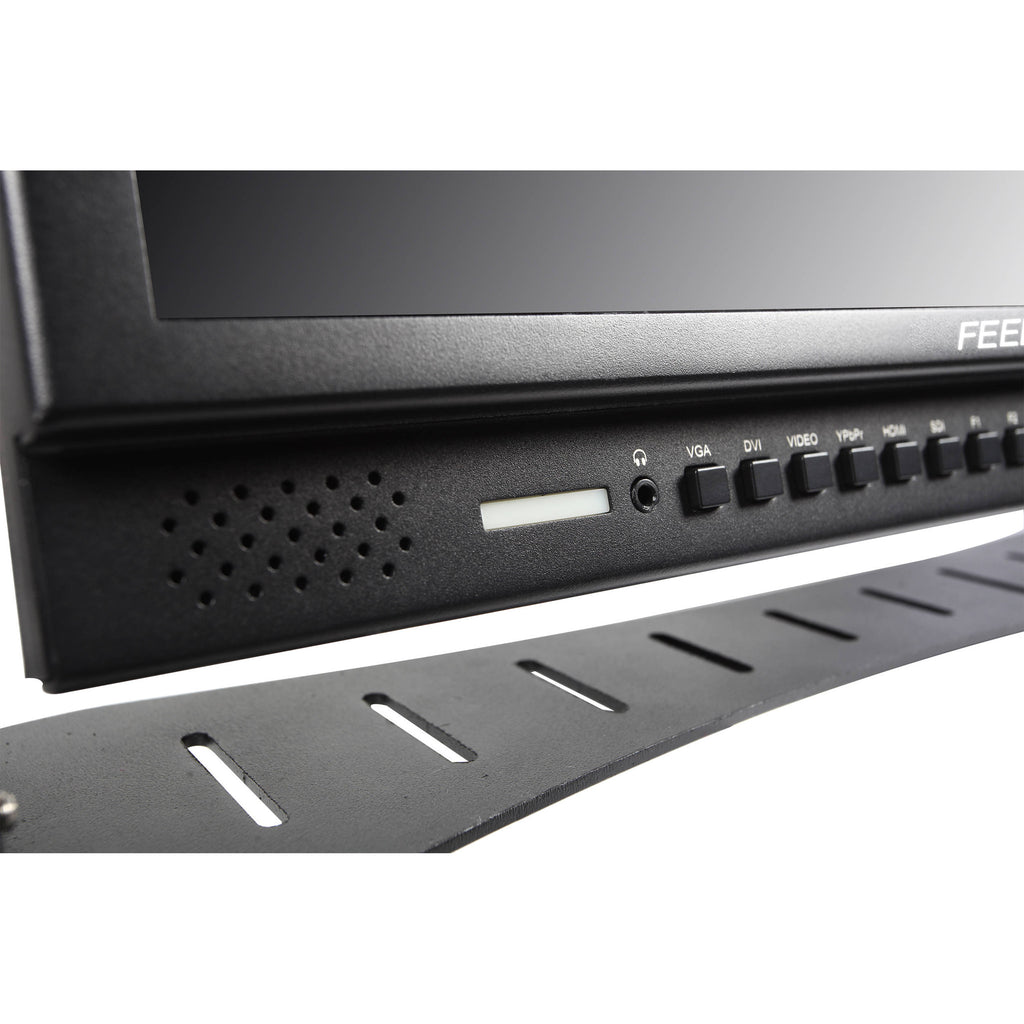

| Audio Out | Stereo headphone Internal speaker (stereo) |
| SDI Format Support | 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 NTSC PAL |
| HDMI Format Support | 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 576p 480p NTSC PAL |
| Input Voltage | 9 to 24 VDC |
| Power Consumption | ?26 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 16.3 x 11 x 1.4" / 414 x 280 x 35.1 mm without bracket |
| Weight | 6.06 lb / 2.75 kg With bracket: 7.28 lb / 3.3 kg |
| Packaging Info | |
|---|---|
| Package Weight | 11.5 lb |
| Box Dimensions (LxWxH) | 20.5 x 16.2 x 6.4" |
- Power Supply
- V-Mount Battery Plate
- Mini HDMI Cable
- Tally Kit
- Sunshade
- U-Bracket
- Limited 1-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78762.6 |
| 3-5 | ₹ 77958.9 |
| 5-10 | ₹ 76351.5 |
| 10+ | ₹ 74744.1 |
Bulk discount will be automatically applied during checkout based on quantity.
