Description

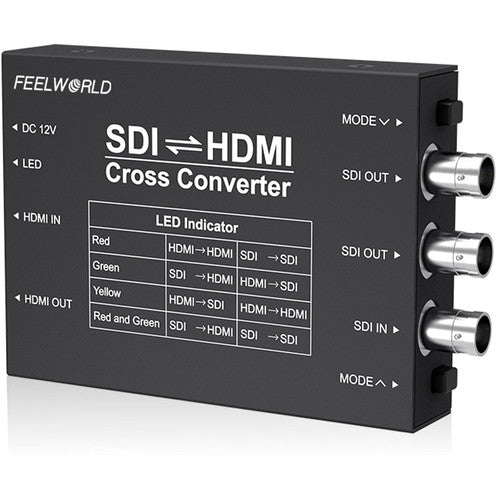

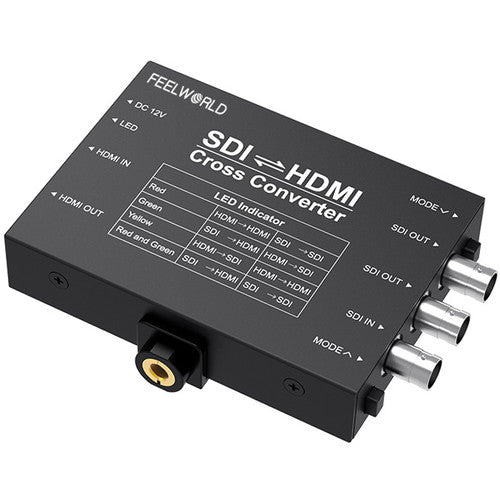

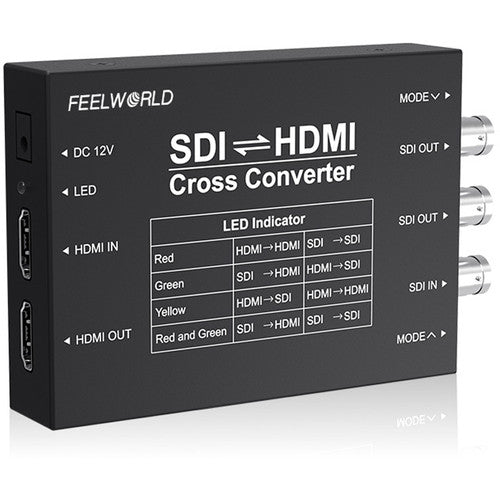

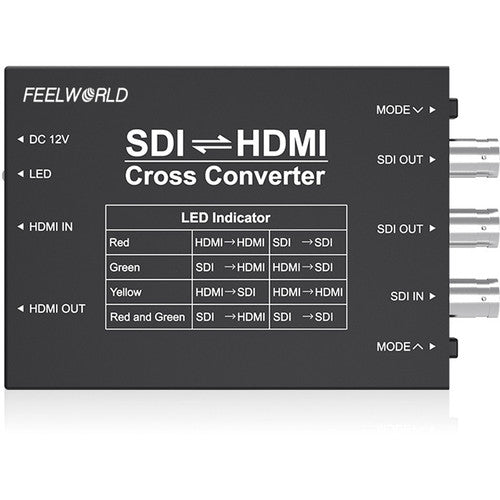

FeelWorld SCH 2 Overview
Use the Seetec SDI / HDMI Cross Converter from FeelWorld to convert a high-definition broadcast video signal from 3G-SDI to an HDMI signal, or convert an HDMI signal to a 3G-SDI signal.

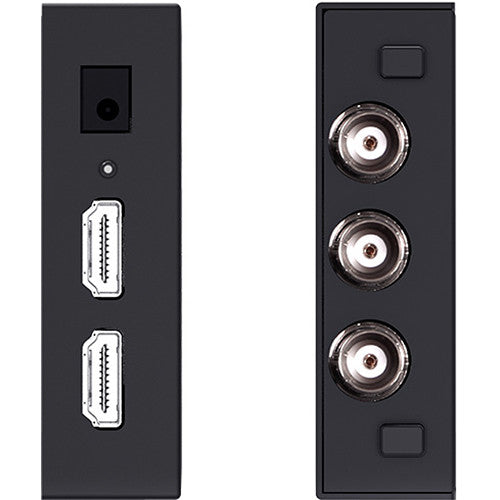

The converter features one 3G-SDI input, one HDMI input, one HDMI output, and two 3G-SDI outputs. The LED indicator shows a different color to indicate power, input, and output status. Input and output modes are modified by pressing the mode buttons on the side.
You can power the unit via the included 12 VDC power supply or with a separately available L-series NP-F970 battery using the included battery plate. The converter can be mounted using a 1/4"-20 thread on the bottom.
Video converter suitable for applications such as multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia advertisement, video security monitoring, and more.
One HDMI input, one 3G-SDI input, one HDMI output, and two 3G-SDI outputs
Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M
Enhanced HD signal processing technology supports 3G-SDI transmission up to 328'
Supports input voltage from 5 to 24 VDC

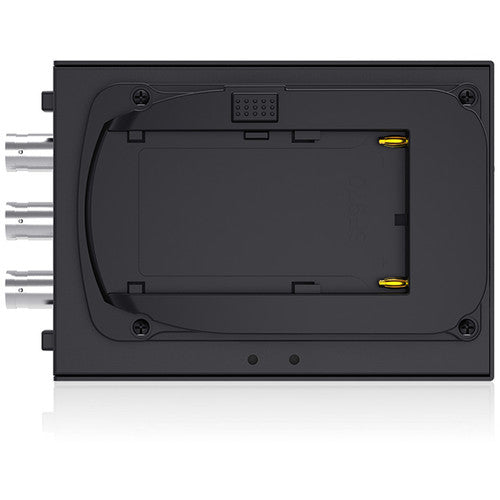

Dual power supply system with included 12 VDC adapter or L-series battery plate
Easy-to-carry, compact design
Standard 1/4"-20 mounting thread on bottom
Power/input/output LED status indicator
Heavy-duty metal housing
In the Box
- FeelWorld Seetec SDI / HDMI Cross Converter (Black)
- Power Adapter
- L-Series NP-F970 Battery Plate
FeelWorld SCH 2 Specs
| Video Inputs | 1 x HDMI (HDMI 1.4) 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
| Input Video Format | SDI 1080p at 24/29.97/30/50/59.94/60 fps 1080PsF 24 fps 1080i 50/59.94/60 fps 720p 24/25/30/50/59.94/60 fps HDMI 1080p at 24/25/29.97/30/50/59.94/60 fps 1080PsF 24 fps 1080i 50/59.94/60 fps 720p 24/25/30/50/59.94/60 fps |
| Video Outputs | 1 x HDMI (HDMI 1.4) 2 x BNC (3G-SDI / HD-SDI / SD-SDI) |
| Output Video Format | SDI 1080p at 24/25/29.97/30/50/59.94/60 fps 1080PsF 24 fps 1080i 50/59.94/60 fps 720p 24/25/30/50/59.94/60 fps HDMI 1080p at 24/25/29.97/30/50/59.94/60 fps 1080PsF 24 fps 1080i 50/59.94/60 fps 720p 24/25/30/50/59.94/60 fps |
Standards
| Video Standard Compliance | SMPTE 259M/292M/424M-B |
Power
| Battery Support | 1 x Sony L-Series / NP-F Type |
| Power I/O | 1 x Barrel (5 to 24 VDC) Input |
| Power Consumption | Power Supply: 12 VDC (4.2 W) |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
General
| Dimensions | 4.27 x 3.1 x 0.91" / 108.5 x 78.8 x 23 mm |
| Weight | 8.11 oz / 230 g |
Packaging Info
| Package Weight | 1.065 lb |
| Box Dimensions (LxWxH) | 7.9 x 4.1 x 2" |
