Field Optics Research FBT5646C-ASFPL/S Overview
-
1Description
-
2Field Optics Research PRO32-MIL FBT5646C Professional Military-Grade Carbon Fiber Tripod
-
3Field Optics Research Arca Swiss & F-Picatinny Lever Clamp with Pan Axis
-
4Field Optics Research Precision Bowl Tensioner for 75mm Bowl (Long Handle)
Pairing Field Optics Research's innovative Arca Swiss & F-Picatinny Lever Clamp with Pan Axis and a lightweight, high-capacity tripod, the PRO32-MIL FBT5646C Professional Military Grade Carbon Fiber Tripod System provides a steady platform for your camera, optic, or firearm. The bundle comes with a tactical padded carry case and shoulder sling strap.

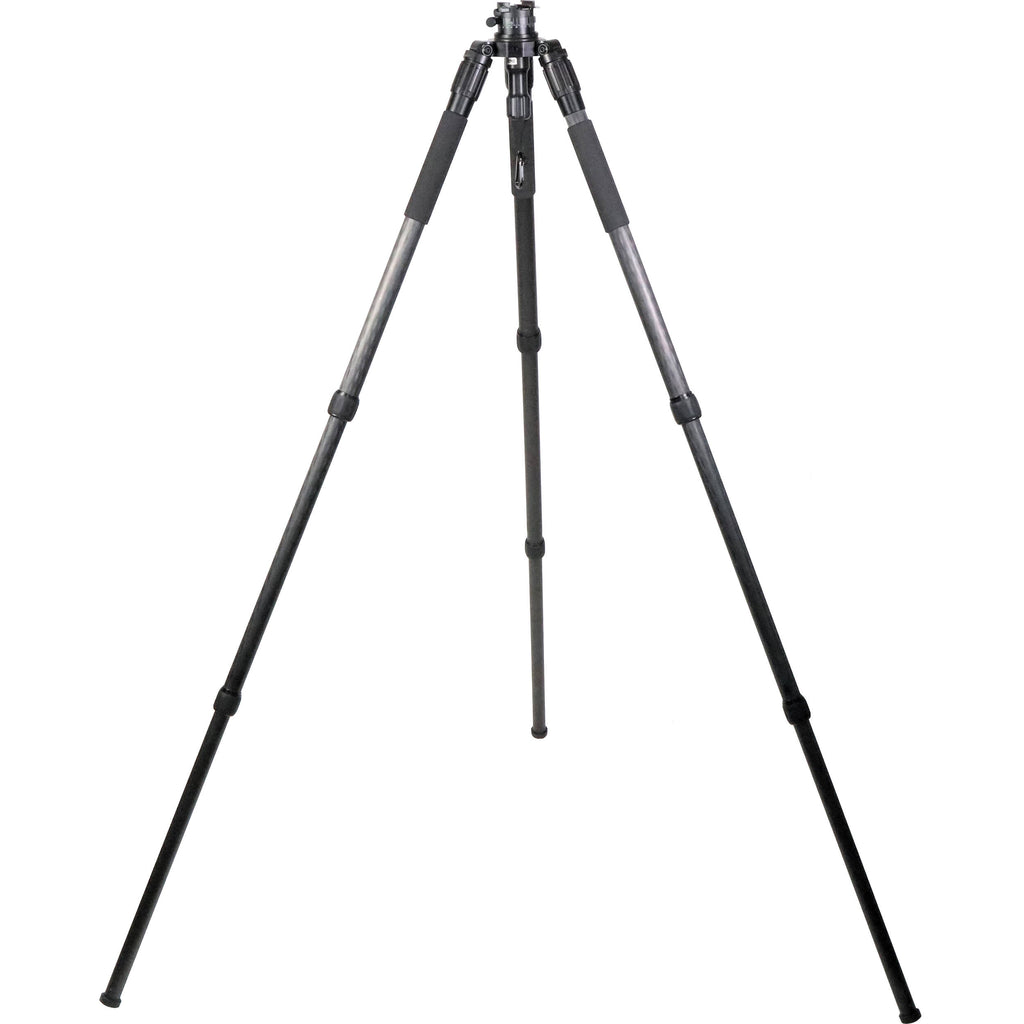

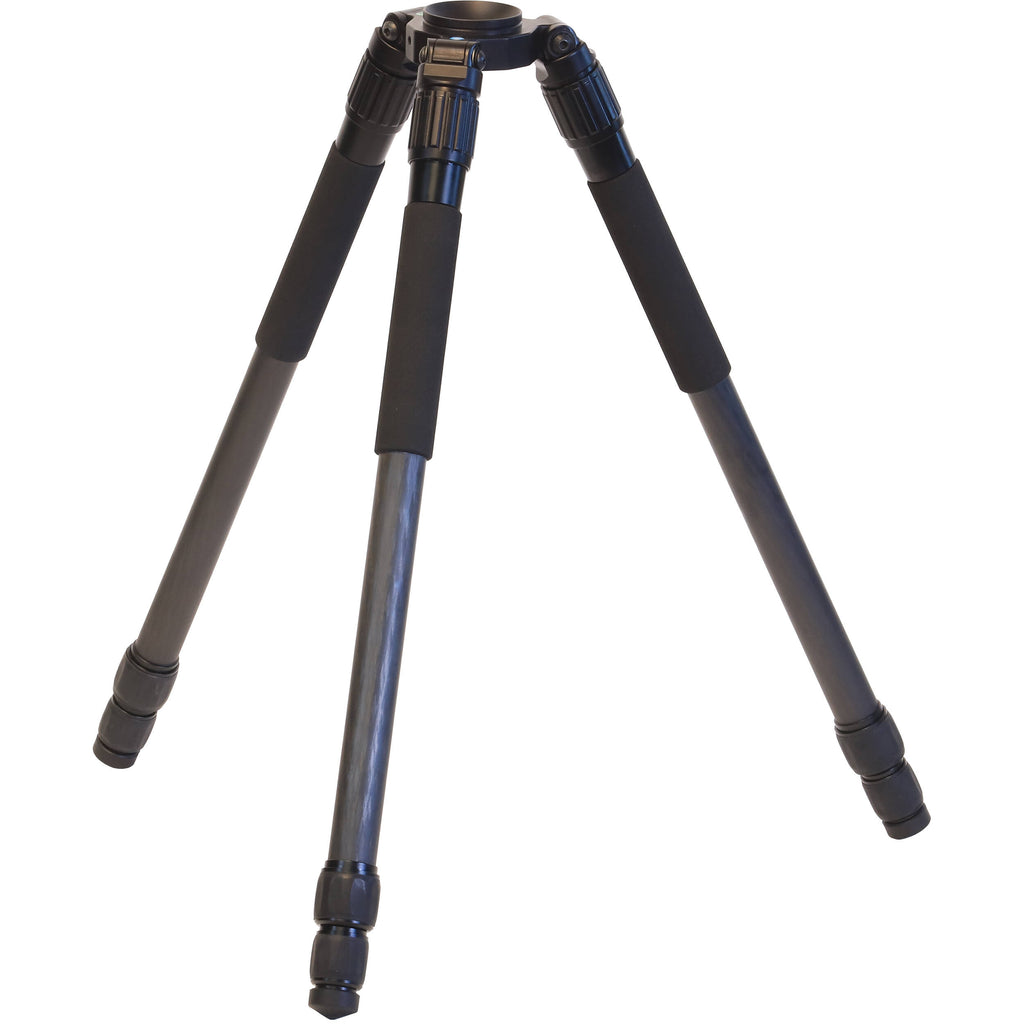

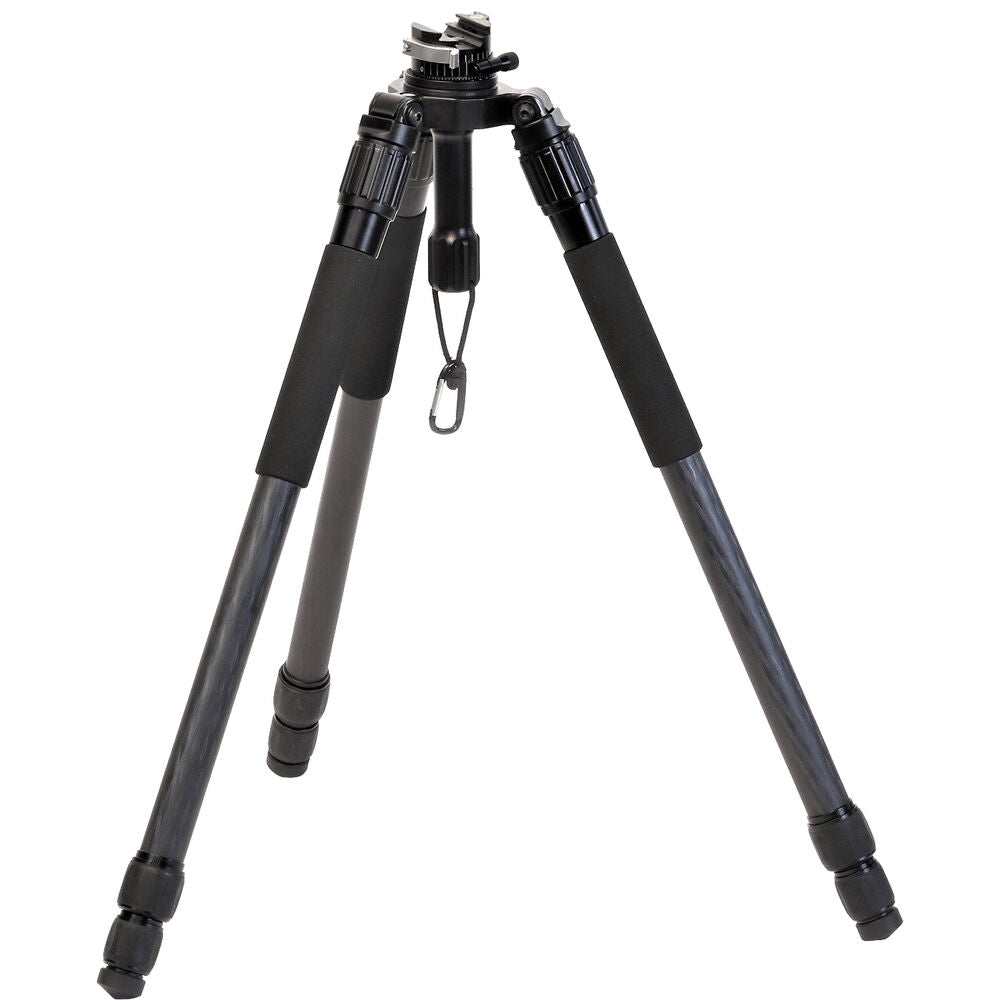

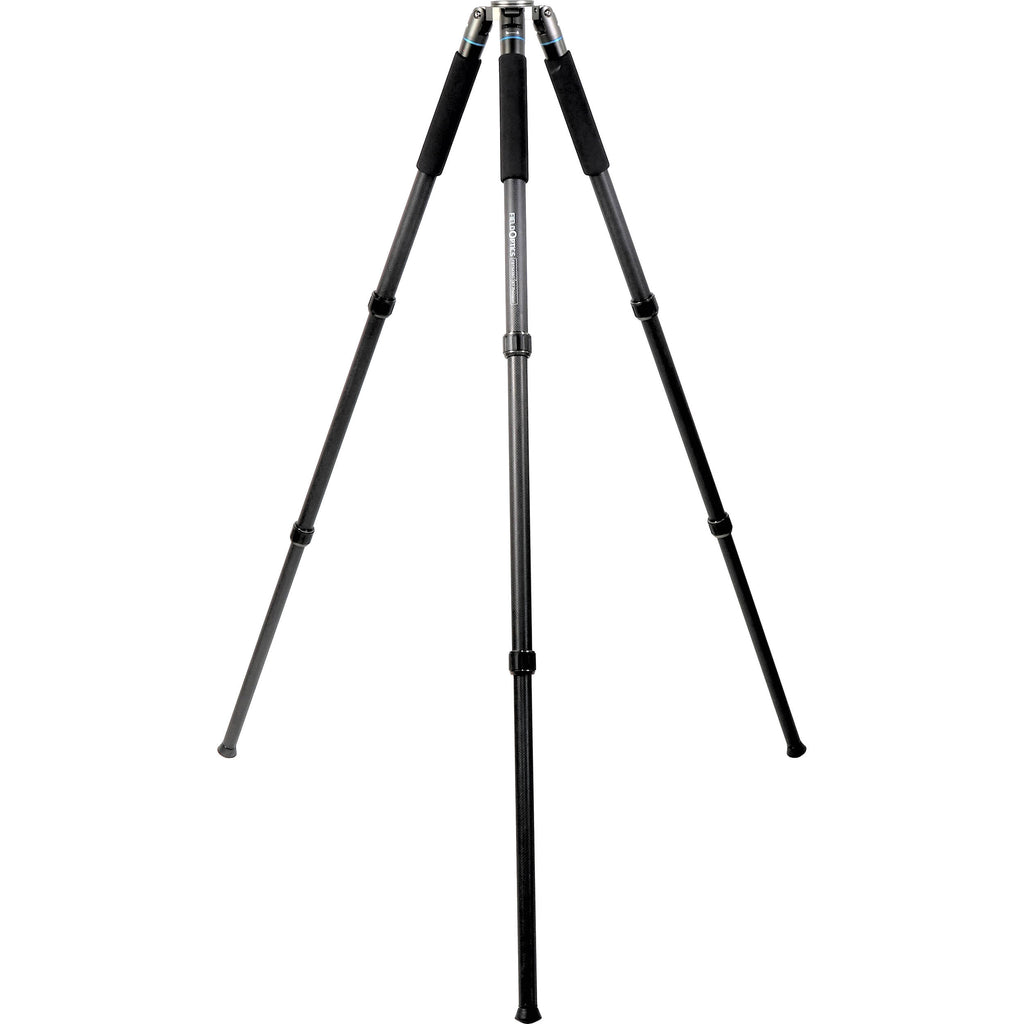

Field Optics Research PRO32-MIL FBT5646C Professional Military-Grade Carbon Fiber Tripod
Lightweight and compact, yet capable of supporting heavy optics or weapons, the PRO32-MIL FBT5646C Professional Military-Grade Carbon Fiber Tripod from Field Optics Research is designed for high-magnification optics, long-lens photography, video, and long-range shooting. Field Optics' Titan Leg Angle Lock System securely locks the 32mm, three-section, twist-lock legs into position. The tripod comes with a 75mm bowl top that can be converted to flat-top or center column designs with optional adaptive equipment. Each leg can be detached and used as a trekking pole or shooting stick. Maximum height is 56.5" and capacity is 115 pounds. The PRO32-MIL packs down to 27.3" and weighs just 4.6 pounds.

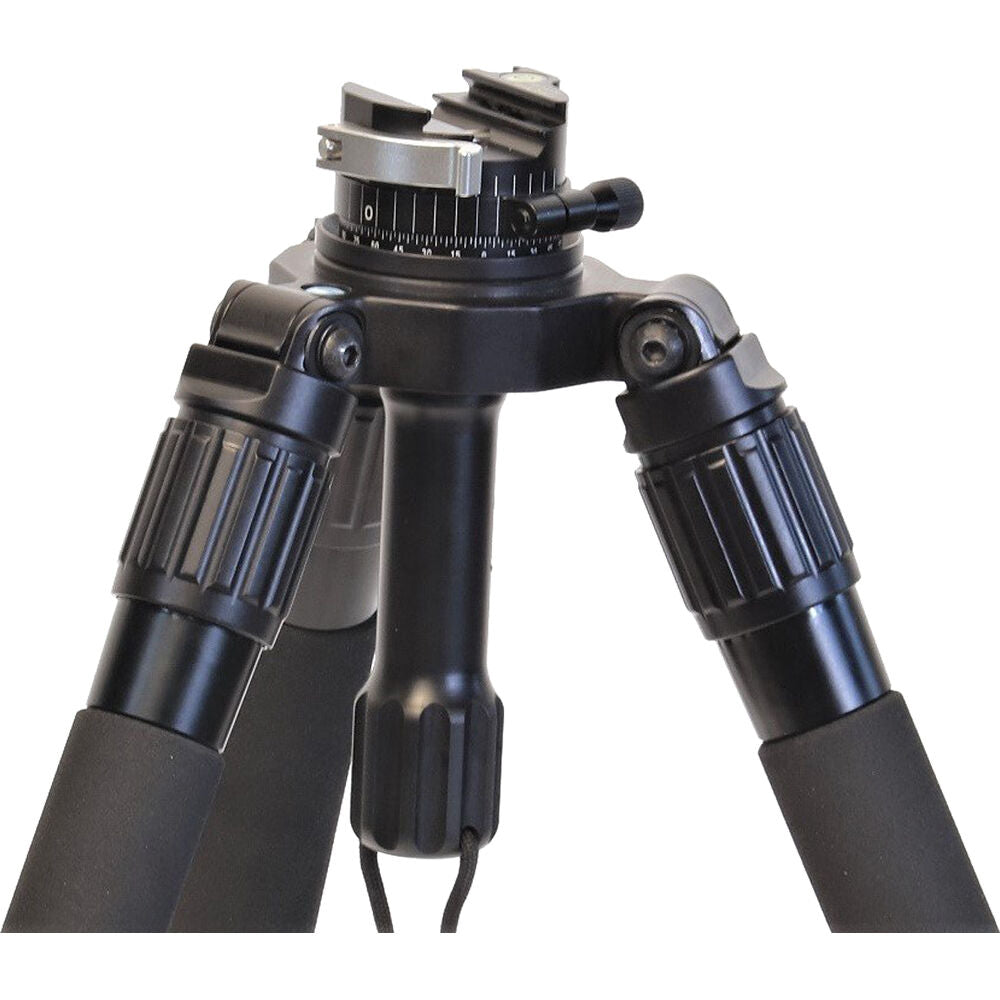

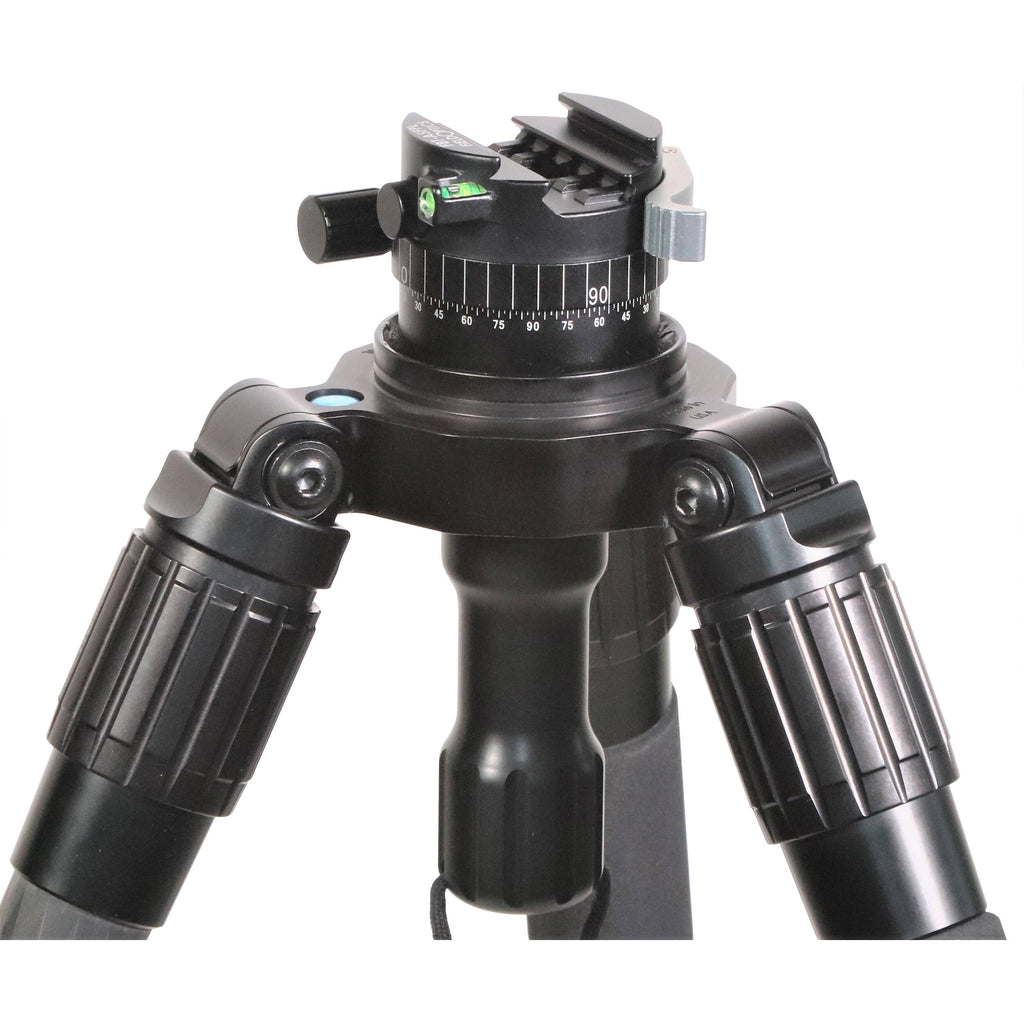

Field Optics Research Arca Swiss & F-Picatinny Lever Clamp with Pan Axis
With the flick of a lever, you can quickly and securely mount an optic, a camera, or a firearm to your tripod with the Arca Swiss & F-Picatinny Lever Clamp from Field Optics Research. Designed for use with Field Optics' FBT Bowl Disk tripods or other 1/2"-13, 3/8"-16, or 1/4"-20 fixed-disc or ball-head mounts, the unit accepts both Arca-type plates and Picatinny rails. The external pan collar provide smooth pan rotation independent of the bowl disk and provides the required lateral shock absorption. A vertical tilt level helps you make sure your rifle is perfectly upright for long-range and Precision Rifle Series shooting. Made of durable 6063-T6 aluminum, the clamp measures 2.3" in diameter.
Field Optics Research Precision Bowl Tensioner for 75mm Bowl (Long Handle)
The long-handled Precision Bowl Tensioner from Field Optics Research is a dedicated tie-down assembly compatible with 75mm bowl BT Precision tripods. Use this quick-leveling base to position your tripod head at an angle of up to +/- 20° off level.
Constructed from 6061-T6 aluminum alloy base and a lightweight Delrin handle, the Tensioner is spring-loaded to enable movement when not locked down completely. Features include an easy-to-grip grooved handle and a weight hook strap with a D-ring.
Leveling Bowl Tie-Down
Tilt the 75mm half ball to change its angle up to +/- 20°
Spring-Loaded Design
A tension-controlled design enables you to create pan and tilt movements when the handle is not locked down completely
In the Box
- Field Optics Research PRO32-MIL FBT5646C Professional Military-Grade Carbon Fiber Tripod
- Padded Carry Case
- Limited 1-Year Warranty, 3 Years with Registration
- Field Optics Research Arca Swiss & F-Picatinny Lever Clamp with Pan Axis
- Field Optics Research Precision Bowl Tensioner for 75mm Bowl (Long Handle)
- Bowl Disk
- D-Ring
- Limited 3-Year Warranty
- Limited 6-Year Total Warranty with Registration
Table of Contents
- Description
- Field Optics Research PRO32-MIL FBT5646C Professional Military-Grade Carbon Fiber Tripod
- Field Optics Research Arca Swiss & F-Picatinny Lever Clamp with Pan Axis
- Field Optics Research Precision Bowl Tensioner for 75mm Bowl (Long Handle)
Field Optics Research PRO32-MIL FBT5646C Professional Military-Grade Carbon Fiber Tripod Specs
General
| Load Capacity |
115 lb / 52.2 kg |
| Maximum Working Height |
56.5" / 143.5 cm |
| Closed Length |
27.3" / 69.3 cm |
| Head Mount Type |
None |
| Weight |
4.6 lb / 2.1 kg |
| Materials |
Carbon Fiber |
| Bubble Level |
Yes |
Legs
| Leg Lock Type |
Twist Lock |
| Independent Leg Spread |
Yes |
| Leg Sections |
3 |
| Leg Diameter |
1.3" / 32 mm |
| Feet Features |
Rubber |
Packaging Info
| Package Weight |
6.46 lb |
| Box Dimensions (LxWxH) |
32.6 x 8.2 x 8.1" |
Field Optics Research Arca Swiss & F-Picatinny Lever Clamp with Pan Axis Specs
Assembly
| Locking Method |
Lever |
| Assembly Dimensions |
ø: 2.3 x H: 0.9" / ø: 5.8 x H: 2.3 cm |
General
| Quick Release Type |
Arca-Type |
| Leveler |
1 x Bubble Level |
| Material |
Aluminum |
| Weight |
4.6 oz / 130 g |
Packaging Info
| Package Weight |
0.365 lb |
| Box Dimensions (LxWxH) |
3.65 x 3.45 x 2.5" |
Field Optics Research Precision Bowl Tensioner for 75mm Bowl (Long Handle) Specs
| Rotation Range |
+/- 20° |
| Thread Type |
Head Interface: 3/8"-16 Male
Rotation Lock: 1/4"-20 Nut |
| Material of Construction |
6061-T6 Aluminum Alloy, Delrin Plastic |
| Length |
2.75" / 70 mm |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.77 lb |
| Box Dimensions (LxWxH) |
5.8 x 5.4 x 3.9" |
