Description

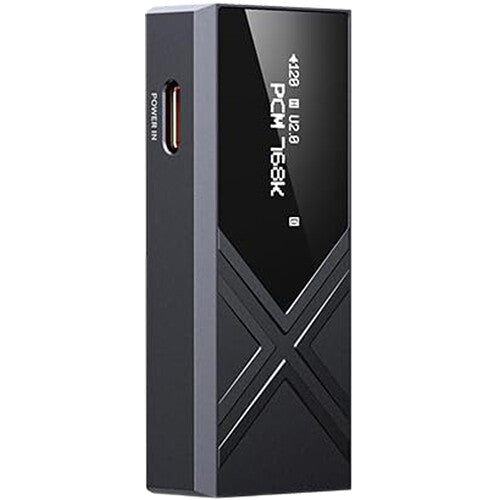

FiiO KA17 Overview
Enjoy superhigh resolution audio in your studio or on the go with the black FiiO KA17, a portable DAC and headphone amplifier in a USB dongle format. The unit features two ESS ES9069Q DACs and four THX headphone amplifiers for audiophile-quality sound reproduction. Capable of up to 32-bit / 768 kHz PCM and DSD512, the KA17 can connect to a computer, gaming device, or other peripheral for an elevated sonic experience. What's more, the unit features Desktop mode, which automatically adjusts the DAC, amplifier power supply, and amplifier power output to fully unleash its potential with greater power output.
The KA17 includes a 4.4mm balanced headphone output and a 3.5mm unbalanced headphone output that doubles as a digital S/PDIF output for converting signals from the USB-C input to S/PDIF. The OLED display is crystal clear in any lighting environment. Multifunctional buttons and convenient Android app support make it simple to control and customize your listening experience. And with a sleek, durable aluminum alloy body, the KA17 can survive long listening sessions while on the move. The KA17 includes a USB-C cable, an adapter, and a leatherette case.

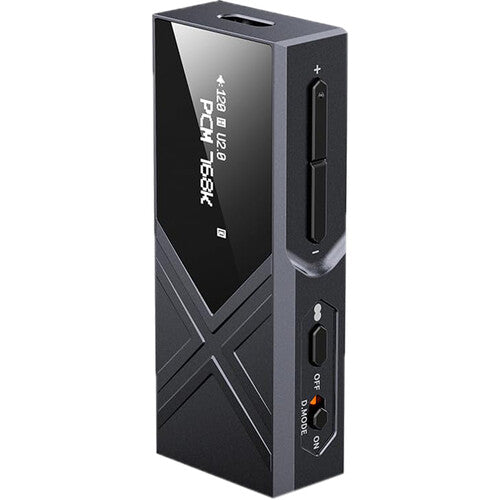

Desktop Mode: Taking It to the Next Level
The FIIO KA17 features a special desktop mode, activated using the dedicated D.Mode switch. Enable the desktop mode, and the KA17 will automatically adjust the DAC, amplifier power supply, and the amplifier power output to fully unleash their potentials with greater power output.

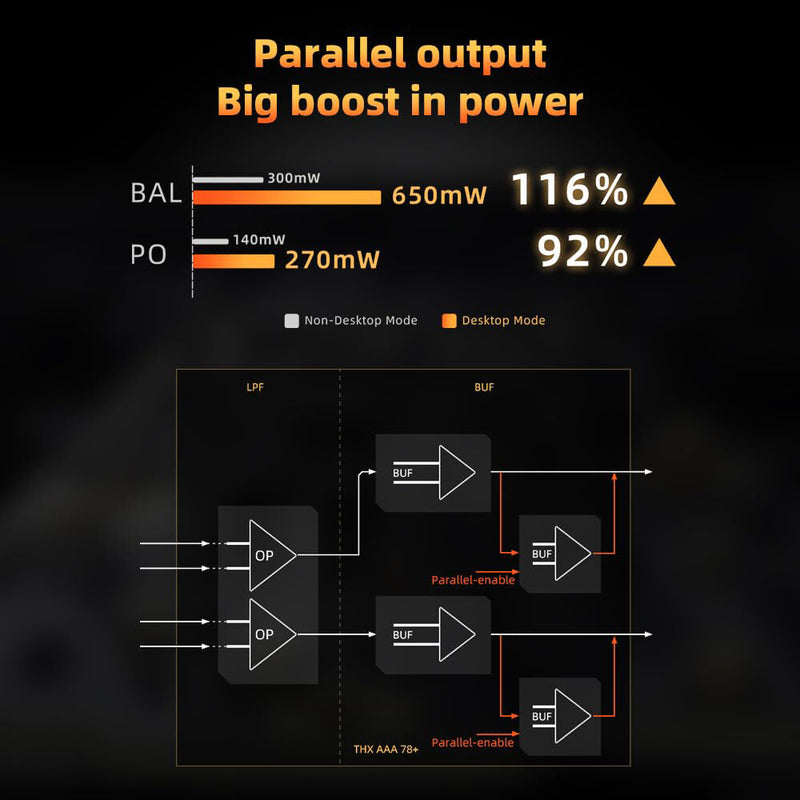

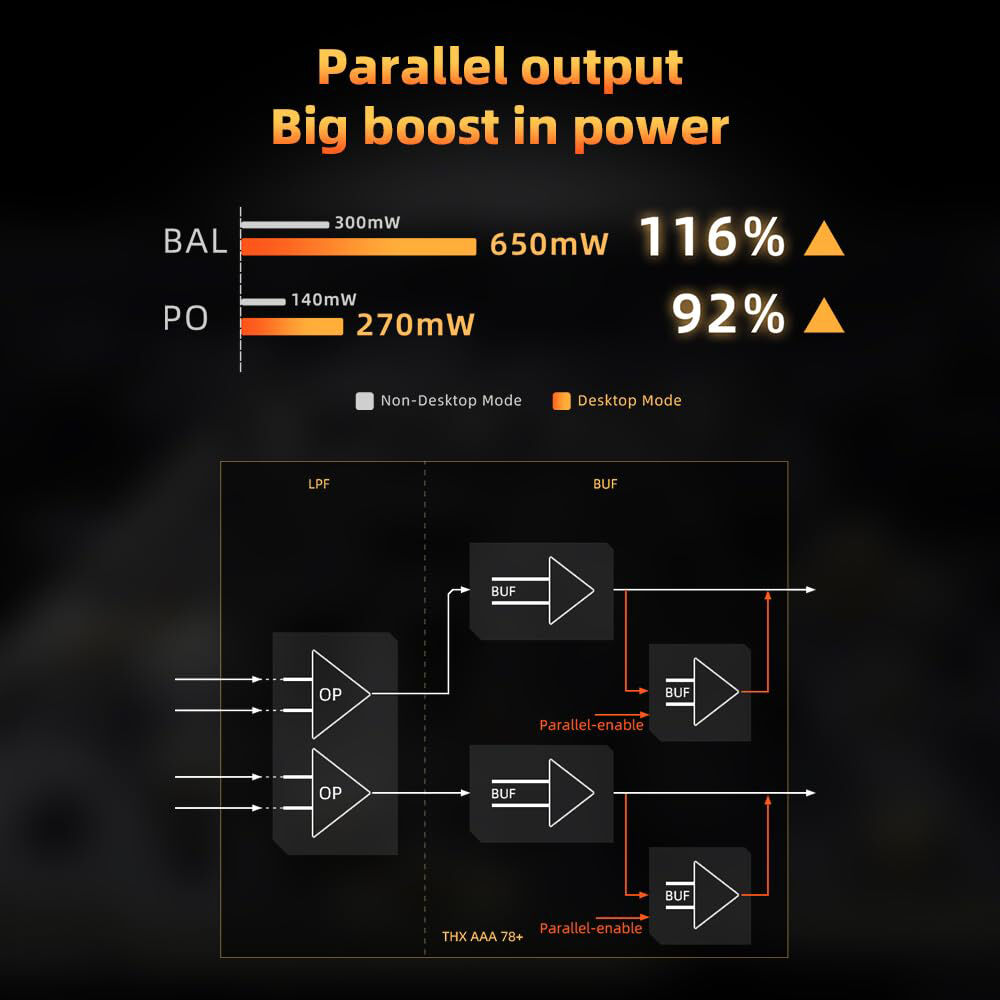

Parallel Output: Big Boost in Power
With sufficient USB-power-supply input and desktop mode enabled, the KA17's four THX headphone amps work together in parallel for greater current and overall power output. The result is up to 270+270mW power output for single-ended out, and up to 650+650mW power output for balanced out.

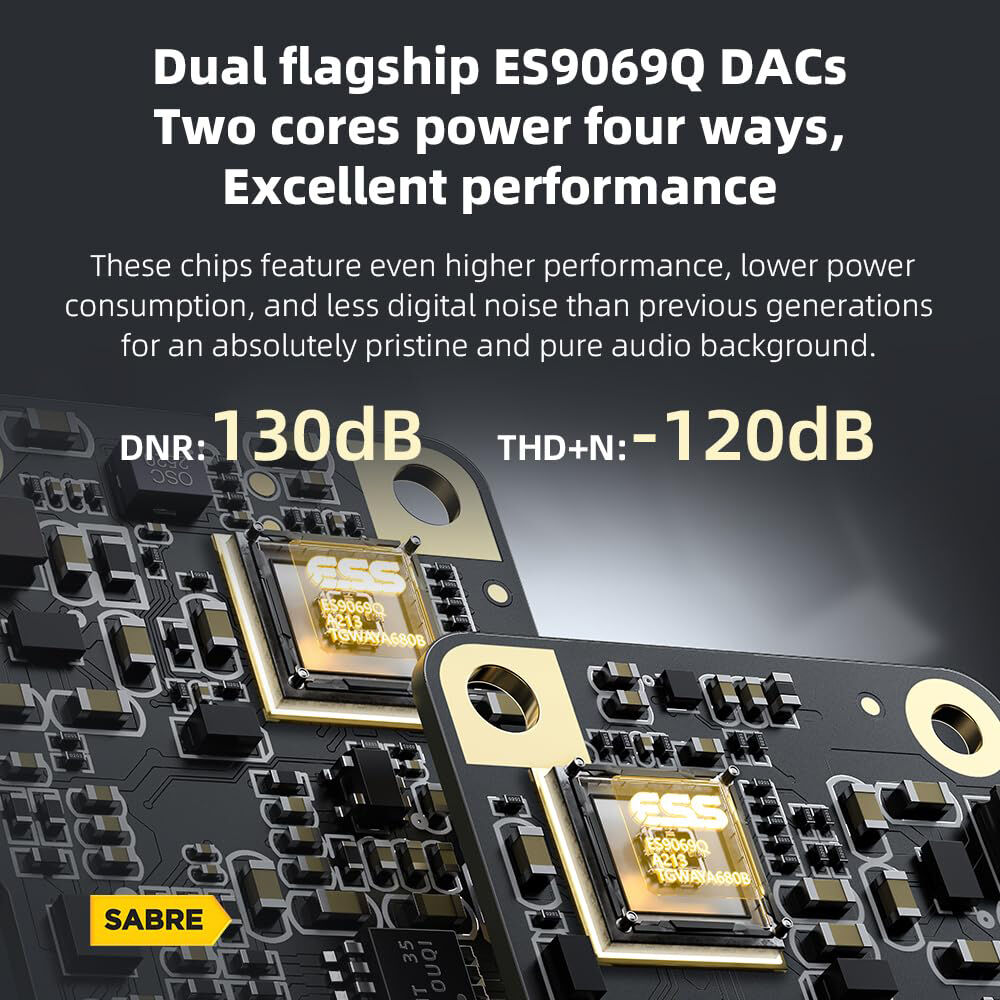

Dual Flagship DACs
The KA17 employs two of the latest ESS ES9069Q flagship DACs, powered by 4th-generation 32-bit HyperStream technology. These chips feature even higher performance, lower power consumption, and less digital noise than previous generations for an absolutely pristine and pure audio background.

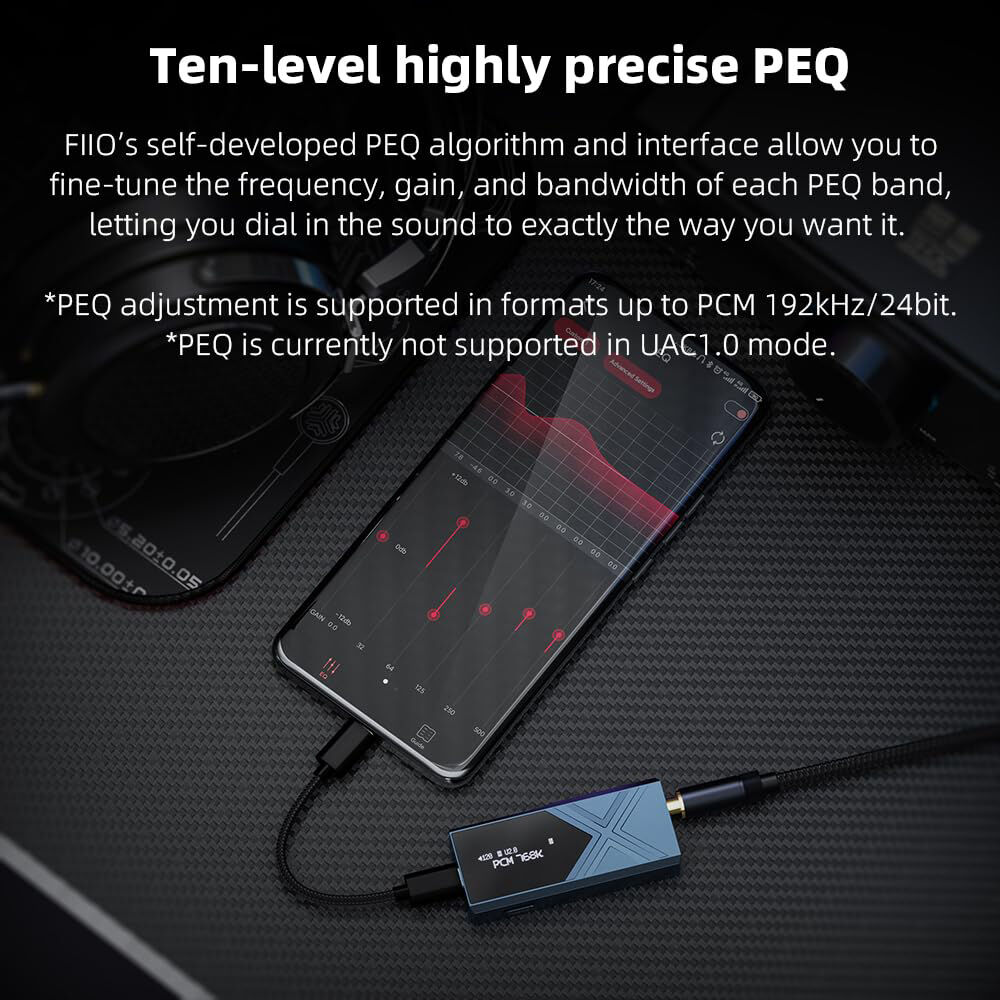

Highly Precise PEQ
The XMOS XU316 chip allowed FIIO engineers to develop a highly precise and adjustable PEQ, with 10 customizable frequency bands. FIIO's self-developed PEQ algorithm, APP page, and website allow you to fine-tune the frequency, gain, and bandwidth of each PEQ band, letting you dial in the sound exactly how you want it.

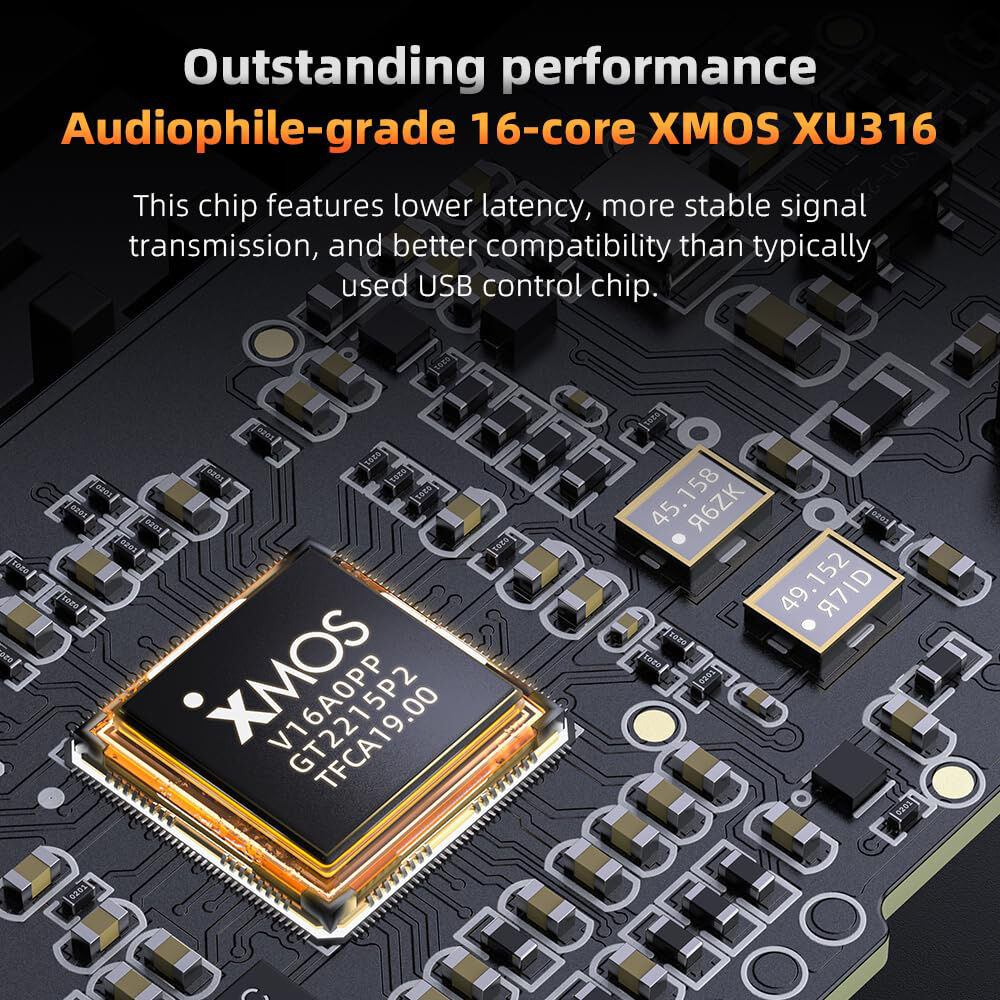

Outstanding Performance
Handling USB duties on the KA17, the 16-core XMOS XU316 is rarely found in audio dongles. This chip features lower latency, more stable signal transmission, and better compatibility than is typical for a USB control chip. And when paired with the dual crystal oscillators, the KA17 is more than capable of handling various digital audio sources with various sampling rates.

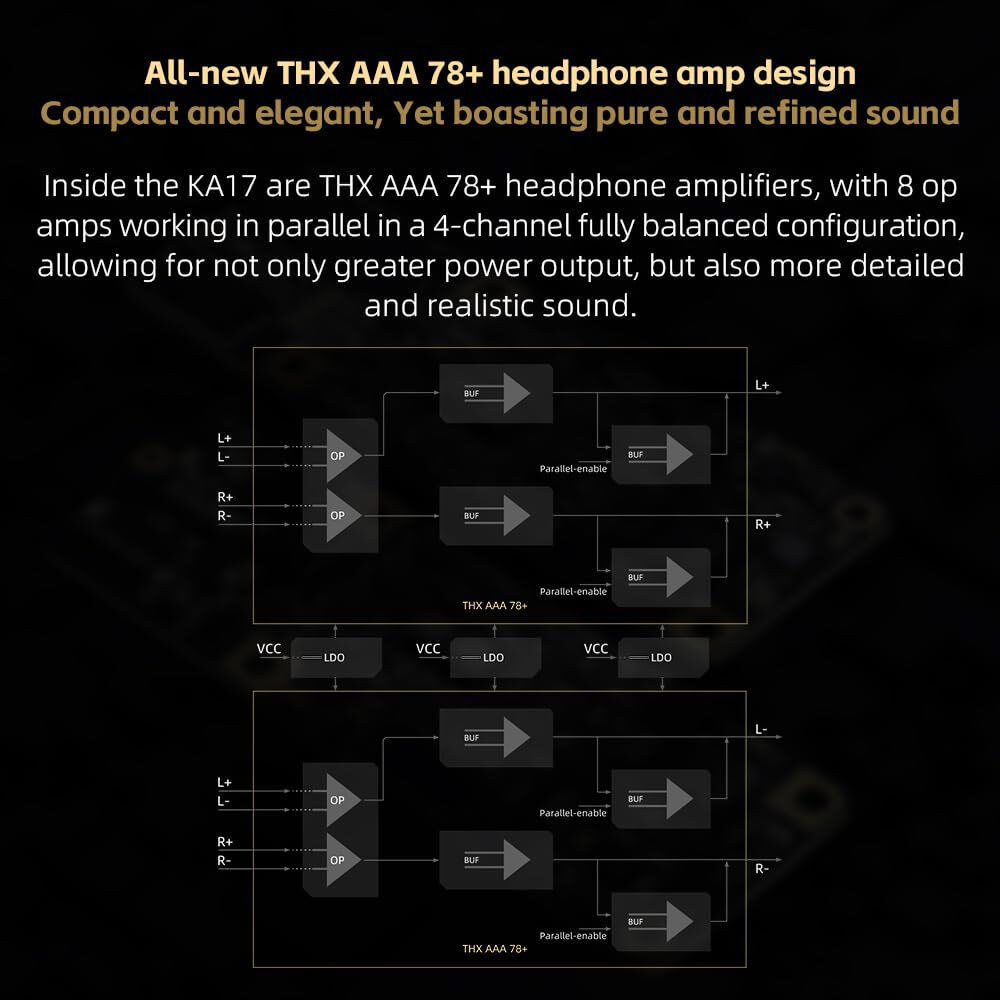

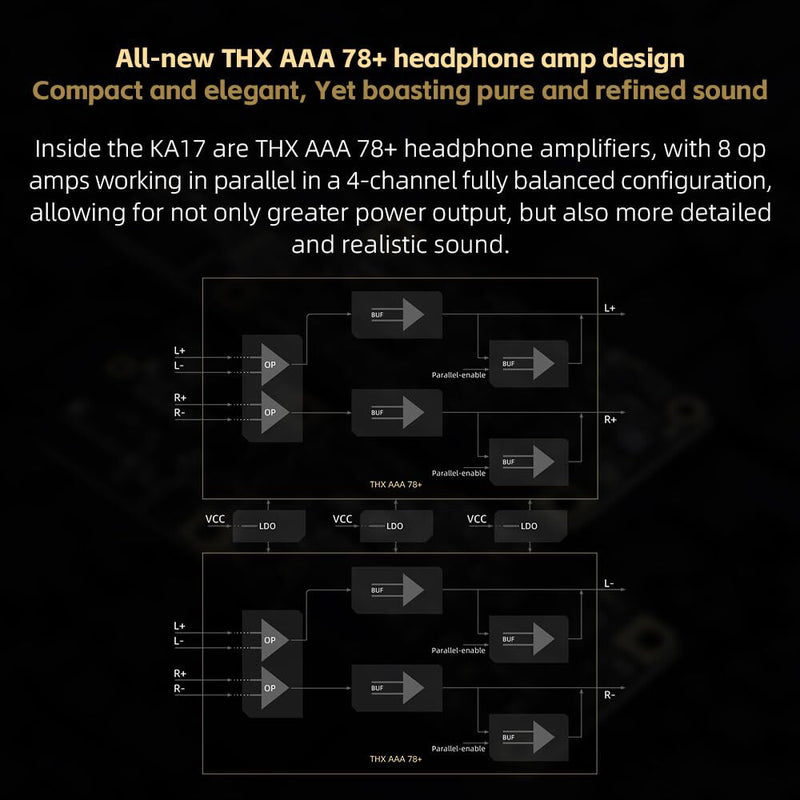

THX AAA 78+ Headphone Amp Design
Inside the KA17 are THX AAA 78+ headphone amplifiers, with 8 opamps working in parallel in a 4-channel fully balanced configuration, allowing for not only greater power output, but also more detailed and realistic sound.
Independent Type-C Power Supply
The KA17 features two USB-C ports. One is the typical port used to connect to other devices such as phones, tablets, and computers. The orange port on the side is designed for use with an external power supply, allowing the KA17 to achieve a higher power output and better performance without consuming the battery of your phone or other connected device.
Items Included
- FiiO KA17 Portable DAC and Headphone Amplifier (Black)
- USB-C to USB-C Cable
- USB Adapter
- Leatherette Case
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
FiiO KA17 Specs
Key Specs
| Number of Headphone Channels |
Single Channel
|
| Recommended Headphone Impedance |
8 to 150 Ohms (Unbalanced)
8 to 300 Ohms (Balanced) |
| Headphone Output Power |
1/8" / 3.5 mm Unbalanced:
? 320 mW per Side into 16 Ohms (1% THD) ? 270 mW per Side into 32 Ohms (1% THD) ? 30 mW per Side into 300 Ohms (1% THD) 4.4 mm Balanced: 460 mW per Side into 16 Ohms (1% THD) 650 mW per Side into 32 Ohms (1% THD) 90 mW per Side into 300 Ohms (1% THD) |
| Analog Audio I/O |
1x 4.4 mm TRRRS Balanced Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Headphone Output |
| Digital Audio I/O |
1x 1/8" / 3.5 mm Coaxial S/PDIF Output (Shared with Analog Output)
|
| USB I/O |
1x USB-C (Digital Input, Power/Charging Input)
1x USB-C (Device Input) |
| Wireless |
No
|
| Frequency Response |
20 Hz to 20 kHz (Damping < 0.1 dB)
20 Hz to 50 kHz (Damping < 0.5 dB) |
| Power Requirements |
USB Bus Power
|
| Number of Headphone Channels |
Single Channel
|
| Recommended Headphone Impedance |
8 to 150 Ohms (Unbalanced)
8 to 300 Ohms (Balanced) |
| Headphone Output Power |
1/8" / 3.5 mm Unbalanced:
? 320 mW per Side into 16 Ohms (1% THD) ? 270 mW per Side into 32 Ohms (1% THD) ? 30 mW per Side into 300 Ohms (1% THD) 4.4 mm Balanced: 460 mW per Side into 16 Ohms (1% THD) 650 mW per Side into 32 Ohms (1% THD) 90 mW per Side into 300 Ohms (1% THD) |
| Digital Chipset |
DAC:
2 x ESS ES9069Q |
| EQ |
No
|
| Display |
1x 0.91" Monochrome OLED
|
Connectivity
| Analog Audio I/O |
1x 4.4 mm TRRRS Balanced Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Headphone Output |
| Digital Audio I/O |
1x 1/8" / 3.5 mm Coaxial S/PDIF Output (Shared with Analog Output)
|
| USB I/O |
1x USB-C (Digital Input, Power/Charging Input)
1x USB-C (Device Input) |
| Wireless |
No
|
Performance
| Frequency Response |
20 Hz to 20 kHz (Damping < 0.1 dB)
20 Hz to 50 kHz (Damping < 0.5 dB) |
| Maximum Output Level |
1/8" / 3.5 mm Headphone:
3 Vrms (Desktop Mode) 2 Vrms (Non-Desktop Mode) 4.4 mm Balanced Headphone: 4.5 Vrms (Desktop Mode) 3 Vrms (Non-Desktop Mode) |
| Impedance |
1/8" / 3.5 mm Headphone Outputs:
< 1 Ohms 4.4 mm Balanced Headphone Outputs: < 1.5 Ohms |
| THD+N |
1/8" / 3.5 mm Headphone Outputs:
< 0.0015% (Desktop Mode1 kHz/-15 dB at 32-Ohm Load) 0.0015% (Non-Desktop Mode 1 kHz/-10 dB at 32-Ohm Load 1 kHz/-8 dB at 32-Ohm Load) 4.4 mm Balanced Headphone: < 0.0004% (Desktop Mode 1 kHz/-8 dB at 32-Ohm Load) 0.0005% (Non-Desktop Mode 1 kHz/-3.5 dB at 32-Ohm Load) |
| SNR |
1/8" / 3.5 mm Headphone Outputs:
? 123 dBA (Desktop Mode) ? 120 dBA (Non-Desktop Mode) 4.4 mm Balanced Headphone Outputs: ? 126 dBA (Desktop Mode) ? 120 dBA (Non-Desktop Mode) |
| Noise |
1/8" / 3.5 mm Headphone Outputs:
< 2.1 µV (Desktop A-Weighted) < 2.2 µV (Non-Desktop A-Weighted) 4.4 mm Balanced Headphone Outputs: < 2.2 µV (Desktop A-Weighted) < 2.2 µV (Non-Desktop A-Weighted) |
| Crosstalk |
1/8" / 3.5 mm Headphone:
? 75 dB (Desktop Mode) ? 80 dB (Non-Desktop Mode) 4.4 mm Balanced Headphone: ? 114 dB (Desktop Mode) ? 110 dB (Non-Desktop Mode) |
Digital Audio
| Sample Rates |
Up to 768 kHz (PCM)
|
| Bit Depths |
32-Bit
|
Compatibility
| OS Compatibility |
Android Only
|
| Mobile App Compatible |
Yes: Android Only
App Name: FiiO Control Functionality: Adjust Settings, Firmware Update, Remote Control |
| Mobile Device Compatibility |
Android Smartphone
Android Tablet |
Power
| Power Requirements |
USB Bus Power
|
| Ground Lift |
No
|
| DC Input Power |
5 VDC at 1A
|
| AC/DC Power Adapter |
No
|
Physical
| Dimensions |
25.2 x 10.9 x 5" / 64 x 27.7 x 12.7 cm
|
| Weight |
1.2 oz / 33.5 g
|
Packaging Info
| Package Weight |
0.46 lb
|
| Box Dimensions (LxWxH) |
6.9 x 4.1 x 1.5"
|
