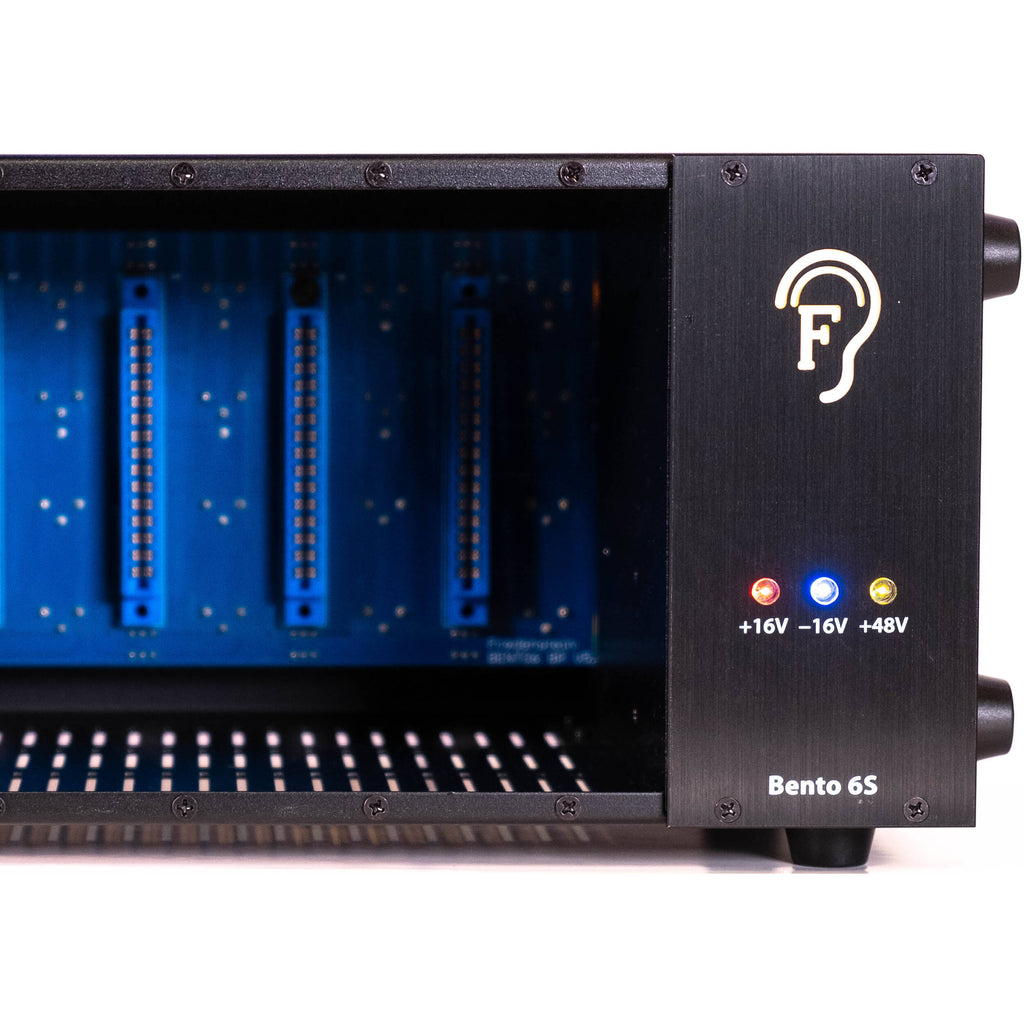

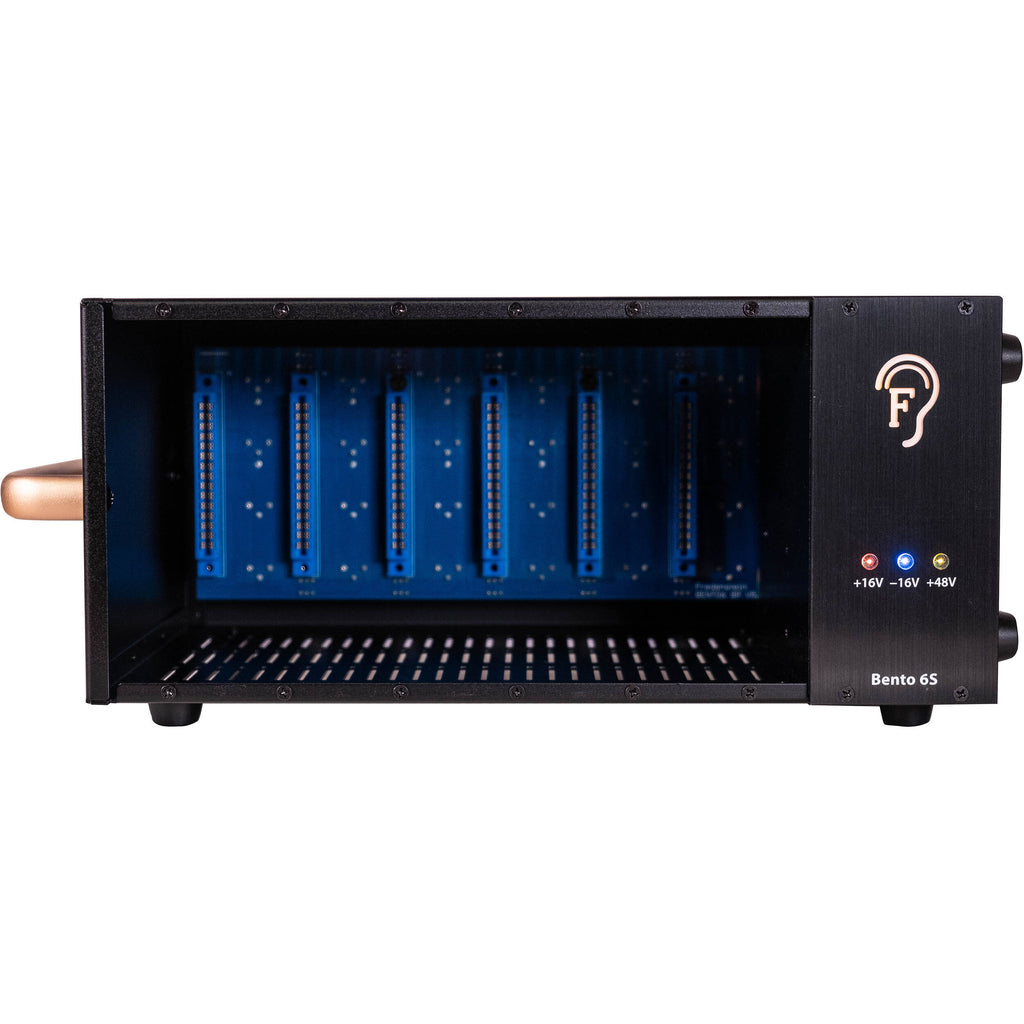

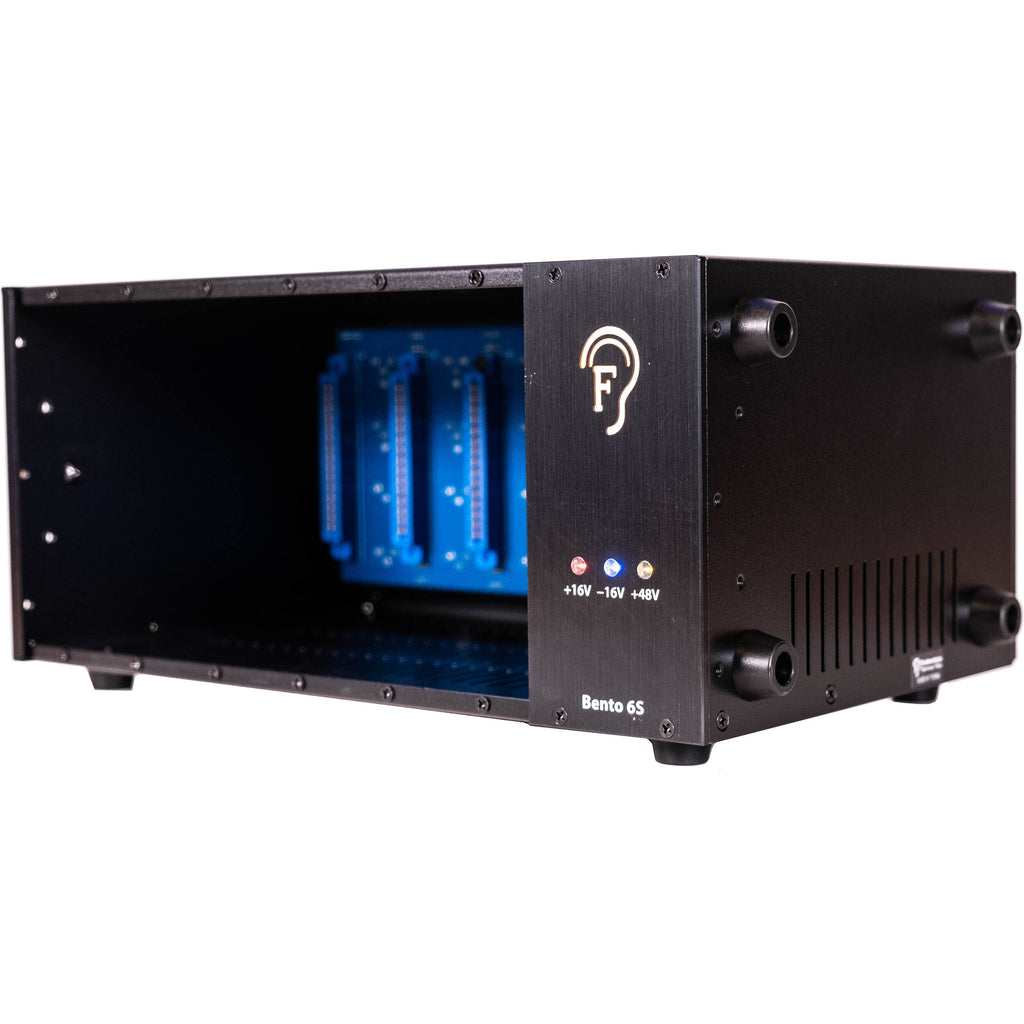

Fredenstein Module Carrier for up to 6 API-500 Modules (2 RU, 19" Rack Format)

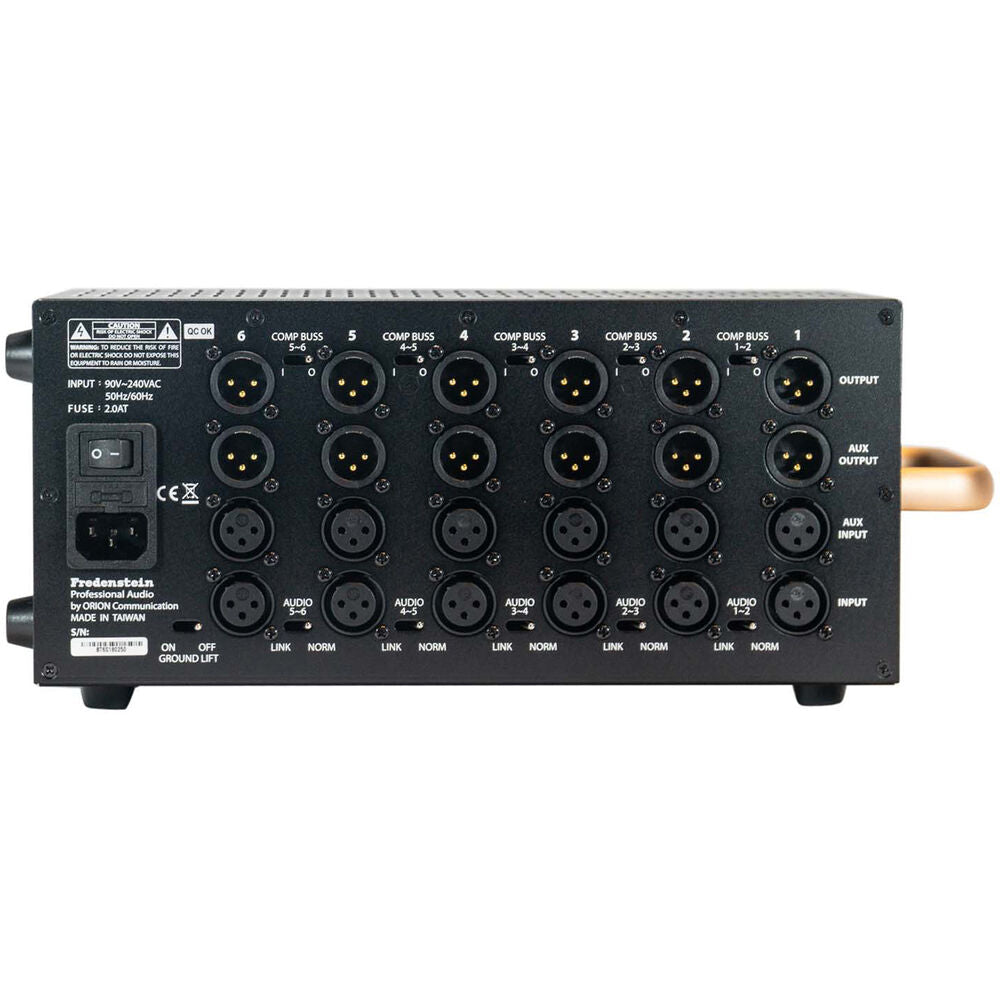

The Fredenstein Bento 6S is a high performance module carrier for Fredenstein Series 600 modules or API-500 compatible plug-in cards. The unit can accept a maximum of 6 modules.The Bento 6 features several important upgrades compared with third party products: Universal power supply: accepting mains voltages from 90V AC to 240V AC, 50 to 60 Hz. Increased output currents: +-16V DC 3.2A and +48V DC 0.3A  The Bento 6S power supply is also designed for extremely low noise largely due to state of the art switching regulators that operate above 200 kHz, which is typically higher in frequency than most conventional switching regulators. They also follow �green� guidelines that minimize power consumption to only what is needed. Auxiliary Audio Inputs and Outputs Built-in Audio Routing: Modules can be daisy-chained by simply flipping switches on the back-panel. Compressor buss linking: Compressor modules can be linked by engaging switches on the back-panel as well. Multi-Layer Backplane: Increased signal integrity and lower noise floor. Ground-lift switch: In case of ground loops, the audio ground and the protective ground can be disconnected. Please use only if absolutely necessary.
