Description

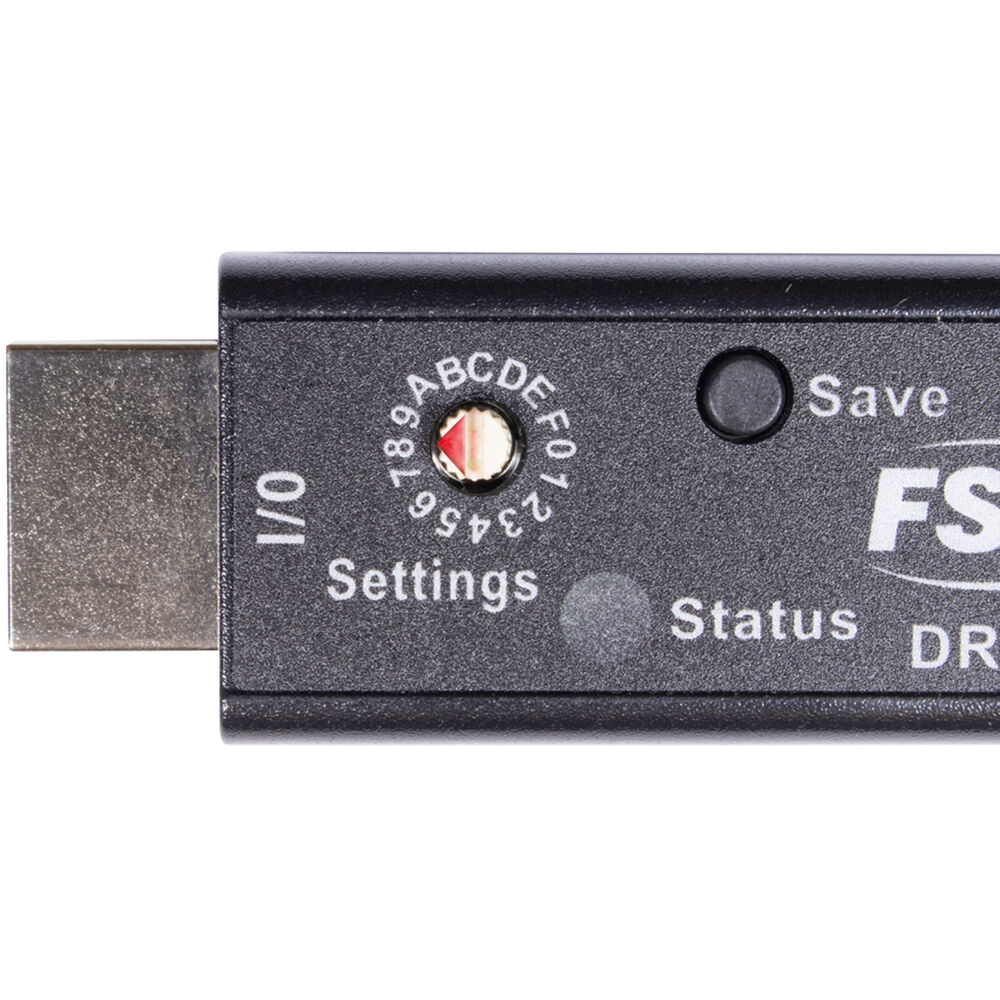

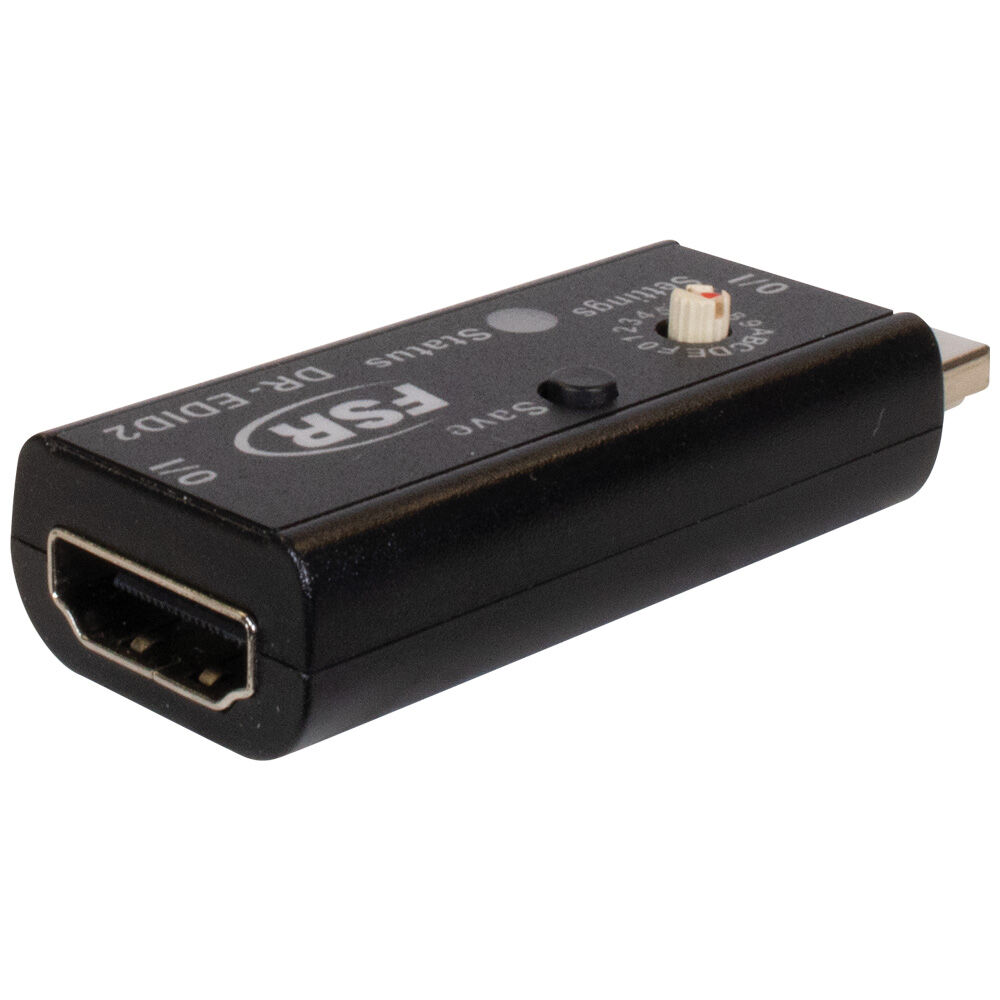

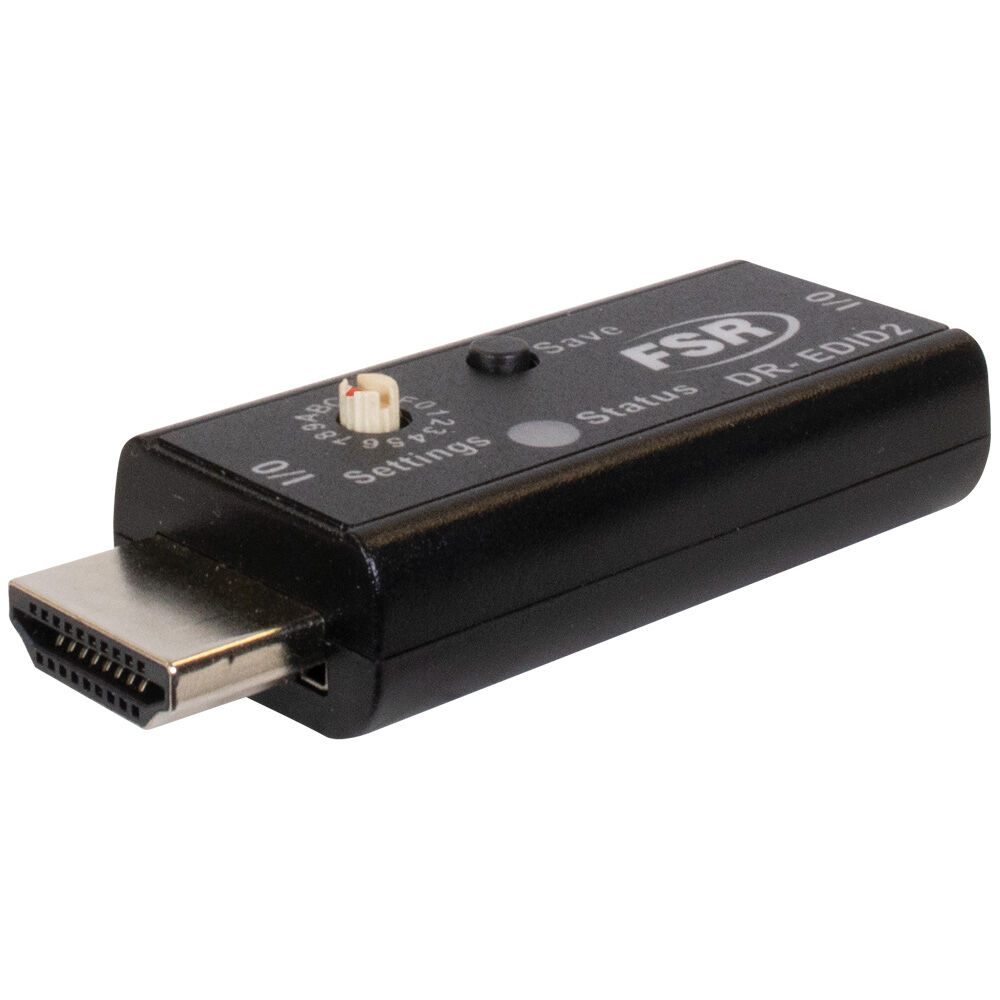

FSR DR-EDID2 Overview
The DR-EDID2 Emulator from FSR is a unique, self-powered, bidirectional device that can be integrated at either end of any HDMI system as an EDID manager/learner. Engineered to manipulate the EDID information provided to a connected HDMI source or any device earlier in the HDMI chain, the DR-EDID2 can now learn and store up to three EDID tables from any display, and the hot-pluggable device supports resolutions up to UHD 4K60 with HDCP 1.4/2.2 compatibility.
EDID (Extended Display Identification Data) includes essential details about the display's capabilities, such as supported audio and video formats and available features. The DR-EDID2 enables installers to either substitute one of the five preset EDID files or to learn, store, and recall up to three EDID files from any display device through a quick and straightforward process in the field. This feature makes the DR-EDID2 an invaluable tool for troubleshooting system issues like unstable images or complete image loss due to excessive cable length. When permanently installed, the DR-EDID2 forces the source to limit its output resolution, reducing the required bandwidth of the cabling infrastructure and thus ensuring reliable operation.
- Five preinstalled EDID files
- Passive inline device�no external power needed
- Bidirectional functionality
- HDCP 1.4 / 2.2 Compatible
- Hot pluggable
- Supports HDMI 1.3/1.4/2.0
- Supports up to UHD 4K60
- Learns and stores up to three EDID tables from any display
- Restores reliable image display to bandwidth limited systems
Items Included
- FSR DR-EDID2 Emulator EDID Manager / Learner
- Limited 3-Year Manufacturer Warranty
Additional Resources
FSR DR-EDID2 Specs
| Video Inputs |
1x HDMI (2.0)
|
| Audio Inputs |
No
|
| Video Outputs |
1x HDMI (2.0)
|
| Audio Outputs |
No
|
| Expansion Slots |
No
|
| Input Video Format |
HDMI (4:4:4/4:2:2 RGB, YCC)
UHD 4K at 29.97/30/59.94/60 fps 1080p at 59.94/60 fps 720p at 59.94/60 fps 480p at 59.94/60 fps |
| Output Video Format |
HDMI
UHD 4K at 29.97/30/59.94/60 fps 1080p at 59.94/60 fps 720p at 59.94/60 fps 480p at 59.94/60 fps |
| Embedded Audio |
HDMI: 2-Channel
|
| EDID Support |
Manual Control
|
| HDR Support |
Not Specified by Manufacturer
|
| Wireless |
No
|
| Package Weight |
0.075 lb
|
| Box Dimensions (LxWxH) |
7.75 x 7.55 x 1.2"
|
