Description
- Robust Machine Vision Lens, Metal Mount
- Low Distortion Image Capture
- Covers 2/3" Sensors
- Fast f/1.4 Aperture
- Manual Focus and Iris Adjustment
- Individual Focus and Iris Lock Tabs
- Anti-Vibration for Consistent Images
- Smooth Focus and Iris Ring Rotation

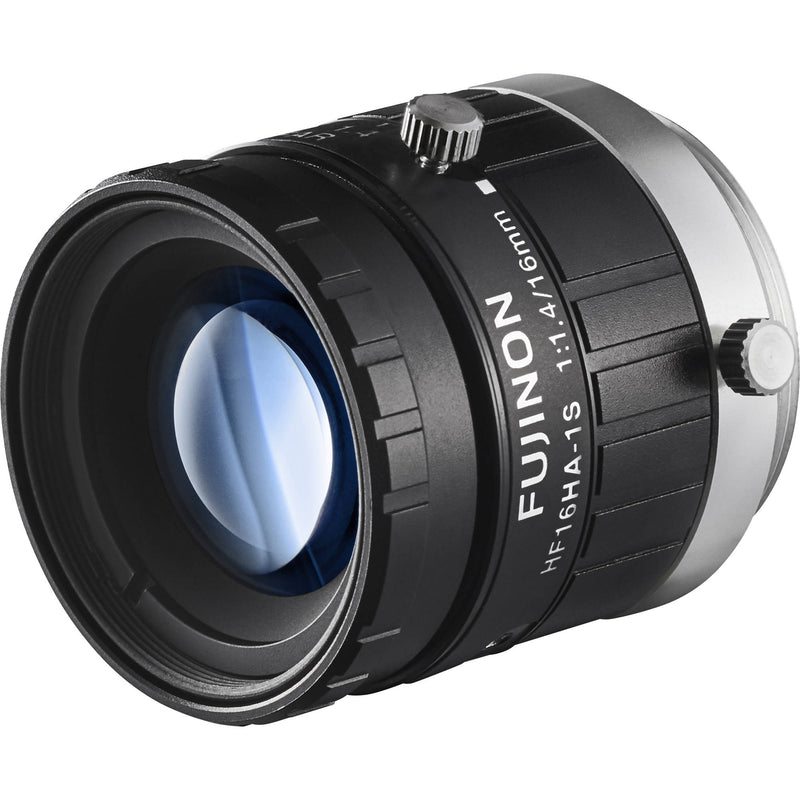

The Fujinon 1.5MP 16mm C Mount Lens with Anti-Shock & Anti-Vibration Technology is designed to provide low distortion, high-quality image capture in machine vision applications. The compact lens covers 2/3" sensors and features a fast f/1.4 aperture that ensures clear images in low light environments. Focus and iris adjustment are manual, and individual focus/iris lock tabs are provided to maintain set positions over time. Built-in anti-shock and anti-vibration technology highly reduces the need for these tabs because their primary purpose was to protect against changes caused by vibration.
The anti-shock and anti-vibration technology helps keep both the mechanical and optical elements of the lens in their original positions to maintain consistent image quality in harsh environments that produce a lot of vibration. The new feature also helps protect the lens from damage caused by accidental falls. The lens is complete with a robust build, metal mount, and smooth focus and iris ring rotation.
- Key Features
-
- Low distortion, high-quality image capture for machine vision applications
- Covers 2/3" sensors
- Fast f/1.4 aperture
- Manual focus and iris adjustment
- Individual focus and iris lock tabs
- Built-in anti-shock and anti-vibration technology for consistent image quality
- Metal mount
- Smooth focus and iris ring rotation
Fujinon HF16HA-1S Specs
| Lens Mount | C |
| Sensor Compatibility | 2/3" |
| Focal Length | 16mm |
| Aperture | f/1.4 to 16 |
| Angle of View | 2/3" Sensor Horizontal: 22.9 to 30.5° |
| Minimum Object Distance | 3.94" / 10 cm |
| Focus Type | Manual Focus |
| Iris Type | Manual |
| Distortion | 2/3": -0.87% |
| Filter Thread | M25.5 x 0.5 mm |
| Dimensions (ø x L) | 1.2 x 1.2" / 29.5 x 29.5 mm |
| Weight | 1.4 oz / 40 g |
| Packaging Info | |
|---|---|
| Package Weight | 0.145 lb |
| Box Dimensions (LxWxH) | 3.15 x 2.15 x 2.1" |
