Description
- 35mm Machine Vision Industrial Lens
- C-Mount for Sensors up to 1.1"
- Manual Focus and Iris
- Adjustable Locking Focus and Iris Knobs
- f/1.8 to f/16 Aperture
- M37.5 Threaded Front for Filters

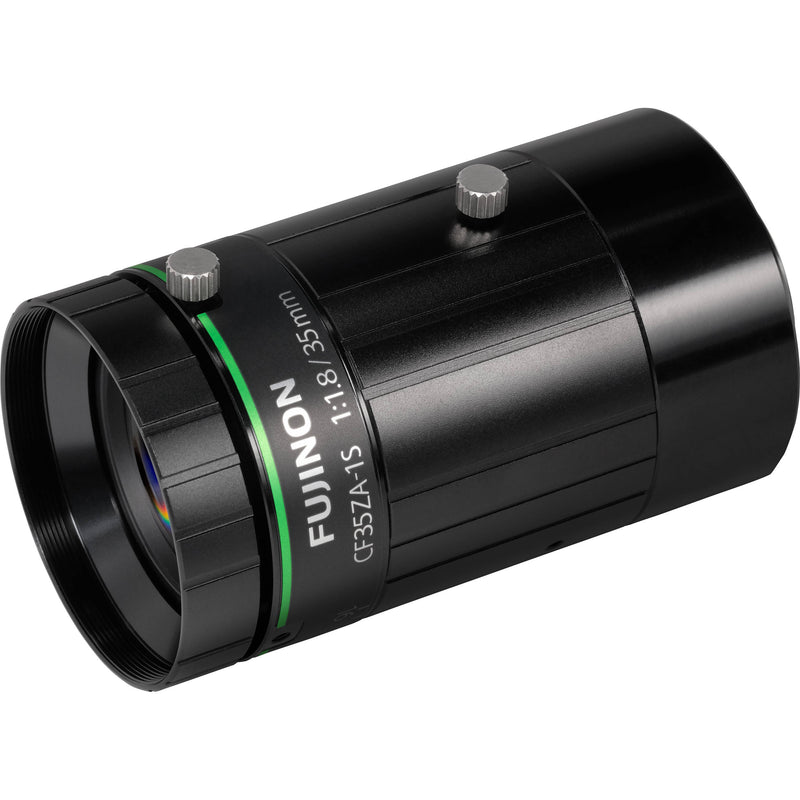

The compact CF35ZA-1S 35mm f/1.8 Machine Vision Lens from Fujinon is a C-mount lens for sensors up to 1.1", and suitable for machine vision applications such as monitoring precision instruments, presswork, and semiconductor production.
Designed to resolve images on HRI (High Relative Illumination) sensors, it features locking manual focus and iris rings for use in demanding environments. It also features anti-shock and anti-vibration technology and a 4D high-definition optical design that reproduces consistently sharp images with little distortion. The CF35ZA-1S lens can focus from infinity down to less than 8" from the front of the lens. It accepts M37.5-sized threaded filters and comes with its own QR code printed on the lens cone for quality management.
- 35mm fixed focal length lens
- The lens maintains edge-to-edge sharpness from the image center to all corners, for higher image recognition accuracy even when changing focus
- The lens exhibits a maximum resolution of 3.45µm pixel pitch over a large area of your sensor
- The lens maintains Fujinon's 4D High Resolution performance, resolving to a pixel pitch on a 1.1" sensor of 2.5µm
- Manual focus and iris
- Focus and iris rings are locking, and each ring has three different locking holes that can receive the locking knob, enabling you to use this lens in a variety of limited space applications.
Fujinon CF35ZA-1S Specs
| Lens Mount | C |
| Sensor Compatibility | 1", 1.1", 1/1.2", 1/1.8", 1/2", 1/3", 2/3" |
| Focal Length | 35mm |
| Aperture | f/1.8 to 16 |
| Angle of View | 1.1" Sensor Horizontal: 23 to 17.3° |
| Minimum Object Distance | 7.87" / 200 mm |
| Focus Type | Manual Focus |
| Iris Type | Manual |
| Distortion | 1.1": -0.32% |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Filter Thread | M37.5 x 0.5 mm |
| Dimensions (ø x L) | 1.54 x 2.7" / 39 x 67.6 mm |
| Weight | 5.8 oz / 165 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 95486.3 |
| 3-5 | ₹ 94511.95 |
| 5-10 | ₹ 92563.25 |
| 10+ | ₹ 90614.55 |
Bulk discount will be automatically applied during checkout based on quantity.
