Description

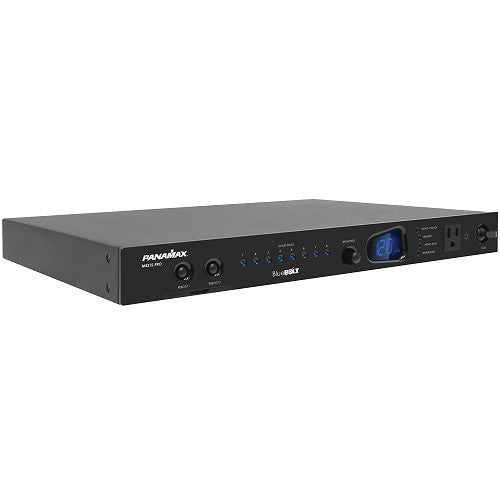

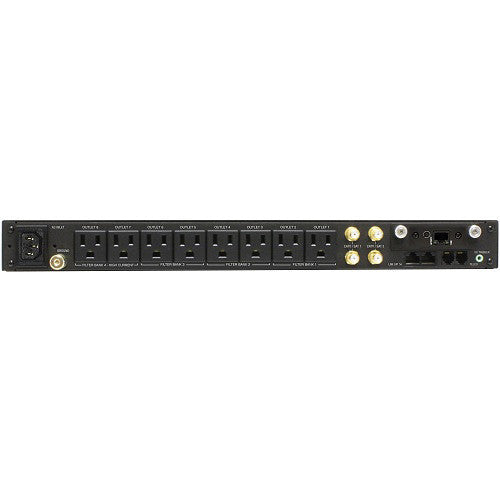

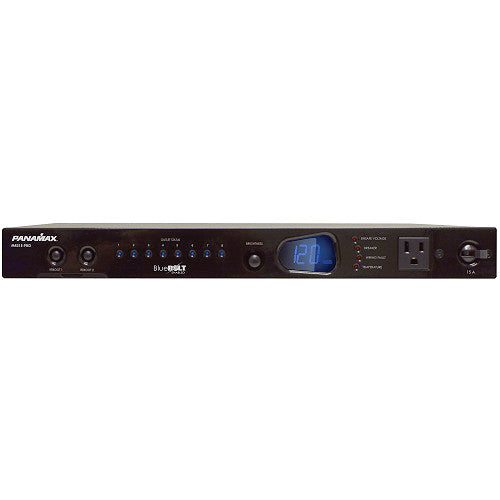

The M4315-PRO Power Management with Control System from Panamax is a rack-mountable, power management system that features Panamax's AVM (Automatic Voltage Monitoring) circuit and Linear Filtering Technology (LiFT) to provide AC protection and purification. The included BlueBOLT-CV1 provides secure, hosted IP system control and monitoring for the M4315-PRO.
- Eight fully controllable/programmable outlets via BlueBOLT-CV1 or RS-232C cards
- Linear Filtration with four isolated outlet banks
- Two front panel programmable reboot buttons
- IP control with BlueBOLT-CV1 and RS-232C cards
- Volt/amp meter, outlet status, and warning LEDs
- Removable rack ears with a full depth metal chassis
- Circuit breaker/power switch
- 12V input triggering
UPC: 050616008594
In the Box
Furman M4315-PRO Power Management with Control System
- BlueBOLT-CV1 Card
- RS232 Card
- Removable Rack Ears
- 10' Detachable Power Cord
- 4 x Silicone Feet
- Mounting Hardware
- Limited 3-Year Warranty
| Power | |
|---|---|
| Line Voltage | 120 V, 60 Hz |
| Isolated Filter Banks | 2 |
| Voltage Regulation | No |
| Outlets | Total: 9 High Current: 2 |
| Max Total Current | 15 A, 1800 W |
| Voltage Protection Rating | UL 1449 3rd Edition (3,000 A): 500 V |
| Protection Modes | L-N, L-G, N-G |
| Clamping Characteristics | Initial Clamping Level: 200 V Peak, 141 V RMS |
| Maximum Energy Dissipation | 2700 J |
| Peak Impulse Current | 135,000 amps |
| Circuit | Catastrophic Surge Circuit: Yes |
| Safe Thermal Fusing | Yes |
| Auto Reset | Auto-resetting Over-voltage shutoff: 134 VAC � 2 VAC Auto-resetting Under-voltage shutoff: 100 VAC � 2 VAC |
| EMI / RFI Noise Filtration: | Banks 1, 2, 3: 76 dB, 5-250 kHz Bank 4 and High Current Outlets: 46 dB, 250 kHz-1 Mhz |
| Protection | |
|---|---|
| LAN | Clamping Level: 60 � 5 V Compatibility: 10/100/1000 BASE-T Jacks: RJ-45 Wires Protected: 8 wires |
| Telco | Fuse-less/Auto-resetting: Yes Clamping Level: 260 V Capacitance: Approx. 30 pf Suppression Modes: metallic and longitudinal Connectors: RJ-11 Lines Protected: 2-wire, pins 4 & 5 |
| COAX | HD 1080 i/p Ready: Yes Bidirectional: Yes Shielded: Yes Clamping Level: 75 V Frequency Range: 0 MHz-2.2 GHz Insertion Loss: < 0.5 dB Connectors: Female "F", gold plated |
| Physical Characteristics | |
|---|---|
| Dimensions | Overall: 12.25 x 17 x 1.75" (31.11 x 43.18 x 4.44 cm) With Rack Ears: 12.25 x 19 x 1.75" (31.11 x 48.26 x 4.44 cm) |
| Weight | 12 lb (5.44 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 16.8 lb |
| Box Dimensions (LxWxH) | 21.5 x 20.0 x 4.5" |
