Description
Galaxy Audio AS-950-4N Overview
The Galaxy Audio AS-950-4N 4-Pack Any Spot Series Wireless Personal Monitoring System includes the AS-950T Transmitter and four AS-950R Bodypack Receivers. This system offers 16 selectable channels and allows the wireless transmission of audio signal in either mono or stereo formats at a range of up to 200', thereby permitting musicians, singers, and lecturers to perform without significant tethers to cabled systems.
The receiver provides an audio output level of 50mW per L/R channel (100mW total) and features a standard 3.5mm stereo headphone jack. Powered by two AA batteries, the unit lasts up to 12 hours. The transmitter provides a L/R level display, two XLR-1/4" combo input jacks, a stereo/mono switch, and a headphone output with volume control. The transmitter includes a single/dual rack-mount kit, for mounting one unit in a single rack space or mounting two transmitters side by side in a single rack space.
The AS-950 Wireless System can help eliminate extraneous stage noise, aid in the protection from hearing damage, and limit on-stage feedback, thereby permitting performers to move around the stage or audience all while hearing their monitor mix. The Galaxy Audio AS-950-4N 4-Pack also comes four sets of EB4 earbuds, an antenna, and a power supply.

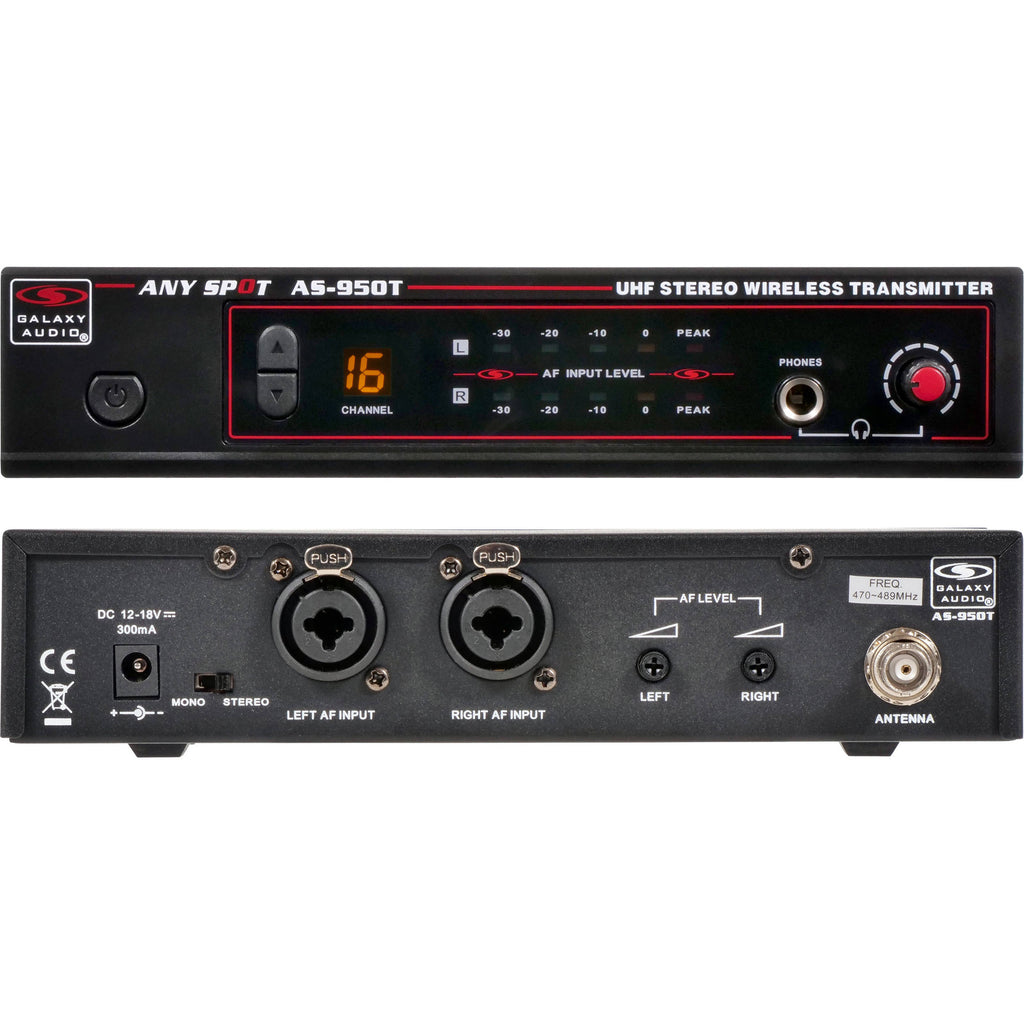

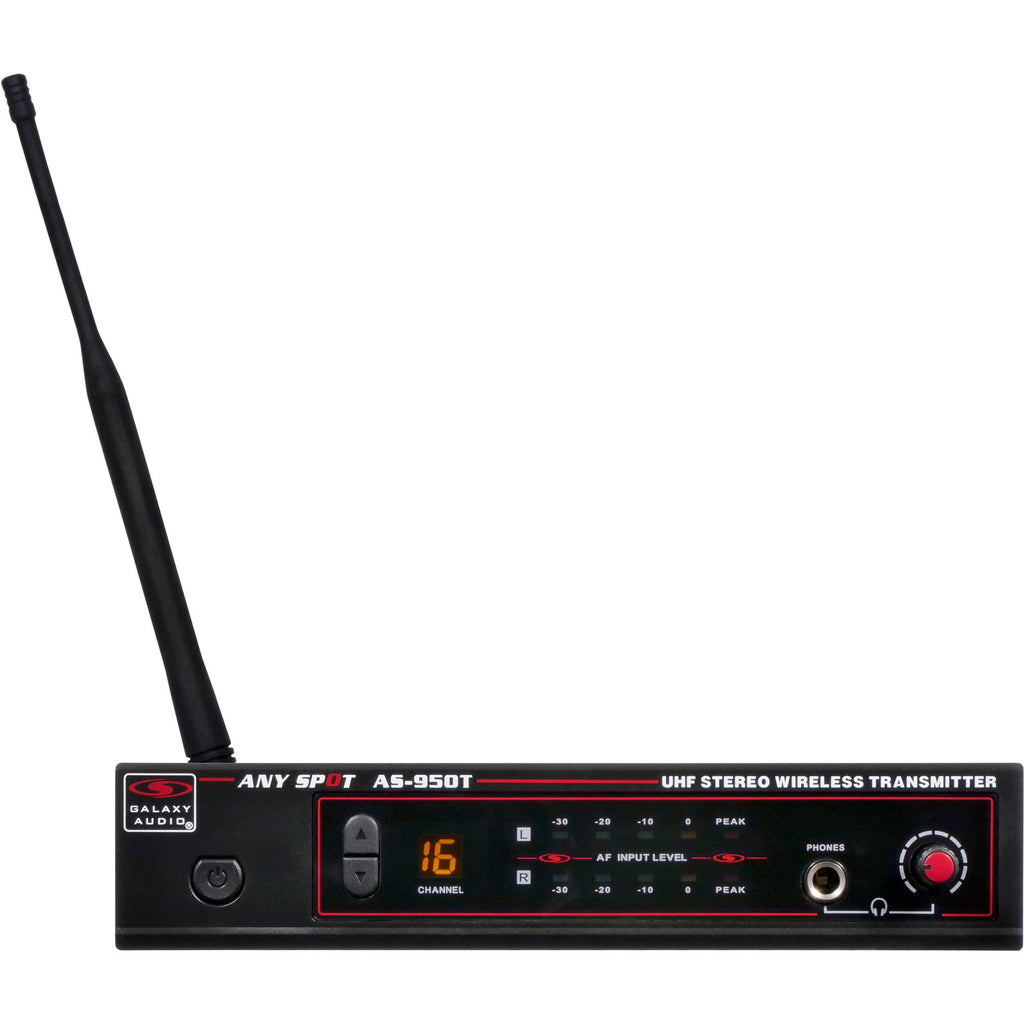

AS-950T
- 16 selectable UHF frequencies
- Send a stereo or mono mix to any number of receivers on stage
- Easy setup right out of the box
- XLR-1/4" combo line level input
- Easy to read audio LED indicators
- Input level control
- 1/4" headphone output with volume control for easy monitoring

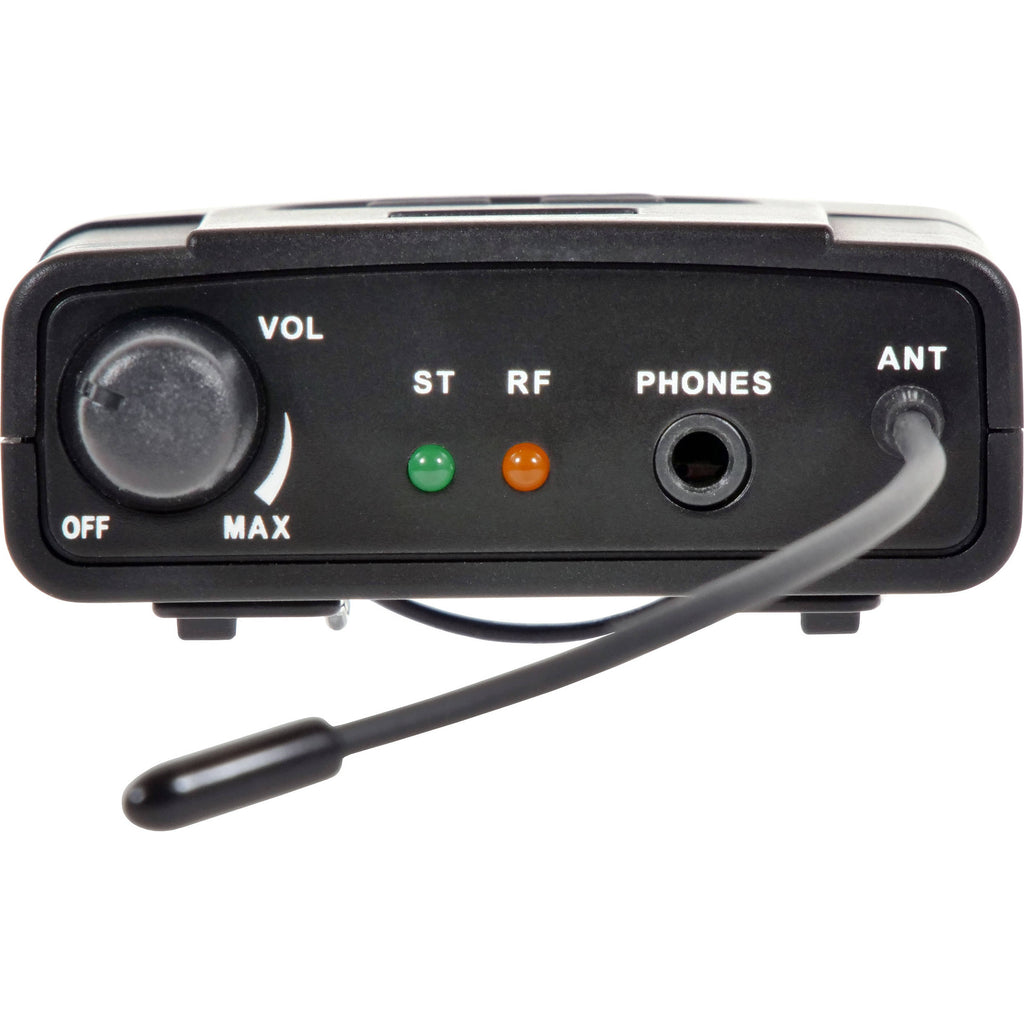

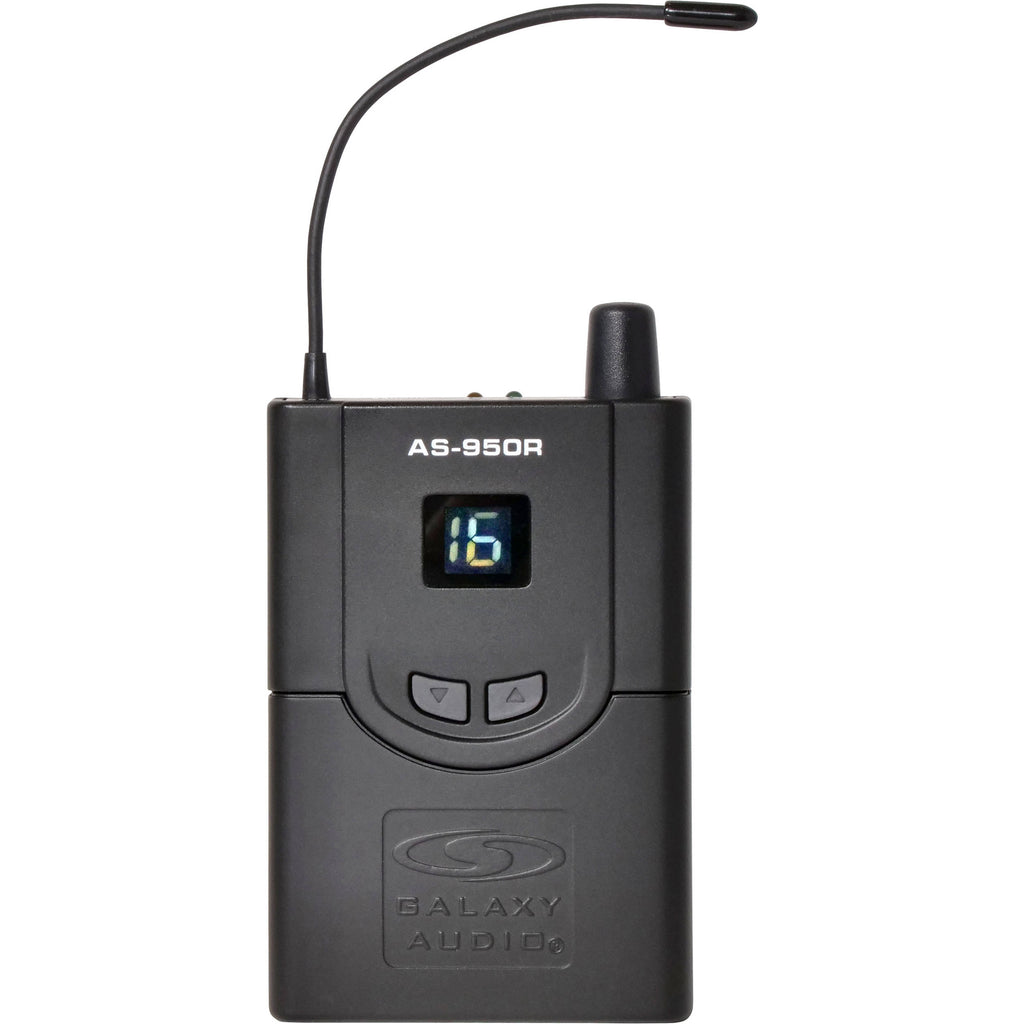

AS-950R
- Built-in limiter
- Multi-function LCD display
- Up and down channel select buttons
- Operates on 2 AA batteries (alkaline or rechargeable)

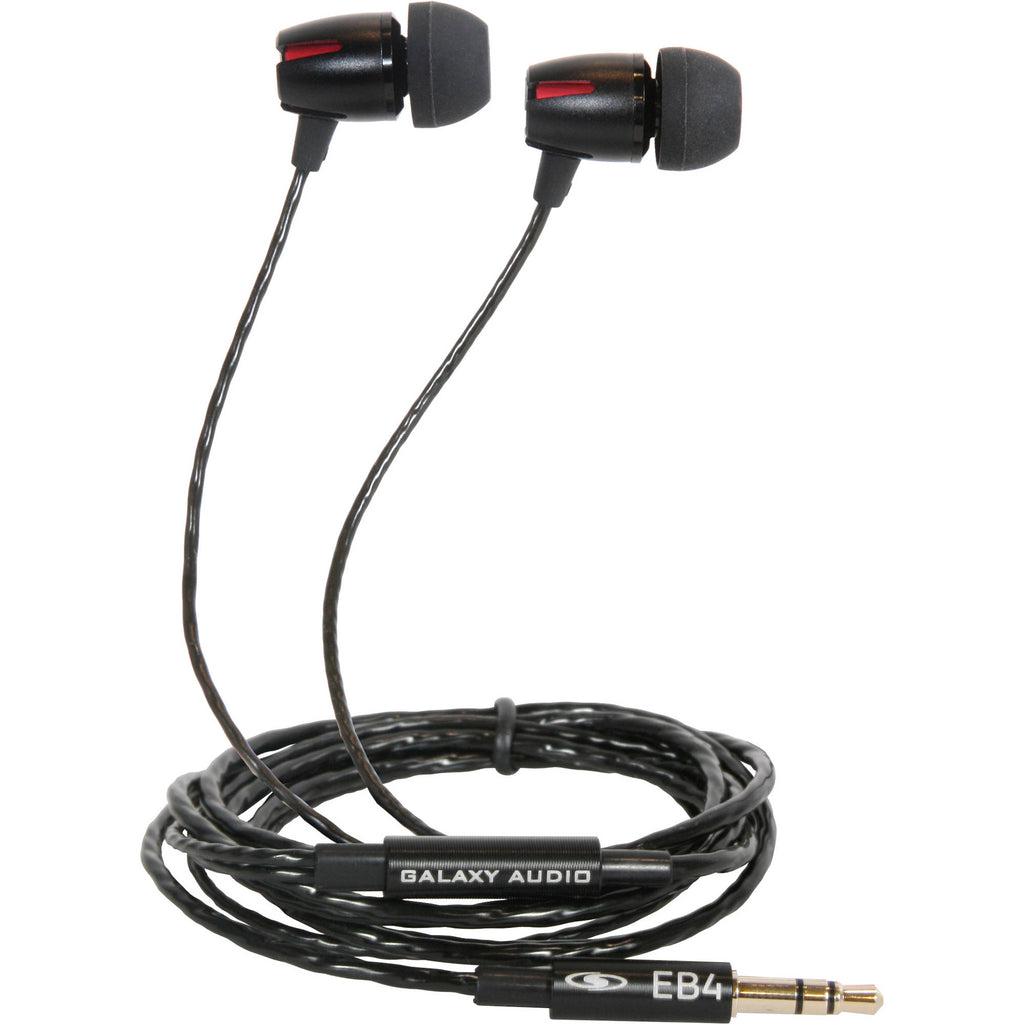

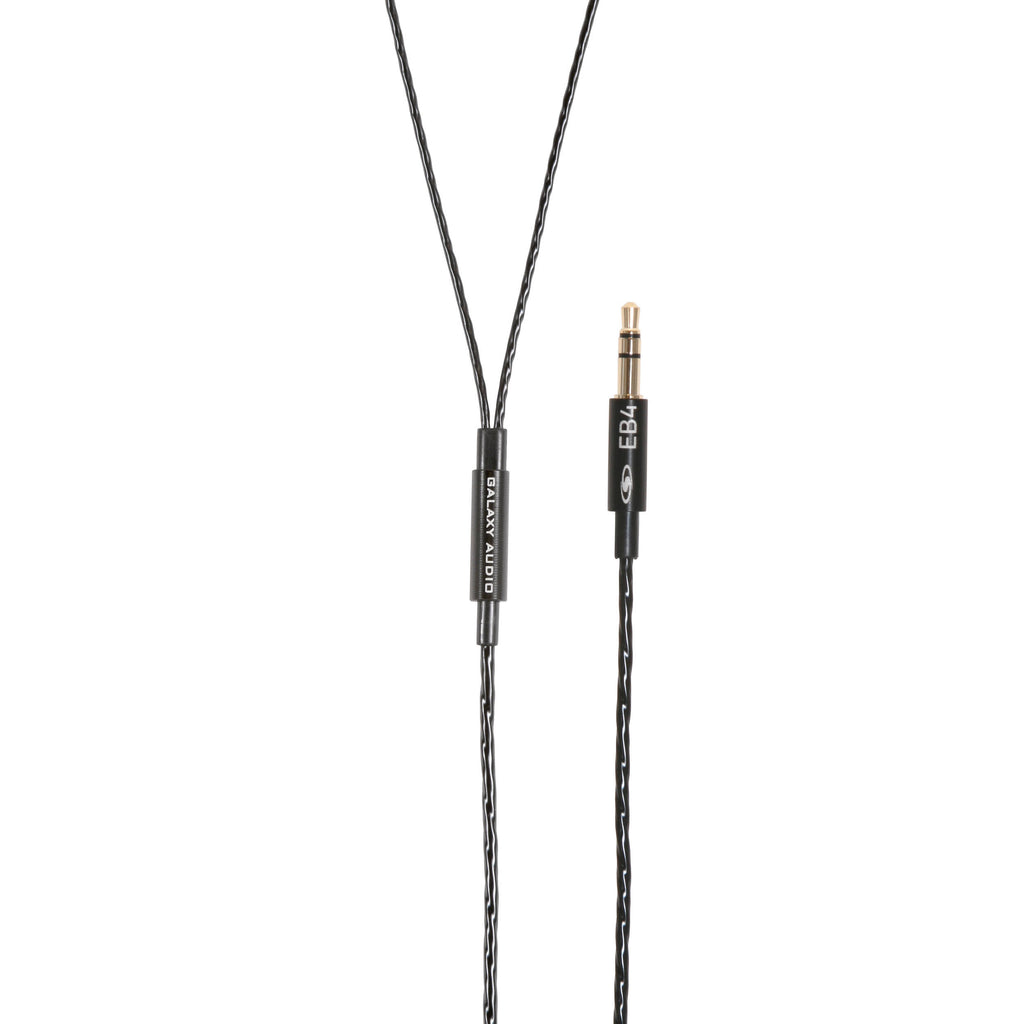

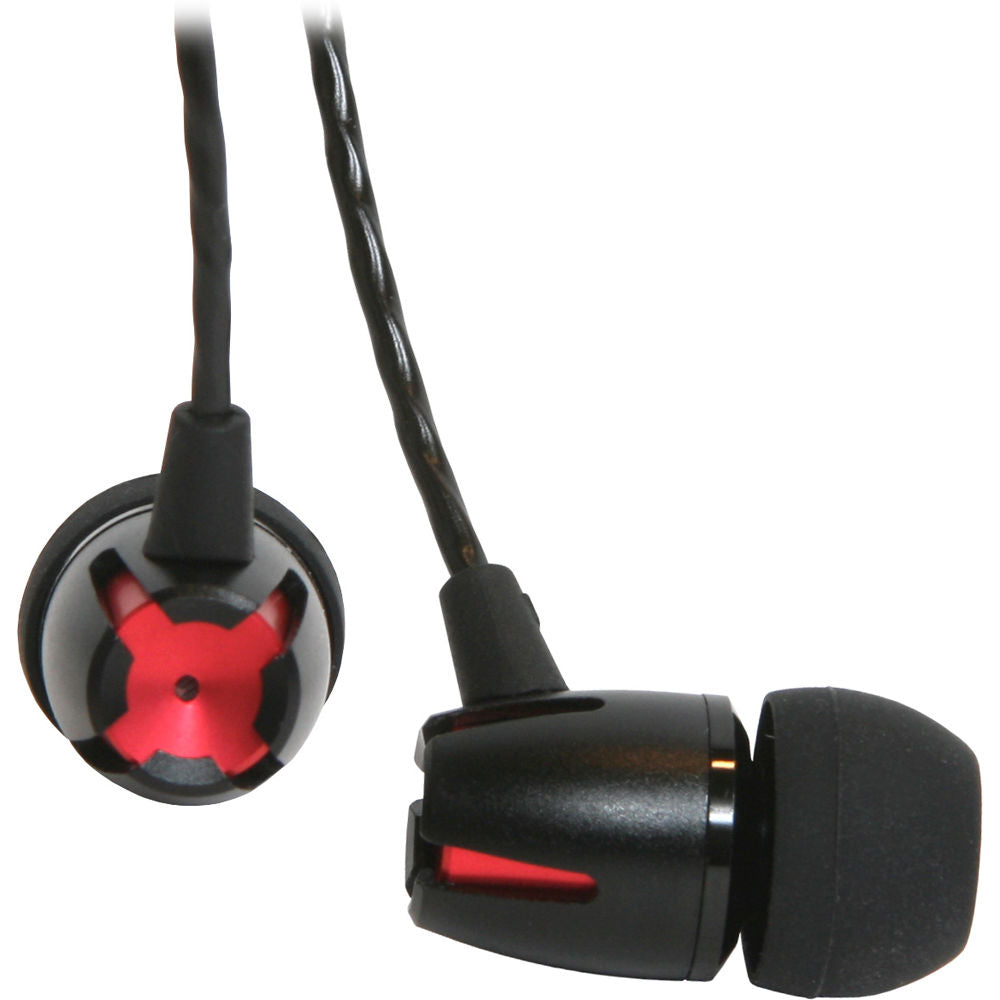

- Lightweight titanium driver EB4 earbuds included

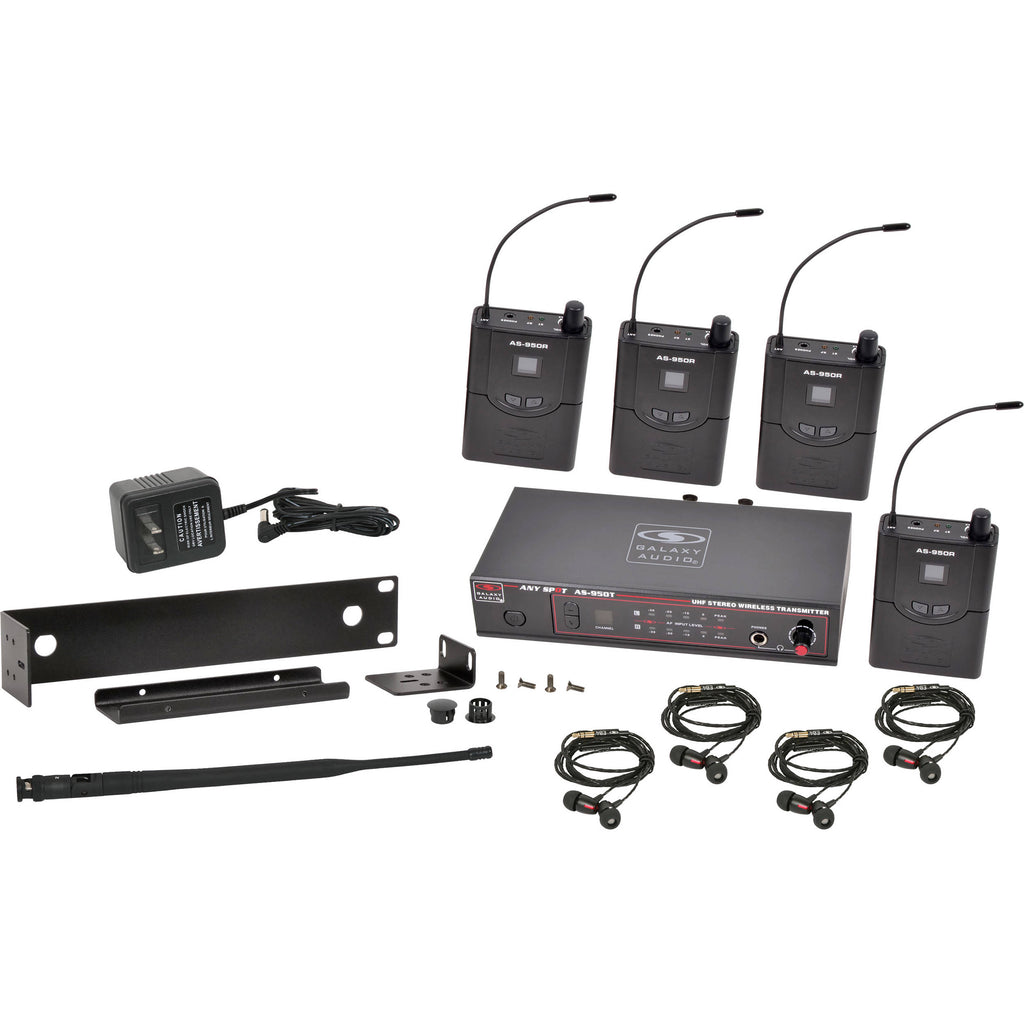

In the Box
- Galaxy Audio AS-950-4N 4-Pack Any Spot Series Wireless Personal Monitoring System (N Band, 518 - 542 MHz)
- AS-950T Transmitter
- 4 x Galaxy Audio AS-950RN Any Spot Series Wireless Personal Monitoring Receiver (N Band, 518 MHz - 542 MHz)
- Antenna
- Rack Ears and Hardware
- Power Supply
- 4 x Pair of EB4 Earbuds
- Limited 3-Year Warranty
Galaxy Audio AS-950-4N Specs
| Frequency Range | 518 - 542 MHz |
| Band | UHF |
| Output Level | Transmitter: 10 mW |
| Operating Range | Under Typical Conditions: 200' / 61 m |
| Frequency Response | Audio: 50 Hz to 15 kHz (±3 dB) |
| Total Harmonic Distortion | <1% @ 1 kHz |
| Maximum Deviation | ±40 kHz |
| Dynamic Range | >90 dB A-Weighted |
| Operating Temperature Range | 14 to 122º F / -10 to 50º C |
| Enclosure | EIA Standard 1/2 RU |
| Modulation Mode | FM Stereo Modulation |
| RF Output | 10 mW |
| Maximum Audio Input Level Analog | 6 dBV |
| Gain Adjustment Range | 40 dB |
| Controls | Headphone Volume, Channel Up/Down, and Power Button |
| Power Requirements | 12 to 18 VDC at 300 mA Supplied by External Power Supply |
| Indicators | LCD Display, Input Level |
| Connections | 2 x Combo XLR-1/4" / 6.35 mm |
| XLR Inputs | Impedance Balanced Pin 1: Ground (Cable Shield) Pin 2: Audio + Pin 3: No Audio - |
| Antenna | Detachable 1/2 Wave BNC Antenna |
| Power | 12 to 18 VDC at 300 mA, Supplied by External Power Supply |
| Dimensions (H x W x D) | 1.7 x 8.3 x 3.8" / 44 x 212 x 96 mm |
| Weight | 19.8 oz / 560 g |
| Type | Bodypack |
| Audio Output Level | 2 x 50 mW Earphone Output with Volume Control (100 mW Total) |
| Sensitivity | -94 dBm for 30 dB |
| Stereo Separation | 40 dB at 1 kHz |
| Output Connector | 1/8" / 3.5 mm Stereo Earphone |
| Controls | Volume, Channel Up/Down |
| Indicators | Multi-Function LCD, Low Battery, RF LED |
| Power Requirements | 2 x AA Alkaline or Rechargeable Batteries |
| Battery Life | Approximately 12 hours (Alkaline) |
| Dimensions (H x W x D) | 3.5 x 2.5 x 0.9" / 90 x 64 x 23 mm |
| Weight | 3.4 oz / 95 g (Without Batteries) |
| Package Weight | 6.175 lb |
| Box Dimensions (LxWxH) | 17.2 x 13.4 x 5.6" |
