Description

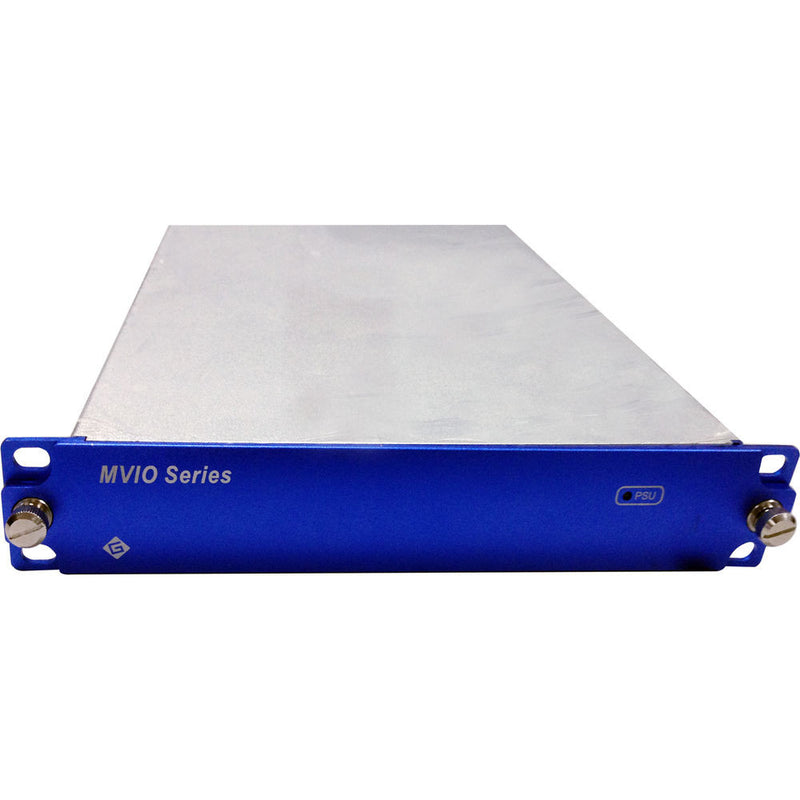

The MVIO HDEMB-4AUD SDI 4-Channel Analog Audio Embedder from Gra-Vue is a half-rack 1RU standalone embedder which embeds two stereo analog audio source signals into a single SDI stream. It features two mirrored SDI outputs so that the video with the newly embedded audio may be delivered to two destinations without requiring a separate distribution amplifier. The SDI audio group and channels to which the audio is embedded is user-defined, and may be set using DIP switches on the unit. The embedder features automatic input detection and supports the following formats: 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf.
The MVIO HDEMB-4AUD-FS provides automatic signal equalization for cable runs up to 328' (Belden 1694A), which can improve the signal quality and reduce the signal loss caused by long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply. The unit supports SNMP and can be real-time managed and monitored by XIO NET, an optional network management module, via Ethernet.
- Automatic signal detection
- Audio group to embed to may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 328' using Belden 1694A
- Supports hot swapping of connectors
- Provides LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via Ethernet
- For use in television broadcast and other professional video applications
- Can be mounted in one half-rack-wide space
- Limited 1-Year Warranty
| SDI Input | 1 x BNC female, HD/SD-SDI, 75 ohms |
| Maximum Cable Length | 328' (100 m) using Belden 1694A |
| Analog Audio Input | 4 x 3-pin terminal block, balanced Maximum Level: +24 dBu (0 dBFs) |
| SDI Output | 2 x BNC female, HD/SD-SDI Impedance: 75 ohms Level: 800 mV �5% |
| Supported Formats | SD: 625i50, 525i60 HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 |
| Supported Standards | SMPTE 259M-C (270 Mb/sec), SMPTE 292M (1.485 Gb/sec) |
| LED Indicators | 1 x green, signal status 1 x green, power |
| Power | 110 - 240 VAC, 60 W |
| Operating Temperature | 41 to 77�F (5 to 25�C) |
| Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
