Description

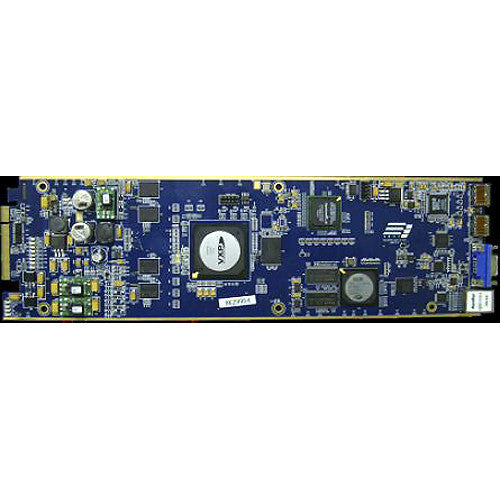

The Gra-Vue MVS Output Module is designed to work with the MVS Series Multi-View Display System. It has a built-in web service. It features HDMI and HDSDI dual output interfaces. The resolution supported for HDMI is up to 1920 x 1080p 60 Hz and the format of HDSDI is up to 1080p.
- High-quality dual outputs with flexible and individual configuration on each output
- Flexible output options include 4:3, 16:9, and customized aspect ratio
- Signal can be displayed on any output flexibly and conveniently by configuration on the Web server
- 2-channel HD/SD-SDI audio signals, 8-channel HDMI audio signals or 1-channel analog audio can be embedded into the HDMI output signal
- Video and embedded audio signals of the HDSDI output and the HDMI output are the same
- CE and FE certified
- RoHS compliant
- Limited 1-Year Warranty
| Signal Input | Interface: 1 HDMI, type A Format: � |

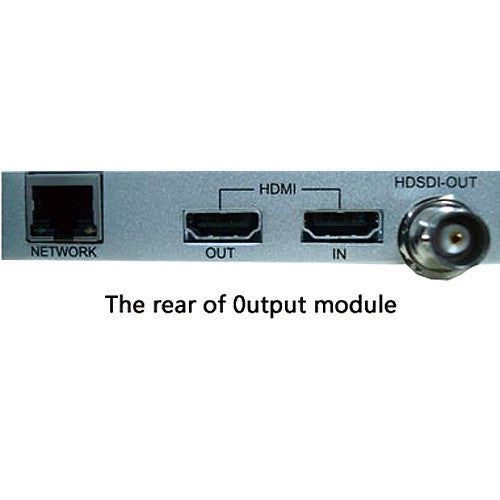

| Outputs | HDMI Output Interface: 1 HDMI, type A Resolutions: 1024 x 768, 1280 x 720, 1280 x 768 1280 x 1024, 1360 x 768, 1400 x 1050 1600 x 1200, 1680 x 1050, 1920 x 1080 Frequency: 50/60 Hz� HDSDI Output Interface: Impedance: Format: Return Loss: |
| Control | Interface: 1 x RJ45 Type: 10/100/1000M auto-adapting |
| Packaging Info | |
|---|---|
| Package Weight | 4.0 lb |
| Box Dimensions (LxWxH) | 11.0 x 7.0 x 3.0" |
