| ₹ 1292.44 includes GST and import duties. | |
| B2B customers can avail ₹ 197.1 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

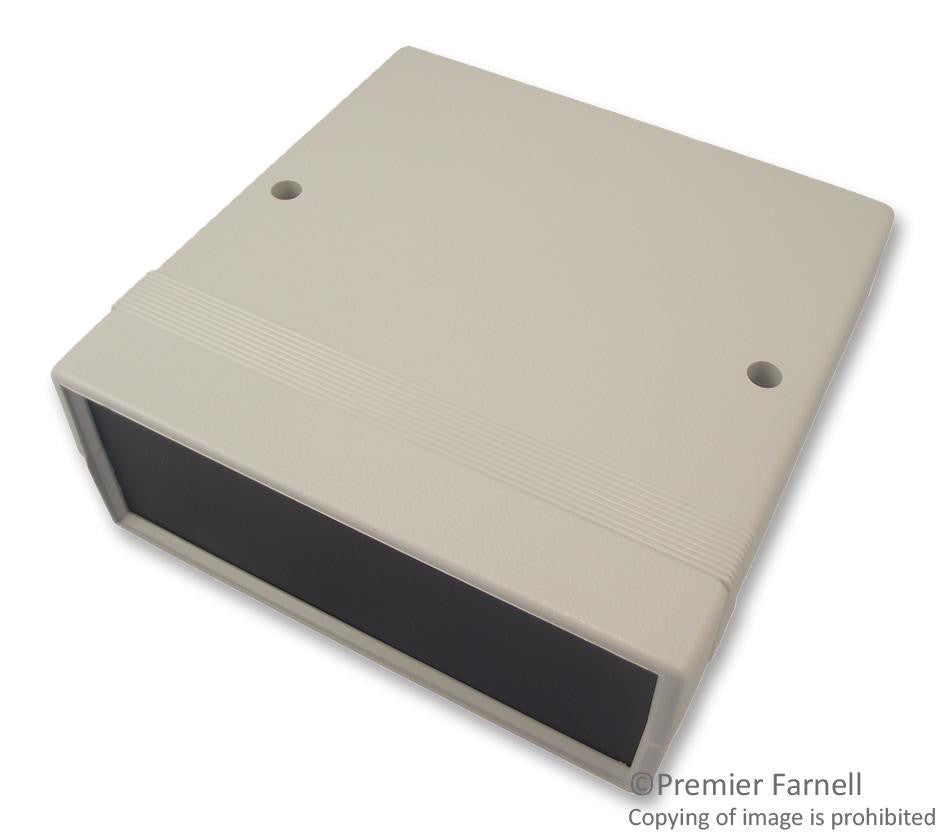

The 1598BSGYPBK is a general-purpose Plastic Instrument Enclosure with end panels. Modern low profile designed instrument enclosure. End panels are moulded in black ABS (acrylonitrile butadiene styrene) plastic, easy access to interior via shell type construction.
- Integral horizontal PC card mounts on Eurocard centres
- IP54 Protection rating
- Two sets of vertical 1.5mm PC board guides are moulded into case halves front and rear
Applications
Industrial
Contents
Top and bottom cover, black plastic end panels, 2x Cover screws and 4x Rubber feet.
Product details
| External Depth - Imperial | 5.29" |
| Body Colour | Grey |
| External Width - Metric | 135.2mm |
| Enclosure Type | Instrument |
| NEMA Rating | - |
| External Height - Metric | 51mm |
| External Height - Imperial | 2.01" |
| External Width - Imperial | 5.32" |
| Product Range | - |
| IP Rating | IP54 |
| External Depth - Metric | 134.3mm |
| Enclosure Material | ABS |
Other details
| Brand | HAMMOND |
| Part Number | 1598BSGYPBK |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1266.59 |
| 3-5 | ₹ 1253.67 |
| 5-10 | ₹ 1227.82 |
| 10+ | ₹ 1201.97 |
Bulk discount will be automatically applied during checkout based on quantity.
