Description

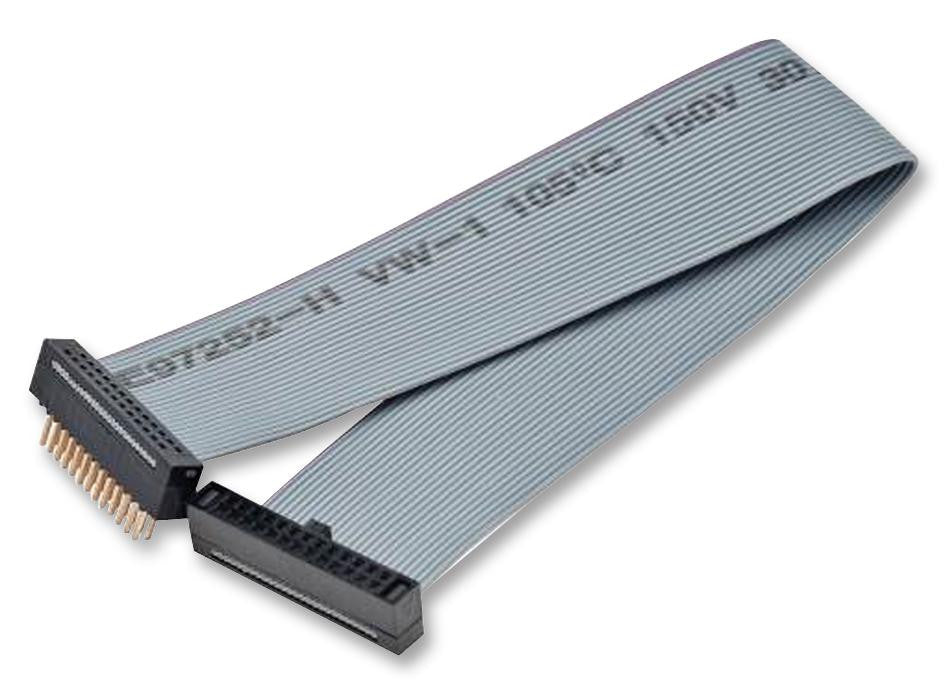

The M50-9012042 is a 150mm 40-way IDC Ribbon Cable Assembly, female-to-male connectors, UL94V-0-rated black PBT housing, 100% tin-plated over nickel termination, gold-plated contact surface and phosphor bronze contact. IDC contact for high speed termination. Suitable for mating with other sockets from the Archer range.
- 1.27mm (0.05") Contact pitch
- Angled connector orientation
- 0.5A Current rating
- 1R Maximum contact resistance
- 5MR Minimum insulation resistance
- 300VDC Minimum working voltage
- -40 to +105�C Operating temperature range
Applications
Commercial, Industrial
Product details
| Cable Pitch | 0.635mm |
| Cable Length - Metric | 150mm |
| Connector Type B | IDC Socket |
| No. of Positions | 40Ways |
| Connector Type A | IDC Plug |
| Product Range | - |
| Connector Pitch | 1.27mm |
| Cable Length - Imperial | 5.91" |
Other details
| Brand | HARWIN |
| Part Number | M50-9012042 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
