Description

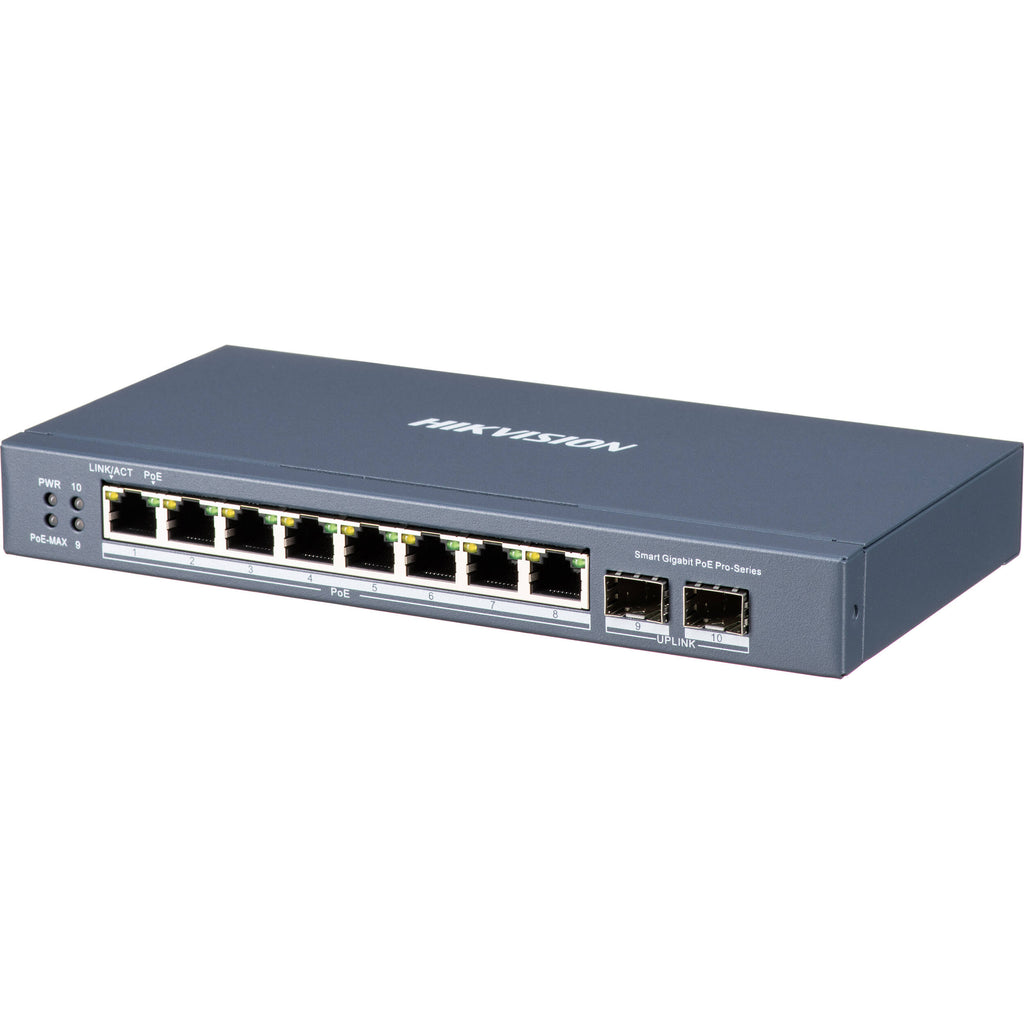

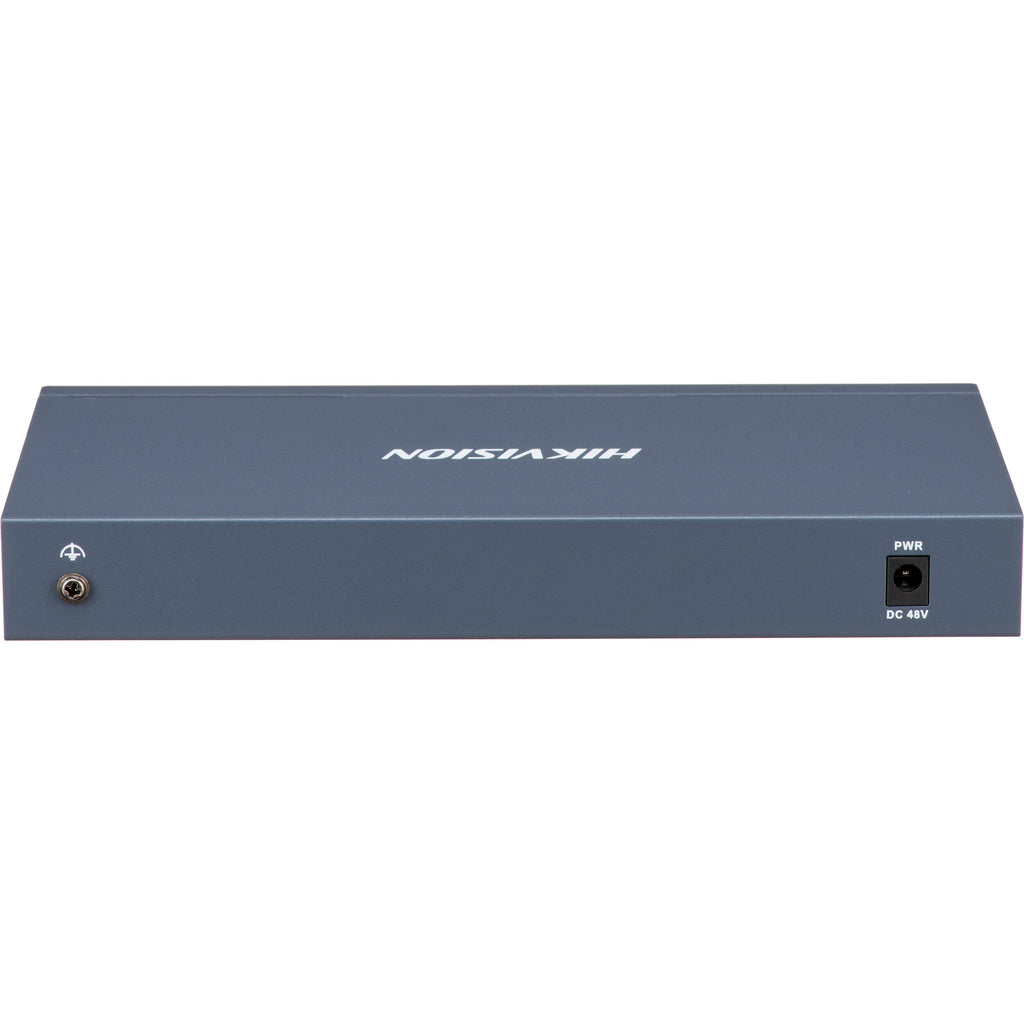

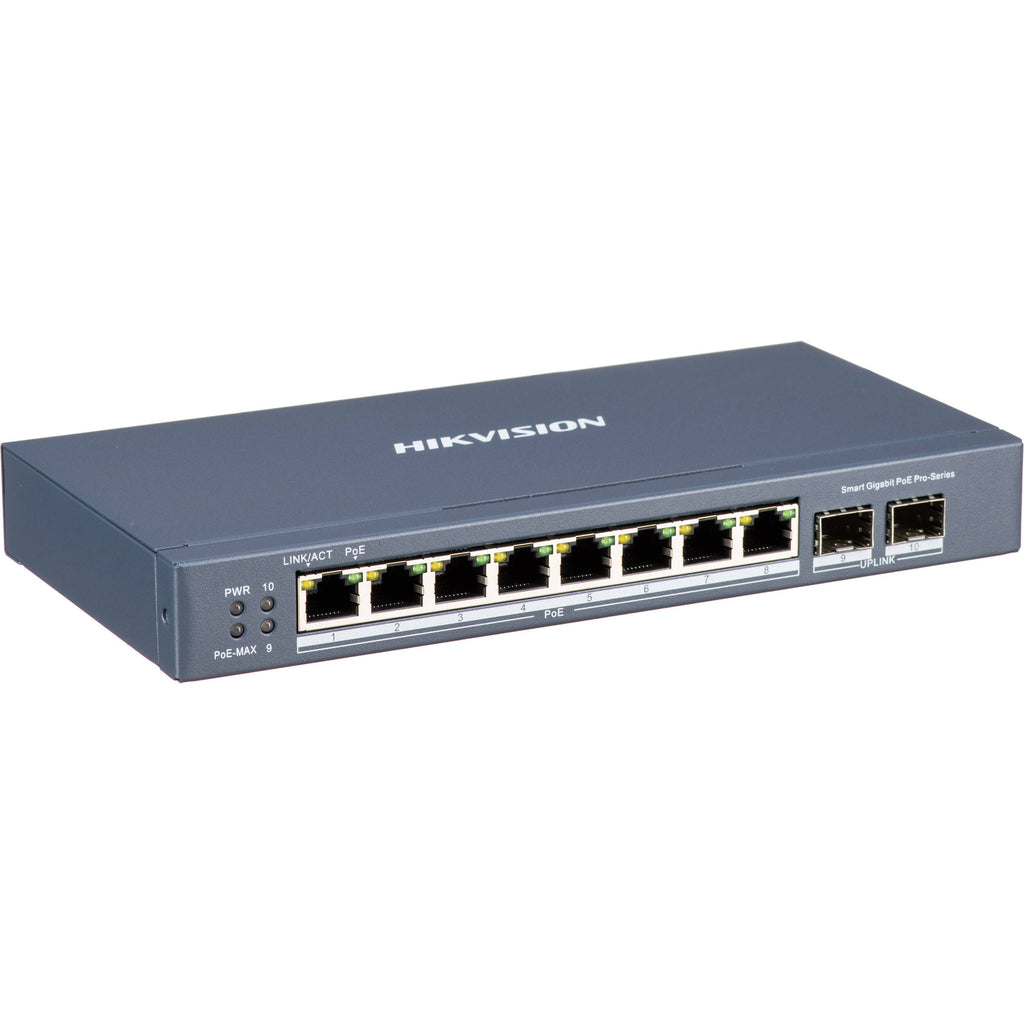

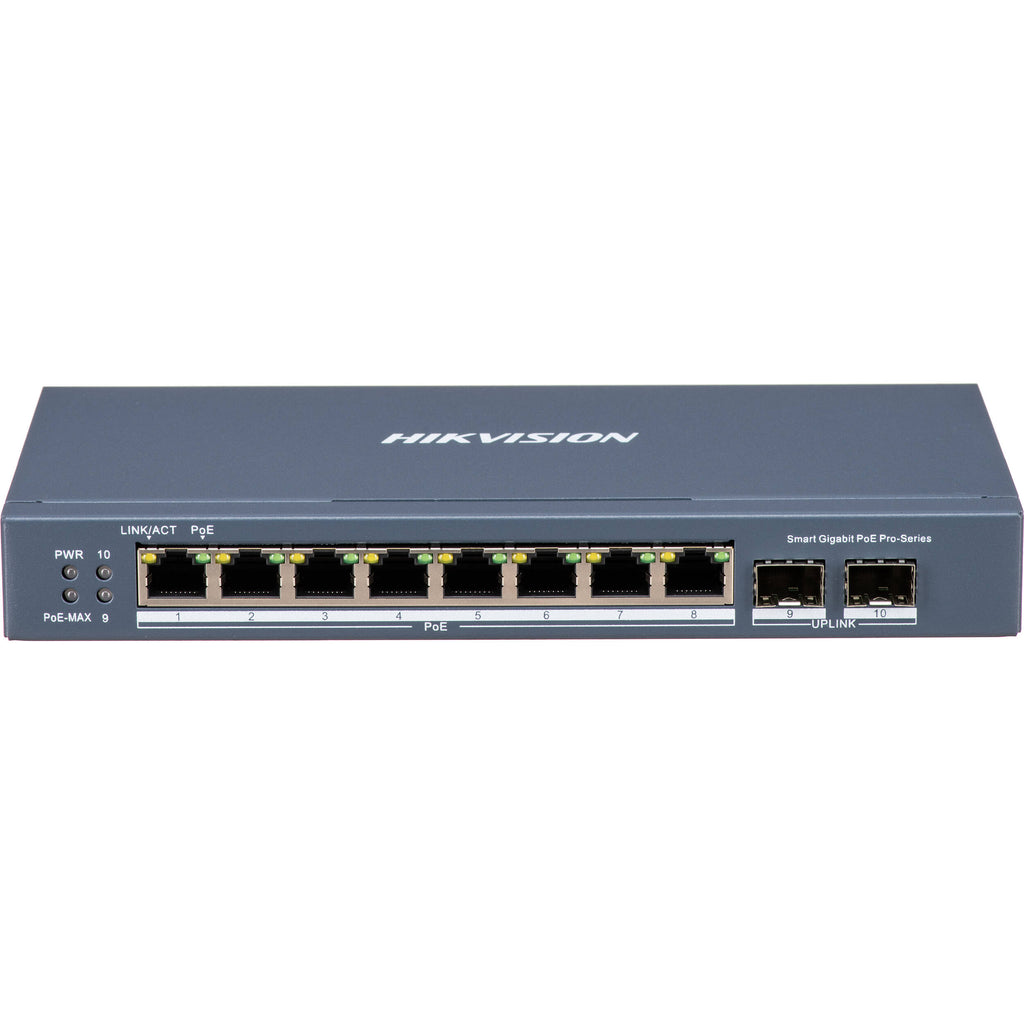

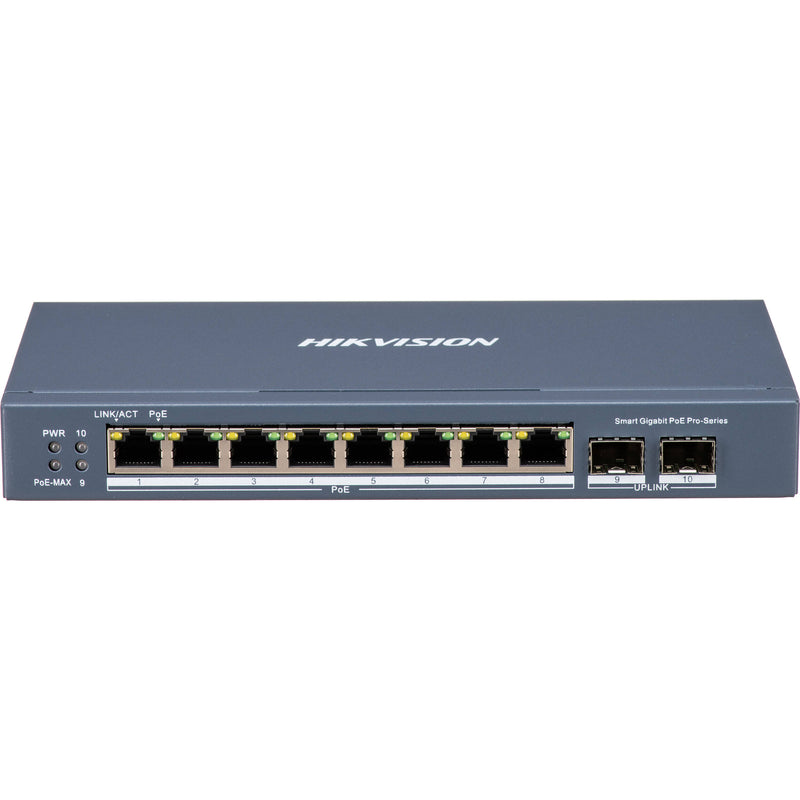

Hikvision DS-3E1510P-SI Overview
- 1Description
- 2PoE Watchdog
- 3Long Range
- 4Port Isolation
- 5Port Configuration
Expand your business's network to support IP cameras, access points, VoIP phones, and other PoE compatible devices with the DS-3E1510P-SI 8-Port Gigabit PoE+ Compliant Managed Switch from Hikvision. All eight of the Gigabit Ethernet ports provide up to 30W of power with a total budget of 110W. When switched to Extend mode, you can power devices up to 984.3 feet away. There are also two Gigabit SFP port available for fiber uplinks.
With a 20 Gb/s switching capacity and 14.88 Mpps forwarding rate, this managed switch provides smooth data transfers between devices. The metal chassis and fanless design allows the switch to operate silently.
PoE Watchdog
Ports 1 to 8 auto detect and restart the cameras that do not respond.
Long Range
Enable extend mode for up to 984.3 foot transmissions at 10 Mb/s data speeds.
Port Isolation
Ports configured in isolation groups cannot communicate with each other.
Port Configuration
Controls include port rate limiting, flow control, and port enabling.
UPC: 842571135619
In the Box
- Hikvision DS-3E1510P-SI 8-Port Gigabit PoE+ Compliant Managed Switch
- Power Adapter & Cable
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- PoE Watchdog
- Long Range
- Port Isolation
- Port Configuration
Hikvision DS-3E1510P-SI Specs
Key Specs
| Inputs/Outputs |
8 x RJ45 Gigabit Ethernet PoE
2 x SFP Gigabit Ethernet (WAN) |
| PoE Power Budget |
110 W
|
Protocols
| Layer Services Supported |
Layer 2
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server Link Aggregation Port Mirroring |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
8K
|
| VLAN IDs |
4094
|
Security
| Security Features |
Storm Control
|
| SNMP Support |
1, 2c
|
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3u, 802.3x, 802.3z
|
Performance
| Forwarding Rate |
14.88 Mpps
|
| Switching Bandwidth |
20 Gb/s
|
| Packet Buffer |
4.1 Mb
|
Electrical
| Power Draw |
120.00 W (Max)
7.0 W (Idle) |
| DC Input Power |
48 VDC at 2.5 A
|
| AC Input Power |
No
|
| PoE Power Budget |
110 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
External
|
Environmental
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
5 to 95% ()
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
| Storage Humidity |
5 to 95% (Non-Condensing)
|
General
| Certifications |
FCC, CE, EN, RCM, IC, UL, CB, IEC, RoHS, WEEE, REACH
|
| Material of Construction |
Metal
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
8.6 x 4.27 x 1.1" / 217.6 x 108.55 x 27.8 mm
|
| Weight |
2.67 lb / 1.21 kg
|
Packaging Info
| Package Weight |
2.96 lb
|
| Box Dimensions (LxWxH) |
11.1 x 5.5 x 4.3"
|
