Description
Hikvision EKI-K164T812A Overview

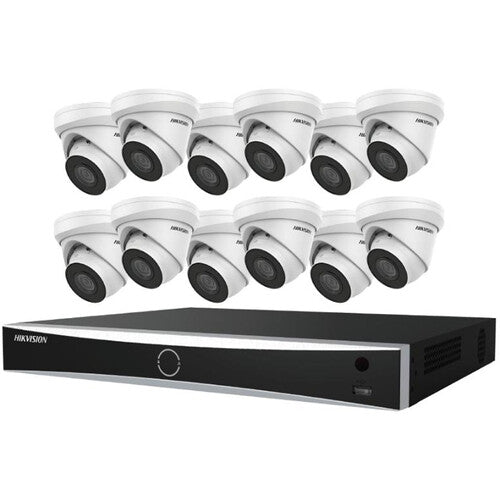

The EKI-K164T812A 16-Channel 12MP NVR with 4TB HDD & 12 8MP Turret Cameras Kit from Hikvision includes an AcuSense DS-7616NXI-K2/16P 16-Channel 12MP NVR with 4TB HDD, along with 12 ECI-T28F2 8MP turret cameras for an indoor/outdoor surveillance solution.
Record from and manage up to 16 cameras with the AcuSense DS-7616NXI-K2/16P 16-Channel 12MP NVR with 4TB HDD from Hikvision. This NVR supports IP cameras up to 12MP. It is equipped with two SATA ports that each support an HDD up to 10TB, for a maximum capacity of 20TB (4TB preinstalled). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. AcuSense technology provides vehicle and human detection while filtering out false video content analysis alarms.
This NVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution.
Monitor your surroundings with the ECI-T28F2 8MP Outdoor Network Turret Camera from Hikvision. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 4K UHD resolution video at 15 fps. EXIR 2.0 technology provides up to 98' of night vision. The camera's 2.8mm fixed lens delivers a 108° horizontal field of view. A built-in microphone enables the camera to pick up audio. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure suitable for safe outdoor use.
Items Included
- Hikvision AcuSense DS-7616NXI-K2/16P 16-Channel 12MP NVR with 4TB HDD
- Limited 3-Year Manufacturer Warranty
- 12 x Hikvision ECI-T28F2 8MP Outdoor Network Turret Camera with Night Vision
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Hikvision EKI-K164T812A Specs
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 at 30 Hz 2560 x 1440 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP
|
| Throughput |
160 Mb/s (Incoming)
160 Mb/s (Outgoing) |
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Output (2 V p-p, 1 Kilohm) 1x RCA Audio Input (1 Kilohm, Linear) |
| Communication I/O |
1x RJ45 Gigabit Ethernet
16x RJ45 10/100 Mb/s Ethernet PoE 2x USB-A 2.0 |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
4 TB Hard Drive
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Hik-Connect |
| PoE Power Budget |
200 W
|
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
3840 x 2160 at 30 Hz 2560 x 1440 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP
|
| Throughput |
160 Mb/s (Incoming)
160 Mb/s (Outgoing) |
| IP Camera Support |
16
|
| Decoding Resolution |
1 Channel:
12 MP at 30 fps 2 Channels: 8 MP, 12 MP at 30 fps 3 Channels: 8 MP at 30 fps 4 Channels: 4 MP at 30 fps 6 Channels: 4 MP at 30 fps 8 Channels: 1080p at 30 fps 12 Channels: 1080p at 30 fps |
| 2-Way Audio |
Yes
|
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Output (2 V p-p, 1 Kilohm) 1x RCA Audio Input (1 Kilohm, Linear) |
| Communication I/O |
1x RJ45 Gigabit Ethernet
16x RJ45 10/100 Mb/s Ethernet PoE 2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
2x SATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Remote Connections |
128
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, TLS, UPnP, iSCSI
|
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
| Supported Audio Codecs |
AAC, G.711A, G.711U, G.722, G.726
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
|
| Optical Drive |
No
|
| Installed Drive |
4 TB Hard Drive
|
| Max Capacity Supported |
10 TB (Each Drive)
20 TB (Total) |
| Number of Bays |
2x Internal
|
| OS Compatibility |
Android/iOS
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Hik-Connect |
| Alarm I/O |
4x Input
1x Output |
| Event Trigger |
Analytics, Motion
|
| Search Modes |
Smart Search
|
| Recording Modes |
Analytics
|
| Fisheye Dewarping |
No
|
| Power Consumption |
15 W (Without HDD)
|
| Power Supply Type |
External
|
| PoE Power Budget |
200 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Built-In Display |
No
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 90% Humidity
|
| Certifications |
CE, FCC
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
15.2 x 12.4 x 2.0" / 385.0 x 315.0 x 52.0 mm
|
| Weight |
6.6 lb / 3 kg (Without HDD)
|
| Package Weight |
8.99 lb
|
| Box Dimensions (LxWxH) |
17.4 x 15.3 x 5.3"
|
Hikvision EKI-K164T812A Specs
| Focal Length |
