Description

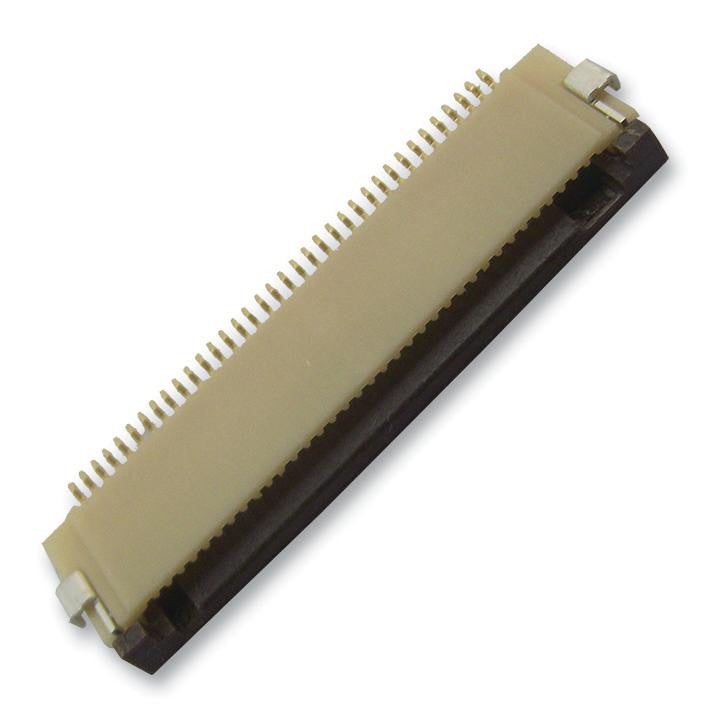

The FH12-36S-0.5SH(55) is a 36-position 1-row 0.5mm female FPC/FFC Receptacle with beige polyamide and dark brown PPS insulator, gold plated phosphor bronze contacts and tin plated metal fitting. The FH12 series connector has horizontal FPC/FFC insertion direction, front actuator position, bottom contact orientation and SMT horizontal mounting type. The one-touch rotating ZIF mechanism is easier to operate and works with a light force. A clear tactile click is delivered upon the successful completion of the mating process. The FH12's one-touch ZIF system requires less space than a slide locking connector and can be mounted in the centre of the PCB. The FH12S version in 30, 40, 45, 50 and 53 pin counts are offered with a reinforced actuator that provides an extra measure of security against actuator breakage.
- Rotating one-touch ZIF mechanism
- Clear tactile click
- Supports high density mounting
- Reinforced actuator
- 0.5A Rated current
- 50VAC/DC Rated voltage
- 50mR Maximum contact resistance
- 500MR Minimum insulation resistance
- 150VAC for one minute Withstanding voltage
- 20 Mating/unmating cycles
Applications
Industrial
Product details
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Pitch Spacing | 0.5mm |
| Contact Termination Type | Surface Mount |
| No. of Contacts | 36Contacts |
| Product Range | FH12 Series |
| FFC/FPC Thickness | 0.3mm |
| No. of Rows | 1 Row |
| Gender | Receptacle |
| Contact Position | Bottom |
Other details
| Brand | HIROSE(HRS) |
| Part Number | FH12-36S-0.5SH(55) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
