Description

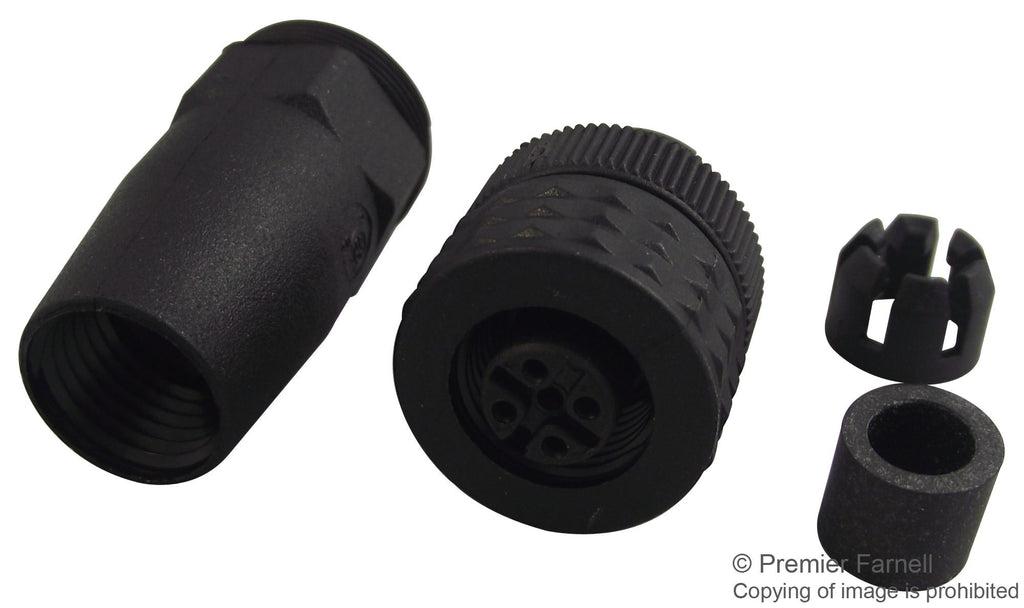

The ELKA 4012K PG7 is a 4-contact Straight Cable Socket with tin-plated contacts, plastic coupling nut and unassembled. Strain relief by means of clamping cage. The M12 connectors with Cu Zn contact, PA contact bearer and housing, NBR O-ring. Screw penetration type of termination. Meets IEC 61076-2-101 and IEC 60947-5-2 standards. It features 94V-2 flame-rated housing and contact bearer. Suitable for 4 to 6mm cables.
- Black housing
- Maximum 0.75mm� conductor size
- 250VAC/DC Rated voltage
- 4A Rated current
- 3 Pollution severity
Applications
Industrial
Product details
| No. of Contacts | 4Contacts |
| Product Range | E Series M12 |
| Contact Material | Brass |
| Connector Body Material | Nylon (Polyamide) Body |
Other details
| Brand | HIRSCHMANN |
| Part Number | ELKA 4012K PG7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
