Description

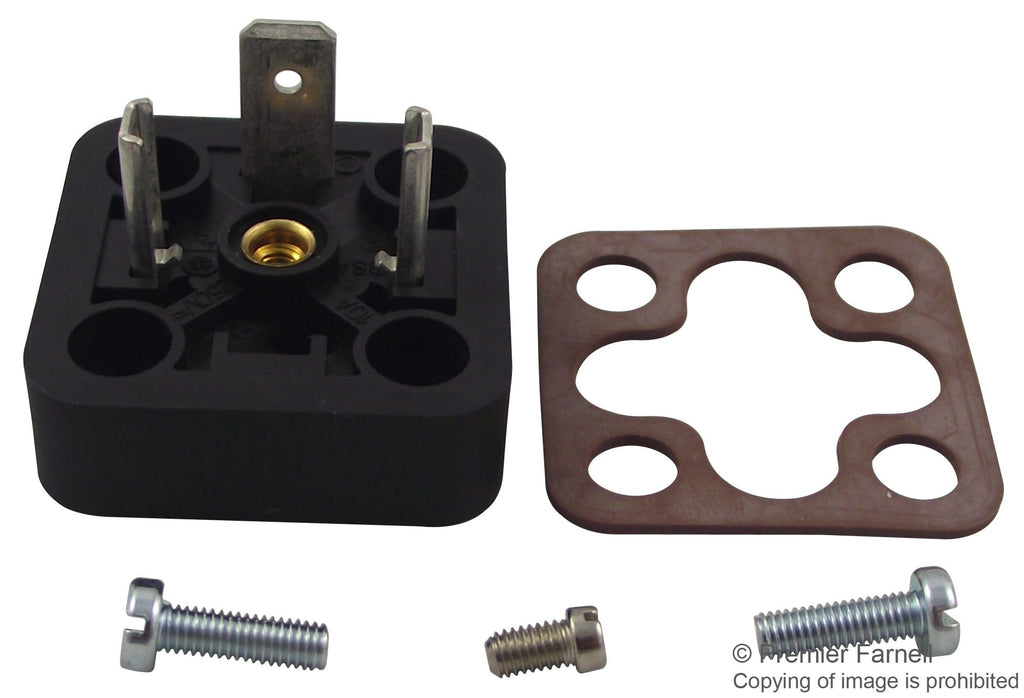

The GSA2000 is a 2+PE-contact Appliance Connector with tin-plated contacts, stranded retaining nut, 2 screws M3 x 10 and 1 screw M3 x 5, longitudinal slots, open nut. The receptacle valve connector with PA contact bearer and housing. Solder, holes for possibility of soldering on both sides type of termination and screw mounting. Meets DIN EN 175 301-803-A standards. It features 94V-0 flame-rated contact bearer.
- Black housing
- 400VAC/DC Rated voltage
- 16A Rated current
- <=4mR Contact resistance
- 3 Pollution severity
Applications
Industrial
Product details
No. of Rows | - |
Contact Material | Brass |
Contact Plating | Tin Plated Contacts |
Pitch Spacing | - |
Contact Gender | Pin |
Connector Mounting | Panel Mount |
Contact Termination Type | Solder |
No. of Contacts | 2Contacts |
Product Range | - |
Connector Shell Size | - |
Gender | Plug |
Other details
Brand | HIRSCHMANN |
Part Number | GSA2000 |
Quantity | Each |
Technical Data Sheet EN |
