Description
Honeywell 5007 Overview
- 1Description
- 2Conductor Material
- 3Shielding
- 4Additional Features

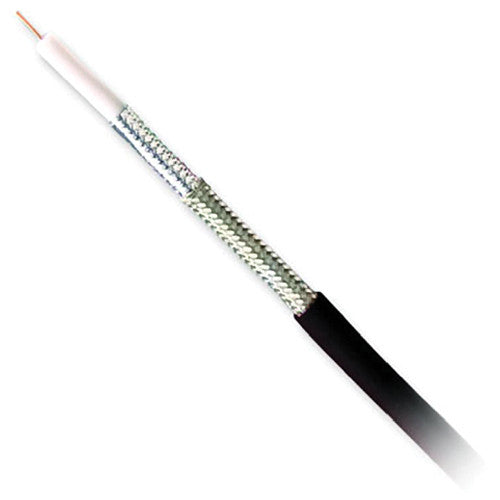

The 500' long Black Genesis Series 18 AWG RG6/U QUAD-Shielded Broadband Coaxial Cable from Honeywell comes packaged in a pull box. It is a broadband and digital coaxial cable, tested for high standards to assure high performance in high-end home theater installations, incorporating HDTV and digital video. The cable has a foil shielding that protects signal transmission from EMI and RFI interference and blocks lower frequency interference.
Conductor Material
CCS (Copper Clad Steel)
High durability and strength
Common for broadband applications, including CATV / MATV and HDTV
Shielding
Quad shield
Two 100% aluminum foil shields
Two aluminum braid shields
Protects signal transmission from low- and high-frequency interference
Suitable for high-performance broadband applications
Additional Features
Countdown or sequential footage markings
Camera and room / zone markings on legend
Color-coded box with labeling system
Sunlight resistant
Sweep tested to 3 GHz
UL Rating: CATV; CL2
UPC: 619172042680
In the Box
- Honeywell Genesis Series 18 AWG RG6/U QUAD-Shielded Broadband Coaxial Cable (Black, 500' Pull Box)
- Limited 3-Year Warranty on Parts & Labor
Table of Contents
- Description
- Conductor Material
- Shielding
- Additional Features
Honeywell 5007 Specs
| Gauge |
18 AWG
|
| Conductor |
Copper-clad steel center
30 ?/1,000' |
| Insulation |
Nitrogen-injected foam polyethylene dielectric
|
| Shield |
100% coverage aluminum foil / 60% aluminum braid
100% coverage aluminum foil / 40% aluminum braid |
| Jacket |
PVC
|
| Style |
RG6/U
|
| Minimum Bend Radius |
3.0" (76.2 mm)
|
| Frequency |
Sweep Frequency: 3 GHz
|
| Nominal Impedance |
75 ?
|
| Resistance |
10.9 ?/m at 20°C
|
| Attenuation |
Minimum SRL: 20 dB
0.7 dB/100' at 5 MHz 1.5 dB/100' at 55 MHz 2.8 dB/100' at 211 MHz 3.9 dB/100' at 400 MHz 4.4 dB/100' at 500 MHz 4.9 dB/100' at 600 MHz 5.5 dB/100' at 750 MHz 6.5 dB/100' at 1,000 MHz Minimum SRL: 15 dB 8.1 dB/100' at 1,500 MHz 8.9 dB/100' at 1,800 MHz 9.9 dB/100' at 2,200 MHz 10.3 dB/100' at 2,400 MHz 11.7 dB/100' at 3,000 MHz |
| Pulling Tension |
Maximum: 19.0 lb (8.6 kg)
Recommended: 14.25 lb (6.46 kg) |
| Temperature Rating |
-4 to 167°F (-20 to 75°C)
|
| Voltage Rating |
300 V
|
| Diameter |
Dielectric: 0.18" (4.57 mm)
Nominal Outer Diameter: 0.298" (7.569 mm) |
| Length |
500.0' (152.4 m)
|
Packaging Info
| Package Weight |
17 lb
|
| Box Dimensions (LxWxH) |
14.646 x 13.701 x 10.236"
|
