Description

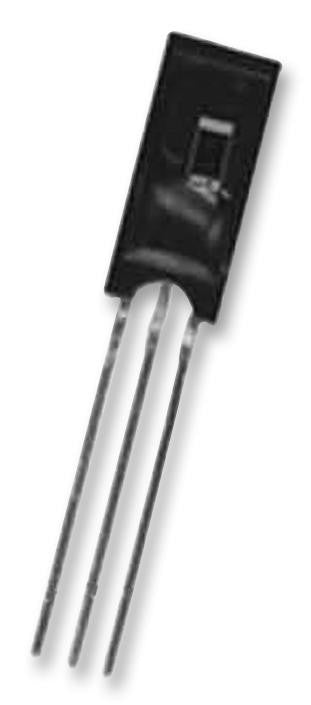

The HIH-4000-004 is a Humidity Sensor, designed specifically for high volume OEM users. Direct input to a controller or other device is made possible by this sensor's near linear voltage output. With a typical current draw of only 200�A, the humidity sensor is often ideally suited for low drain, battery operated systems. Tight sensor interchange-ability reduces or eliminates OEM production calibration costs. Individual sensor calibration data is available. The humidity sensor delivers instrumentation-quality RH (relative humidity) sensing performance. Available in two lead spacing configurations, the RH sensor is a laser trimmed, thermoset polymer capacitive sensing element with on-chip integrated signal conditioning. The sensing element's multilayer construction provides excellent resistance to most application hazards such as wetting, dust, dirt, oils and common environmental chemicals.
- Moulded thermoset plastic housing
- Near linear voltage output vs. %RH
- Laser-trimmed interchange-ability
- Enhanced accuracy, fast response
- Fast response time
- Stable, low drift performance
- Chemically resistant
Applications
Consumer Electronics, HVAC, Medical, Industrial, Power Management, Sensing & Instrumentation
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Supply Voltage | 5.8VDC |
| Operating Temperature Min | -40�C |
| Sensor Case Style | SIP |
| Operating Temperature Max | 85�C |
| Accuracy % | 3.5% |
| Response Time | 15s |
| No. of Pins | 3Pins |
| Product Range | - |
| Packaging | Each |
| Humidity Range | 0% to 100% Relative Humidity |
| MSL | - |
Other details
| Brand | HONEYWELL |
| Part Number | HIH-4000-004 |
| Quantity | Each |
| Technical Data Sheet EN |  |
