Description
Icron 3204CNA Overview

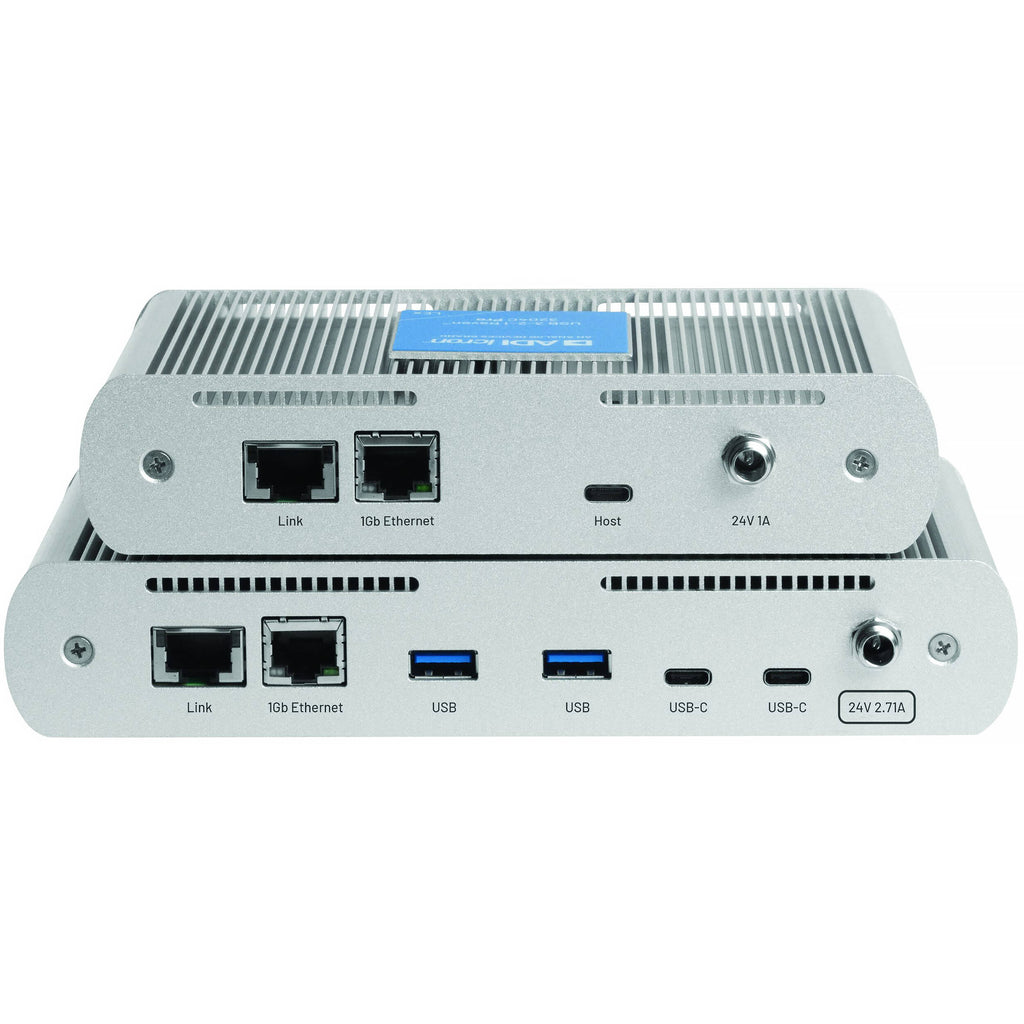

Bridge the gap between USB devices and a host with the 4-Port USB 3-2-1 Raven 3204C Extender System from Icron. Optimized for use with cameras, audio devices, and various peripherals, this extender system supports transfer rates up to 5 Gb/s and provides a point-to-point connection at distances up to 328' via Cat 6a or Cat 7. Utilizing the USB 3.2 Gen 1 interface, it's backward compatible with USB 2.0 and 1.1 devices. Comprised of a local extender (LEX) and remote extender (REX), this system incorporates Ethernet-passthrough for connecting network-enabled devices or using an existing infrastructure without losing LAN connectivity. The Raven 3204C is plug-and-play with Windows, macOS, Linux, and Chrome OS.
Items Included
- Icron 4-Port USB 3-2-1 Raven 3204C Extender System (328')
- LEX (Local Extender)
- REX (Remote Extender)
- USB-C Cable
- 2 x International Locking AC Adapter
- 2 x Country-Specific Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Icron 3204CNA Specs
| Maximum Range |
USB 3.0 / 3.1/3.2 Gen 1: 330' / 100.6 m over Cat 6a Cable
USB 3.0 / 3.1/3.2 Gen 1: 330' / 100.6 m over Cat 7 Cable |
| Receiver I/O |
1x USB-C (3.0 / 3.1/3.2 Gen 1) Output
1x RJ45 (Gigabit Ethernet) Input 1x RJ45 (Gigabit Ethernet) Output |
| Transmitter I/O |
2x USB-C (3.0 / 3.1/3.2 Gen 1) Input
2x USB-A (3.0 / 3.1/3.2 Gen 1) Input 1x RJ45 (Gigabit Ethernet) Input 1x RJ45 (Gigabit Ethernet) Output |
| Power Source |
Transmitter: Power Adapter
Receiver: Power Adapter |
| Receiver I/O |
1x USB-C (3.0 / 3.1/3.2 Gen 1) Output
1x RJ45 (Gigabit Ethernet) Input 1x RJ45 (Gigabit Ethernet) Output |
| Transmitter I/O |
2x USB-C (3.0 / 3.1/3.2 Gen 1) Input
2x USB-A (3.0 / 3.1/3.2 Gen 1) Input 1x RJ45 (Gigabit Ethernet) Input 1x RJ45 (Gigabit Ethernet) Output |
| Maximum Number of Devices |
30
|
| Power Source |
Transmitter: Power Adapter
Receiver: Power Adapter |
| Input Power |
24 VDC
|
| USB Output Current |
3 A per Port
1.2 A per Port |
| Certifications |
FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1
|
| Enclosure Material |
Aluminum
|
| Dimensions |
6.5 x 4.0 x 1.3" / 165.1 x 101.6 x 33.0 mm Receiver
7.7 x 4.0 x 1.8" / 195.6 x 101.6 x 45.7 mm Transmitter |
| Weight |
Receiver: 1.26 lb / 572 g
Transmitter: 1.54 lb / 699 g |
| Package Weight |
5.11 lb
|
| Box Dimensions (LxWxH) |
11.2 x 10.6 x 3.3"
|
