Description
ikan IKC-AH2S Overview

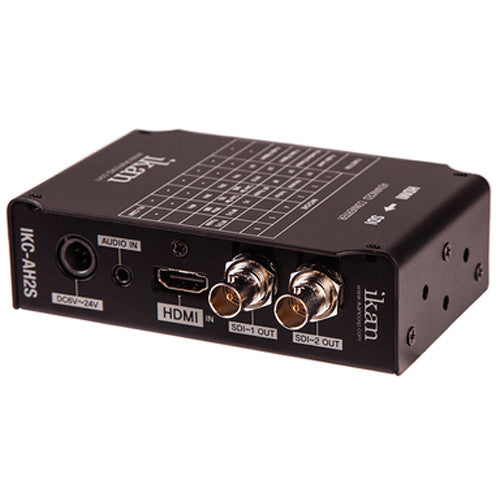

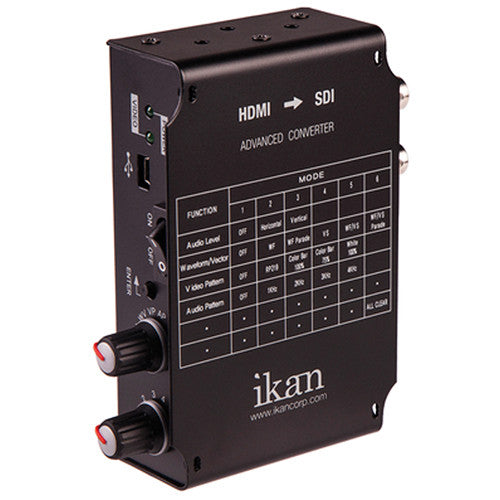

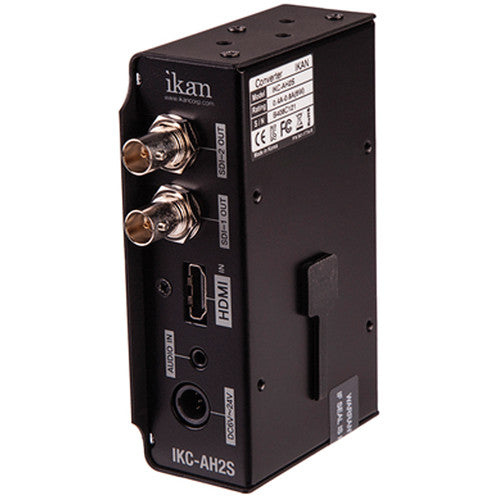

For HDMI to SDI conversion with selectable diagnostic and test pattern display overlays the Advanced HDMI to SDI Converter from ikan is at home both in the studio and in the field. It supports HD and SD resolutions and features one HDMI input and two SDI outputs. Using the two selection knobs allows you to employ a variety of diagnostic scopes and test patterns.

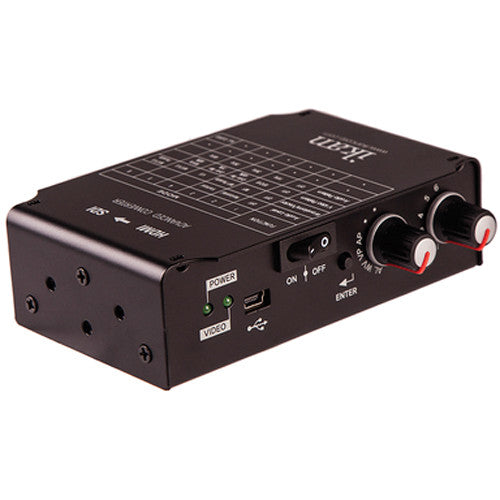

The unit is capable of overlaying; Waveform, RGB Parade, and Vector Scope of your video signal on both of the SDI outputs. You can select from four color bar patterns to be generated and displayed, including RP219 which is a SD/HD compatible color bar signal as well as four audio test tones from 1 kHz to 4 kHz. The unit features an on/off switch and LED indicators for power and Video, with a 4-pin Mini XLR power connector.
- Waveform provides an objective evaluation of your video signal. It displays the brightness of your image on an IRE scale, allowing you to see if your image will clip, and where your black levels are.
- Vectorscope displays the signal on a circular field with targets so you can check the phase of your colors. The vectorscope function allows you to verify the overall tint and hue of an image.
- RGB parade is similar to the Waveform display, except it displays the video signal as three separate colors channels; red, blue and green. This feature lets you objectively see how much of each color you have in your image.
- 100% Color Bars
- 75% color Bars
- 100% White
Audio Test tones are available from 1 to 4 kHz in 1 kHz increments.

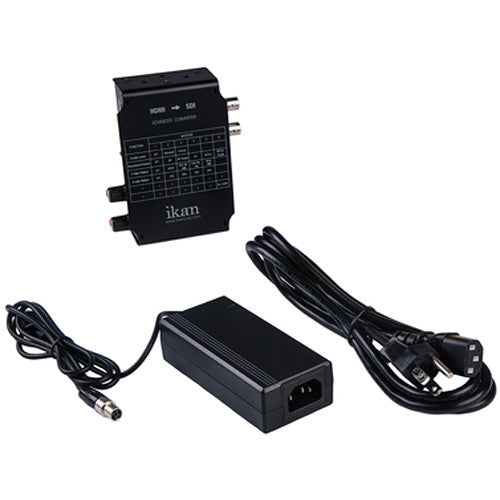

In the Box
- ikan Advanced HDMI to SDI Converter
- AC Adapter
- Power Cable
- Limited 1-Year Manufacturer Warranty
ikan IKC-AH2S Specs
| Input |
HDMI: 1 Type A (with HDCP v1.1)
Audio: 1 x 3.5 mm |
| Output |
SDI: 2 x BNC
|
| Video Format |
HD
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i 60/59.94/50 1280 x 720p 60/59.94/50 |
| Firmware Updates |
1 x mini-USB
|
| LED Indicators |
Power/Battery: 1
Signal Lock: 1 |
| Selection |
2 x Rotary knobs
1 x Enter button |
| Power |
7 to 24 VDC
6W |
| Power Connection Type |
4-pin mini XLR
|
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Operating Humidity |
20 to 80% RH
|
| Dimensions |
3.3 x 4.6 x 1.3" / 84 x 117.2 x 34.5 mm
|
| Weight |
0.8 lb / 363 g
|
| Package Weight |
2.65 lb
|
| Box Dimensions (LxWxH) |
12.4 x 10.2 x 3"
|
