Description
ikan AX20 Overview
Take your directing capabilities up a notch with the ikan Atlas 3G-SDI/HDMI Field and Studio Monitor. Thanks to a 21.5" 1920 x 1080 LCD screen, it provides accurate monitoring of the image quality of your television broadcast or narrative scene. The Atlas supports 3G-SDI, HDMI, and composite video inputs for maximum compatibility, as well as tally light indicators to indicate to your talent which camera is live.

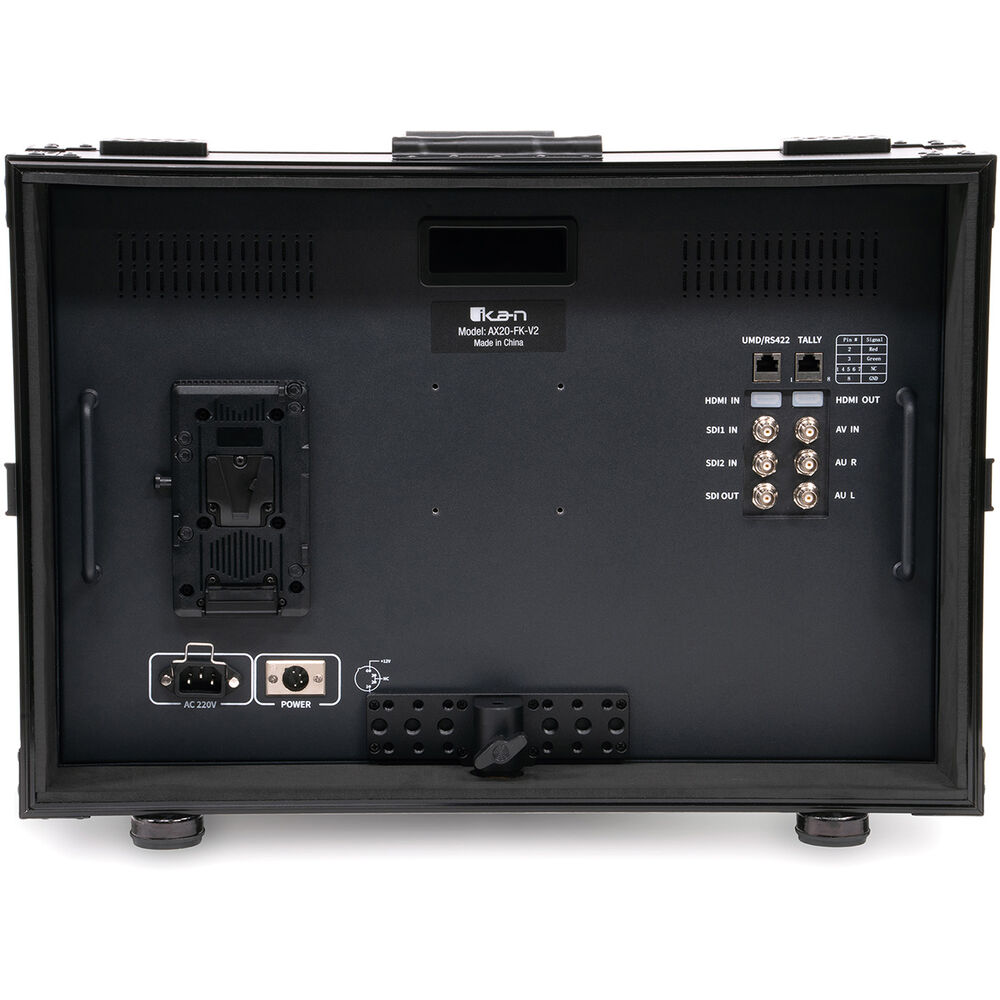

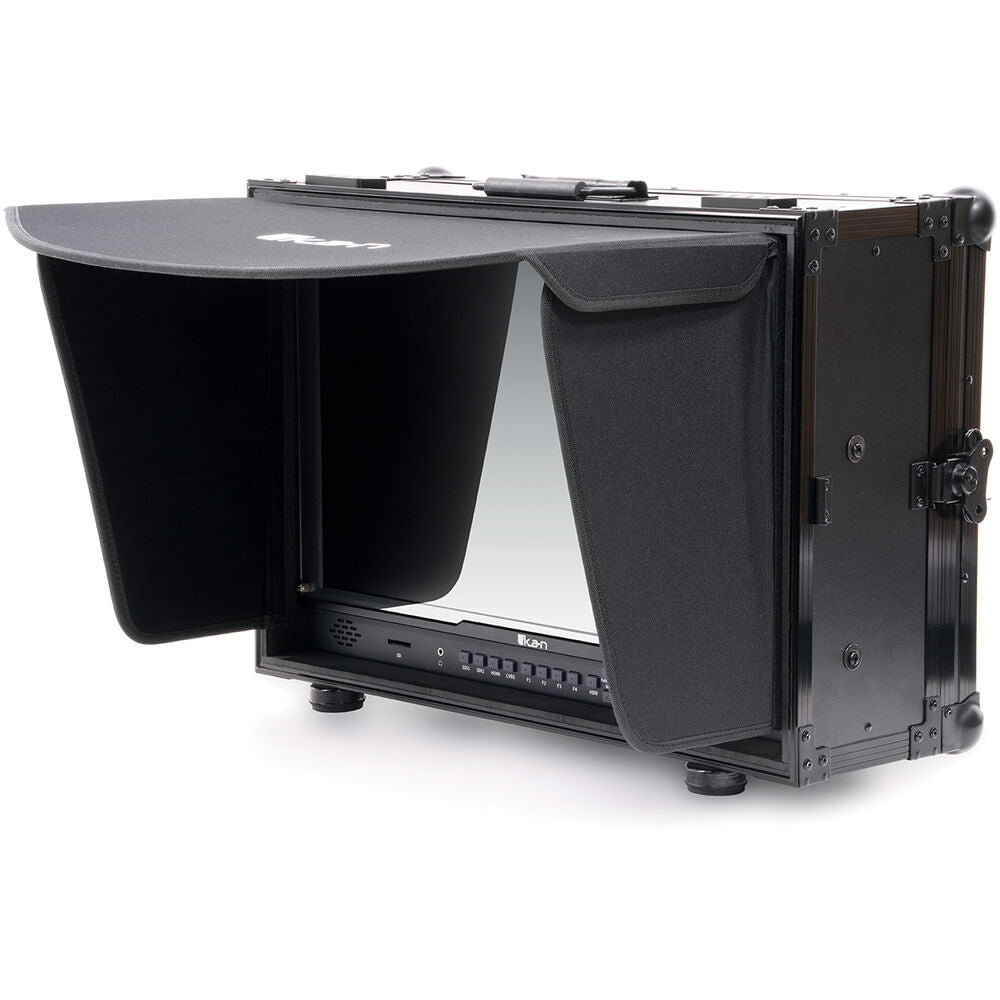

A 178° viewing angle, 400 cd/m² of brightness, and a contrast ratio of 1000:1 allow for increased visibility at wide angles. Further visibility in bright outdoor conditions can be achieved with the included sun hood for field applications. The Atlas is housed in a hard case with a 100 x 100 VESA mount and a light stand mount built into the rear for flexible incorporation on set. A V-mount battery plate and both AC and DC power inputs allow for various power options for the monitor.

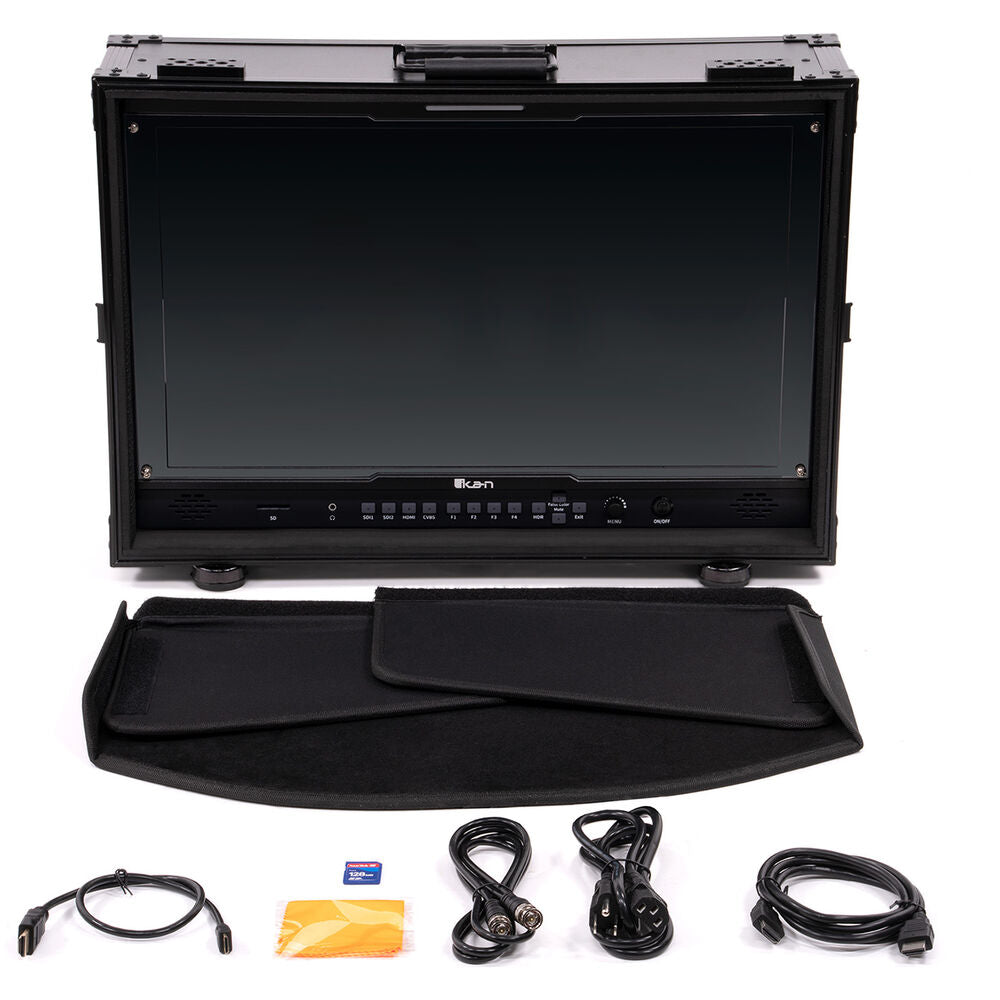

In the Box
- ikan Atlas 3G-SDI/HDMI Field and Studio Monitor (21.5")
- Sun Hood
- SD Card
- Power Cable
- Hard Case
ikan AX20 Specs
| Panel Type | LCD |
| Display Size | 21.5" / 54.6 cm |
| Screen Area | 21 x 15" / 53.3 x 38.1 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° |
| Touchscreen | No |
| Maximum Brightness | 400 cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 102 ppi |
| Real-Time LUT Monitoring | HDR |
| Image Controls | False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform |
| Video I/O | 2 x BNC (3G-SDI) Input 1 x HDMI Input 1 x BNC (Composite) Input 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| HDCP Support | No |
| Audio I/O | 2 x BNC Input 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x IEC Input 1 x XLR 4-Pin (24 VDC) Input |
| Other I/O | 1 x RJ45 (RS-422) Input 1 x RJ45 (Tally) Input |
| Media/Memory Card Slot | Single Slot: SD/SDHC |
| Wi-Fi | None |
| Video Format | SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 60/59.94 576i: 50 HDMI UHD 4K: 24 DCI 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 60 |
| AC Input Power | 110 to 240 VAC, 50 Hz |
| DC Input Power | 12 to 24 VDC |
| Mounting-Hole Pattern | 100 x 100 mm |
| Mounting | None |
| Material of Construction | Aluminum |
| Dimensions | 21 x 15 x 6" / 53.3 x 38.1 x 15.2 cm |
| Weight | 20 lb / 9.1 kg |
| Package Weight | 40 lb |
| Box Dimensions (LxWxH) | 26.5 x 20.75 x 14.75" |
