ikan Helia 70W Daylight LED Fresnel Light (DMX)

Precise Studio Illumination

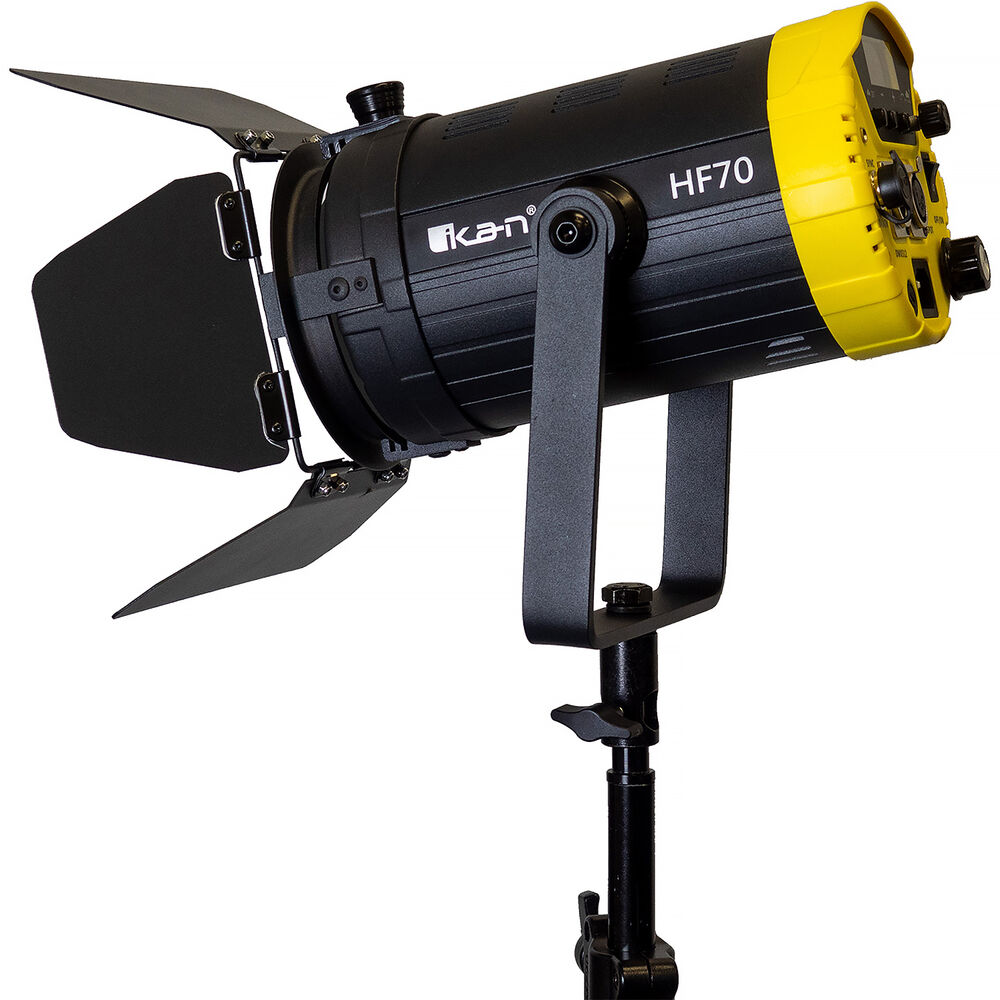

With a 70W daylight output, variable beam spread, and DMX control, the Helia 70W Daylight LED Fresnel Light from ikan is a valuable asset in studios or where larger lights just can't go. Built with a durable aluminum housing and a 4" acrylic Fresnel lens, the fixture allows you to adjust the beam angle from 28 to 70° for both spot and flood options, making it a highly controllable lighting solution. This adaptable Fresnel light is designed for precise illumination and further control. Users can easily make onboard adjustments via knobs and LCD readout or go for DMX control via in and out ports. The Helia 70W is ready for AC power using its included 6' long power cable.

Fresnel Lens for Adjustable Beam Spread

The Fresnel lens is adjustable from a 70° flood for wide coverage to a tight 28° spot for long-throw work.

Daylight LED Fresnel Light

The fixture is dimmable from 10 to 100% with flicker-free operation and a solid 5600K CCT, while the CRI/TLCI rating of 97/98 is your assurance of superior color rendition. The Helia 70W outputs up to 18,308 lux at 3.3' with a spot beam.

Onboard & DMX Control

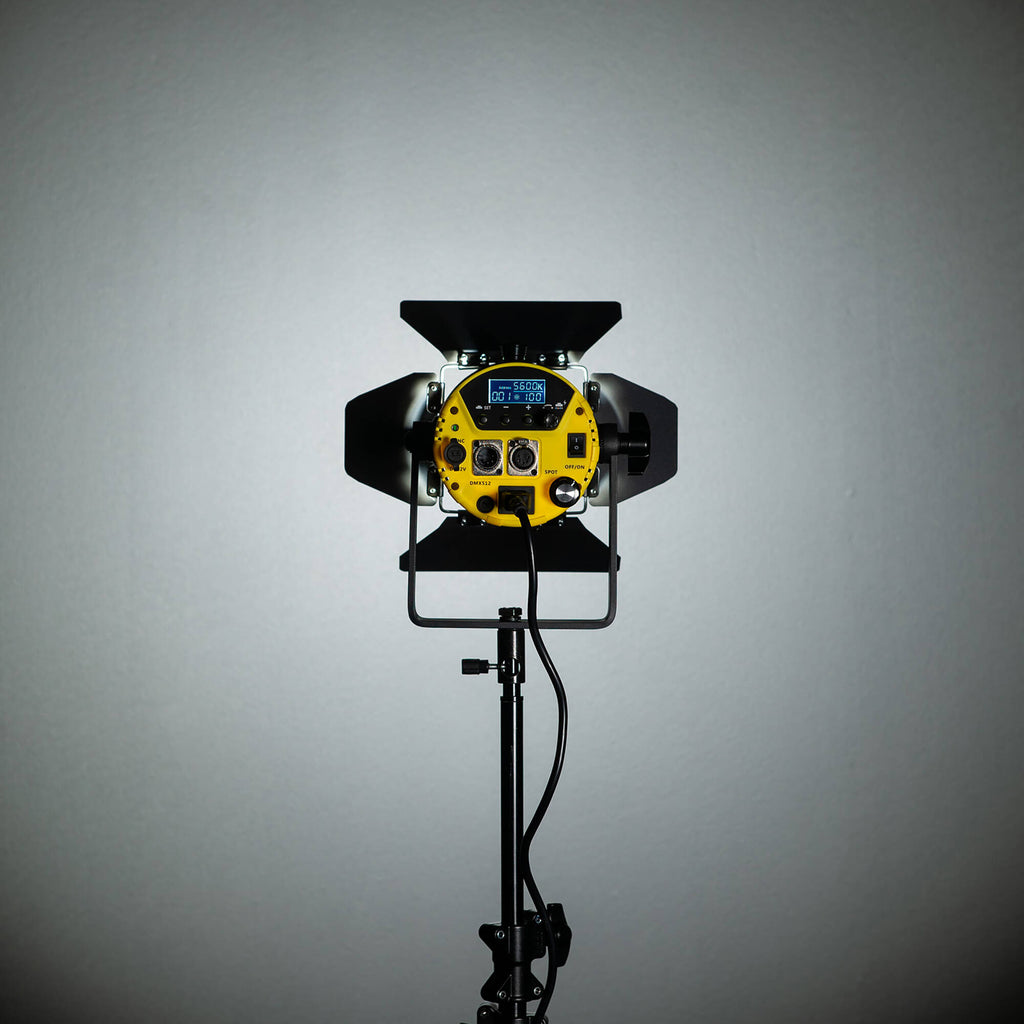

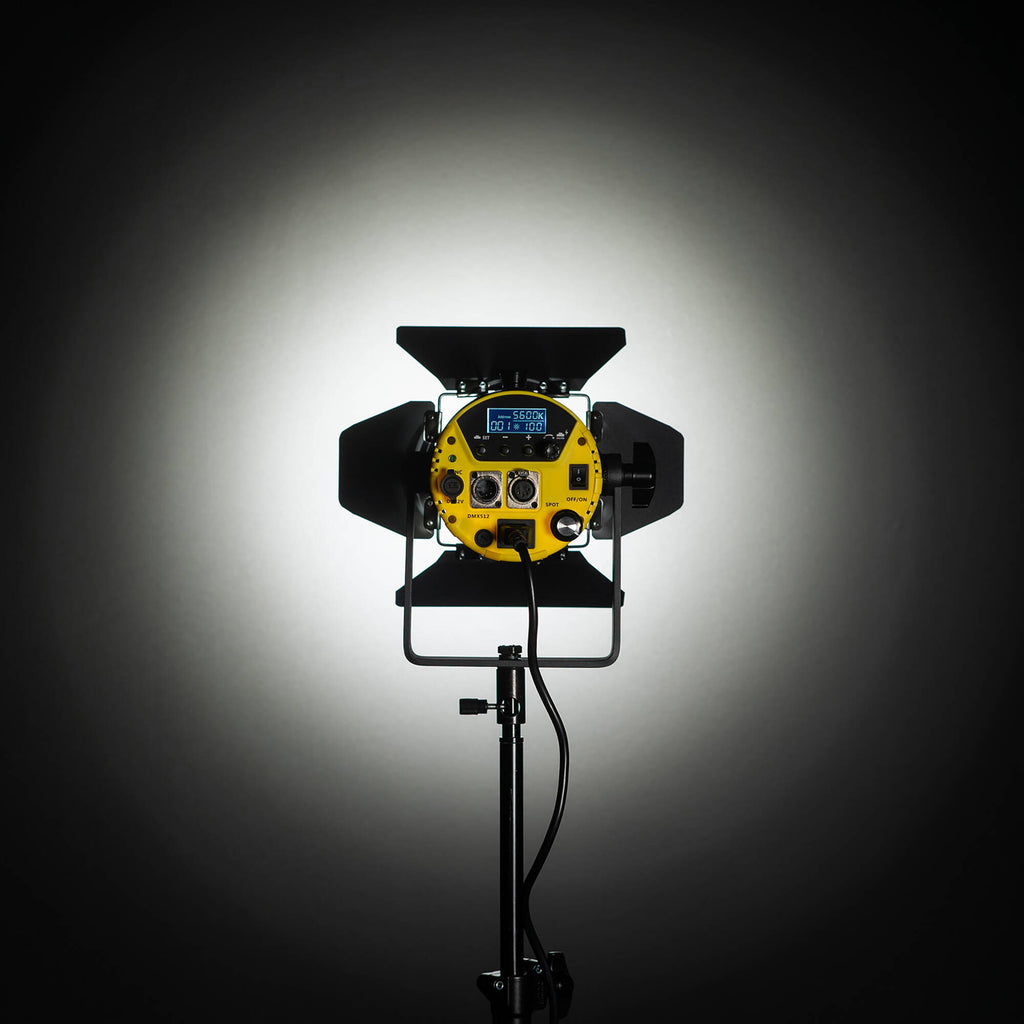

Quickly adjust the light via its back panel, featuring local controls, such as focusing and intensity knobs along with an LCD screen for settings. If advanced control is needed, the Helia 70W also allows for wired DMX.

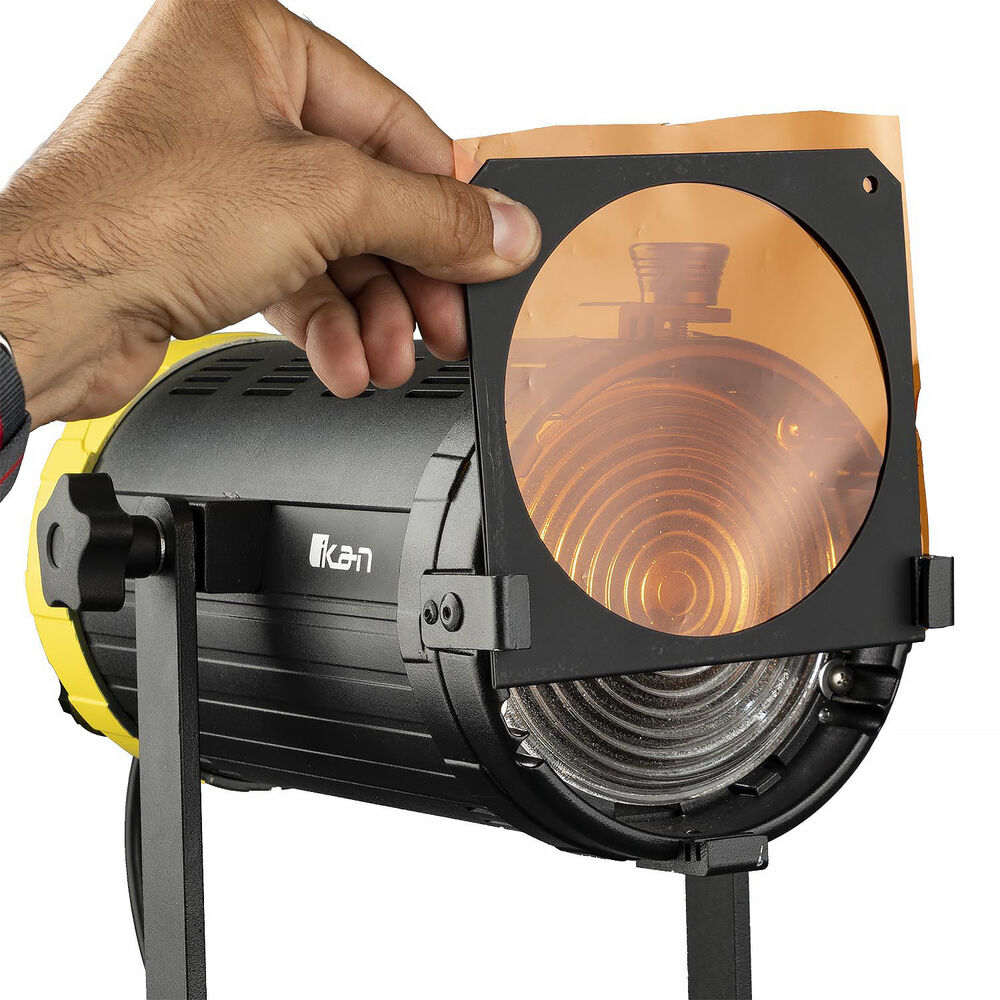

• Included in the package are four-leaf barndoors and a gel frame for modifying your light.
• The fixture's yoke can be mounted on either a 5/8" baby pin or a 1-1/8" junior receiver.
• The fixture runs on 120 VAC power and comes with a 6' long power cable.

Fan-Cooled

The light's active cooling technology fan is quiet enough for sound-sensitive environments.

ikan HF70 Specs

Item Type	1x LED Fresnel
Included Light Modifier	1x Barndoors 1x Gel/Filter Frame
Included Storage Case	No

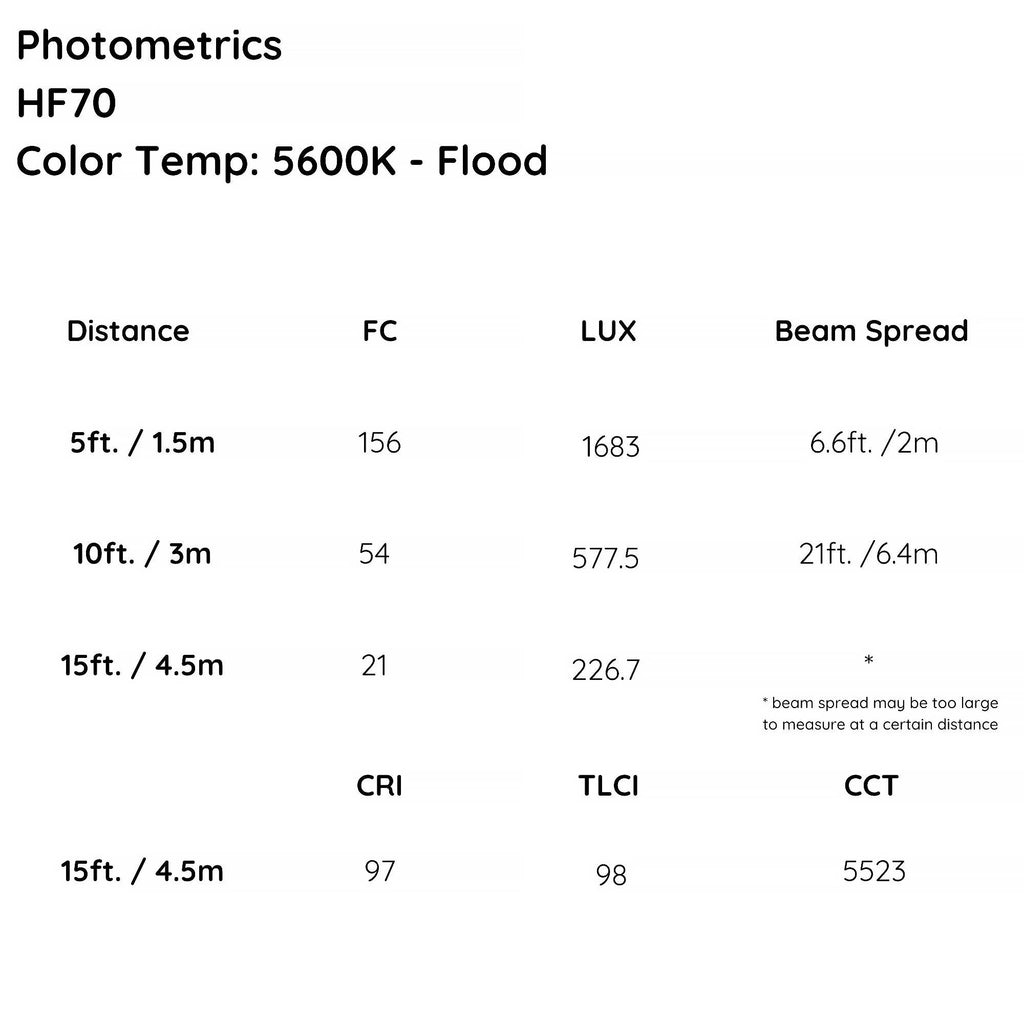

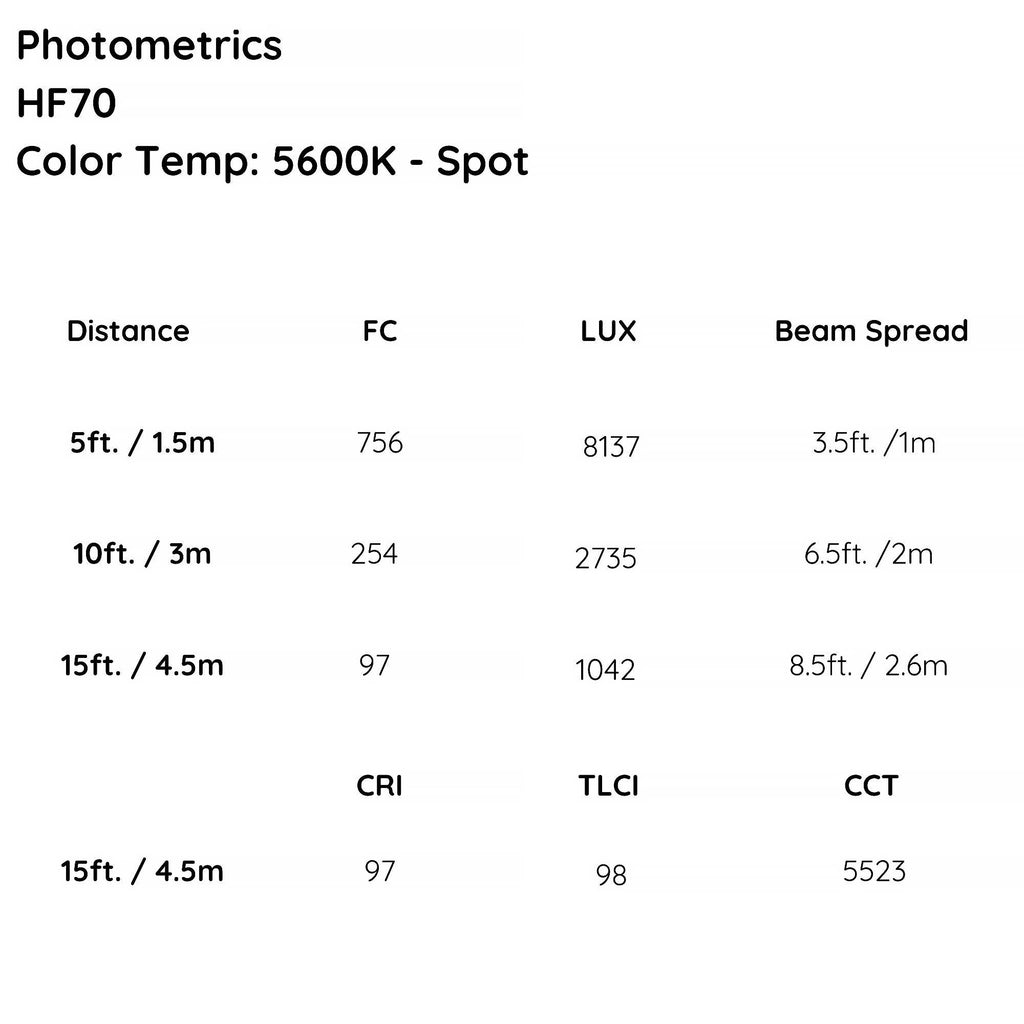

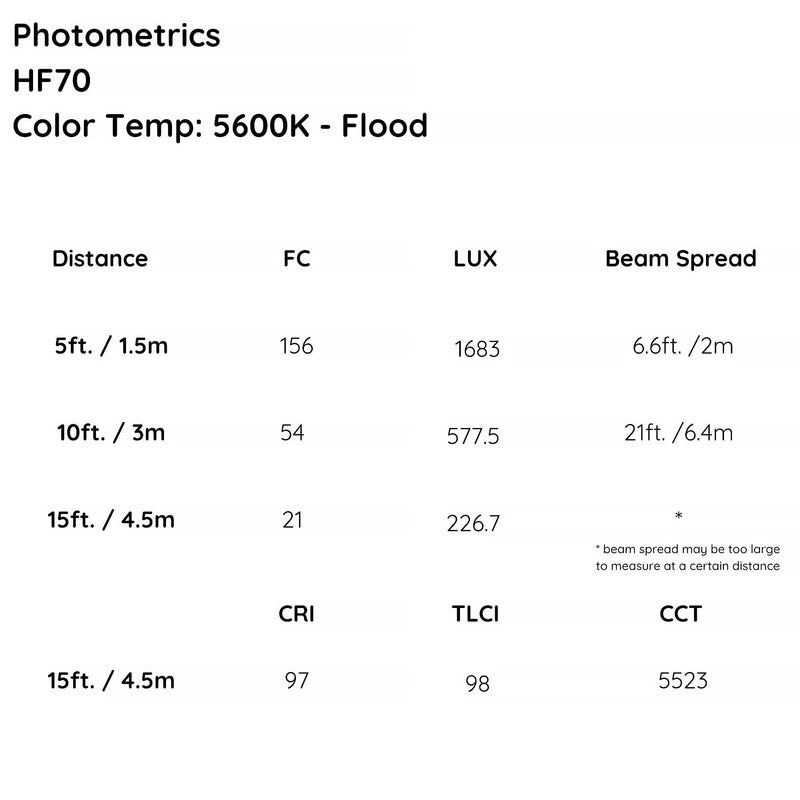

Photometrics	Spot Beam at 5600K: 1700 fc / 18,308 Lux at 3.3' / 1 m* 755 fc / 8137 Lux at 4.9' / 1.5 m 254 fc / 2735 Lux at 9.8' / 3 m 96 fc / 1042 Lux at 14.8' / 4.5 m Flood Beam at 5600K: 351 fc / 3786 Lux at 3.3' / 1 m* 156 fc / 1683 Lux at 4.9' / 1.5 m 53 fc / 577 Lux at 9.8' / 3 m 20 fc / 226 Lux at 14.8' / 4.5 m *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	5600K
Color Modes	Daylight
Color Accuracy Standard	CRI 97 TLCI 98
Dimming	Built-In Dimmer  � 10 to 100%
Front Accessory Mount	Proprietary
Power Source	AC Power (Cable Included)
Input Power	120 VAC, 60 Hz
Power Consumption	70 W
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Item Type	1x LED Fresnel
Included Light Modifier	1x Barndoors 1x Gel/Filter Frame
Included Storage Case	No
Photometrics	Spot Beam at 5600K: 1700 fc / 18,308 Lux at 3.3' / 1 m* 755 fc / 8137 Lux at 4.9' / 1.5 m 254 fc / 2735 Lux at 9.8' / 3 m 96 fc / 1042 Lux at 14.8' / 4.5 m Flood Beam at 5600K: 351 fc / 3786 Lux at 3.3' / 1 m* 156 fc / 1683 Lux at 4.9' / 1.5 m 53 fc / 577 Lux at 9.8' / 3 m 20 fc / 226 Lux at 14.8' / 4.5 m *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	5600K
Color Modes	Daylight
Color Accuracy Standard	CRI 97 TLCI 98
Dimming	Built-In Dimmer  � 10 to 100%
Cooling System	Fan
Beam Angle	28 to 70°
Built-In Flash	No
Preprogrammed Effects	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Lens Type	Fresnel
Lens Diameter	4" / 10.16 cm
Lens Material	Acrylic

Mobile App Compatible

No

Power Source	AC Power (Cable Included)
Inputs/Outputs	1x IEC Power Input 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output
Input Power	120 VAC, 60 Hz
Included Adapter / Cable	1x Unspecified to Unspecified Cable (6' / 1.83 m)
Inline Switch	No
Power Pass-Thru	No
Power Consumption	70 W

Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Display	LCD
Environmental Resistance	No
Materials	Aluminum (Housing)
Dimensions	11 x 10 x 6" / 27.9 x 25.4 x 15.2 cm (Fixture with Yoke & Pin)
Weight	6.3 lb / 2.9 kg

Package Weight	9.11 lb
Box Dimensions (LxWxH)	15.2 x 10.8 x 10.1"
