Description
ikan VXF7-HB Overview

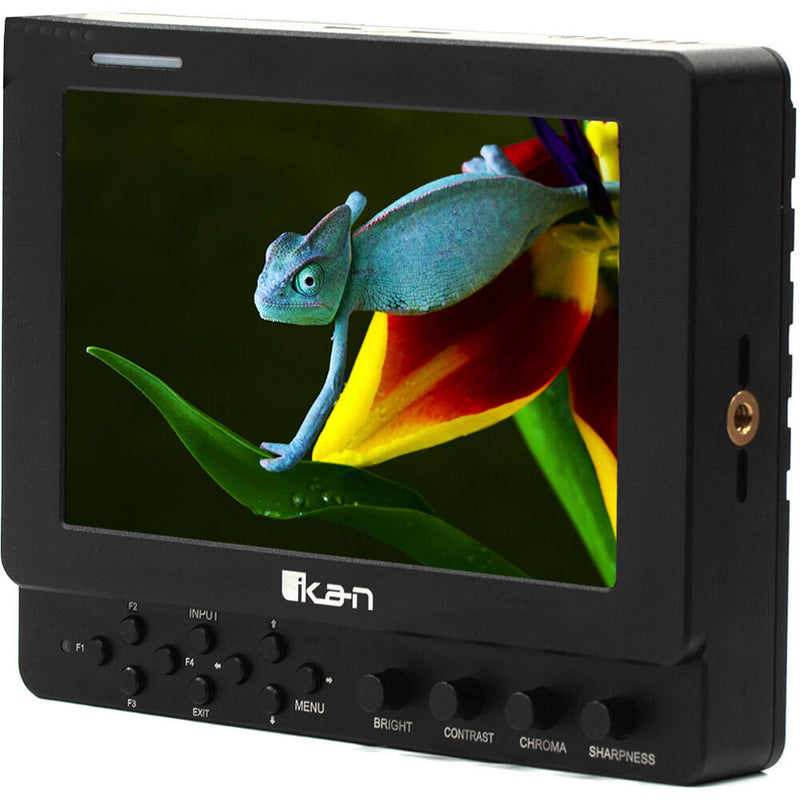

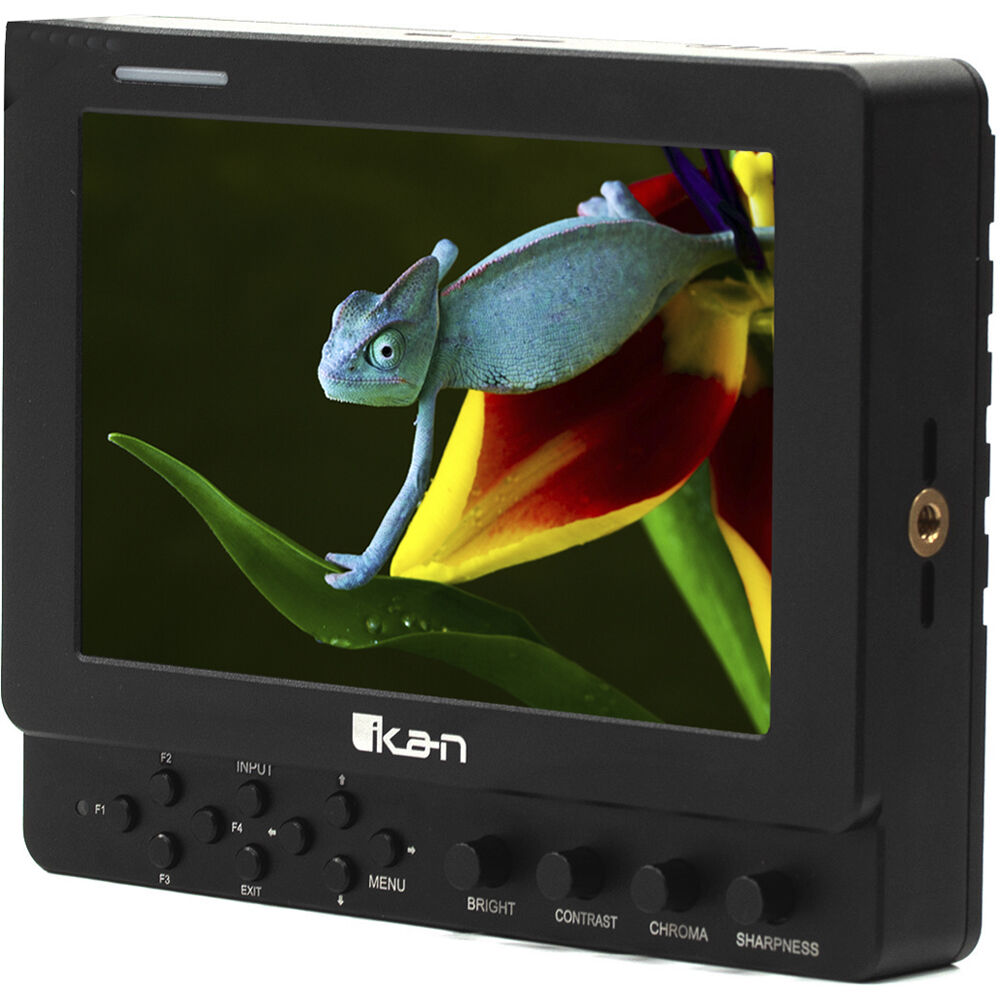

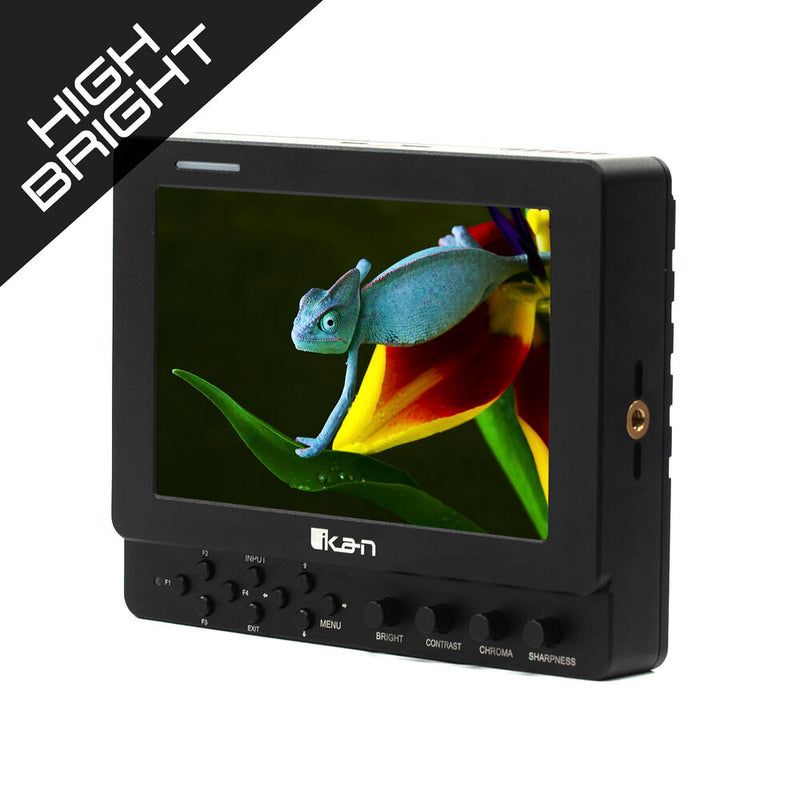

Supporting 4K and HD workflows, the VXF7 7" HDMI/SDI High-Brightness On-Camera Monitor V2 with Tally from ikan is a versatile on-camera monitor for any field production. The monitor features a 1920 x 1200 resolution LED LCD panel with 2000 cd/m² brightness, a 1000:1 contrast ratio, and a rugged aluminum housing. DCI and UHD 4K signals are supported via HDMI only, while HD or SD signals can be input through 3G-SDI and HDMI inputs. There are also HDMI and 3G-SDI loop-through outputs to send the signal onto another monitor or equipment.

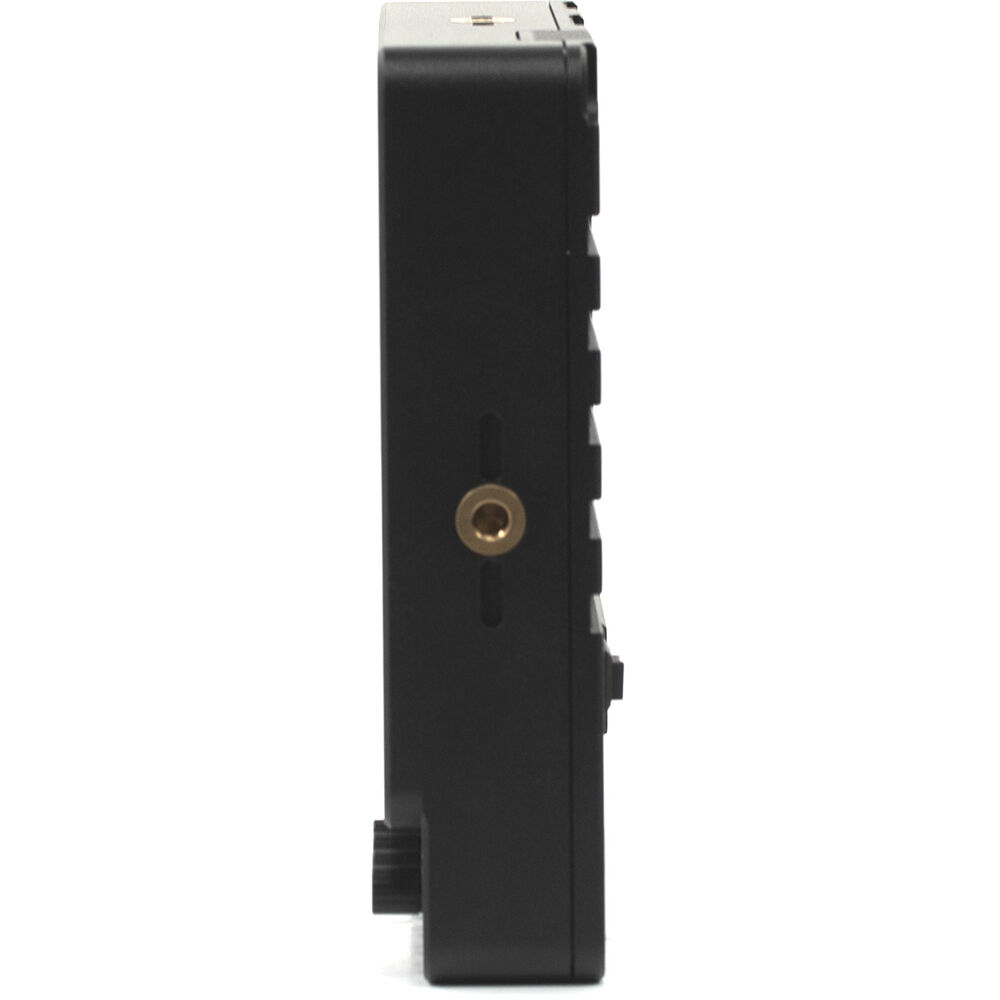

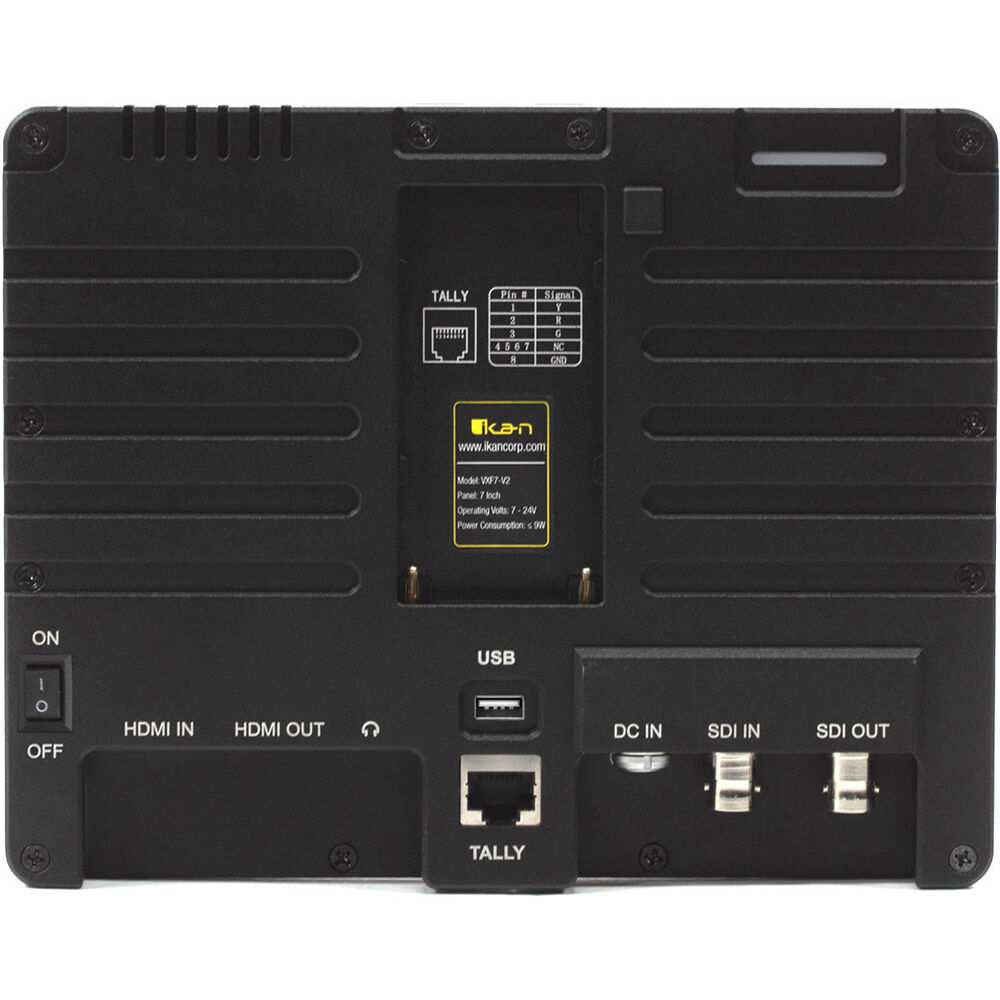

The VXF7 supports tally lights via its RJ45 connector, and it has three LEDs on the front and rear that display red, green, and yellow tally lights. It can be powered via the included AC adapter, via a D-Tap power source with the included D-Tap cable, or by using a separately available L-series battery via the plate on the rear of the monitor. There are four 1/4"-20 threads around the monitor, so you can mount it in a variety of configurations. A shoe adapter is included for mounting the monitor on top of your camera, rig, or cage that features a shoe mount.

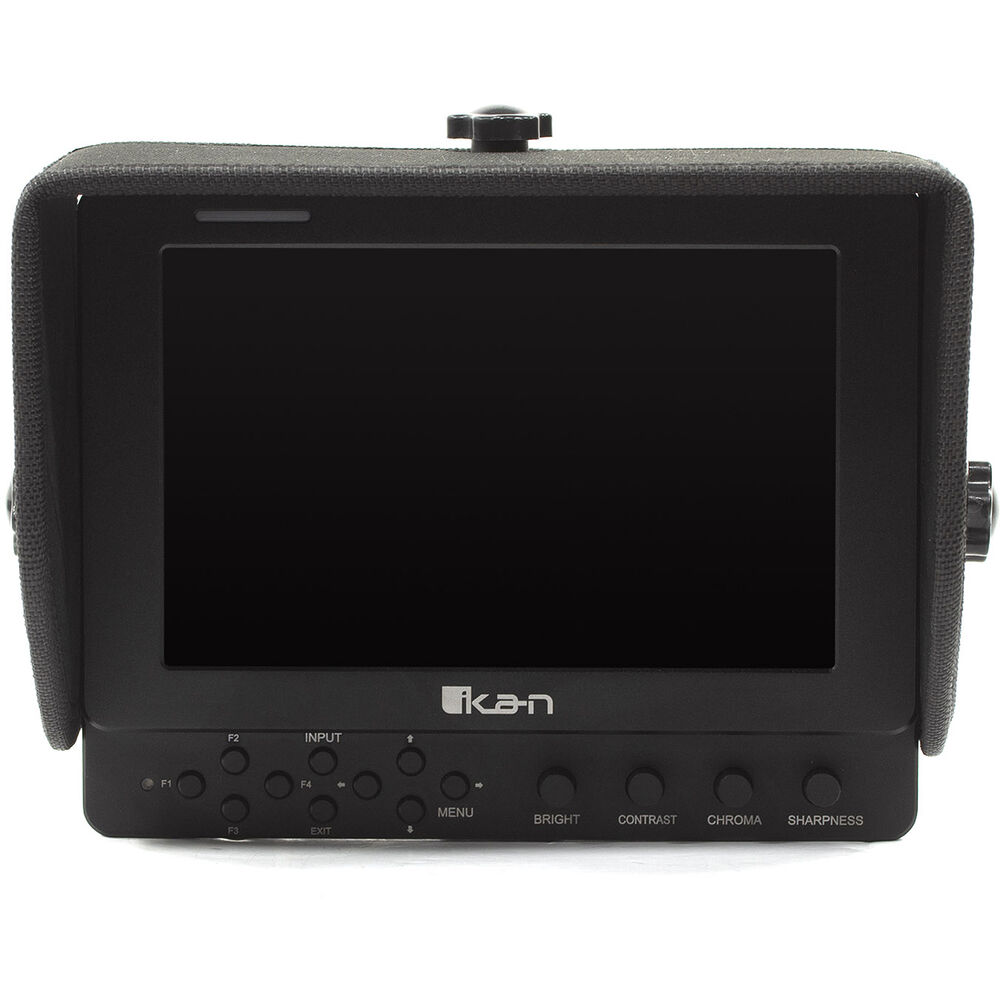

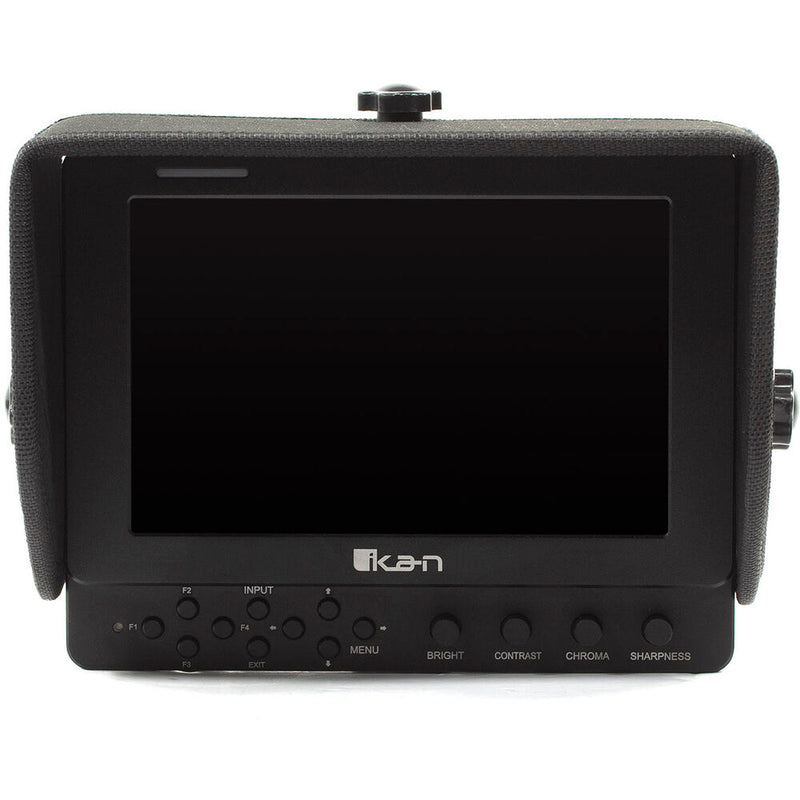

The 3.5mm audio headphone output allows you to monitor the embedded audio from your HDMI or SDI video. The monitor also features numerous image monitoring tools such as 1.33x anamorphic de-squeeze, waveform, histogram, peaking, pixel zoom, guides, markers, audio metering, and many more. A sun hood is also included with the monitor to prevent glare when using the monitor outdoors.

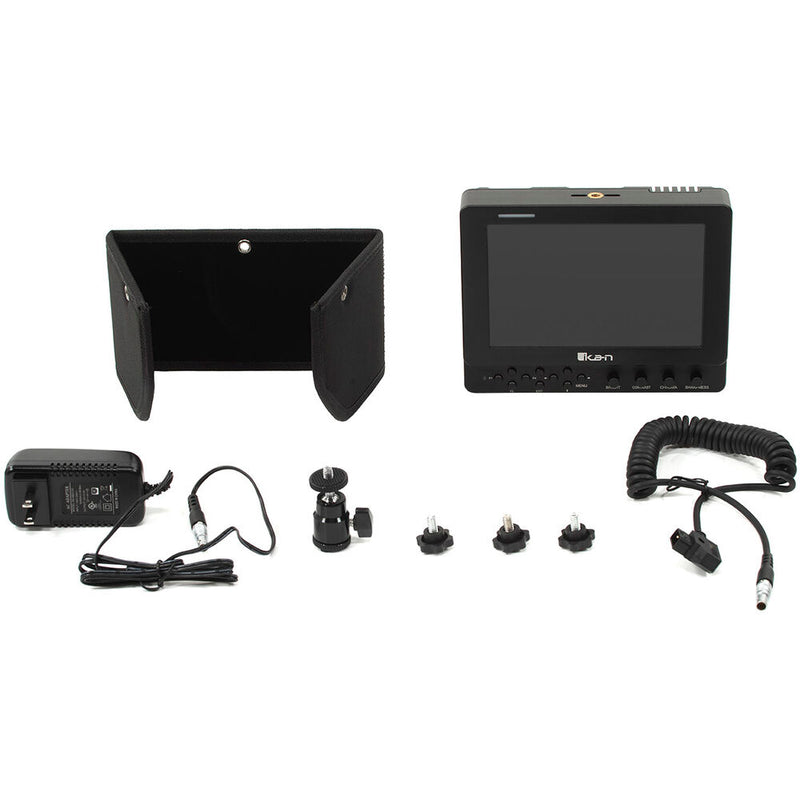

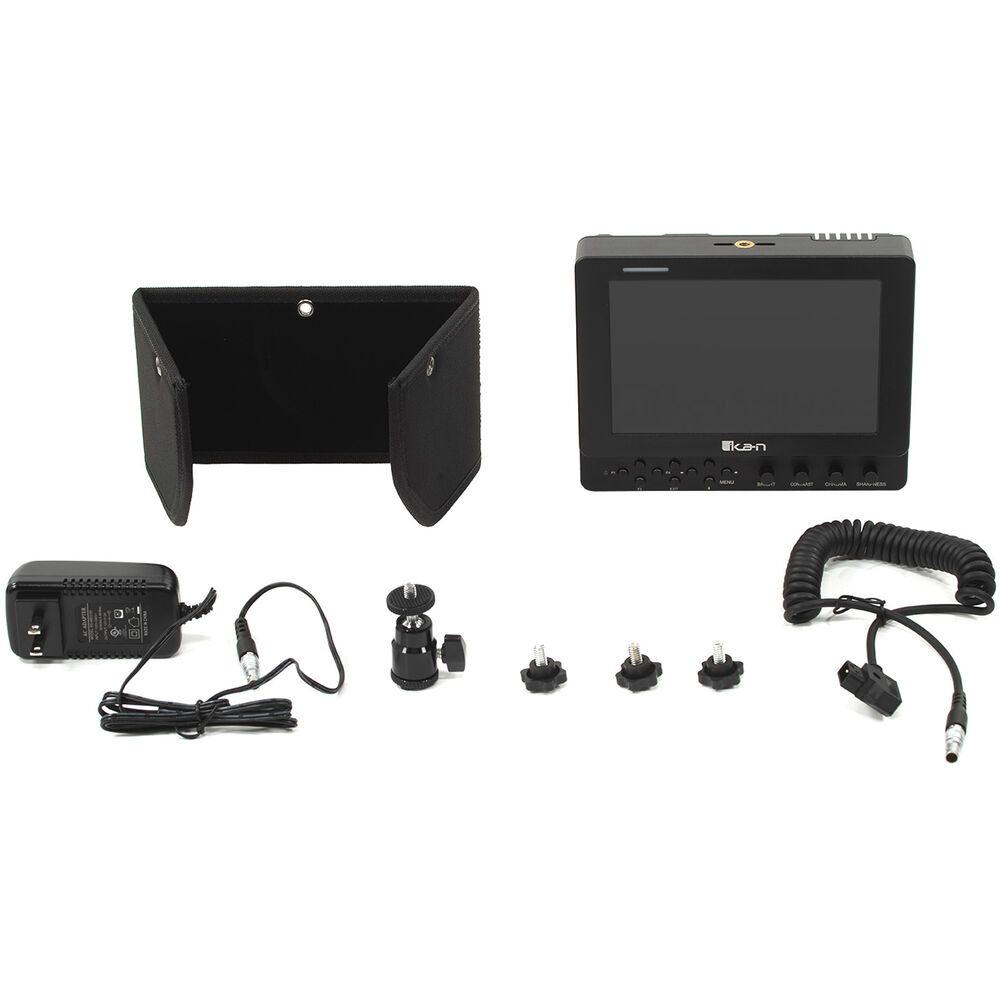

Items Included
- ikan VXF7 7" HDMI/SDI High-Brightness On-Camera Monitor with Tally
- AC Adapter
- Sun Hood
- Shoe Adapter
- D-Tap Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
ikan VXF7-HB Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
No
|
| HDR Support |
No
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Input 1x HDMI (Unspecified Signal) Input |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i 576i HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 576i 480i |
| Battery Type |
1x L-Series
|
| Power Consumption |
9 W
|
| Mounting |
4x 1/4"-20 Female
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 178° (89/89)
Vertical: 178° (89/89) |
| Touchscreen |
No
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
No
|
| Pixels Per Inch (ppi) |
323 ppi
|
| Image Controls |
False Color, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Input 1x HDMI (Unspecified Signal) Input |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Other I/O |
1x RJ45 (Tally) Input
1x Mini-USB 2.0 Input |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i 576i HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 576i 480i |
| Input Power |
7 to 24 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
9 W
|
| Mounting |
4x 1/4"-20 Female
|
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.36 x 5.6 x 1.3" / 186.94 x 142.2 x 33 mm
|
| Weight |
1.8 lb / 816 g
|
| Package Weight |
3.715 lb
|
| Box Dimensions (LxWxH) |
11.7 x 9.2 x 3.5"
|
