Description

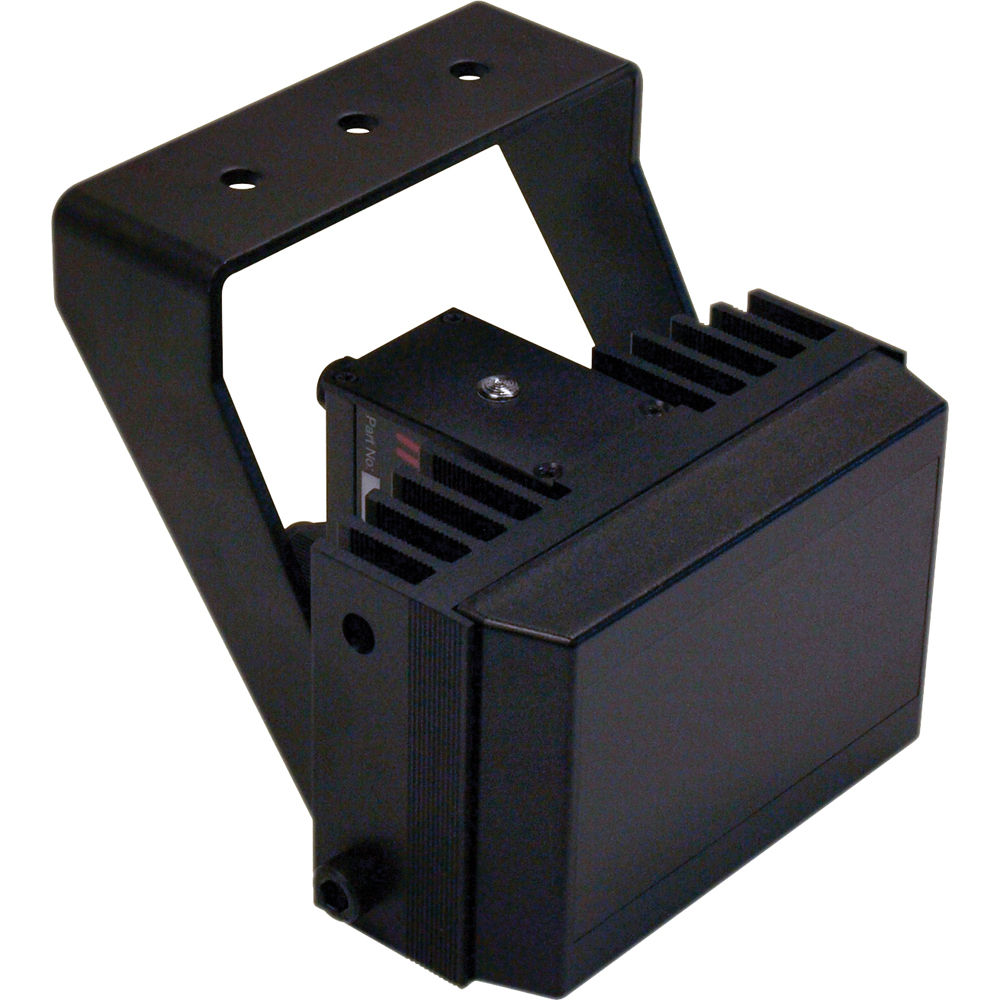

Iluminar IR148-C120-24-2 Overview
The black 940nm IR148-2 Series Short-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 20' (6m) and offers an illumination angle of 120°. It also has a built-in photocell and comes with a wall mounting bracket. The light intensity and photocell sensitivity can be adjusted using an IL-RC remote control (available separately). The IP67-rated and vandal-proof IR illuminator is weatherproof for outdoor use. The hardened housing provides protection from harsh weather conditions, such as rapid temperature variations ranging from -58 to 140°F (-50 to 60°C).
Short-range IR illuminator with SMT LED technology
Illumination range of up to 20' (6m) and illumination angle up to 120°
940nm wavelength
69' (21m) horizontal field of view
Low power consumption of 13W
Built-in photocell (IR on/off)
Photocell following contact
Telemetry input for remote switching
Light intensity and photocell sensitivity adjustable via IL-RC remote control (available separately)
Pressure equalization vent prevents thermal expansion & pressure cycling
Black powder-coated stainless steel wall mount
Items Included
- Iluminar IR148-2 Series Short-Range IR Illuminator (940nm)
- Wall Mount
- M6 Allen Key
- Limited 5-Year Warranty
Additional Resources
No additional resources available
Iluminar IR148-C120-24-2 Specs
| Illumination Angle |
120°
|
| Illumination Distance |
20' (6 m)
|
| Horizontal Field-of-View |
69' (21 m)
|
| Wavelength |
940 nm (covert)
No visible glow from illuminator - ideal for transportation or high security applications |
| Electronics |
High-efficiency surface-mount high-power LEDs with advanced current-limited integral control circuitry
|
| Number of SMT LEDs |
4
|
| Photocell |
Adjustable via IL-RC remote control (available separately)
|
| Illumination |
Adjustable via IL-RC remote control (available separately)
|
| Mount |
Powder-coated stainless steel wall mount
Adjustable via M6 Allen key (included) |
| Construction |
Aluminum extrusion
|
| Front Window |
Polycarbonate high-transmittance protective (vandal-proof) IR filter
|
| Interface Connector |
Telemetry following contact
|
| Power Cable |
9' (3 m)
|
| Input Voltage |
12 to 32 VDC or 24 VAC
|
| Input Current |
0.6 A at 24 VAC
|
| Power Consumption |
13 W
|
| IP Rating |
IP67 in accordance with EN60529:1992
|
| Certifications |
Safety:
EN60598:2004 Electrical Safety EN60825-1 Laser Eye Safety EMC: EN61000, FCC part 15.107 15.108 Class B WEEE directive 202/96/EC RoHS directive 202/95/EC |
| Operating Temperature |
-58 to 140°F (-50 to 60°C)
|
| Dimensions |
2.16 x 4.33 x 3.15" (5.5 x 11.0 x 8.0 cm)
|
| Weight |
1.63 lb (0.5 kg)
|
Packaging Info
| Package Weight |
2.8 lb
|
| Box Dimensions (LxWxH) |
12.6 x 6.1 x 6"
|
