1ED44171N01BXTSA1 is a 1ED44171N01B series 25V single-channel low-side gate driver IC for MOSFETs or IGBTs with integrated fault reporting and enable functionality. It can also be used in conjunction with IPMs, such as IFCM10S60GD, which integrate a PFC IGBT but no PFC gate driver IC. The proprietary latch-up immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output. The output driver features a current buffer stage. This provides an integrated fault reporting output and adjustable fault clear timer at the under voltage condition of VCC. Typical applications are ceiling fan - motor control and drive solutions, home appliances, inverterized microwaves, power management (SMPS) - reference design, refrigeration and freezing - compressor drives.
- Single pin for fault output and enable, programmable fault clear time
- Wide supply voltage rage with 25V VCC max, under voltage lockout
- 3KV ESD HBM, -10VDC negative input capability of IN pin
- Fault reporting for switch monitoring
- Flexible fault clear time set-up
- 25V VCC max makes the IC more robust against VCC spikes in harsh circuit applications
- Under-voltage lock out provides protection at low supply voltage
- Industry standard package
- High level of ESD protection for robustness

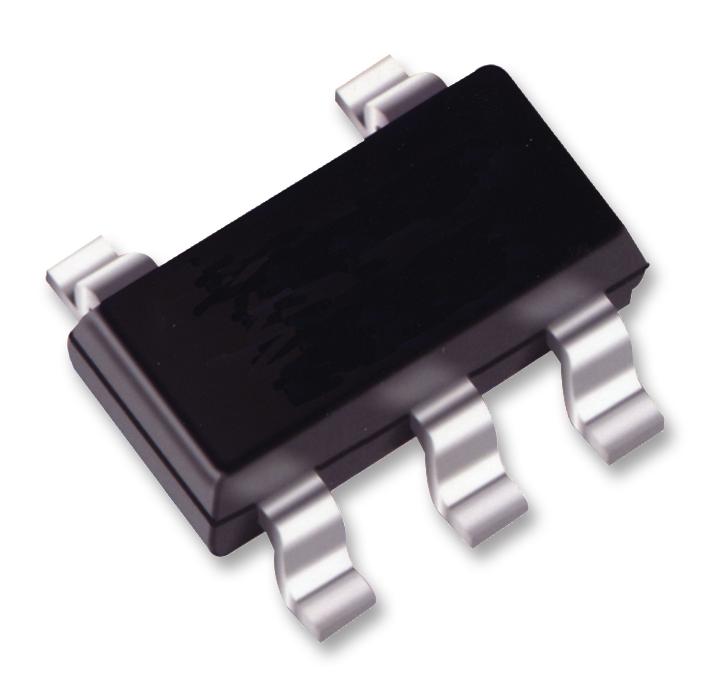

- PG-SOT23-5-1 package
Other details
| Brand |
INFINEON |
| Part Number |
1ED44171N01BXTSA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
