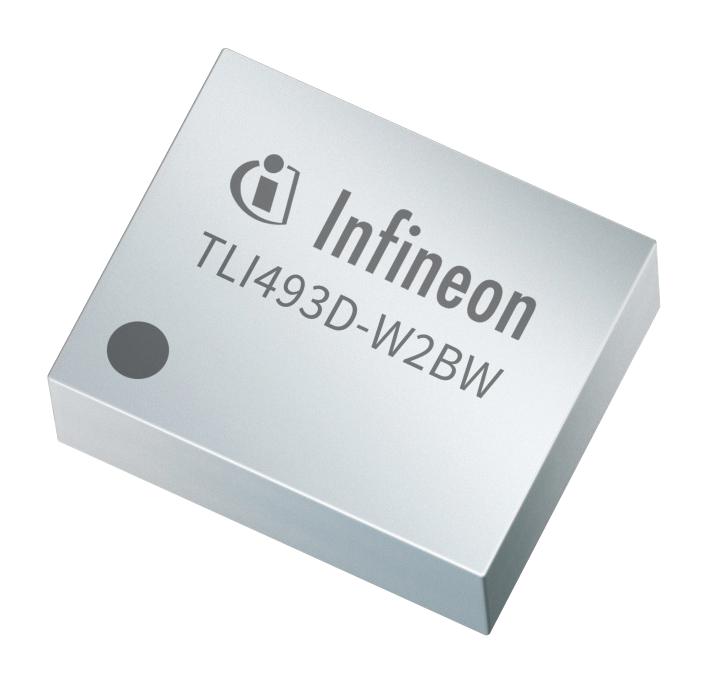

TLI493DW2BWA1XTMA1 is a low-power 3D hall sensor with an I²C interface and wake-up function. It is a three-dimensional hall effect sensor that can be configured by the microcontroller. The measurement data is provided in digital format to the microcontroller. The sensor also provides the functionality to Wake-Up a sleeping system. Potential application include multi-functiontion knobs, joysticks and gimbals, white good applications (washing, dryer machines), robotics position sensing, mobile camera lens position sensing for focus and zoom, and angle measurement in end-of-shaft out-of-shaft haft configurations.
- 3D (X, Y, Z) magnetic flux density sensing up to ±160 mT
- Programmable sensitivity up to typ. 30.8 LSB12/mT
- Power down mode with 7 nA (typ.) power consumption
- 12-bit data resolution for each measurement direction plus 10-bit temperature sensor
- Variable update frequencies and power modes (configurable during operation)
- Triggering by external microcontroller possible via I²C protocol
- X-Y angular measurement mode
- Interrupt signal to indicate a valid measurement to the microcontroller
- SG-WFWLB-5-2 package
- Operating temperature range from -40 to 125°C (Tj = Ta +3K in fast mode)
Other details
| Brand |
INFINEON |
| Part Number |
TLI493DW2BWA1XTMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
