intellijel XYIO-1U Overview

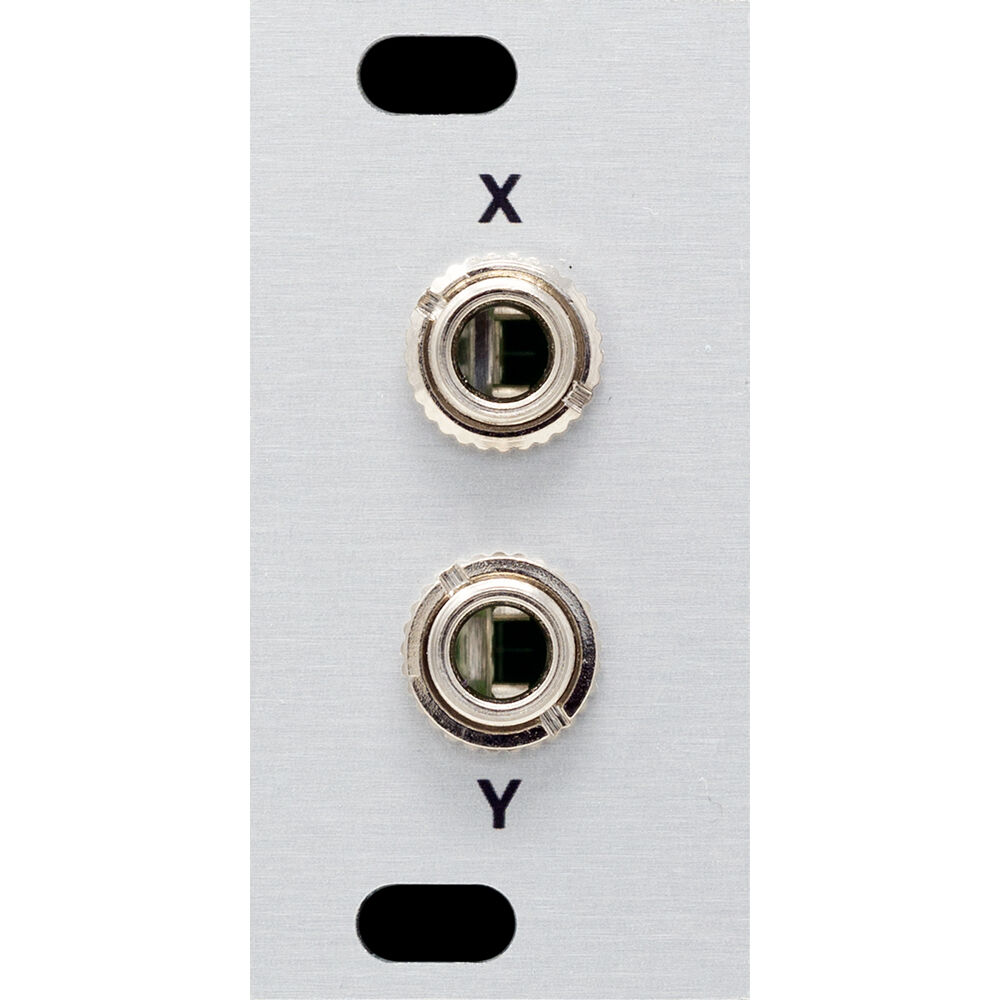

Add inputs, outputs, or send/return signals with the versatile intellijel Passive XY I/O 1U, a 4 HP 1U Eurorack module that's designed to interface with the 3-pin LINK connector used in several intellijel products including Mixup, Switch Mult 1U, Pedal I/O, the Palette Case, and 2nd generation Audio Jacks Board in a 7U Performance case.
At a Glance
- Use this module to tap into the 3-pin LINK connector used in several Intellijel products, including Mixup, Switched Mult 1U, Pedal I/O and the various Palette and 7U cases (NOTE: 7U cases requires a 2nd Generation Audio Jacks Board).
- It uses two 3.5mm TRS jacks, which accept insert cables to provide send/return capability to a pair of Pedal I/Os, or additional stereo inputs (or outputs) to a pair of Mixups, or one of each.
- A third 3-pin Link connector on the back panel allows the X and Y jacks to sum with the X and Y buses on a Switched Mult 1U, or to access the L/R (or Send/Return) jacks on a single connected module or case without needing a stereo cable.
Eurorack Ready
- 4 HP Eurorack format module (1U)
- Maximum depth: 0.9" (24mm)
In the Box
- intellijel XY I/O 1U Passive Versatile Jacks Eurorack Module (4 HP)
- Limited 2-Year Manufacturer Warranty
Additional Resources
intellijel XYIO-1USpecs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Horizontal Pitch |
4 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
No
|
| Sync I/O |
No
|
Power
| Power Requirements |
Passive/No Power Required
|
Physical
| Rackmount Size |
1 RU
|
| Horizontal Pitch |
4 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.135 lb
|
| Box Dimensions (LxWxH) |
4.7 x 3.3 x 3"
|
