IOGEAR GWLRSSKIT4 Overview

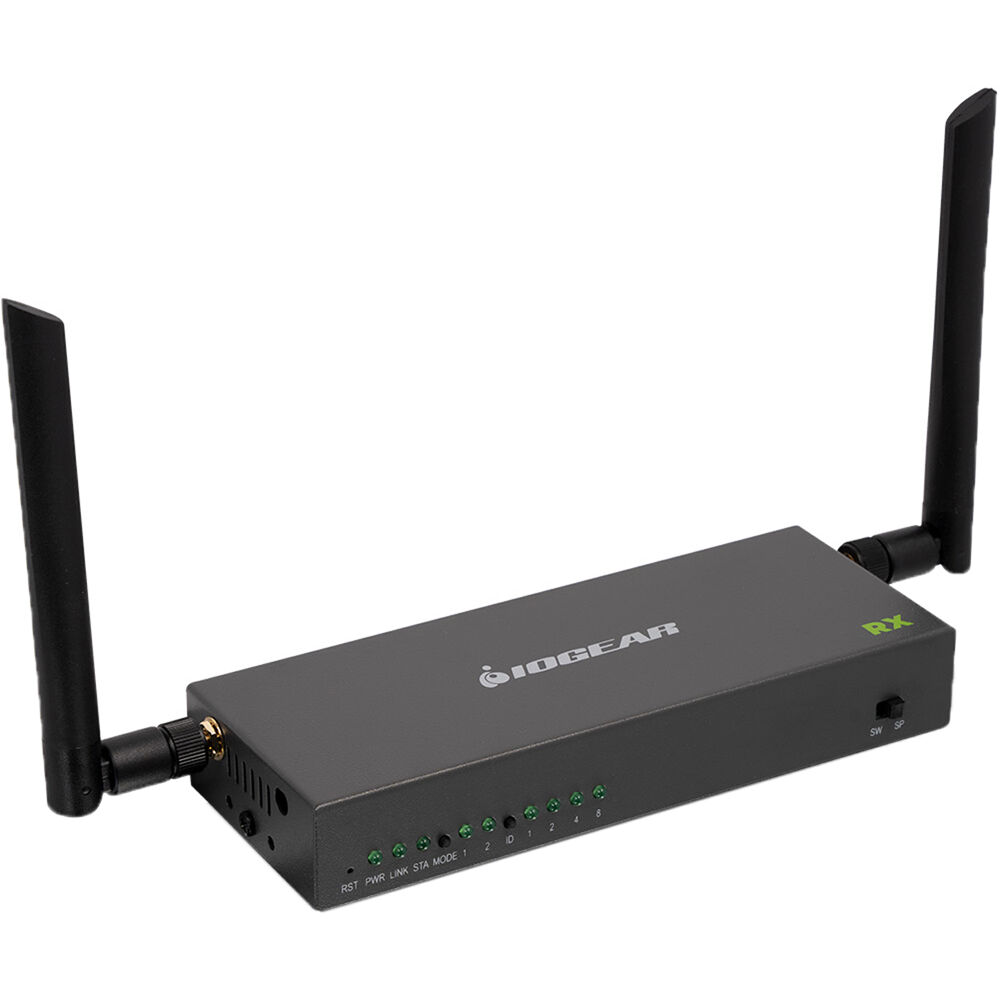

Expand your wireless content distribution capabilities with the Receiver for Long-Range Wireless 4K Video Kit from IOGEAR. This receiver adds onto the IOGEAR Long Range Wireless 4K Video Kit, allowing it to take advantage of Splitter Mode. With Splitter Mode, you can use your existing transmitter to send its signal to this and up to another three receivers. Receivers can be connected to displays dispersed around a business or public space, allowing you to convey advertising and other critical information all at once. Please note that the addition of this receiver cuts the system's transmission range in half, from a maximum of up to 600', to a minimum of up to 75' if four receivers are used.
- Control the transmitted device or PC via IR, RS-232, or dual USB Type-A ports and optional keyboard and mouse
- Up to 4096 x 2160/30p received wireless monitor resolution
- Built-in MIMO technology
- AUX audio input and output for connecting to an optional speaker or amplifier
- Low <10 ms latency
In the Box
- IOGEAR Receiver for Long-Range Wireless 4K Video Kit
- 12V/1A Power Supply
- 2 x Antenna
- Mounting Kit
- IR Receiver Cable
- HDMI Cable
IOGEAR GWLRSSKIT4 Specs
| Wireless Range |
600' / 182.9 m |
| Frequency Range |
4.9 to 5.9 GHz |
| Wi-Fi |
None |
| Video Format |
4K DCI: 30p |
| Latency |
< 10 ms |

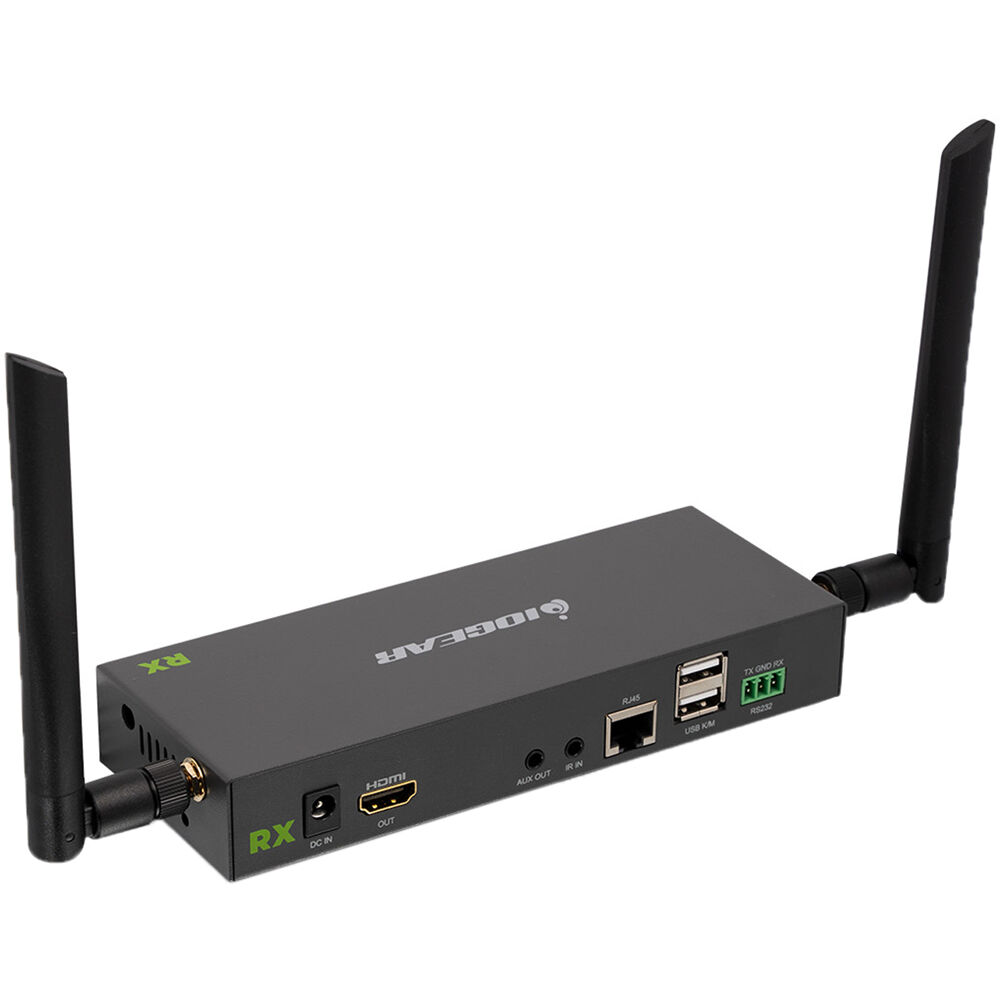

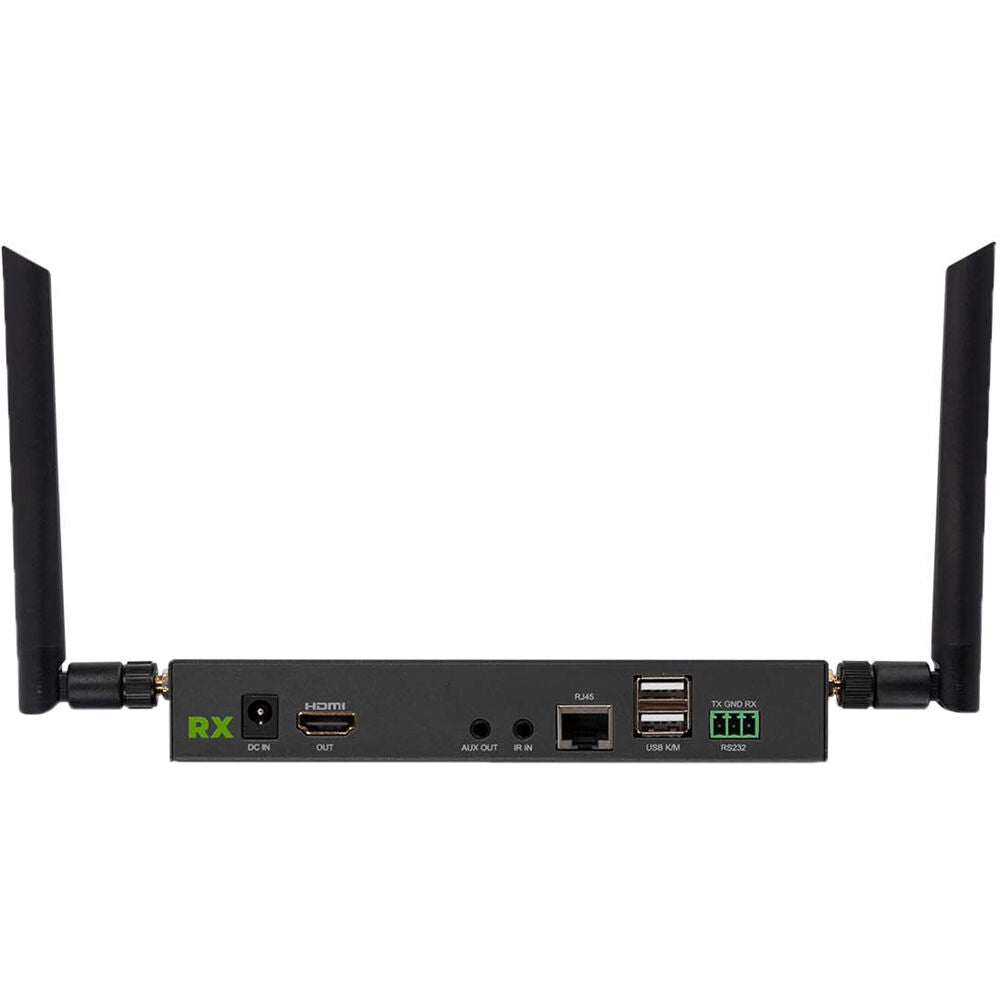

Interfaces
| Inputs |
2 x USB-A (Keyboard / Mouse) Female
1 x RJ45 (LAN) Female
1 x 1/8" / 3.5 mm (IR) Female |
| Outputs |
1 x HDMI Female
1 x 1/8" / 3.5 mm Female
1 x Block 3-Pin (RS-232) Female |
Standards
| HDCP Support |
Version 1.4 |
| EDID Support |
None |
Power
| Power Connector |
1 x Barrel (12 VDC at 1 A) Input |
Environmental
| Operating Temperature |
32 to 131°F / 0 to 55°C |
General
| Dimensions |
9.75 x 2.5 x 1" / 24.77 x 6.3 x 2.5 cm |
| Weight |
0.67 lb / 0.3 kg |
Packaging Info
| Package Weight |
1.66 lb |
| Box Dimensions (LxWxH) |
9.5 x 6.3 x 2.1" |
