Description
iOptron HAE16C Overview

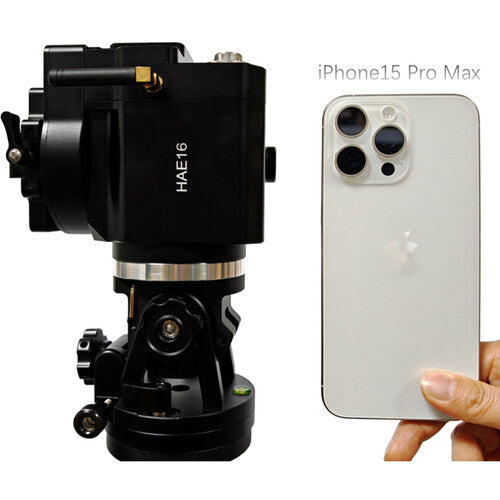

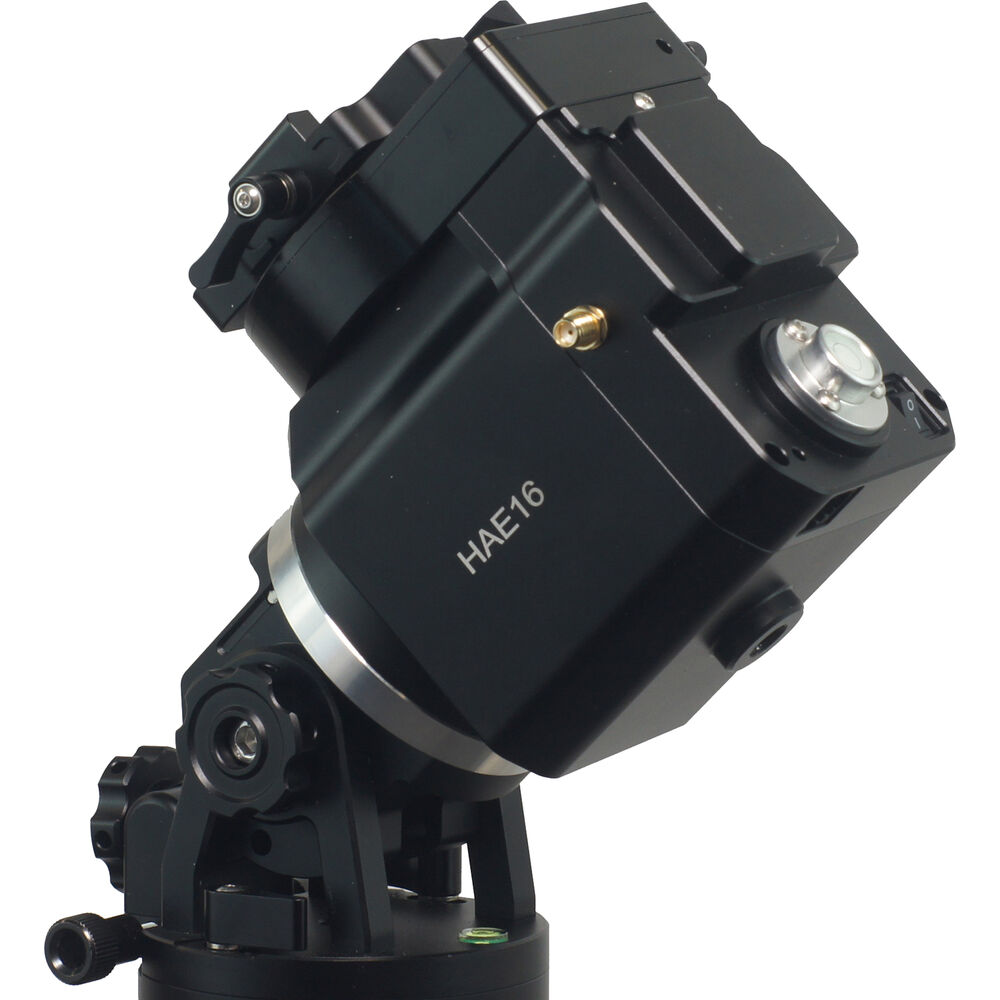

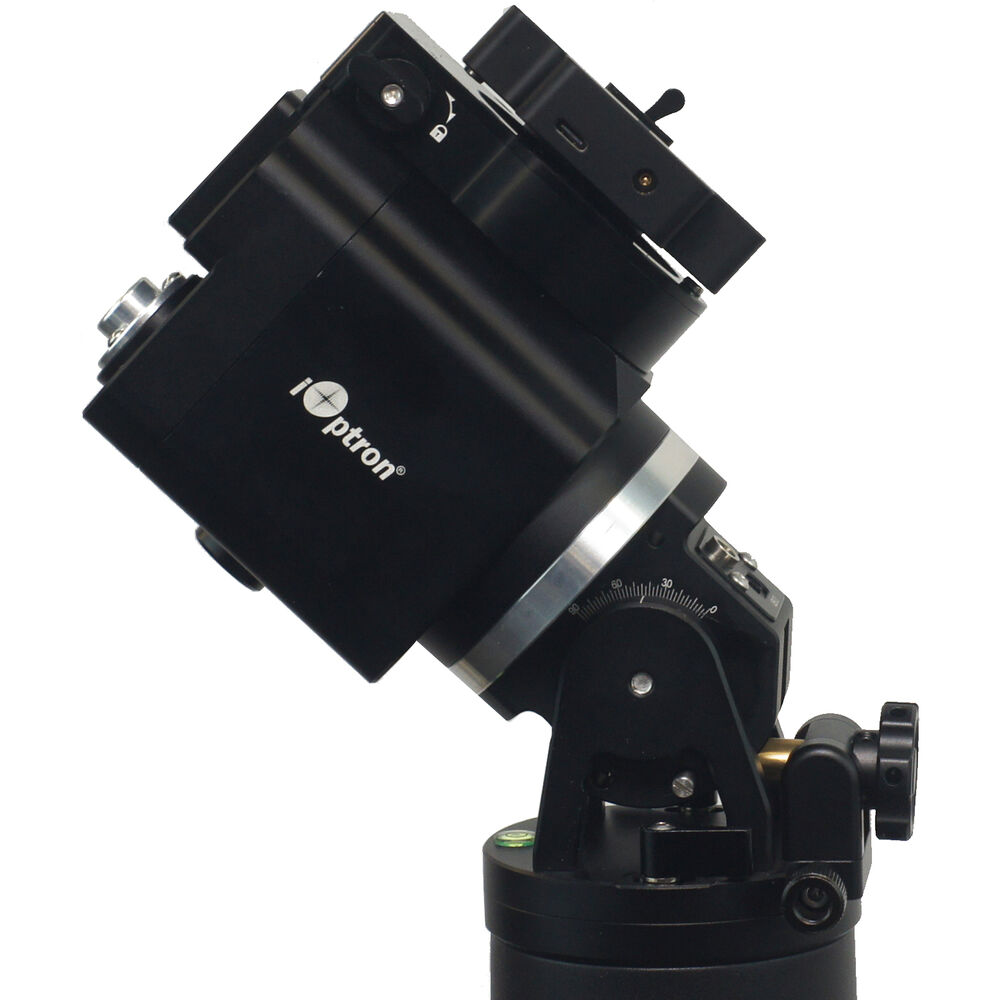

Small and light but capable of supporting 18 pounds of gear with no counterweight, the HAE16C Strain Wave Alt-Az/EQ Mount from iOptron offers precise go-to tracking in a highly portable form factor. The mount employs strain wave gearing for the right ascension axis and worm gearing for the declination. Power and USB cables plug in to the non-moving base and saddle to avoid tangling and a friction brake on the RA axis provides a safe, controlled stop even if the mount loses power. Install an optional counterweight and shaft and the OTA and accessories capacity rises to 26.5 pounds. Upgradeable firmware, built-in Wi-Fi, and a zero position locating feature make the HAE16C a solid choice for observation and imaging.
- Combines advanced strain wave and traditional worm gear system technology
- 360-second gear period
- Payload capacity of 18 pounds with no counterweight, increases to 26.5 pounds with optional counterweight and shaft
- Sturdy CNC-machined all-metal housing
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- Built in zero position search and locator

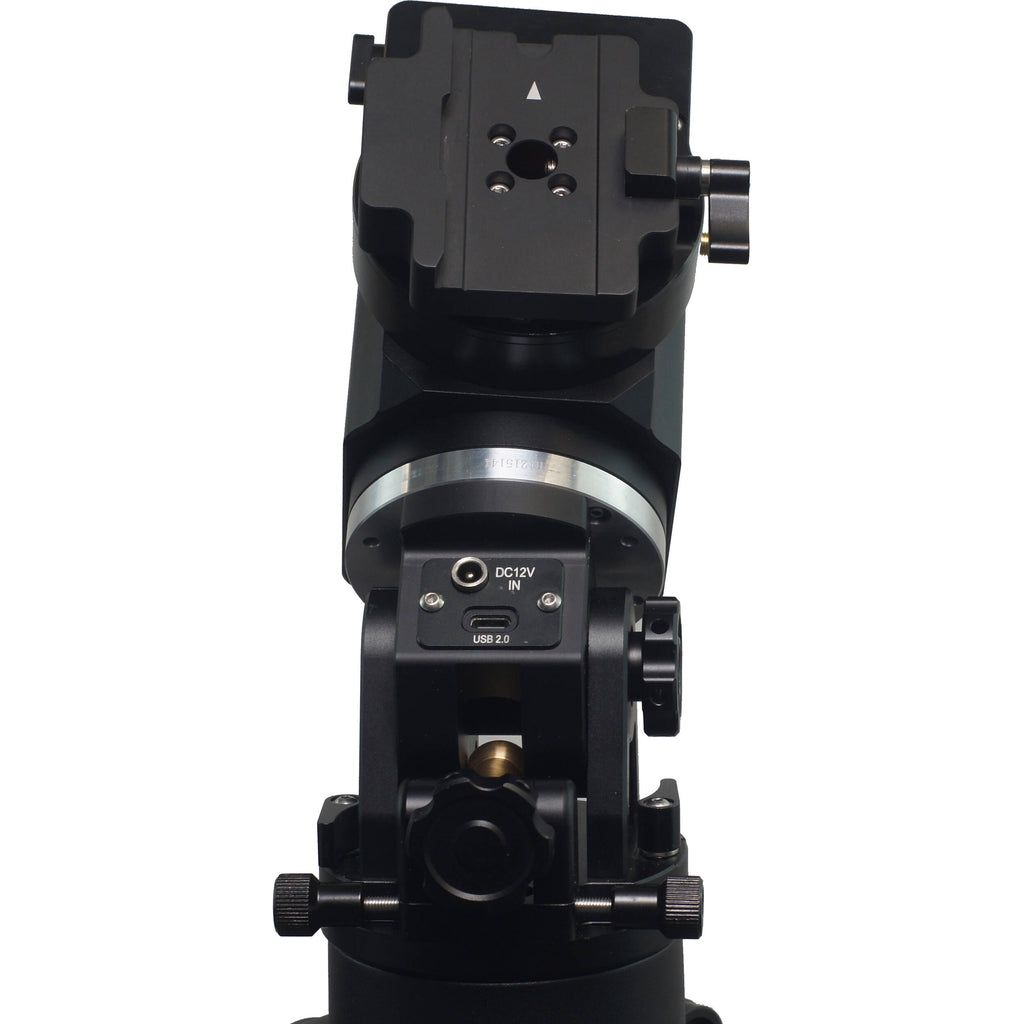

- Stationary power and USB inputs eliminate tangled cables
- USB-C ports for firmware upgrade and computer control
- Built-in Wi-Fi
- Supports optional Go2Nova 8411 handset with OLED display
- Supports iOptron Commander, ASCOM, and INDI
- Vixen dovetail saddle
Items Included
- iOptron HAE16C Strain Wave Alt-Az/EQ Mount
- Soft Carrying Case
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
iOptron HAE16C Specs
| Mount Type |
Alt-Azimuth/German Equatorial
|
| GoTo Capability |
Yes
|
| Payload Capacity |
18 lb / 8.2 kg (without Counterweight)
26.5 lb / 12 kg (with Counterweight) |
| Motor |
Dual Axis
|
| Power Source |
AC Adapter with Power Brick
|
| Battery |
1x Rechargeable
|
| Mounting |
To Optical Tube Assembly: Vixen-Type Saddle
|
| GPS |
No
|
| Wireless |
Wi-Fi
*Built-In |
| Weight |
5.7 lb / 2.6 kg (with Saddle)
|
| Mount Type |
Alt-Azimuth/German Equatorial
|
| GoTo Capability |
Yes
|
| Payload Capacity |
18 lb / 8.2 kg (without Counterweight)
26.5 lb / 12 kg (with Counterweight) |
| Motor |
Dual Axis
|
| Altitude Adjustment |
Yes
|
| Latitude Adjustment |
0 to 90°
|
| Declination Adjustment |
Yes
|
| Right Ascension Adjustment |
Yes
|
| Counterweight |
Yes
|
| Polar Axis Scope |
Yes (Not Included)
|
| Power Source |
AC Adapter with Power Brick
|
| Battery |
1x Rechargeable
|
| Input Power |
12 VDC at 5 A
100 to 240 VAC, 50 / 60 Hz |
| Inputs / Outputs |
USB-C, Barrel / Coax
|
| Mounting |
To Optical Tube Assembly: Vixen-Type Saddle
|
| GPS |
No
|
| Wireless |
Wi-Fi
*Built-In |
| Materials |
Aluminum
|
| Operating Conditions |
-4 to 104°F / -20 to 40°C
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
5.7 lb / 2.6 kg (with Saddle)
|
