Description
The IPGard 8-Port Single-Head Dual-Link DVI-I KVM Switch allows users to control keyboard, video and mouse operation on up to eight computers with DVI displays or HDMI/VGA displays with an optional adapter. It supports native video resolution up to 2560 x 1600 at 60 Hz. Designed for use in secure defense and intelligence applications, this switch is NIAP PP 3.0 certified and includes security features that meet Information Assurance safe control standards.
This switch emulates the presence of a keyboard and a mouse for every attached computer through a USB cable, preventing direct connection between the peripherals and the connected computer. It also prevents unwanted and unsecure data from getting transmitted through the DDC lines by means of secure EDID learning and emulation.
The unit is equipped with internal anti-tamper switches, which sense attempts to open the device enclosure. Once the system identifies such an attempt, the unit shuts off connections with all the attached PCs and peripherals, disabling any functionality. The controller of the unit comes with a protection feature that prevents reprogramming or reading the firmware. The enclosure is also protected with a tamper-evident seal to provide a visual evidence if the unit has been opened.
- Main Highlights
-
- Supports Windows, Mac and Linux OS
- Single-head DVI-I video interface
- Native DVI-I resolutions support up to 2560 x 1600 at 60 Hz
- Supports balanced speakers output and switching

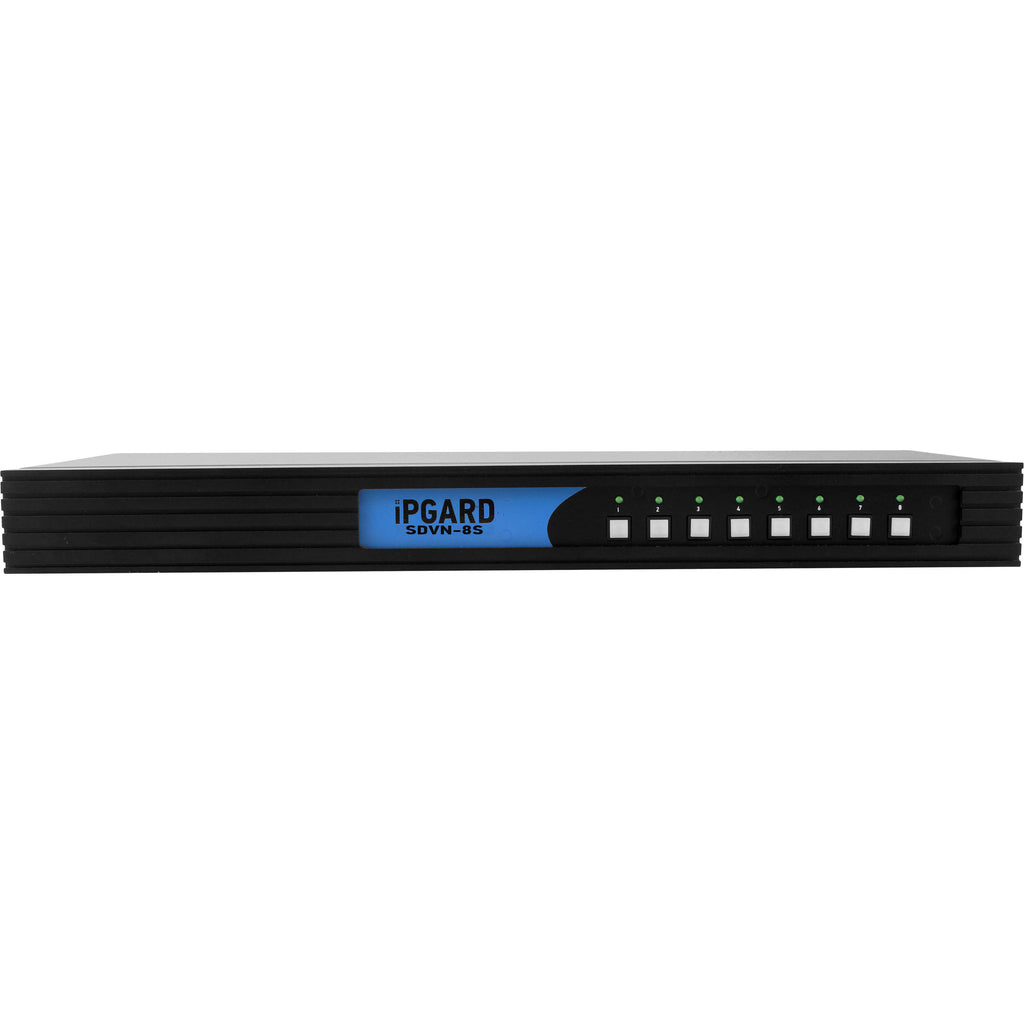

- Front panel tactile buttons with LED indicator
- External power supply (included)
- Made in USA
- Security Features
-
- Non-reprogrammable ROM
- Active anti-tamper switches
- Long-life internal anti-tampering battery
- External tamper-evident seals
- Protected firmware
- Keyboard, mouse and video emulation
- Secure EDID emulation
- Absolute isolation on USB channels � no data leakage between ports
- Certified by NIAP (Protection Profile for Peripheral Sharing Switch Version 3.0)
- Applications
-
- Government operations
- Defense applications
- Secure control rooms
- Corporate communications
- Server operations
- Educational administrations
- Medical facilities
- Banking network
- Insurance data centers
- Transit management
- Industrial operation
- Intelligence communications
IPGard SDVN-8S specs
| Video | |
|---|---|
| Format | DVI-I Dual Link, DVI 1.0, DVI-D, XVGA |
| Maximum Pixel Clock | 248 MHz |
| Input Interface | 8 x DVI-I 29-pin |
| Output Interface | 1 x DVI-I 29-pin |
| Resolution | 2560 x 1600 at 60 Hz |
| DDC | 5 V p-p (TTL) |
| Input Equalization | Automatic |
| Cable Length | Input & Output: Up to 20' (6 m) |
| Data Rate | 1.65 GB/s |
| USB | |
|---|---|
| Signal Type | USB 1.1 and 1.0 keyboard and mouse only |
| Input Interface | 8 x USB Type-B |
| Output Interface | 2 x USB 1.1 Type-A for keyboard and mouse connection only |
| Emulation | Keyboard and mouse |
| Audio | |
|---|---|
| Audio Input | 8 x 3.5 mm stereo audio |
| Audio Output | 1 x 3.5 mm stereo audio |
| General | |
|---|---|
| Max Computer Connections | 8 |
| Panel | Front panel SELECT buttons |
| Power | External 100 to 240 VAC / 12 VDC 3 A at 36 W |
| Approvals | NIAP PP 3.0, UL, CE, and ROHS compliant |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity | Up to 80% (no condensation) |
| Dimensions | 17 x 1.8 x 8.7" / 43.2 x 4.6 x 22 cm |
| Weight | 6.3 lb / 2.9 kg |
- PS12VDC3A 12 VDC 3A Power Adapter
- Limited 1-Year Warranty
