Description
Juice Goose JG JUNIOR Overview
- 1Description
- 2Connectivity
- 3Capacity
- 4Power Protection
- 5Power Cord
- 6Circuit Breaker
The JGJr Power Distribution Center from Juice Goose is intended for use in 19-inch rackmount environments. It features 6 NEMA 5-15R outlets that are rotated to better accommodate "wall wart" power supplies. The outlets draw power via the unit's 6-foot NEMA 5-15P power cord. To protect your installation from electrical damage, the JGJr features a front-mounted circuit breaker, line conditioning, and spike protection.
Connectivity

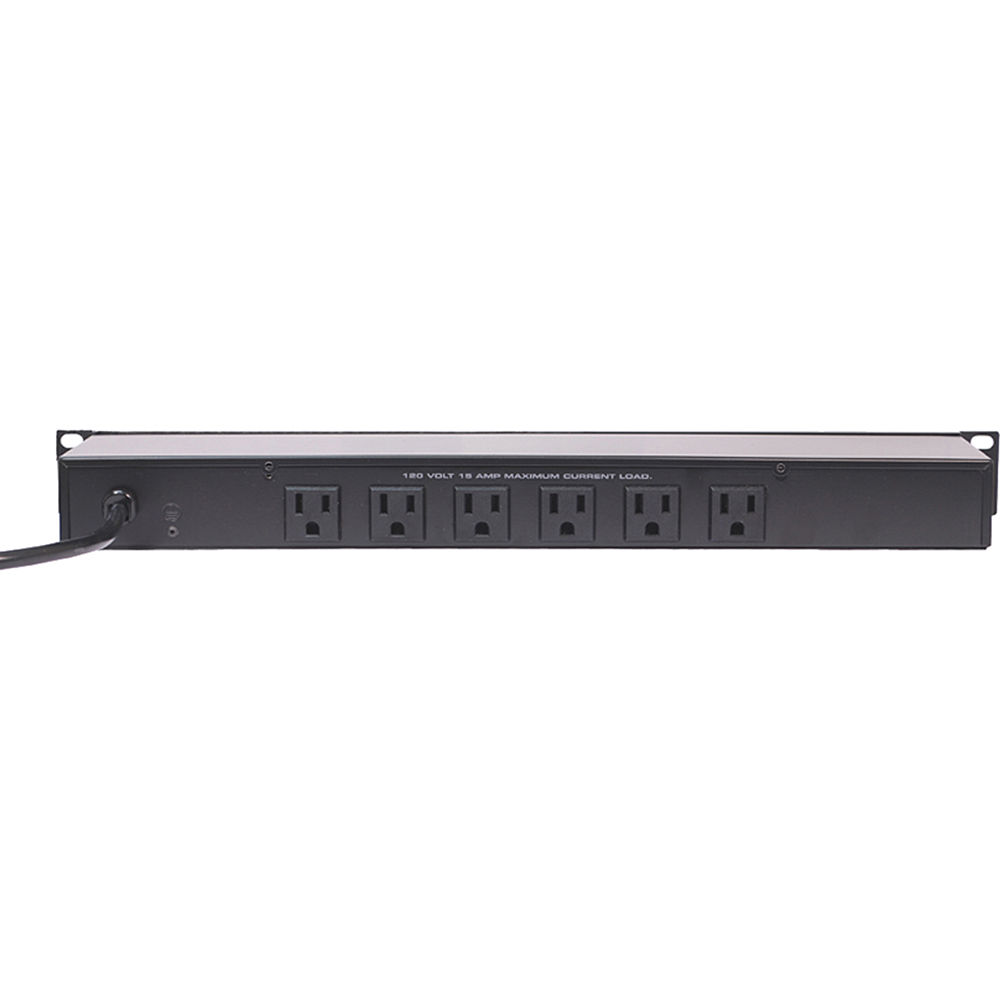

The JGJr provides 6 AC receptacles on the back that are rotated to better accommodate "wall wart" power supplies. Each of the AC outlets is NEMA 5-15R, rated for 15 amps.
Capacity
The JGJr has a 15A circuit breaker and a 12A maximum current rating.
Power Protection
The unit features AC power protection that includes a fast-acting metal oxide varistor, which guards against high energy surges between the line and neutral power leads. This protection also includes filtration capacitance, which enhances the surge protection and adds a primary level of line noise elimination.
Power Cord
The power cord is rated for 15A and features a NEMA 5-15P plug. It's 6' long.
Circuit Breaker

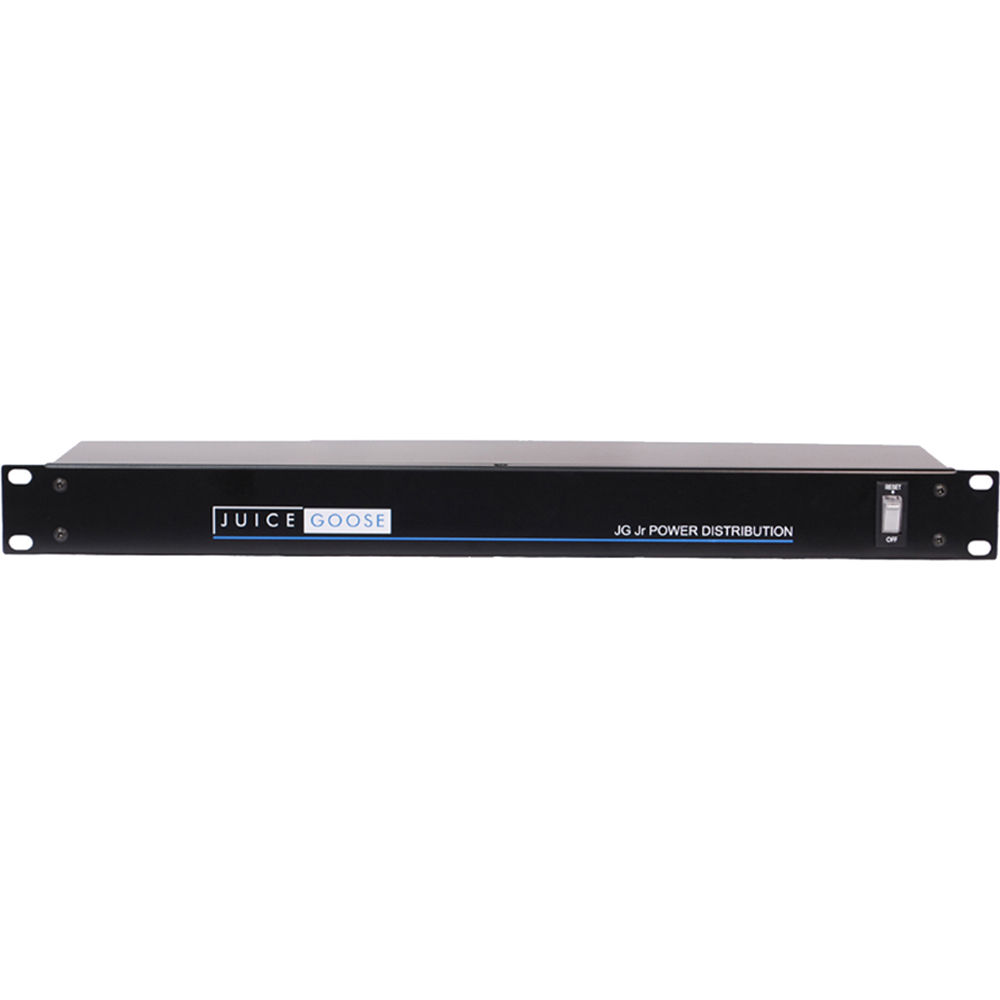

The JGJr features a circuit breaker mounted on the front of the chassis and is rated for 15A.
UPC: 852560000262
In the Box
- Juice Goose JGJr Power Distribution Center for 19" Rack Systems
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Connectivity
- Capacity
- Power Protection
- Power Cord
- Circuit Breaker
Juice Goose JG JUNIOR Specs
| Power Outputs |
6x NEMA 5-15
|
| Input Voltage |
120 VAC, 60 Hz
|
| Maximum Current Capacity |
12 A
|
| Overload Protection |
15 A
|
| Spike Protection |
Metal oxide varistor (line & neutral)
|
| Power Cable |
15 A, 16/3 SJT with NEMA 5-15P plug
|
| Power Cable Length |
6' (1.8 m)
|
| Dimensions |
1.75 x 19 x 4.5" (4.4 x 48.3 x 11.4 cm)
|
| Weight |
4.5 lb (2.0 kg)
|
Packaging Info
| Package Weight |
4.05 lb
|
| Box Dimensions (LxWxH) |
21.2 x 6.3 x 2.3"
|
