Description
- Programmable Design
- IP Control
- Dimmable, Colored LED Backlit Buttons

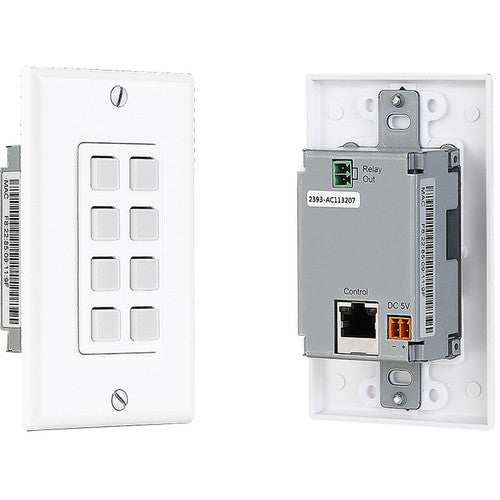

Expand or begin your smart control setup with the KanexPro 8-Button IP-Based Control Keypad with PoE . It is programmable via RJ45 IP control and features eight backlit buttons that can be set to control a variety of tasks for smart home control systems or professional or enterprise A/V systems. Macros can also be programmed and activated to initiate a sequence of commands.
- Colored LEDs & PoE Wall Plate
- The colorful LED buttons are designed to be suitable for all environments and can be dimmed to your preferred setting. When connected to a network router or switch with PoE, it gets its power through the LAN connection; a separate power supply is included for cases where PoE may not be available.
- Integrated Clock & Calendar-Based Schedule System
- The integrated clock and calendar-based scheduling feature allows you to trigger macros to control devices within your installation at a specific time or on a recurring schedule.
- Other Features
-
- Well suited for use in smart home control systems, classrooms, conference rooms, or showrooms where A/V devices can be controlled with the click of a button
- Single-gang wall plate design with adjustable LED brightness
- Eight customizable backlit buttons
- Up to 128 total commands can be stored and used across all macros in the system (up to 16 per macro)
- Supports relay triggers to control compatible devices
- Supports time and date macro scheduling (single and recurring)
- Supports 48 hours of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss
- Supports customizable daylight savings time settings for scheduling
- Can be controlled via Keypad, Telnet, and WebGUI control
- PoE (power over Ethernet) or DC power supply
- TCP/IP Ethernet control for simple set up and programming
- Built-in web GUI provides fast and simple set-up
- Mini-USB port for easy configuration access
- Sticker labels for buttons included for controller customization
- Macro capability � any button can be configured to execute multiple actions through the web-based GUI
- Toggle capability provides additional flexibility by allowing two different sets of commands to be executed with alternating presses of a button
- Activity LEDs indicate various controller states
UPC: 813982021525
| Input Interface | 8 x buttons 1 x RJ45 IP control |
| Output Port | 1 x 2-pin terminal block relay |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity | 20 to 90%, non-condensing |
| ESD Protection | Air Discharge: ±12 kV Contact Discharge: ±8 kV |
| Power Supply | 5 VDC, 2.6 A |
| Power Consumption | 3.3 W |
| Chassis Material | Plastic, metal |
| Number of Gangs | 1 |
| Dimensions (W x H x D) | Overall: 2.75 x 4.5 x 1.5" / 69.9 x 114.3 x 38 mm Case Only: 2.75 x 4.5 x 1.4" / 69.9 x 114.3 x 35.5 mm |
| Weight | 5.3 oz / 150 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.3 lb |
| Box Dimensions (LxWxH) | 8.7 x 7.2 x 2.9" |
In the Box
KanexPro 8-Button IP-Based Control Keypad with PoE
- USB Type-A to USB Mini-B OTG Connector
- Terminal Block Connector
- 2 x Button Sticker Sheets
- DC Power Adapter
- Limited 3-Year Warranty
