Description

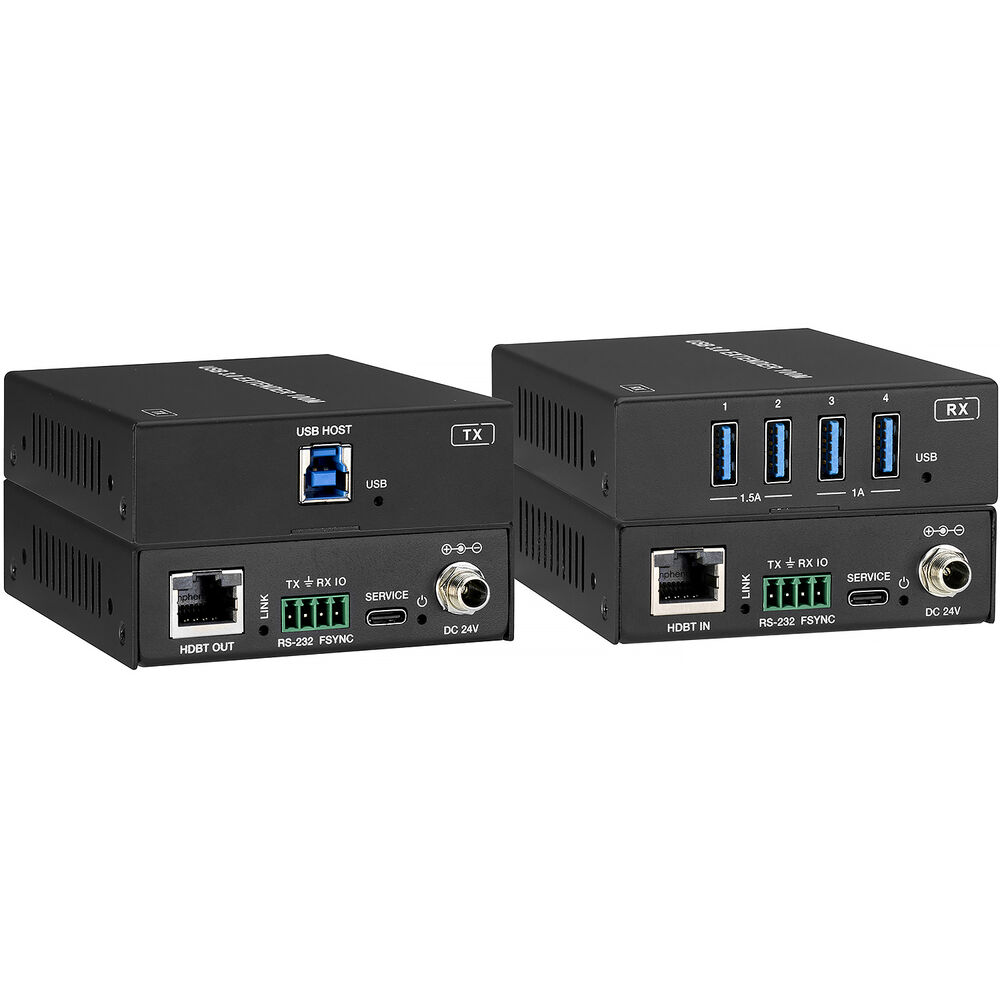

KanexPro EXT-USB3100M Overview
Control USB webcams, flash drives, and other peripherals from up to 328' away with this USB 3.1 Gen 1 Over Cat 6 Ethernet Extender Kit from KanexPro. By transmitting USB 3.1 Gen 1 (aka 3.0) signals across Cat 6 Ethernet cables, you can transfer up to 5 Gb/s with compatible devices.
Simply connect the USB-B transmitter module to your compatible computer to get started. Then use a separately purchased Cat 6 Ethernet cable to connect it to the 4-port USB-A receiver, which may be powered using the included power adapter. No additional drivers are required. USB 2.0 and 1.1 speeds are supported along with bi-directional 24V Power Over Cat (PoC) is supported. Use the RS-232 and FSYNC GPIO passthrough connector with industrial cameras.
Items Included
- KanexPro USB 3.1 Gen 1 Over Cat 6 Ethernet Extender Kit (328')
- Transmitter
- Receiver
- Locking Power Supply (24 V / 2 A)
- 2 x 4-Pin to 3.5mm Phoenix Connector (Male)
- 4 x Mounting Ear
- 8 x Machine Screw
- Limited 3-Year Manufacturer Warranty
Additional Resources
KanexPro EXT-USB3100M Specs
| Maximum Range |
USB 3.0 / 3.1/3.2 Gen 1: 328.1' / 100 m over Cat 6a Cable
|
| Receiver I/O |
1x RJ45 Input
4x USB-A Output 1x Block 3-Pin (RS-232) Input 1x RJ45 (RS-232) Input 1x USB-C Input |
| Transmitter I/O |
1x USB-B Input
1x Block 3-Pin (RS-232) Input 1x RJ45 Output 1x USB-C Input |
| Power Source |
Power Adapter
|
| Receiver I/O |
1x RJ45 Input
4x USB-A Output 1x Block 3-Pin (RS-232) Input 1x RJ45 (RS-232) Input 1x USB-C Input |
| Transmitter I/O |
1x USB-B Input
1x Block 3-Pin (RS-232) Input 1x RJ45 Output 1x USB-C Input |
| Maximum Number of Devices |
5
|
| Power Source |
Power Adapter
|
| Power Connector |
Unspecified Size Barrel
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| USB Output Current |
2.5 A Total
|
| Power Consumption |
40 W
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Enclosure Material |
Metal
|
| Dimensions |
3.3 x 1.0 x 3.9" / 85.0 x 25.5 x 100.0 mm Each
|
| Weight |
Receiver: 9.2 oz / 260 g
Transmitter: 8.9 oz / 253 g |
| Package Weight |
2.225 lb
|
| Box Dimensions (LxWxH) |
9.4 x 6 x 3.3"
|
