Description

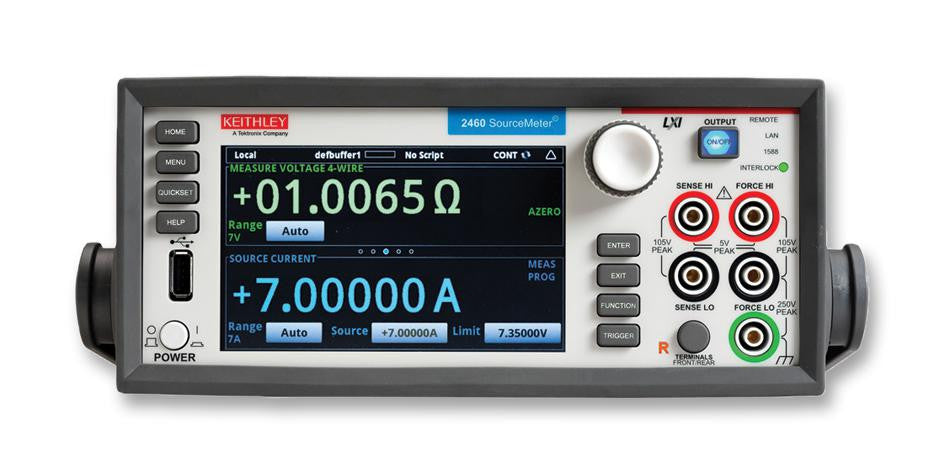

The Model 2460 High Current SourceMeter� Source Measure Unit (SMU) Instrument brings advanced Touch, Test, Invent� technology right to your fingertips. It combines an innovative graphical user interface (GUI) with capacitive touch screen technology to make testing intuitive and minimize the learning curve to help engineers and scientists learn faster, work smarter, and invent easier. With its 7A DC and pulse current capability, the Model 2460 is optimized for characterizing and testing high power materials, devices, and modules such as silicon carbide (SiC), gallium nitride (GaN), DC-DC converters, power MOSFETs, solar cells and panels, LEDs and lighting systems, electrochemical cells and batteries, and much more. These new capabilities, combined with Keithley's decades of expertise in developing high precision, high accuracy SMU instruments, will make the Model 2460 a "go-to instrument" for high current applications in the lab and in the rack for years to come.
- 1 tightly coupled instrument that combines capabilities from analyzers, curve tracers, & I-V systems
- Wide coverage up to 105V, 7A DC/7A pulse, 100W max
- Five-inch, high resolution capacitive touch screen GUI
- 0.012% basic measure accuracy with 6�-digit resolution
- Source and sink (4-quadrant) operation
- Four "Quickset" modes for fast setup and measurements
- Context-sensitive help function
- Front panel input banana jacks; rear panel input mass termination screw connections
- 2460 SCPI and TSP� scripting programming modes
- Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configurations
Applications
Test & Measurement, System Monitoring, Sensing & Instrumentation, Maintenance & Repair
Contents
2460-KIT Rear Panel Mating Mass Terminated Screw Connector, 8608 High Performance Test Leads, USB Cable, Type A to Type B, 1m (3.3 ft), CS-1616-3 Safety Interlock Mating Connector, TSP-Link/Ethernet Cable, Documentation CD, and 2460 Quick Start Guide
Product details
| Source Meter Function | Current/Resistance/Voltage Measure, Current/Voltage Source |
| Source Current Range | 1�A to 7A |
| Source Voltage Range | 200mV to 100V |
| Output Power | 100W |
| Resistance Measurement Range | 2ohm to 20Mohm |
| Product Range | 2400 Series |
| Warranty | 1 Year |
Other details
| Brand | KEITHLEY |
| Part Number | 2460 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
