Description
Key Digital IP1022ENC Overview
- 1Description
- 2Video Walls
- 3Control
- 4USB Routing
- 5HDMI Pass-Through
- 6Audio
- 7Key Digital App-Ready
- 8KDMS Pro Ready
- 9High Dynamic Range
- 10Additional Features

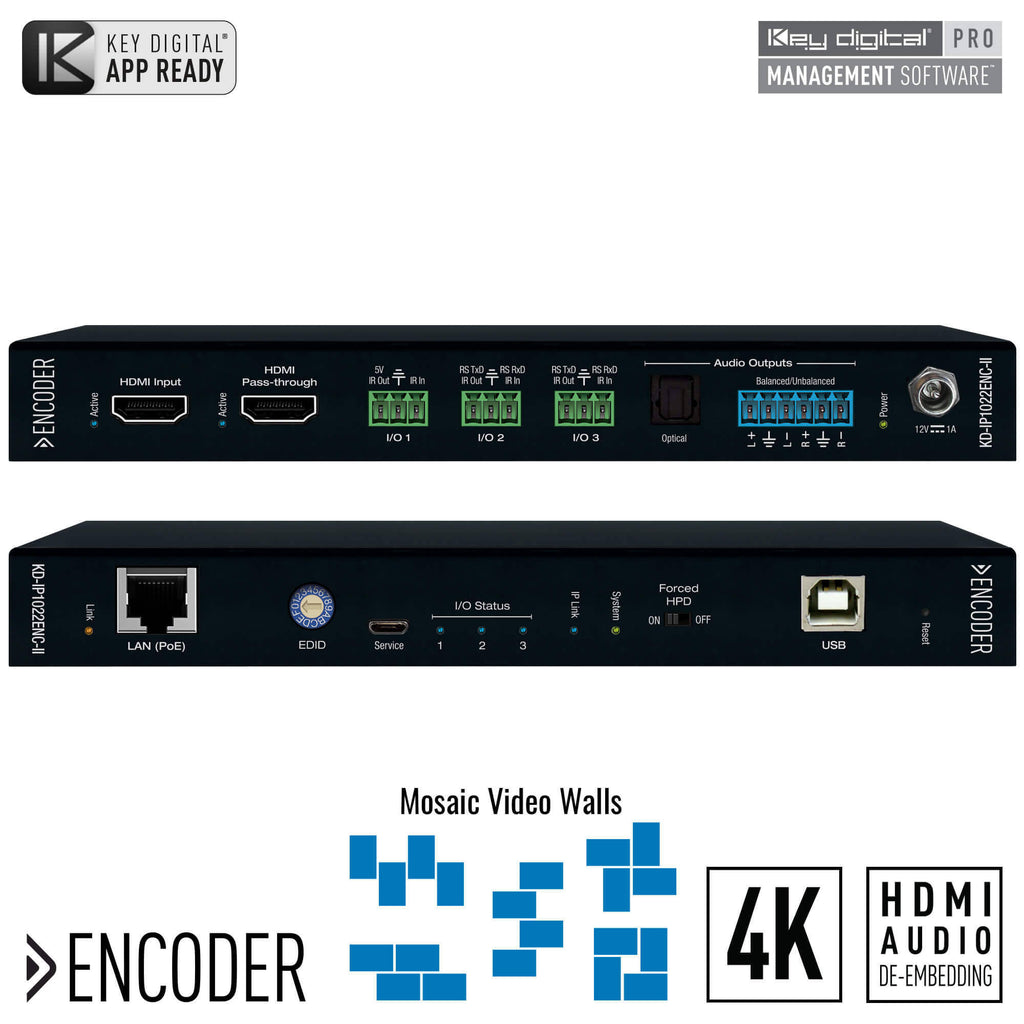

The KD-IP1022ENC-II 4K AV-over-IP Encoder with KVM/USB & Audio De-Embedding from Key Digital features PoE (power over Ethernet), low latency, scaling, support for up to DCI 4K30 video, USB KVM switching, and audio de-embedding. Designed for use with a verified network switch, this app-ready encoder can be mixed and matched with KD-IP822 and KD-IP922 encoders and decoders to create up to 16x16 video walls with a maximum total of 256 displays.

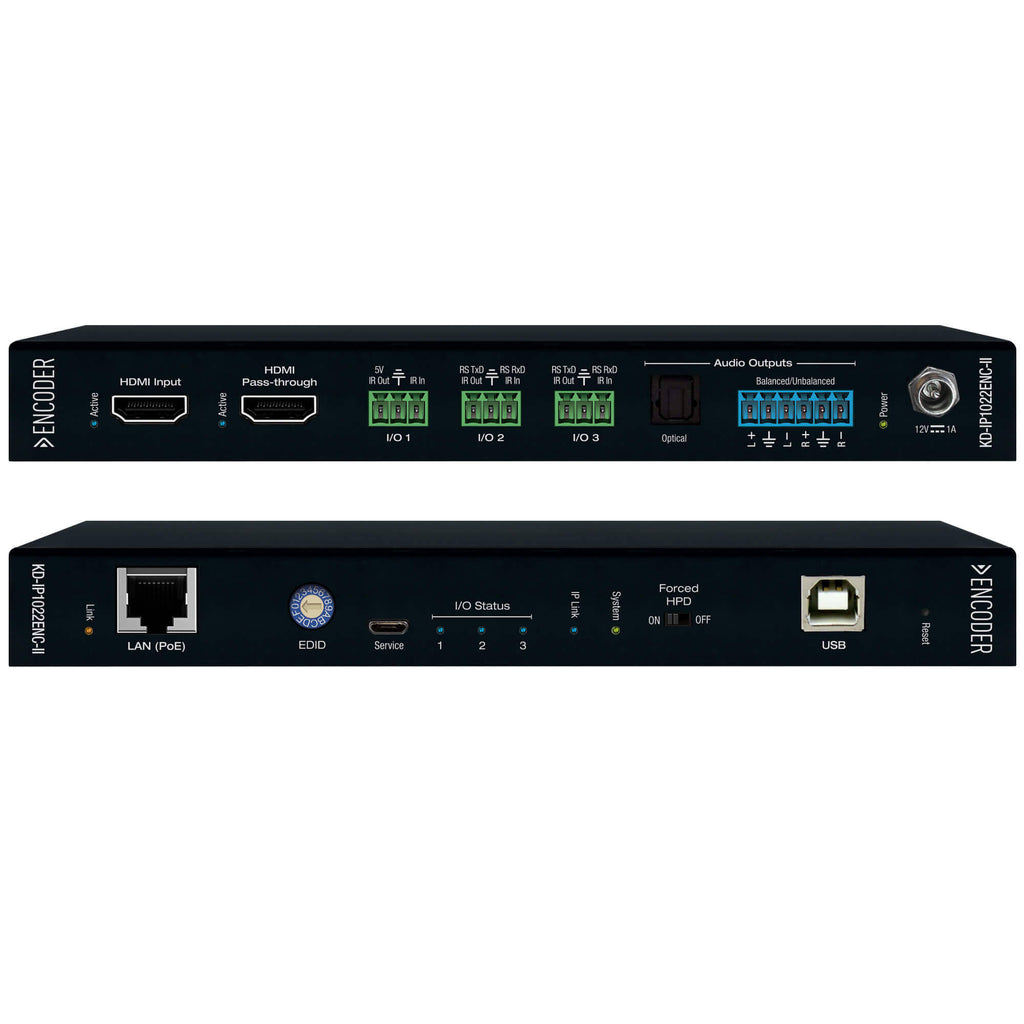

Interfaces include one GbE LAN port, one HDMI input, one HDMI pass-through output, one 6-pin block audio output, one USB-B port for routing up to four KVM devices, and three 3-pin block control ports.

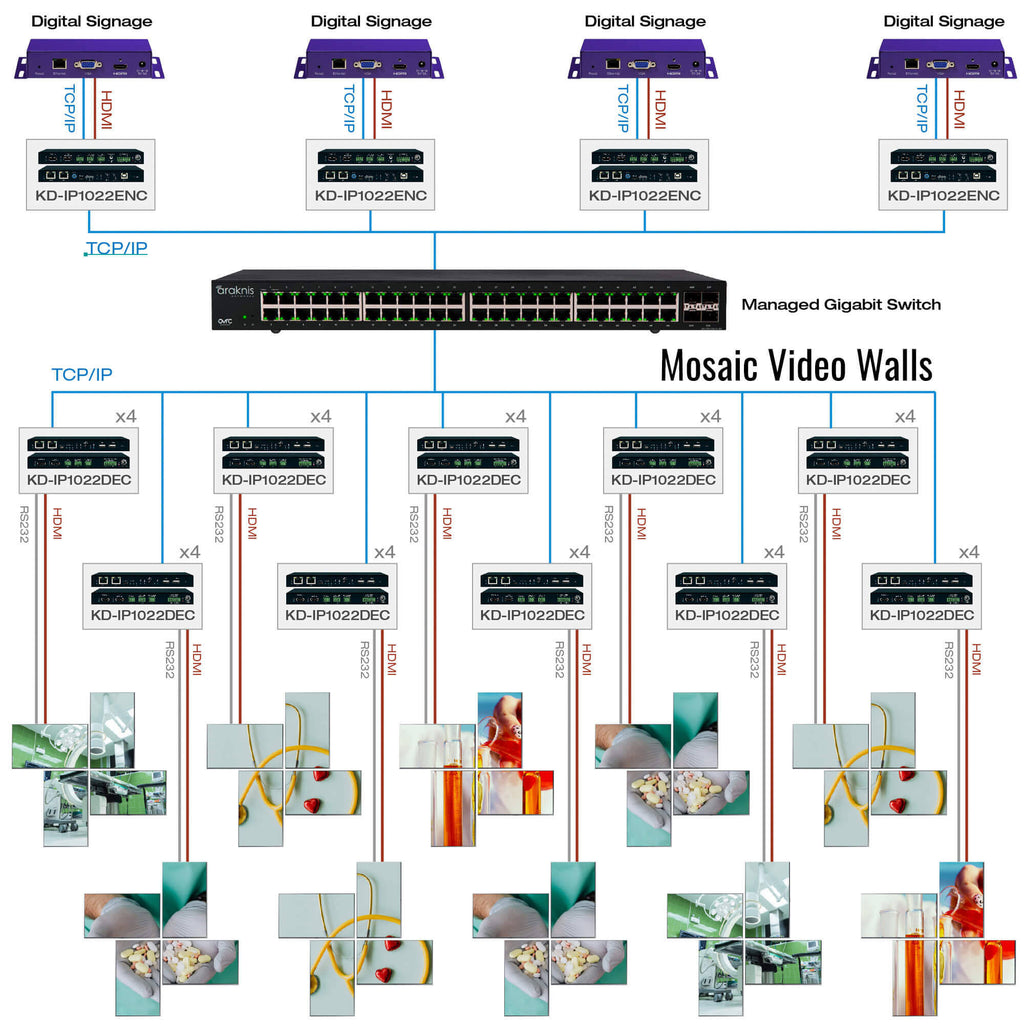

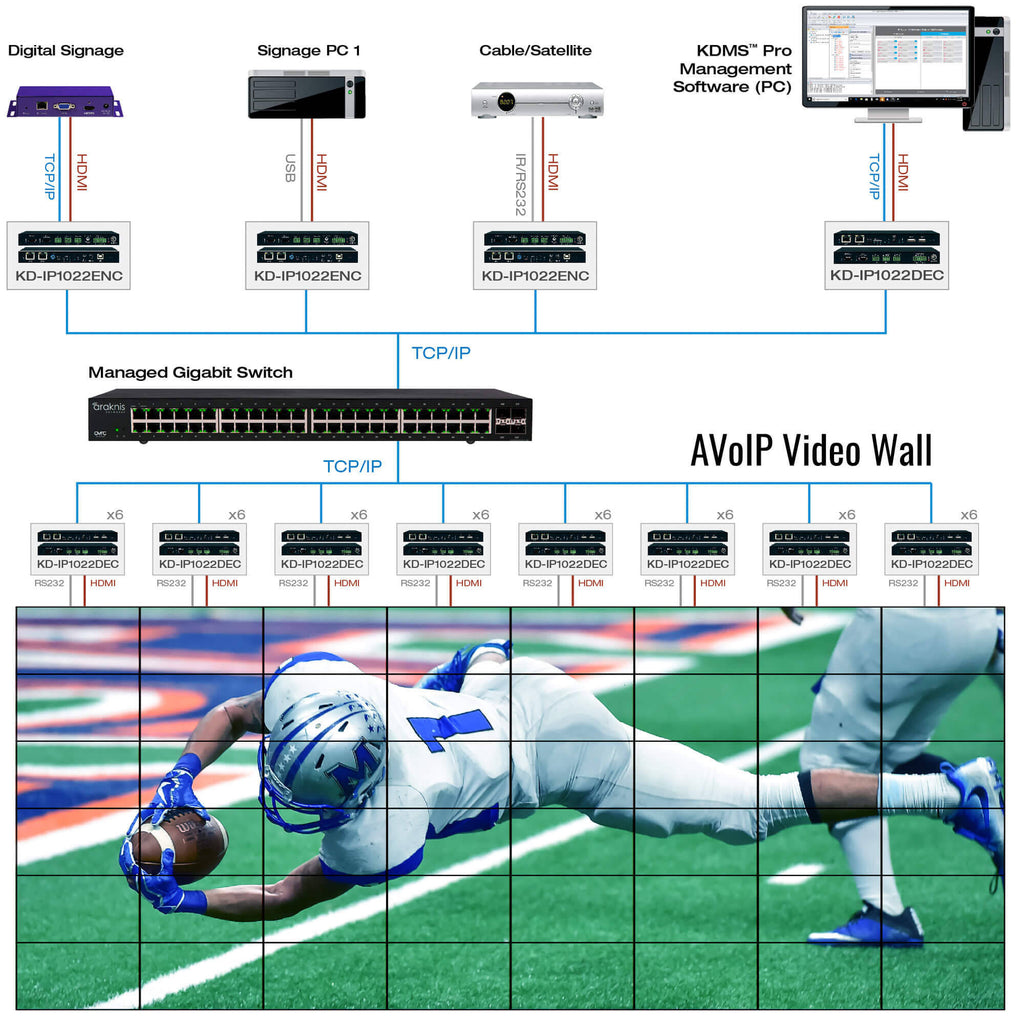

Video Walls
- Encoder + Decoder systems create video walls with up to 16 x 16 with 256 total maximum displays

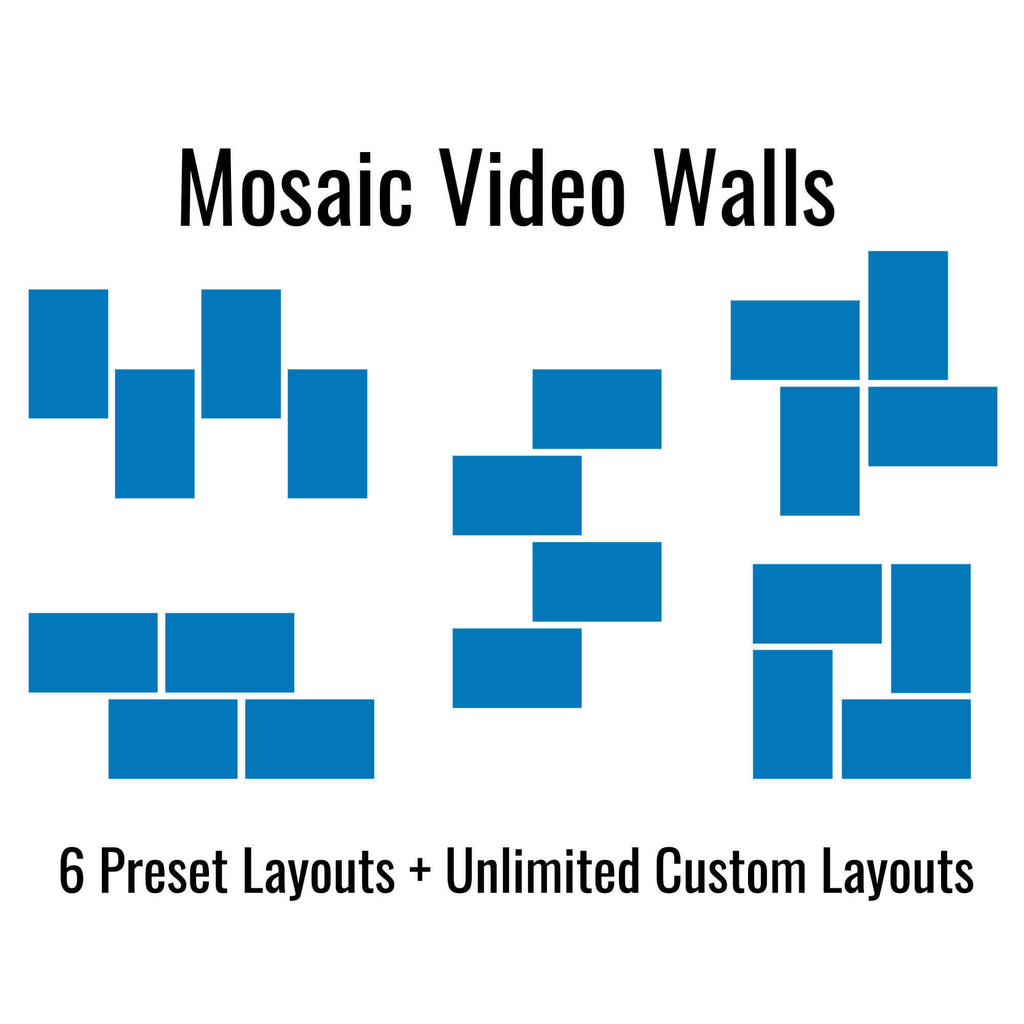

- Create decorative video walls using displays of varying sizes and positioning
- Use templates of popular layouts or easily create fully custom layouts with graphical assistance using KDMS Pro software instead of terminal coding
Control
- Three multi-function ports may be used as Compass Control Pro master controller
- Control using IP control systems via the KeyCode open API to extend control signals or as a third-party control interface
USB Routing
- Video, Audio, and USB switching are all independently routed for multi-layer systems
- USB 2.0 routing follows AV source/display selection with a maximum of four USB keyboard or mouse devices simultaneously routed to a single host computer/encoder
- 1.5 Mb/s maximum bandwidth
- Webcams are not supported
HDMI Pass-Through
Support for HDMI pass-through to connect a local monitor or HDMI audio systems
Audio
- Audio from the HDMI input is de-embedded through analog Phoenix terminal and digital optical ports to enable external audio connectivity with audio systems and amplifiers
- Audio preamp function provides volume, muting, 3-band EQ, and lip sync delay controllable on the audio de-embed port

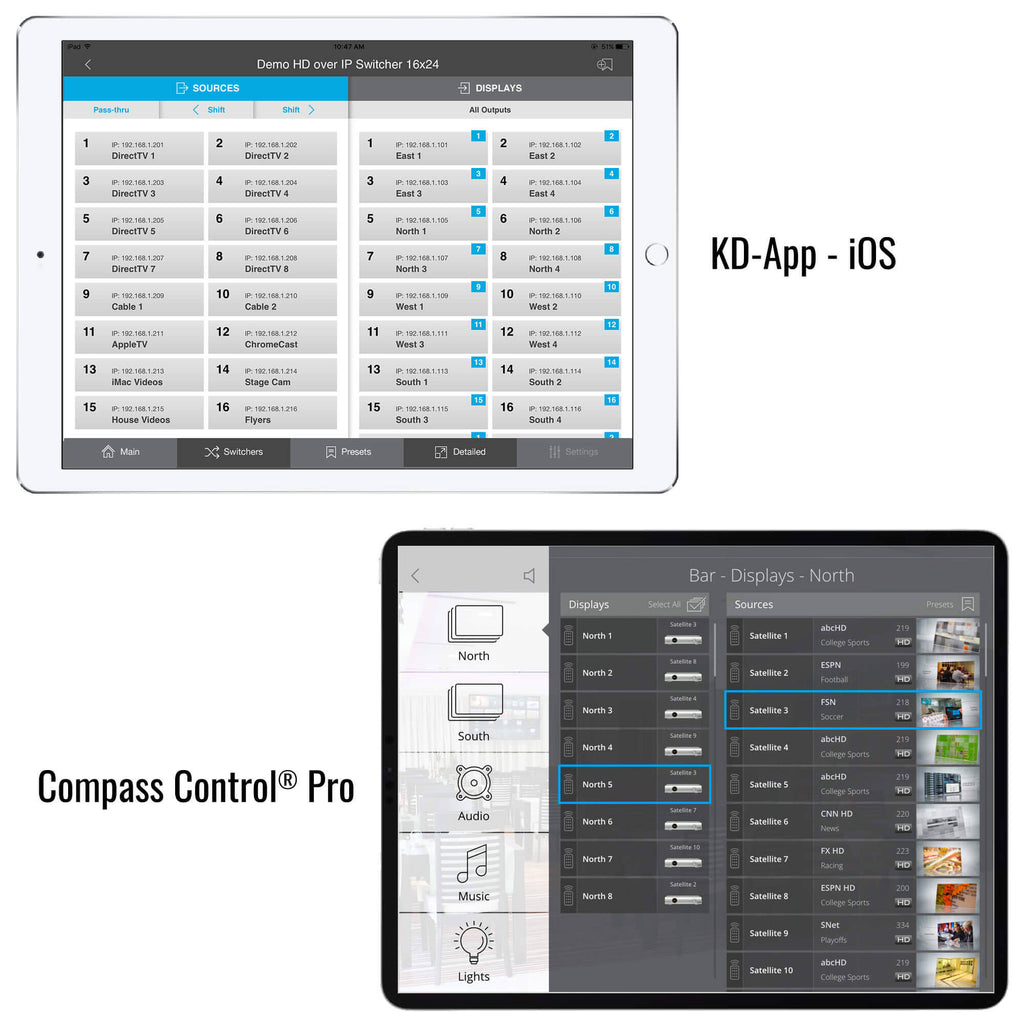

Key Digital App-Ready
- Ready to use the Key Digital app
- Performs a network scan to detect and populate a pre-built GUI
- Includes optional image preview, finger-drag video wall management
- Offers source and display IR control of popular devices
KDMS Pro Ready
- Use with the KDMS Pro PC software for unit and system setup
- Offers a control UI with a clean end-user mode option
- Includes optional image preview, mouse-drag video wall management
- Provides IR and PJ link source and display control of popular devices
High Dynamic Range
- Offers 12-bit, 4:4:4 UHD 4K30 HDR (high dynamic range) for AppleTV sources
- Enables more lifelike images with a greater range of luminance levels
Additional Features
- Backward compatible with previous generation KD-IP1022ENC and KD-IP1022DEC systems
- Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as UHD 4K 4:4:4
- Internal library features 15 default EDID configurations and native EDID data from output/display devices connected to the decoder
- Hot plug detection control enables the integrator to choose if active signal voltage is forced to connected input devices
- Full buffer system manages TMDS re-clocking/signal re-generation, HDCP authentication with source and display, EDID control handshake, and hot plug control
- IR sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block
- Two channels of IR enable control to/from devices connected to encoder and decoder units
- Bidirectional RS-232 control to/from the encoder and decoder unit on Phoenix connector
In the Box
- Key Digital KD-IP1022ENC-II 4K AV-over-IP Encoder with KVM/USB & Audio De-Embedding
- 12V Power Supply
- USB-A to Micro-USB Cable (6')
- 3 x 3-Pin Terminal Block
- IR Sensor (Bare Wire)
- IR Emitter (Bare Wire)
- 2 x L-Bracket Mount
- 4 x Bracket Screw
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Video Walls
- Control
- USB Routing
- HDMI Pass-Through
- Audio
- Key Digital App-Ready
- KDMS Pro Ready
- High Dynamic Range
- Additional Features
Key Digital IP1022ENC Specs
Inputs / Outputs
| Video Inputs |
1 x HDMI
|
| Audio Inputs |
No
|
| Video Outputs |
1 x HDMI
|
| Audio Outputs |
1 x Block 6-Pin
|
| Other I/O |
1 x RJ45 LAN
1 x USB-B 2.0 1 x Micro-USB Service 1 x Block 3-Pin IR 1 x Block 3-Pin RS-232 Input/Output 1 x Block 3-Pin Remote |
| Expansion Slots |
No
|
Format Support
| Input Video Format |
HDMI / RJ45 (8-Bit 4:4:4)
DCI 4K at 24/25/30 fps UHD 4K at 24/25/30 fps 1080p 1080i 720p |
| Output Video Format |
HDMI / RJ45 (8-Bit 4:4:4)
DCI 4K at 24/25/30 fps UHD 4K at 24/25/30 fps 1080p 1080i 576p |
| Embedded Audio |
HDMI/LAN (RJ45) Input
HDMI/LAN (RJ45) Output |
Standards
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Auto-Detect
|
| HDR Compatibility |
Not Specified by Manufacturer
|
| DTS Compatibility |
DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
|
IP Streaming
| Video IP Encoding |
Proprietary: 1280 x 720 to 4096 x 2160 at 30p (125 to 850 Mb/s)
|
Hardware
| Tally Light |
Yes
|
| Wireless |
No
|
Power
| Power I/O |
1 x Barrel (12 VDC at 1 A) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Power Supply: 20 W
|
Environmental
| Operating Temperature |
149°F / 65°C (Recommended)
|
General
| Certifications |
CE, RoHS, WEEE
|
| Dimensions |
6.25 x 3.1 x 1.1" / 15.88 x 7.9 x 2.8 cm
|
| Weight |
14.4 oz / 408 g
|
